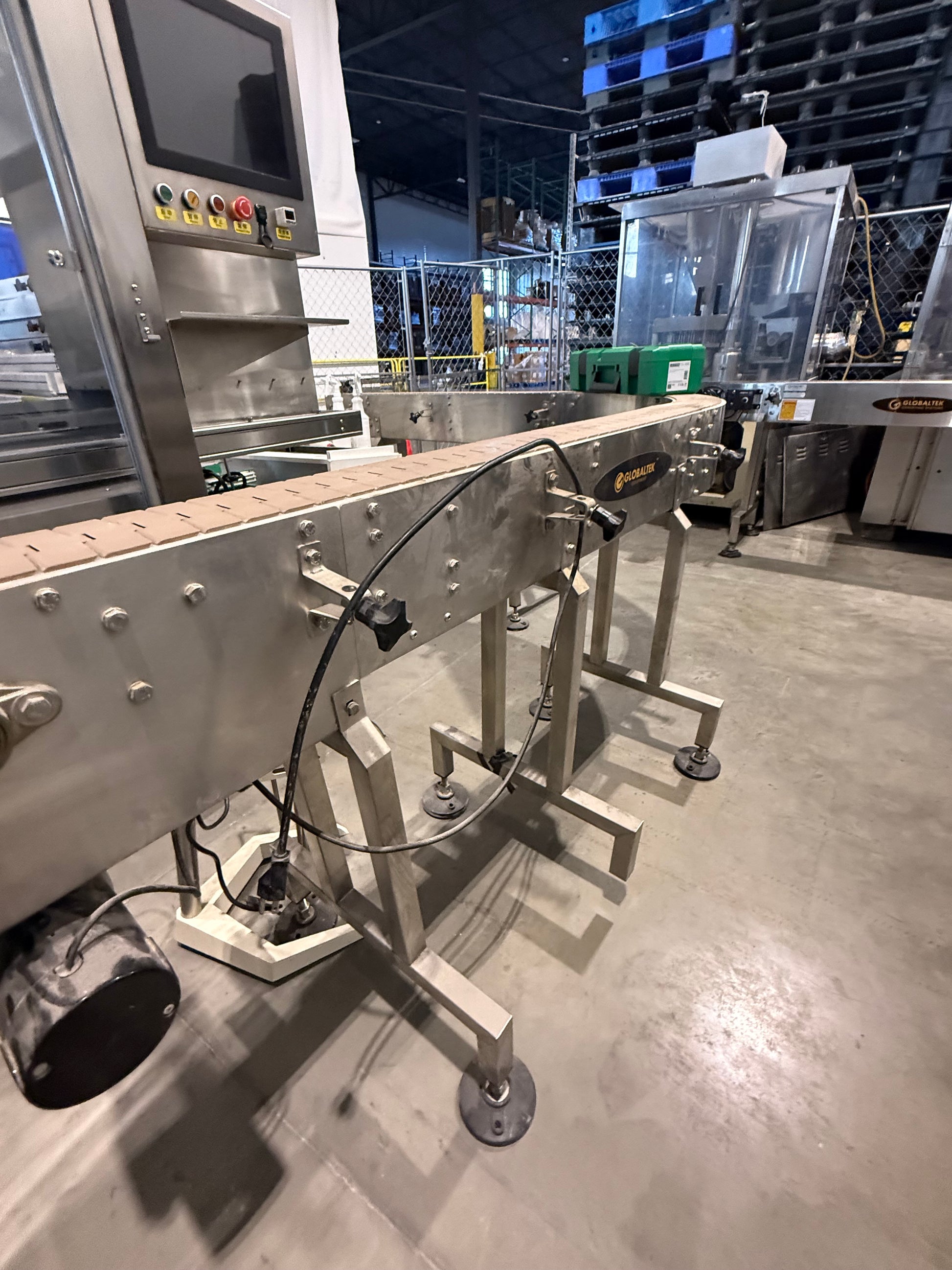

The GlobalTek® Stainless Steel 90 Degrees L-Shape features a Made in USA Bodine motor and variable speed control. This conveyor is ideal to maximize space in a production line and adjust to corners. They are used for perpendicular product transfers without disturbing the flow and orientation.

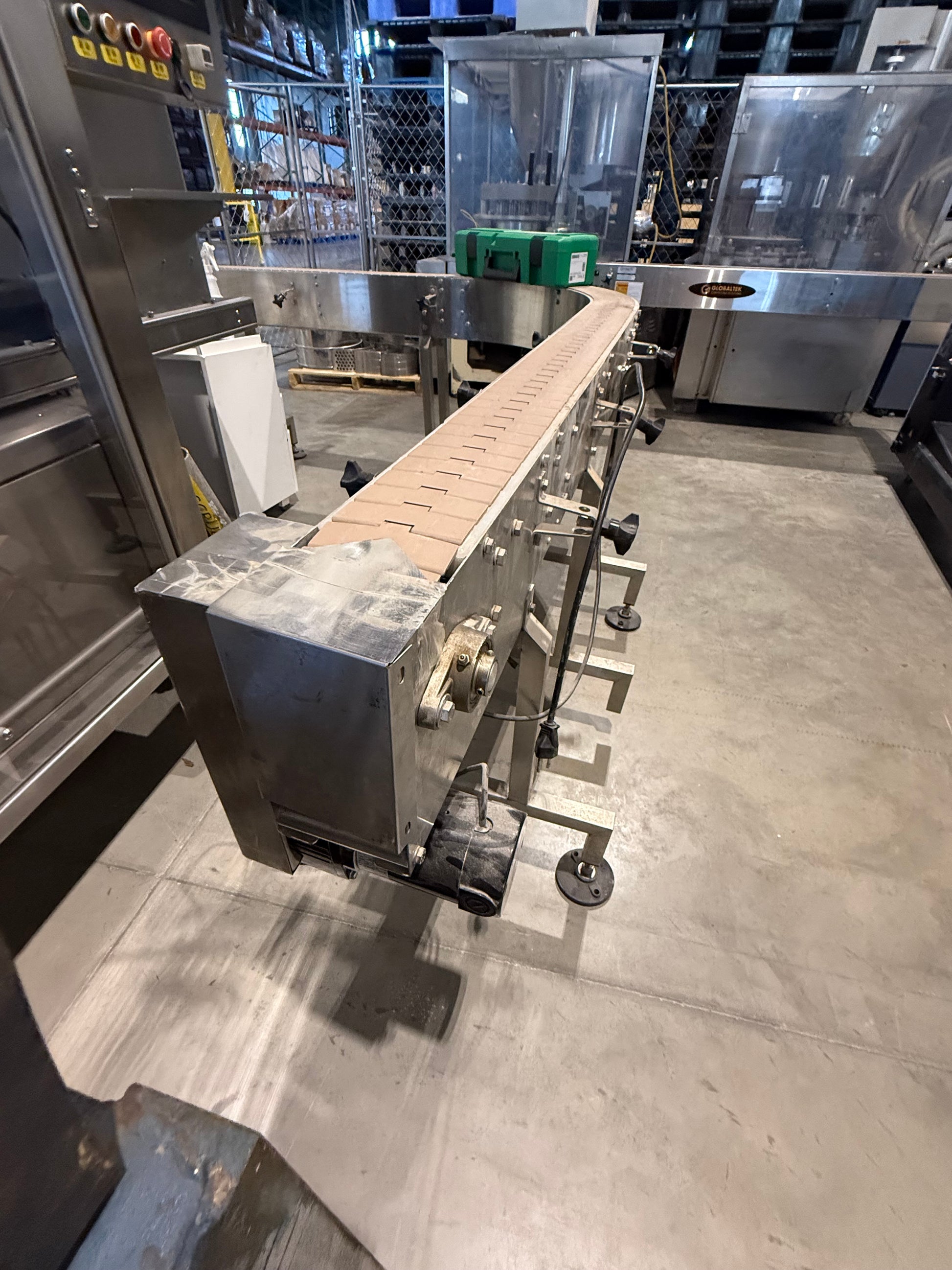

Approx 7' straight section
Approx 5' section before the angel
Main Features
Made In Usa With 100% Ul Certified Components
Stainless Steel Frame
Up To 200 Ft/Min

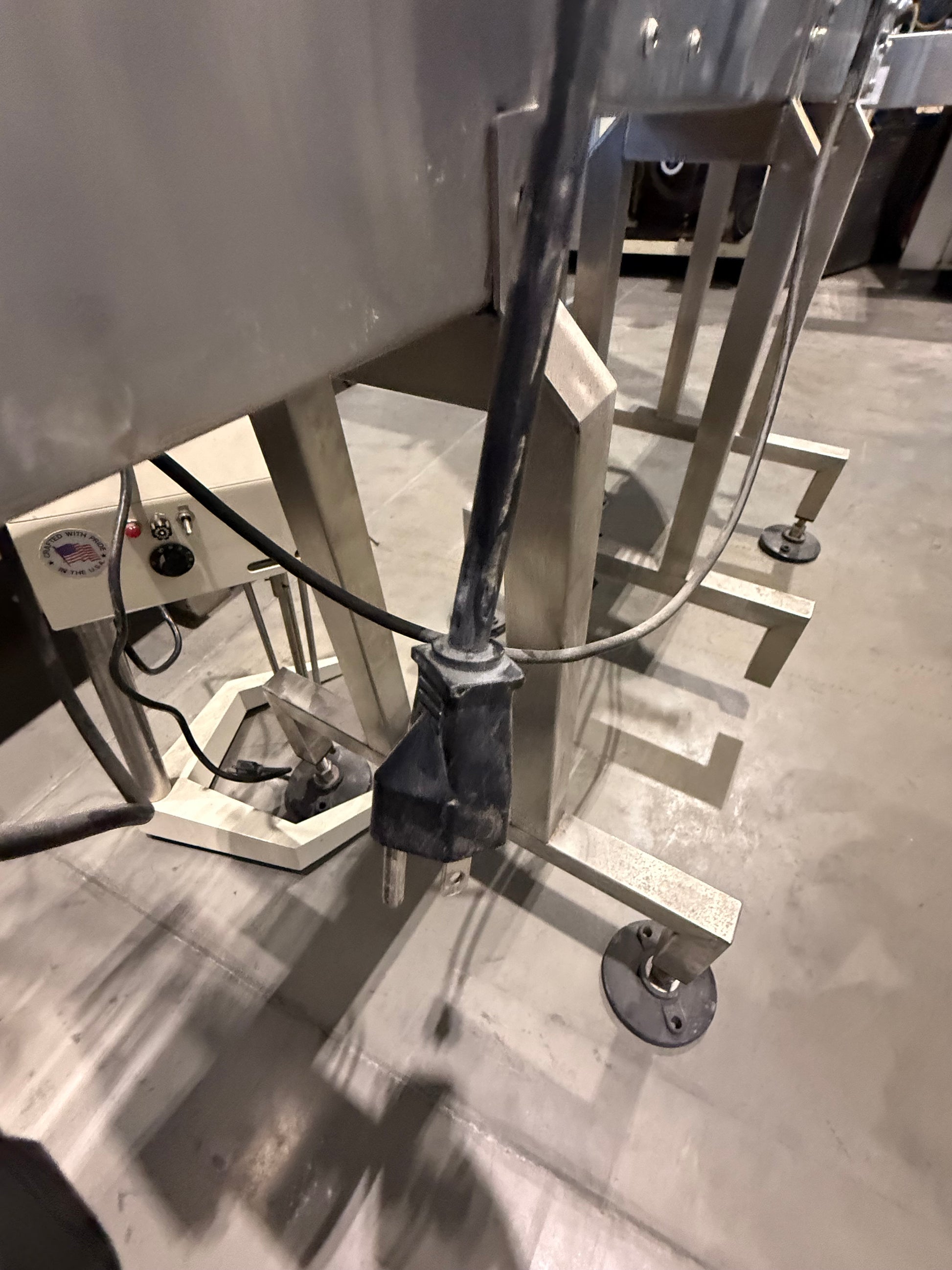

Dual Post Stainless Steel Welded Base (Ideal For Lighter And Heavier Loads)
Adjustable Leveling Pads
Transfer End Plates For Container Transitioning
Toolless Adjustable Rail Brackets
Low Friction Acetal (Delrin) Tab Belt
Belt Driven Bottom Mount Motor With Stainless Steel Cover
Uhmw Lubricated Chain Track System
Bodine Dc Drive
Technical Data

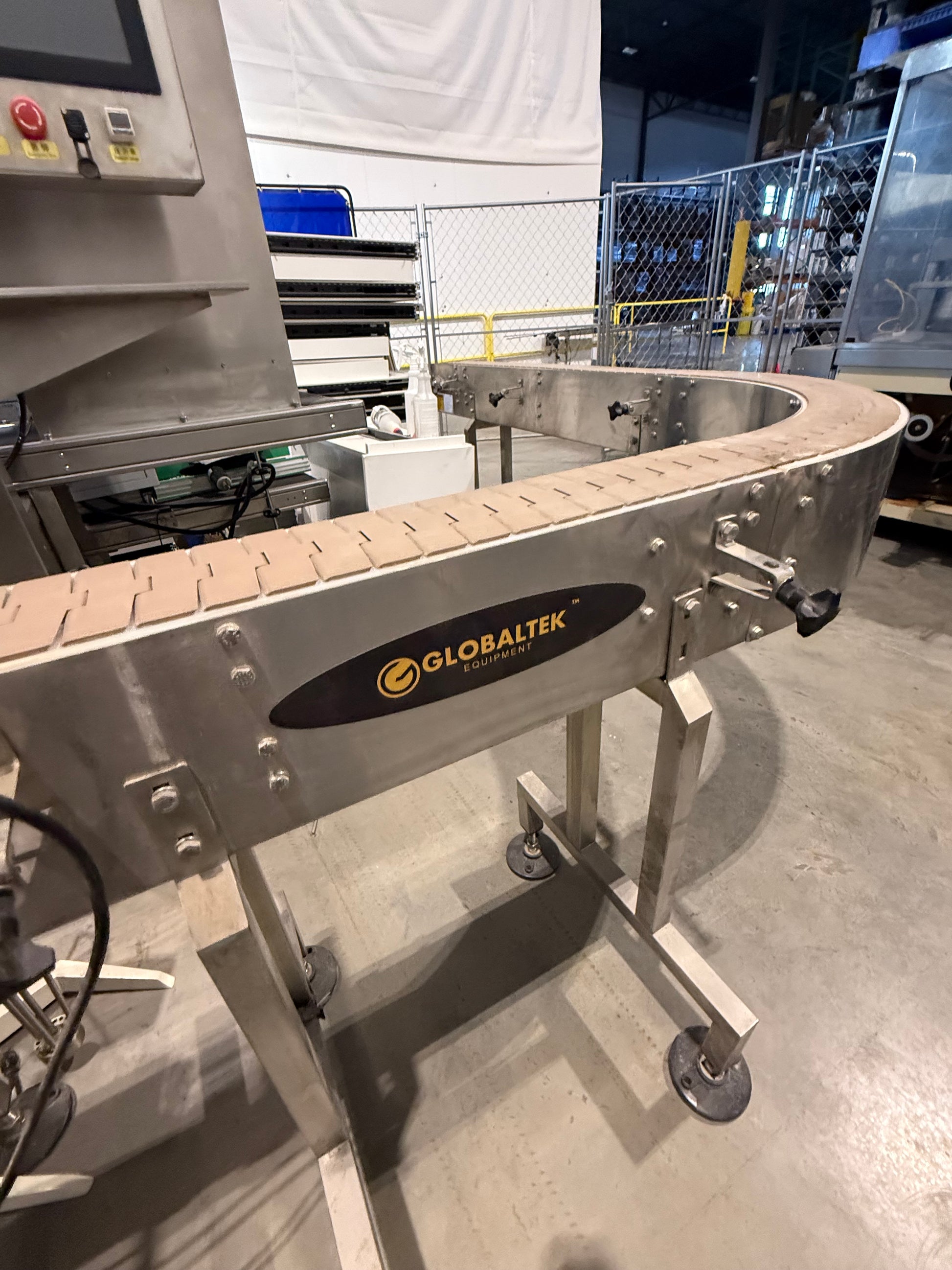

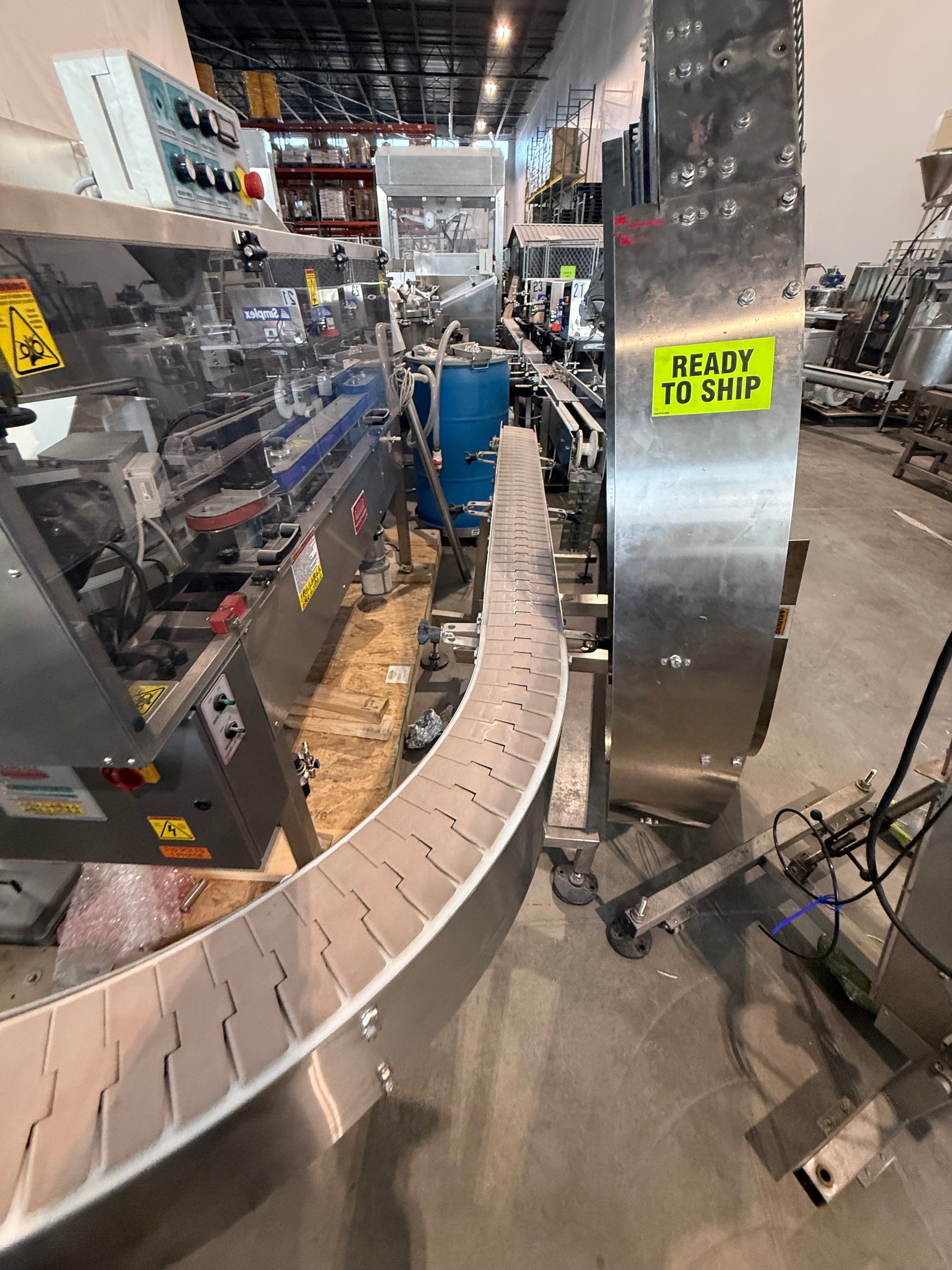

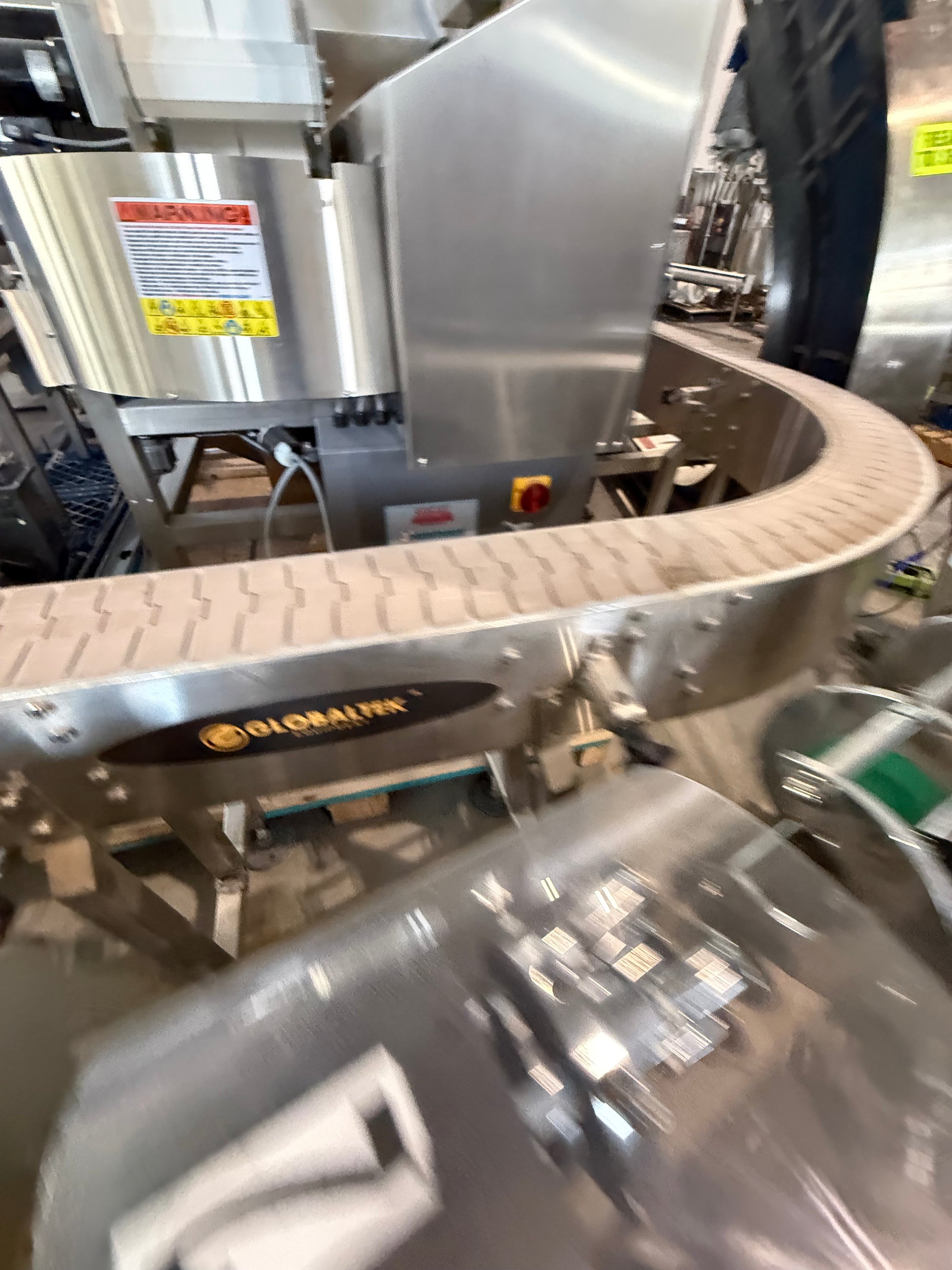

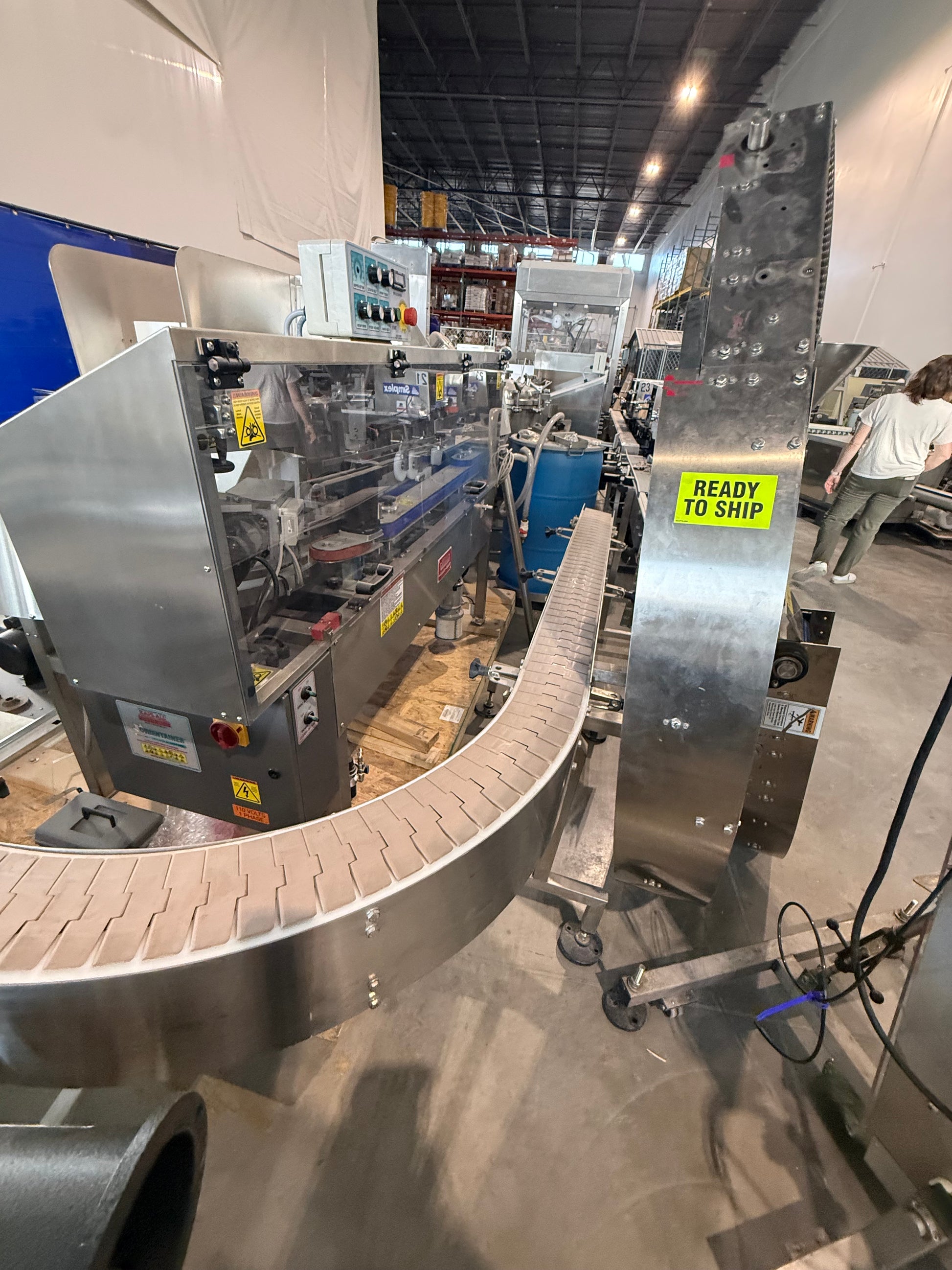

Standard 24” radius curve
Curve available right and left turn
Straight sections length made to order
Conveyor standard width: 4.5"
Bodine dc motor, 3/8 hp, 83 rpm, 248 lb/in
115 volts / 1 ph / 60 hz
Floor to belt height 35” to 40”
Adjustable guide rail opening: 0” to 5/8” wider than belt
