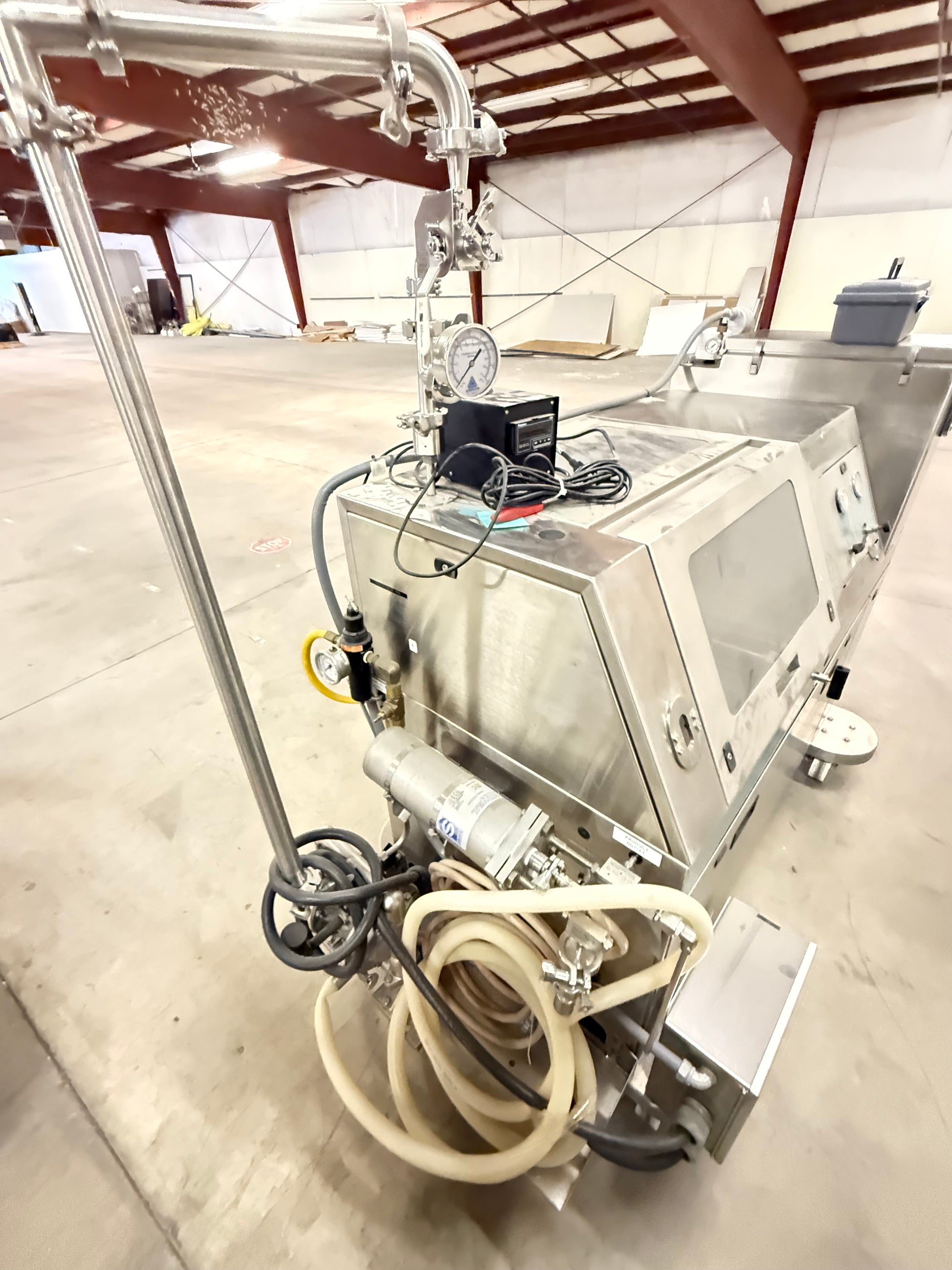

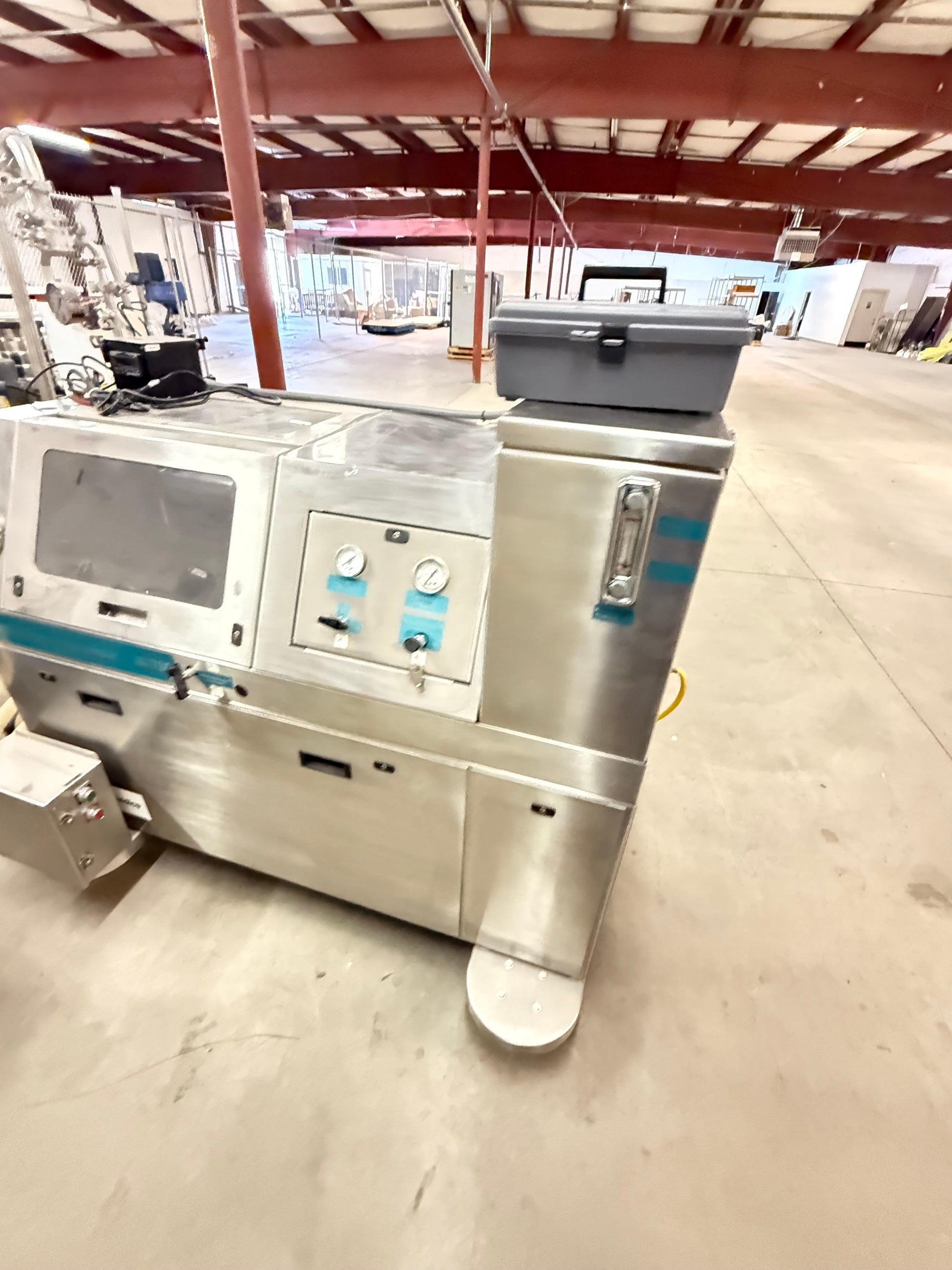

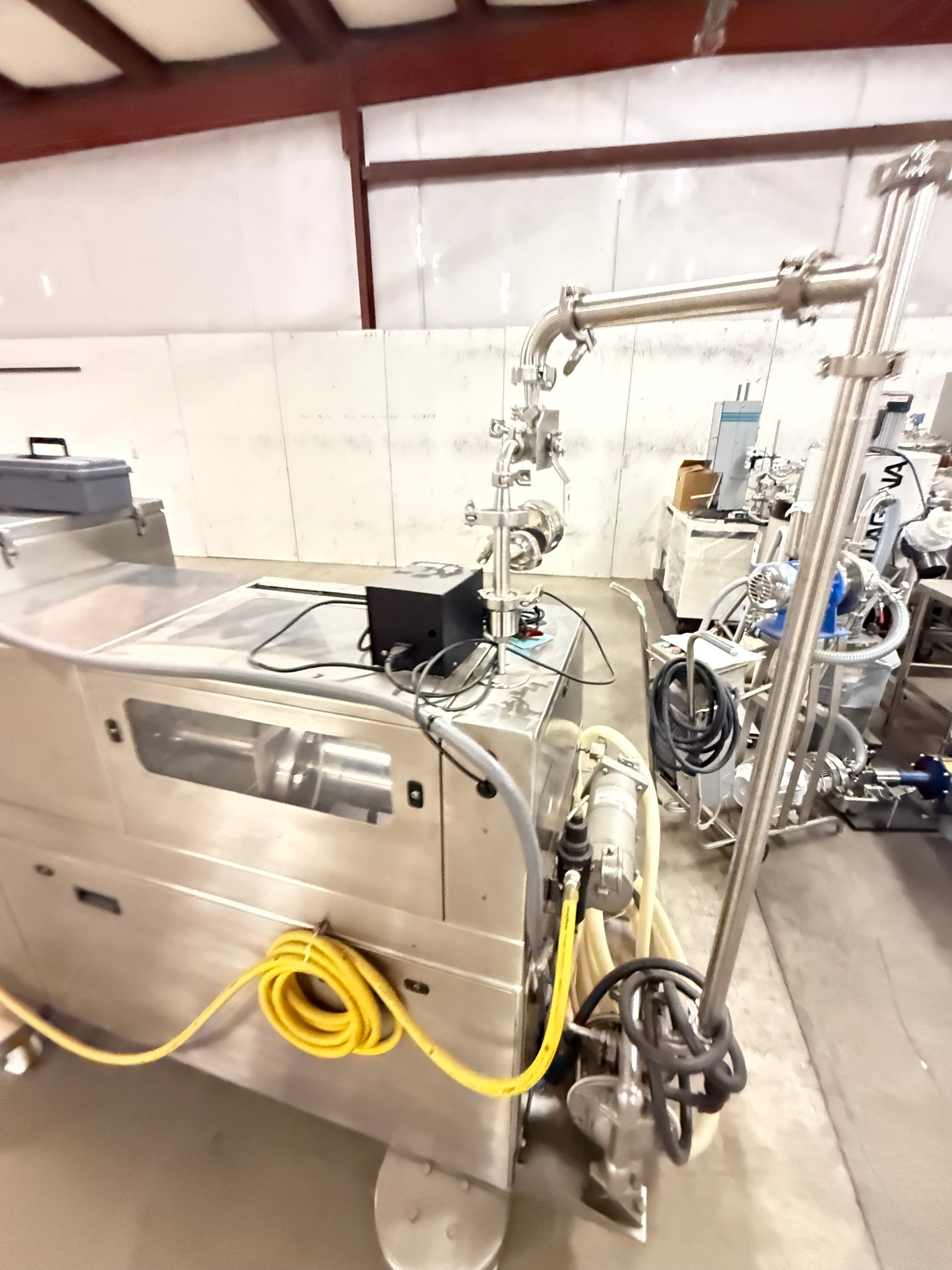

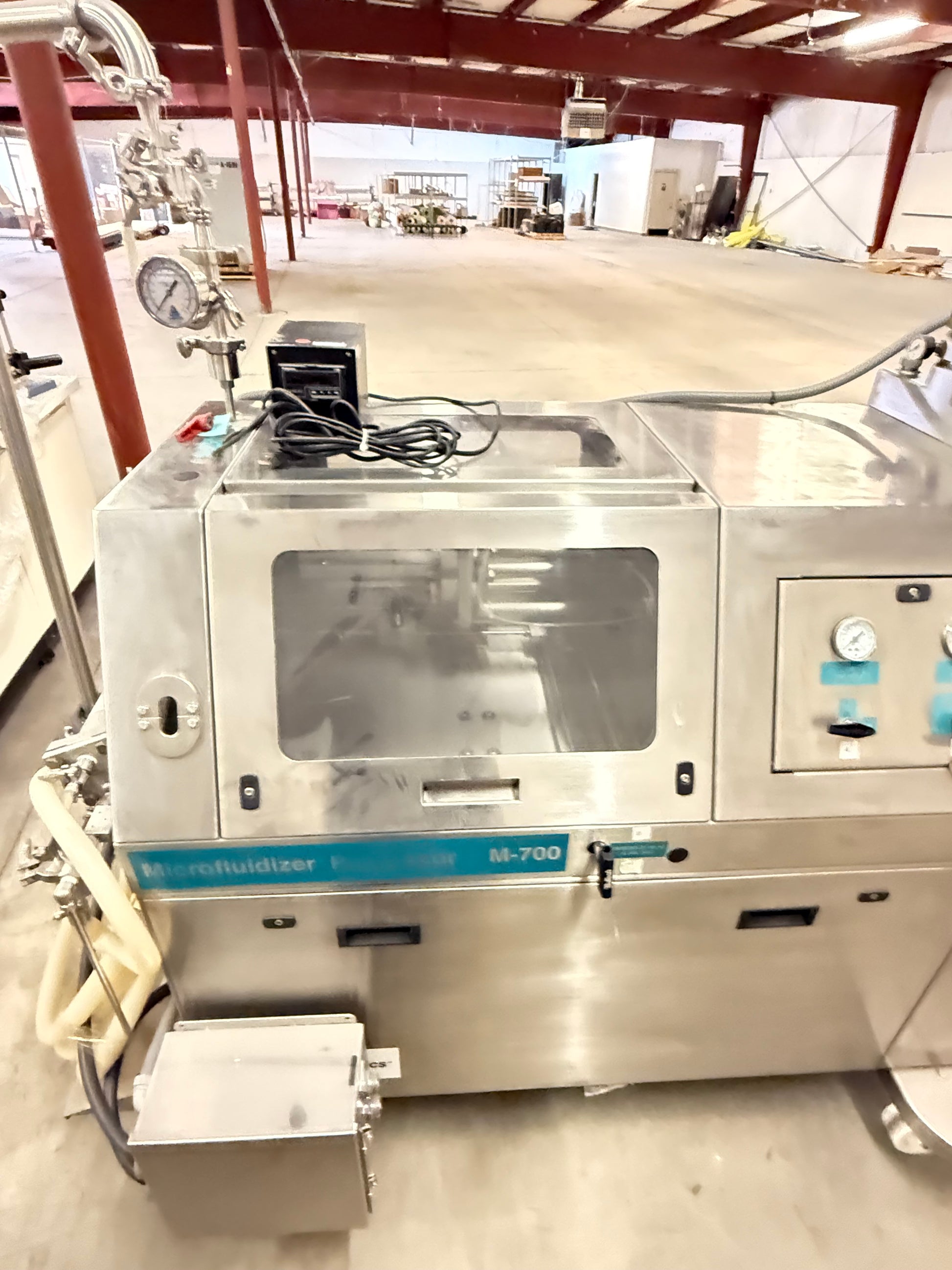

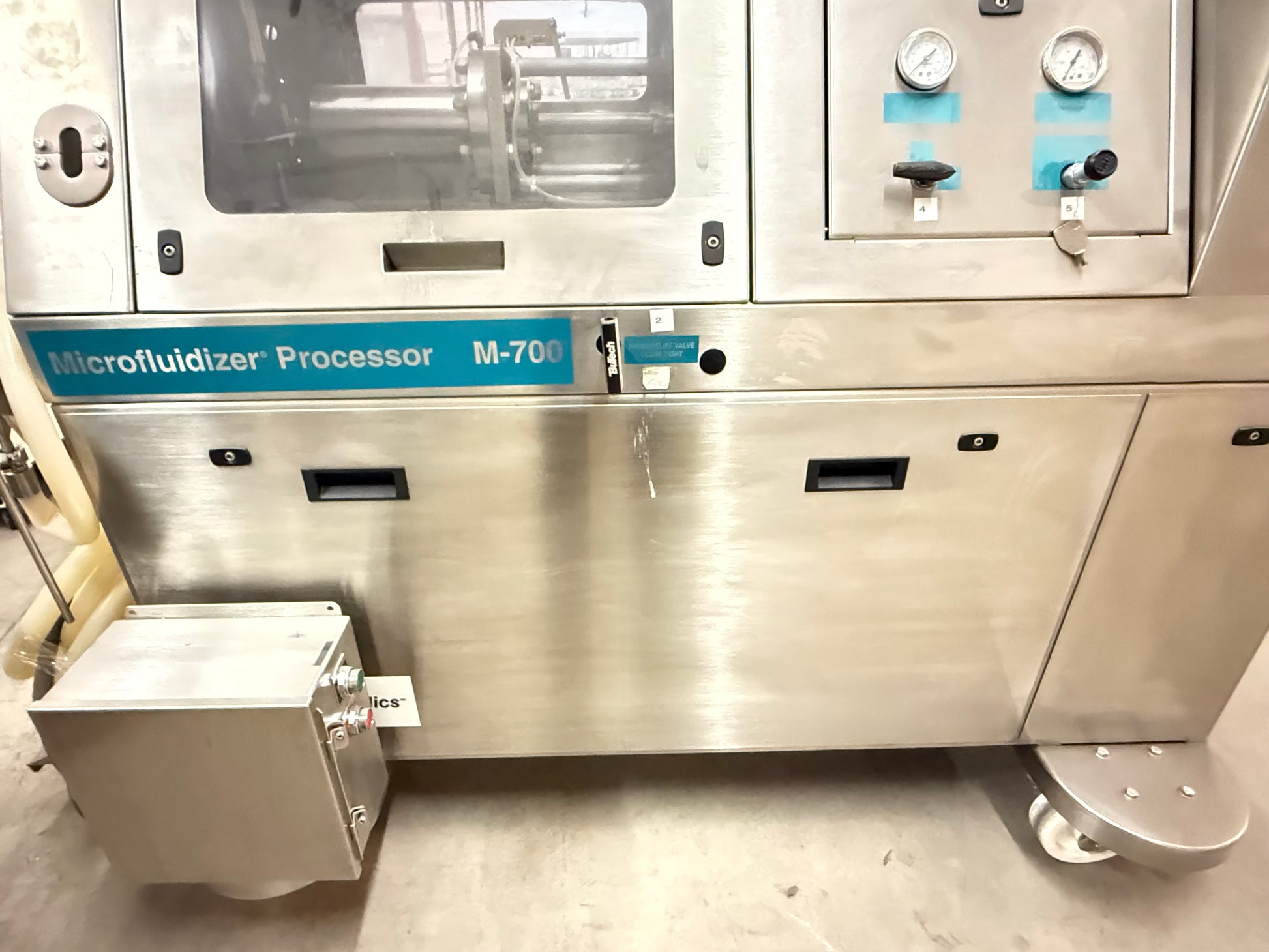

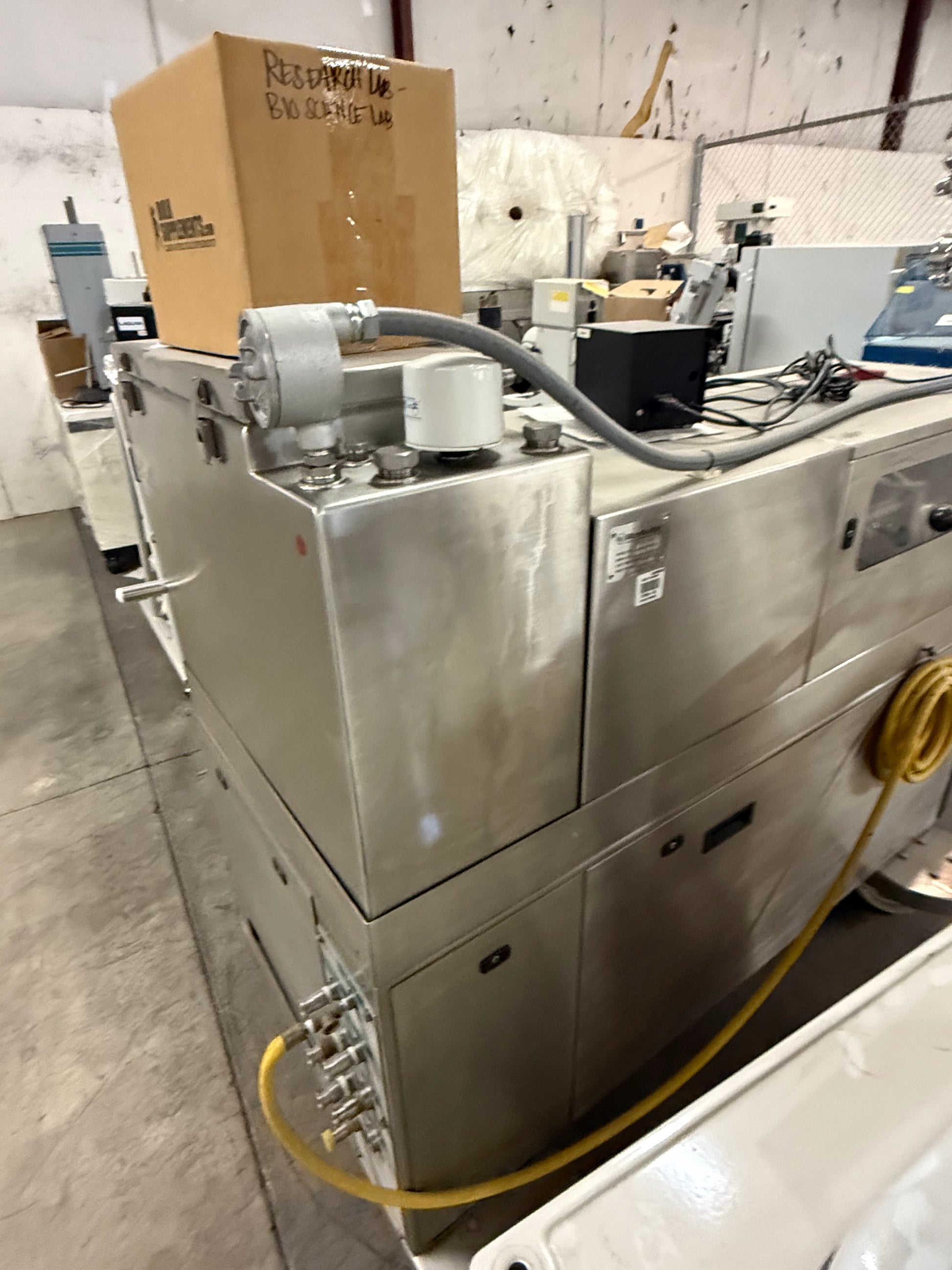

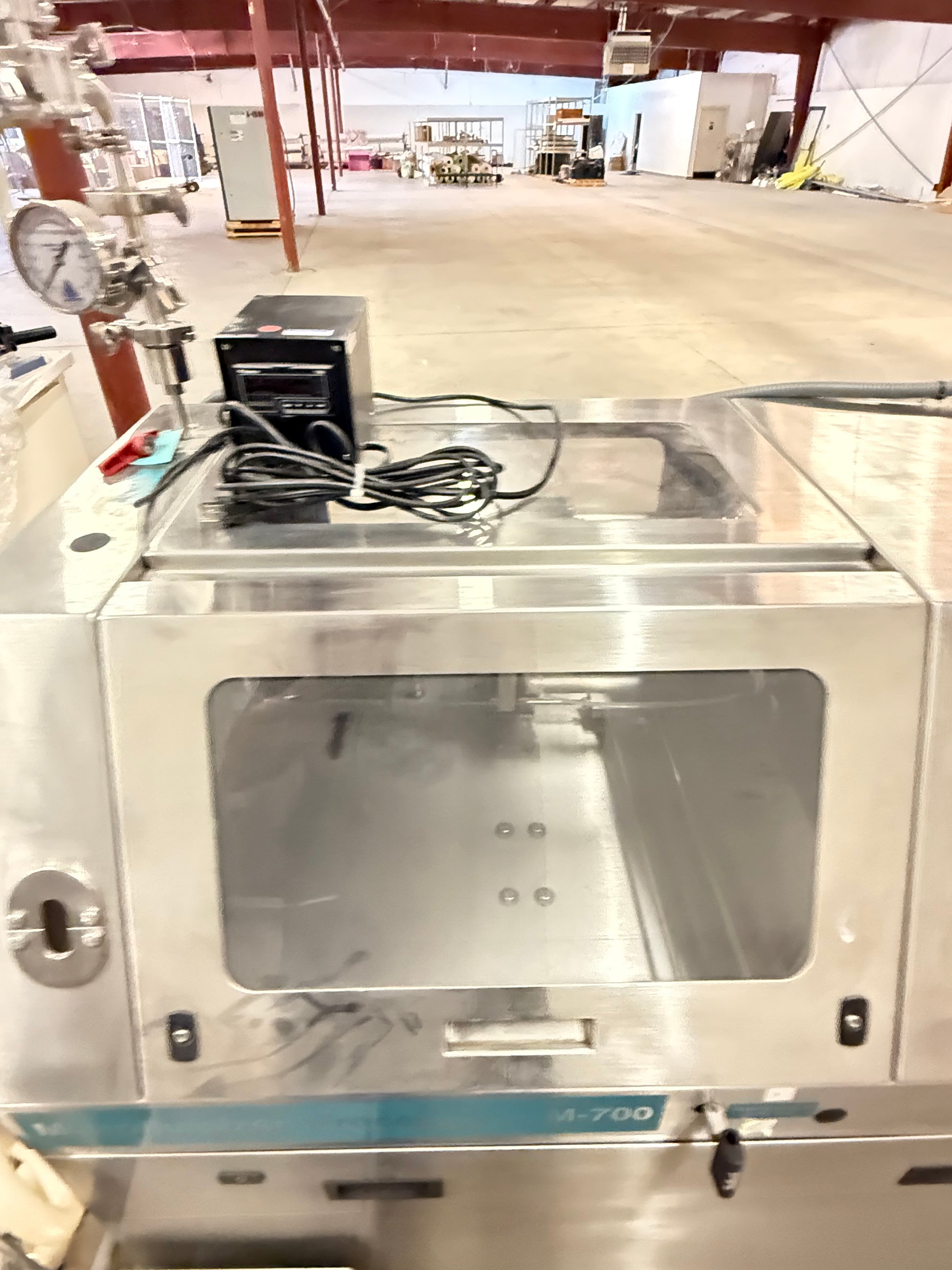

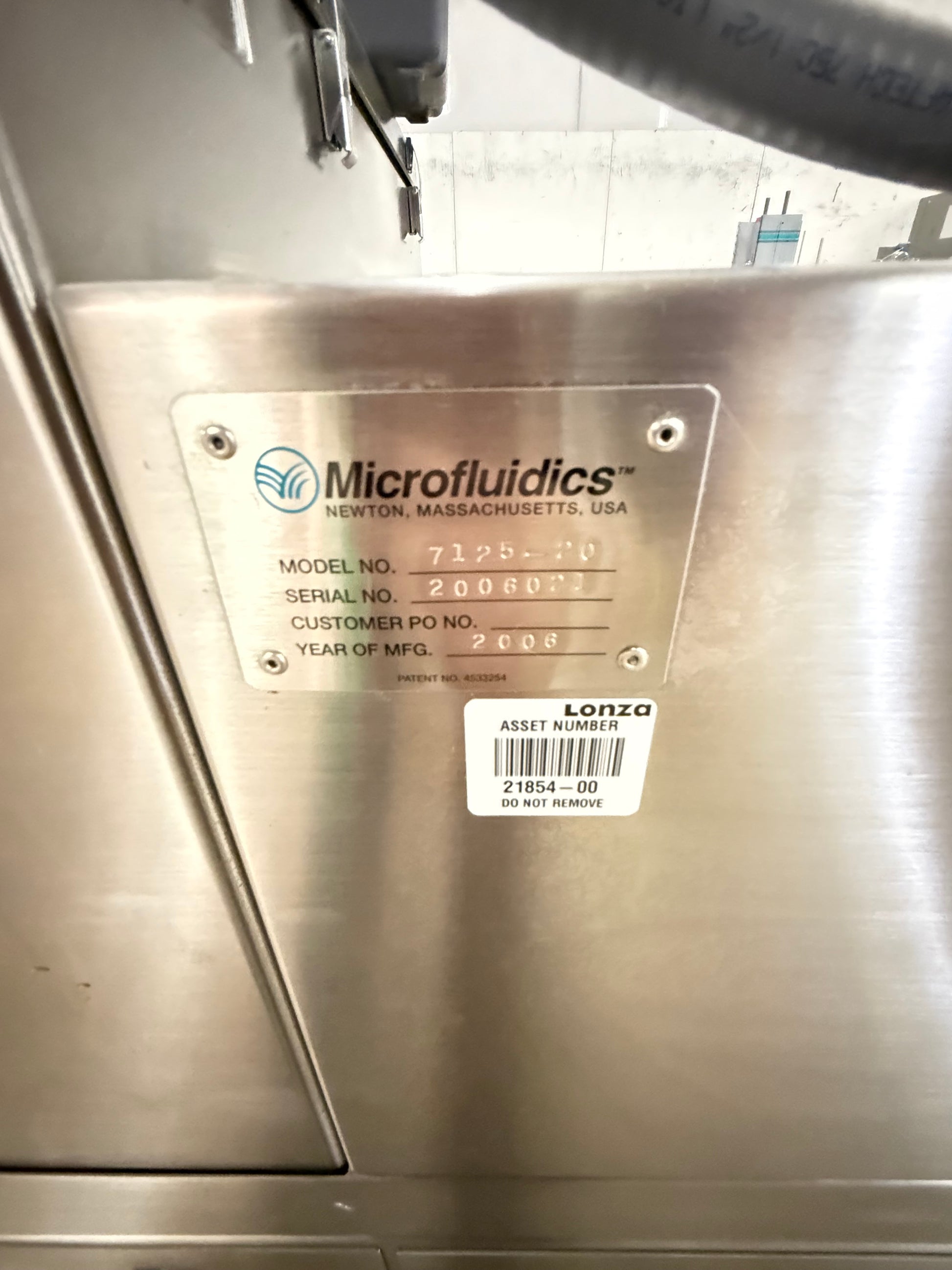

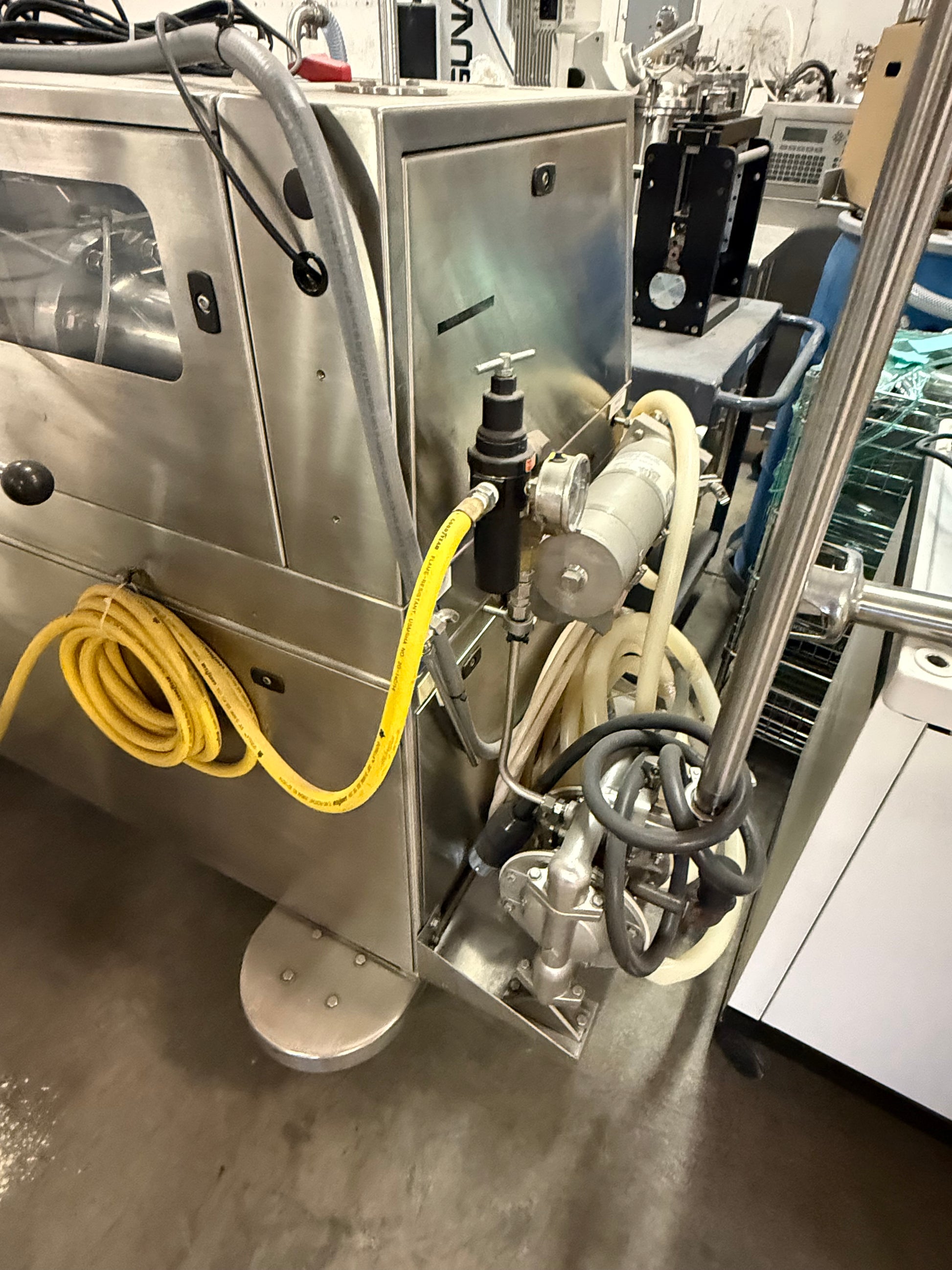

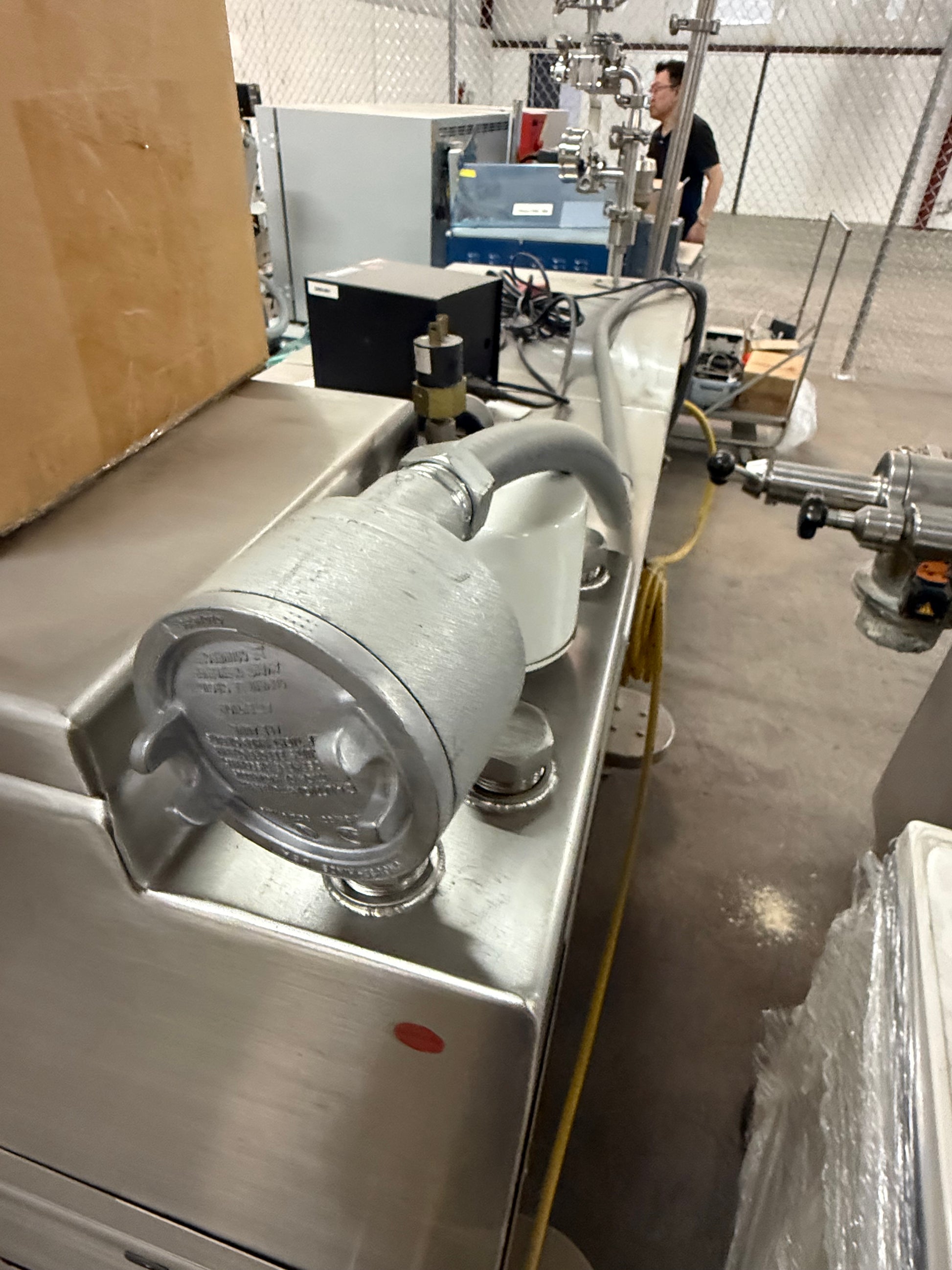

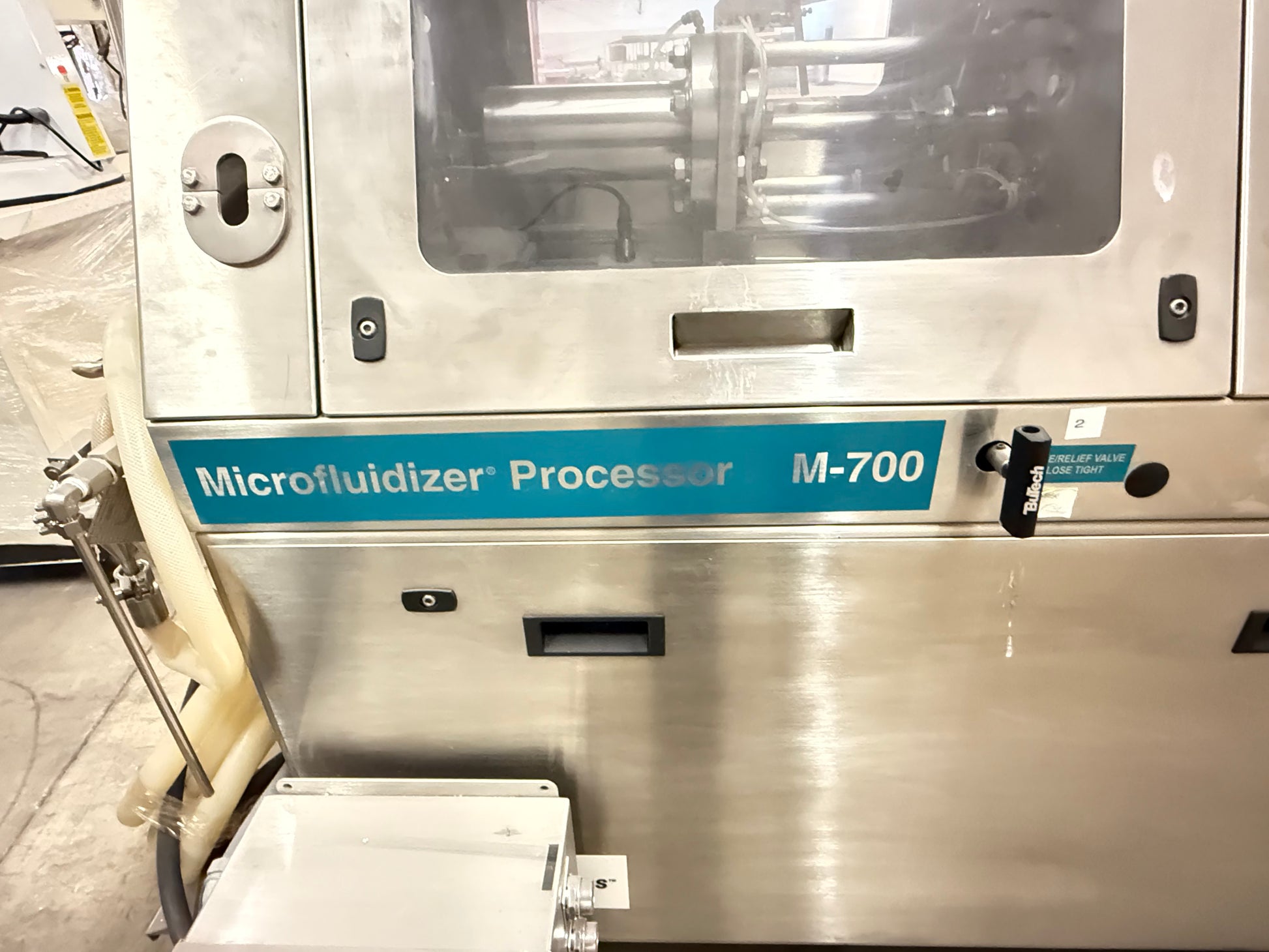

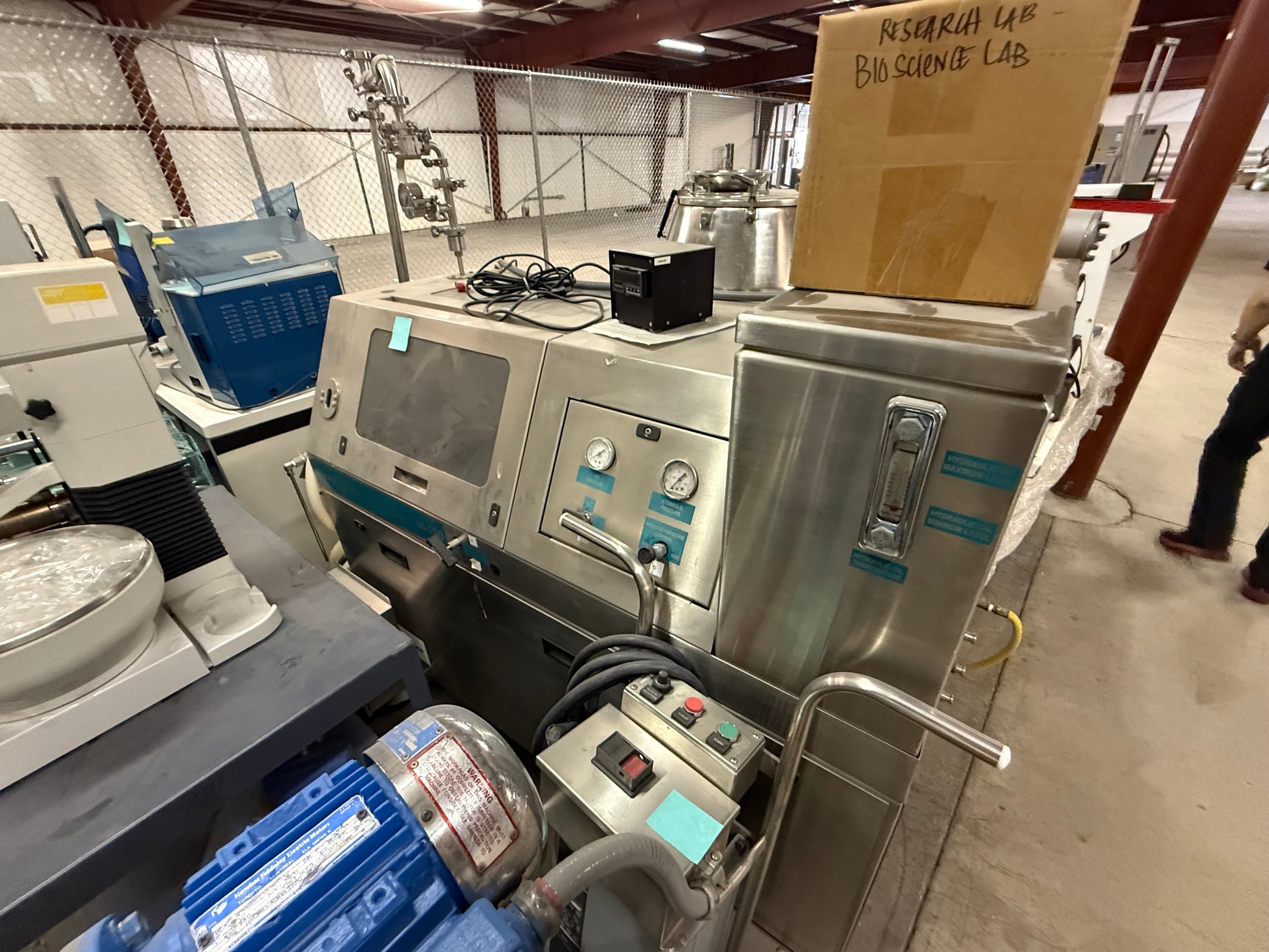

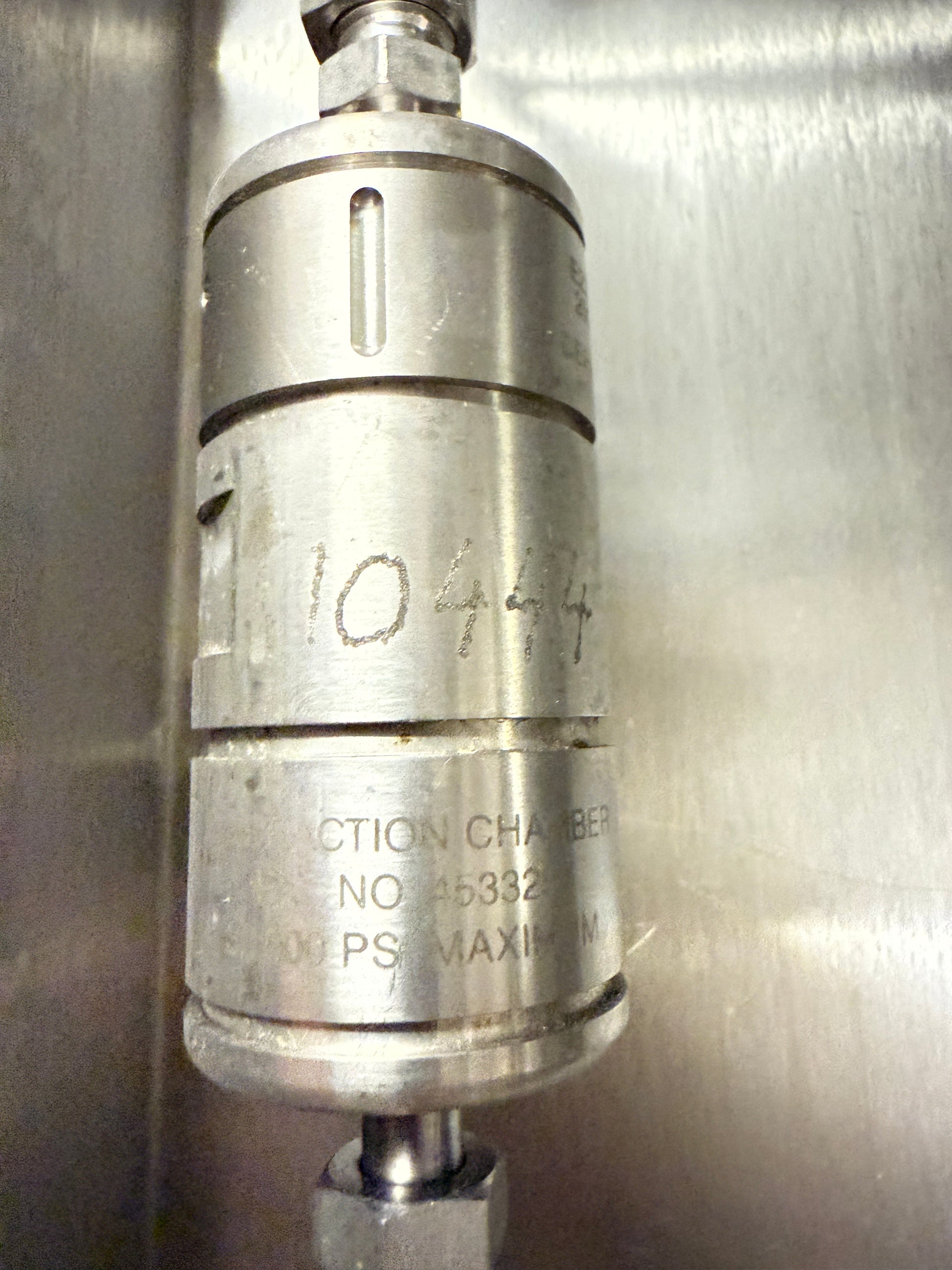

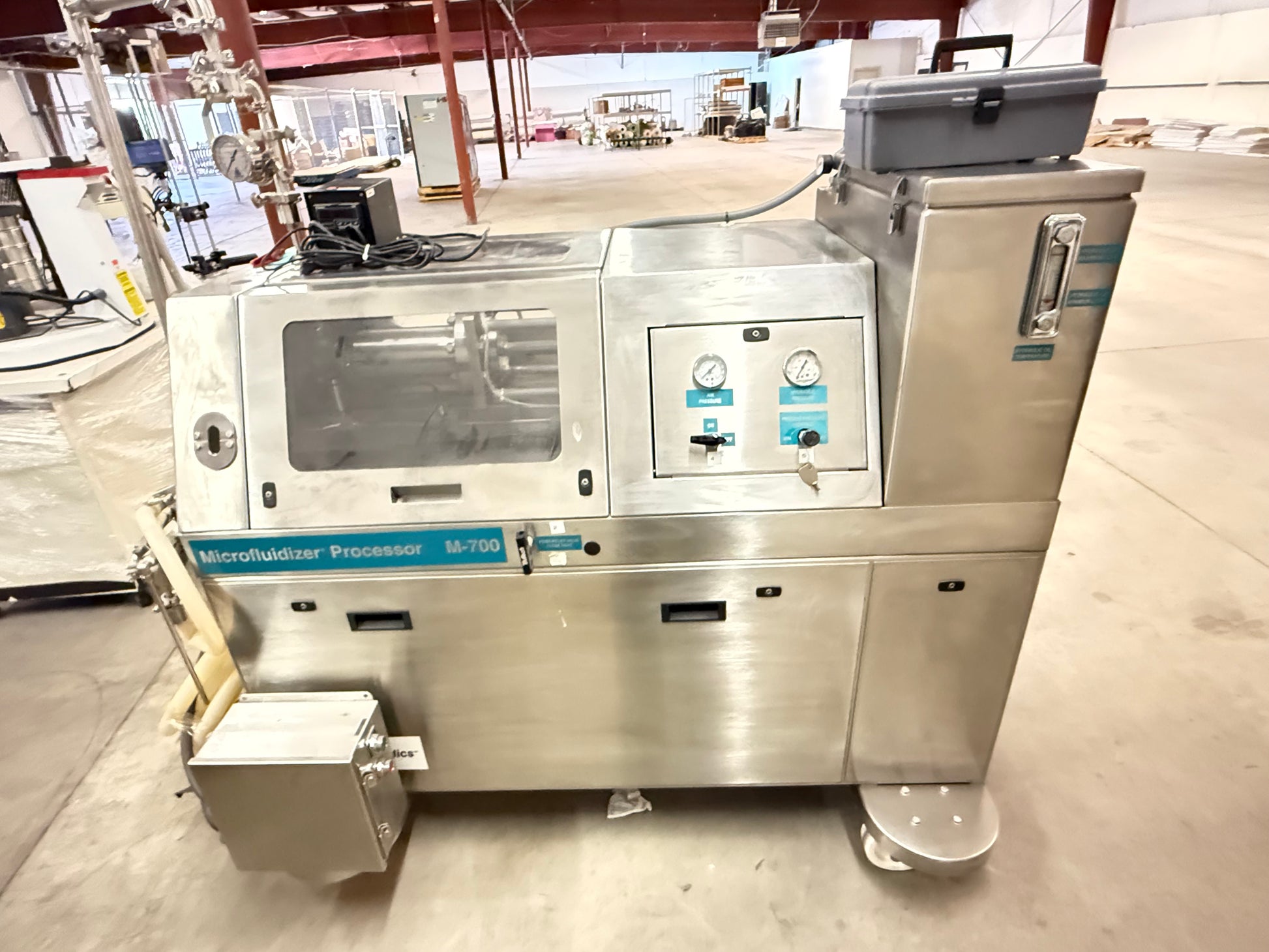

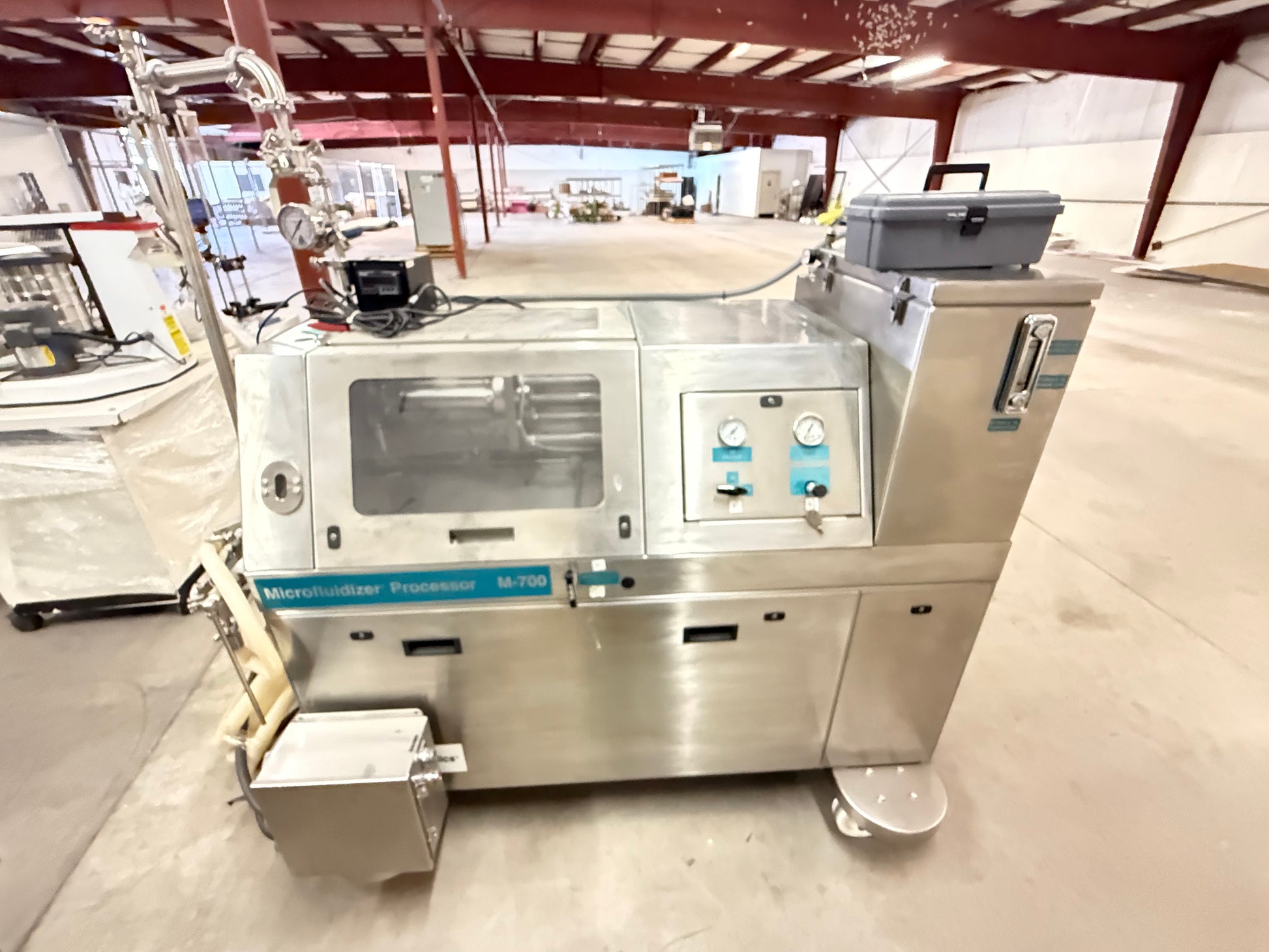

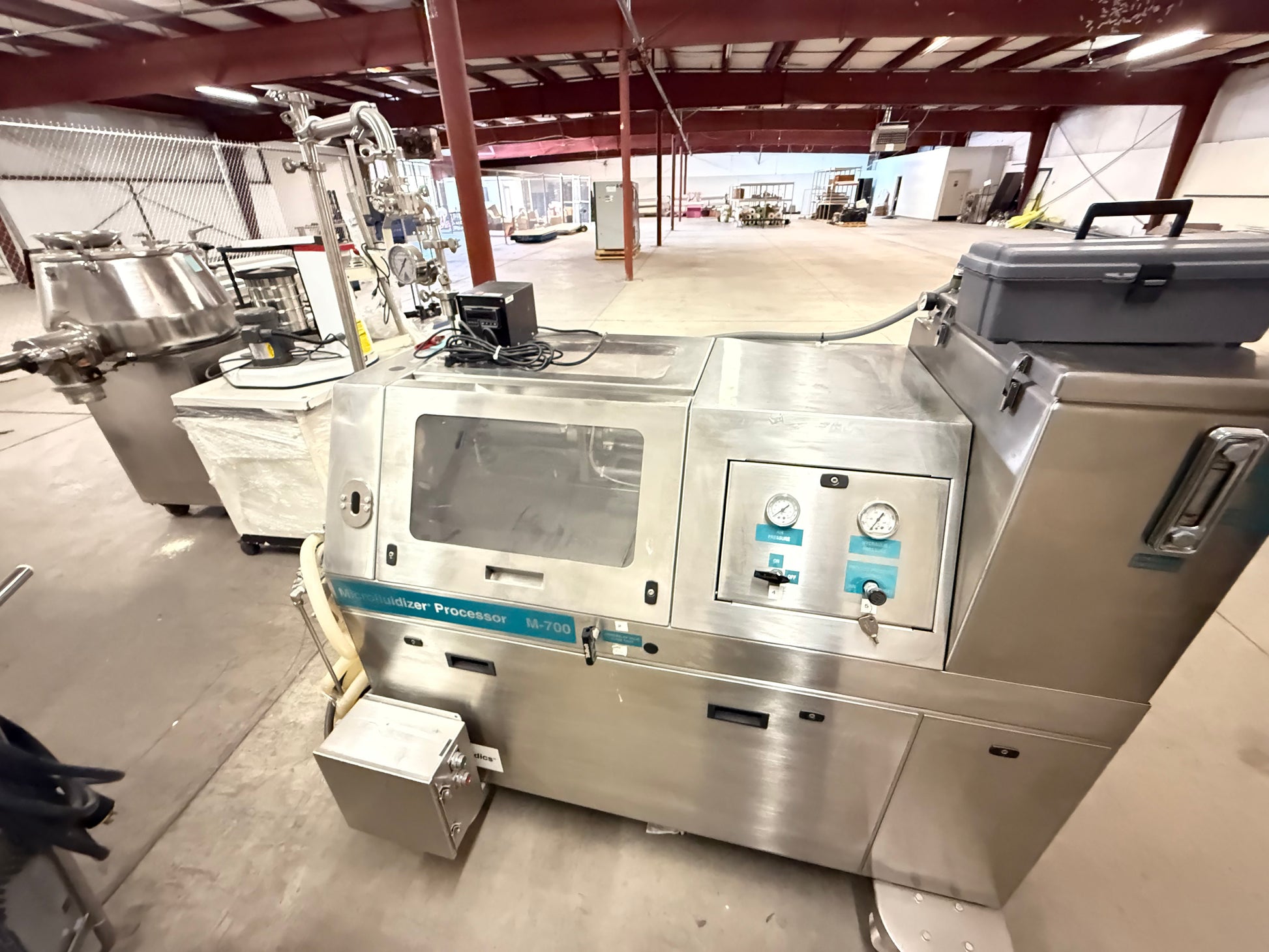

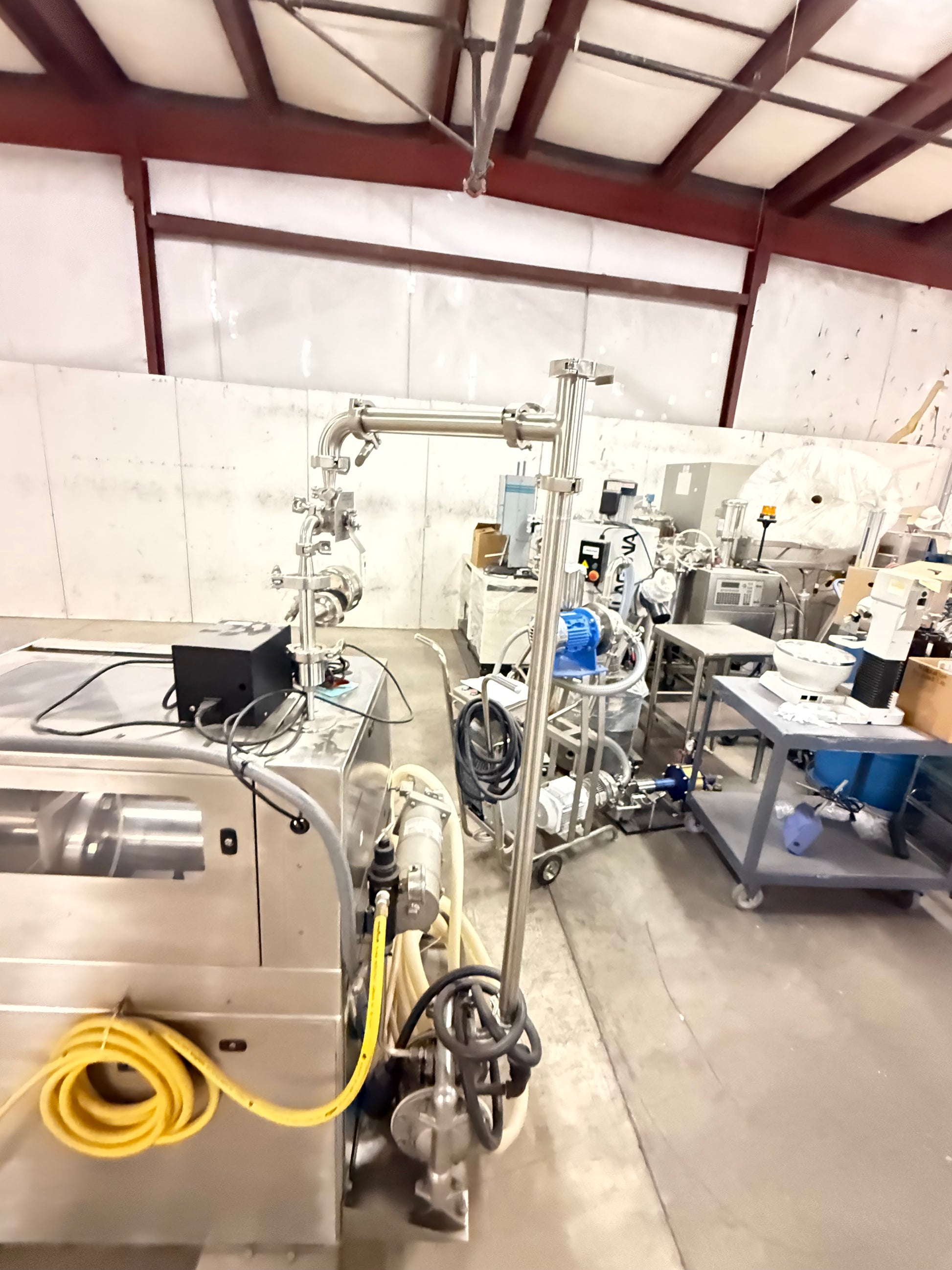

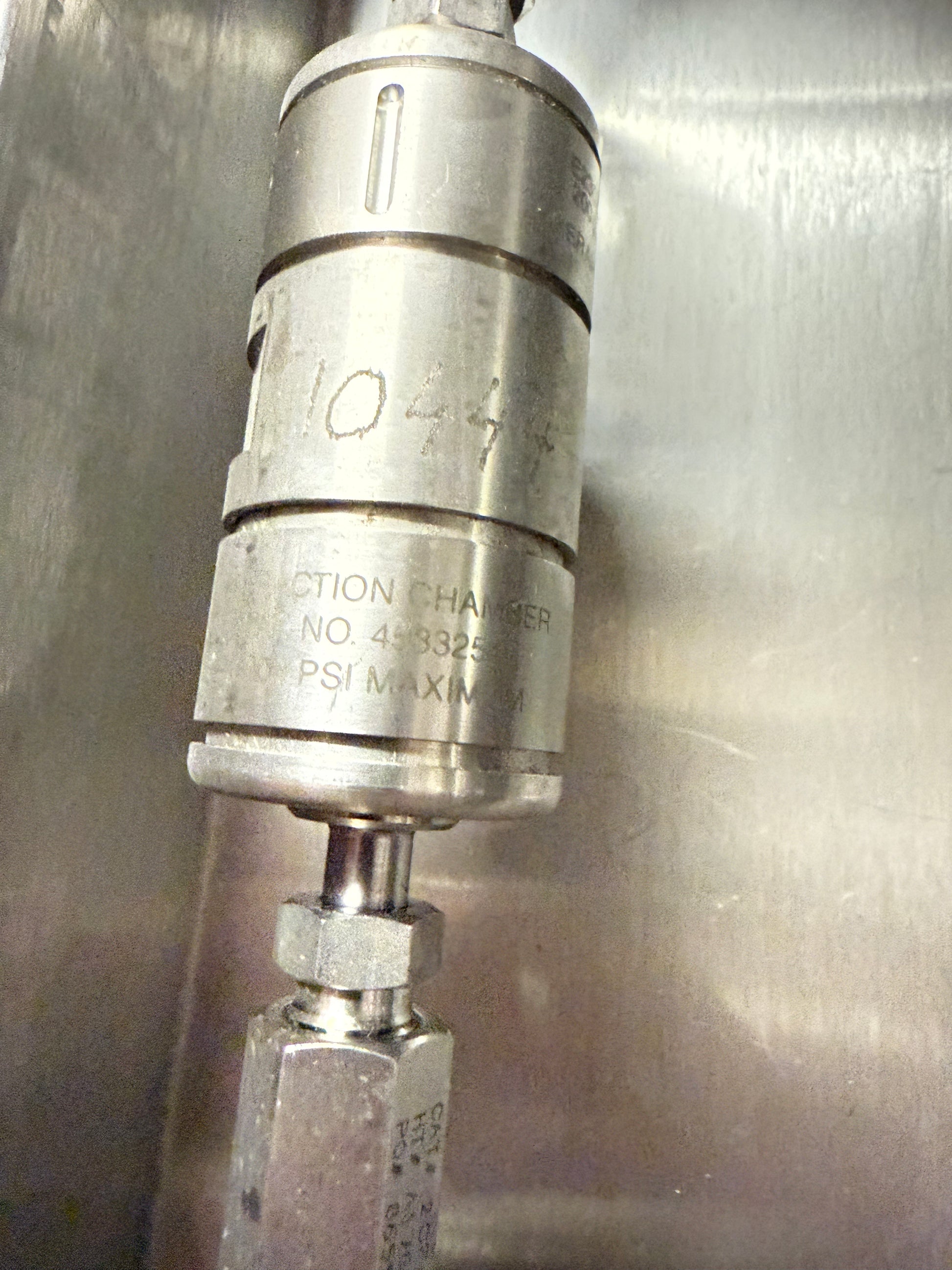

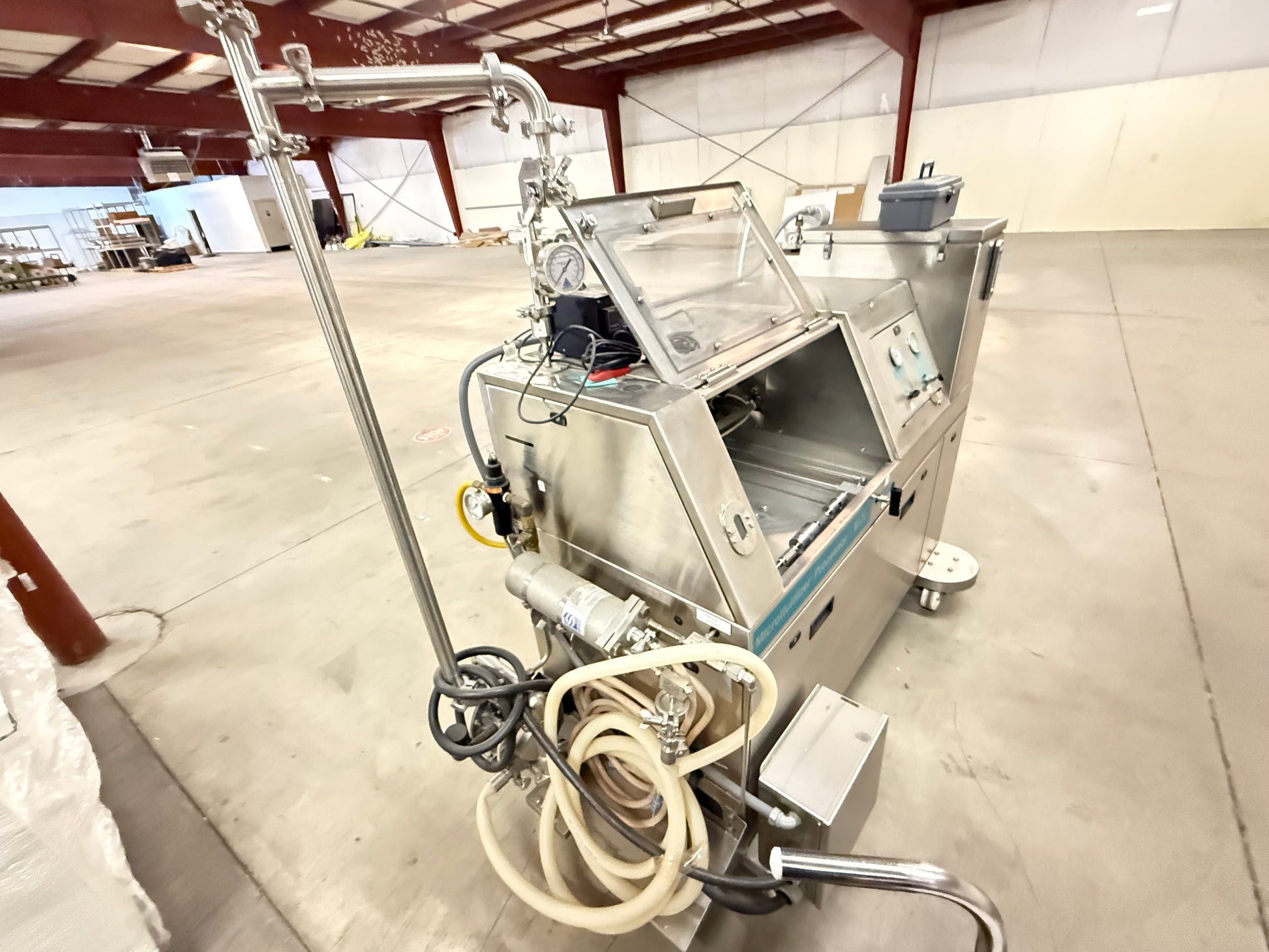

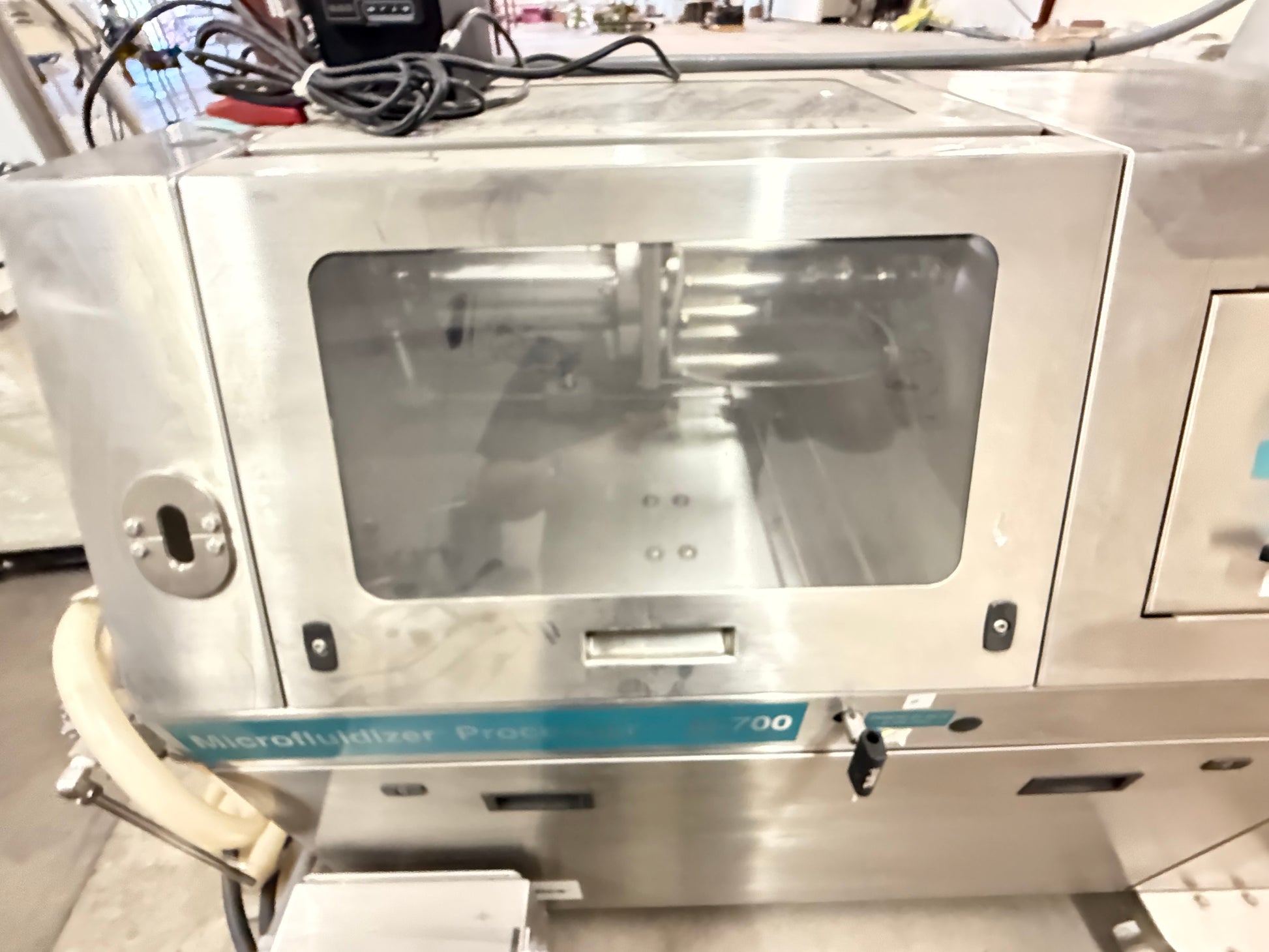

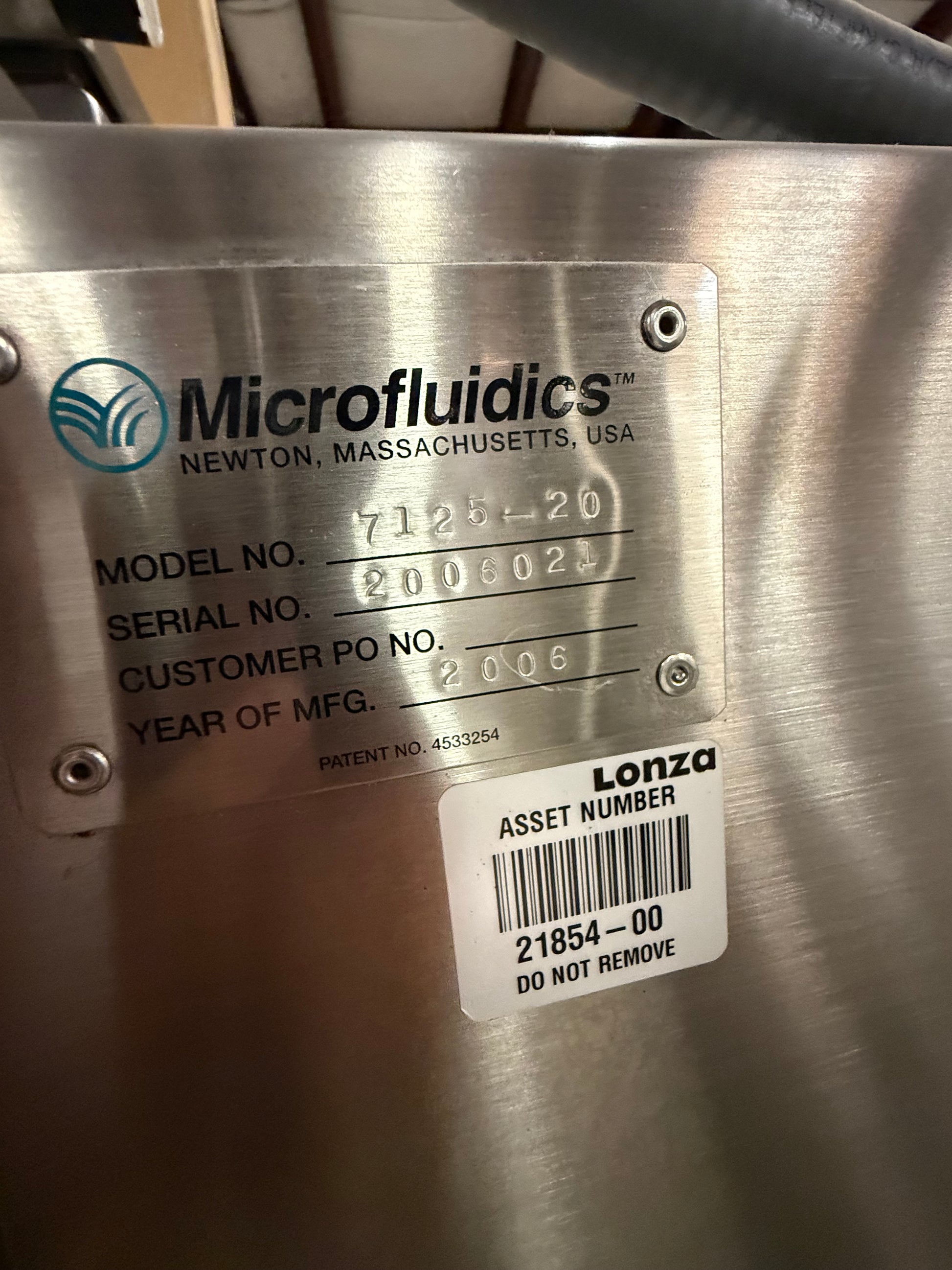

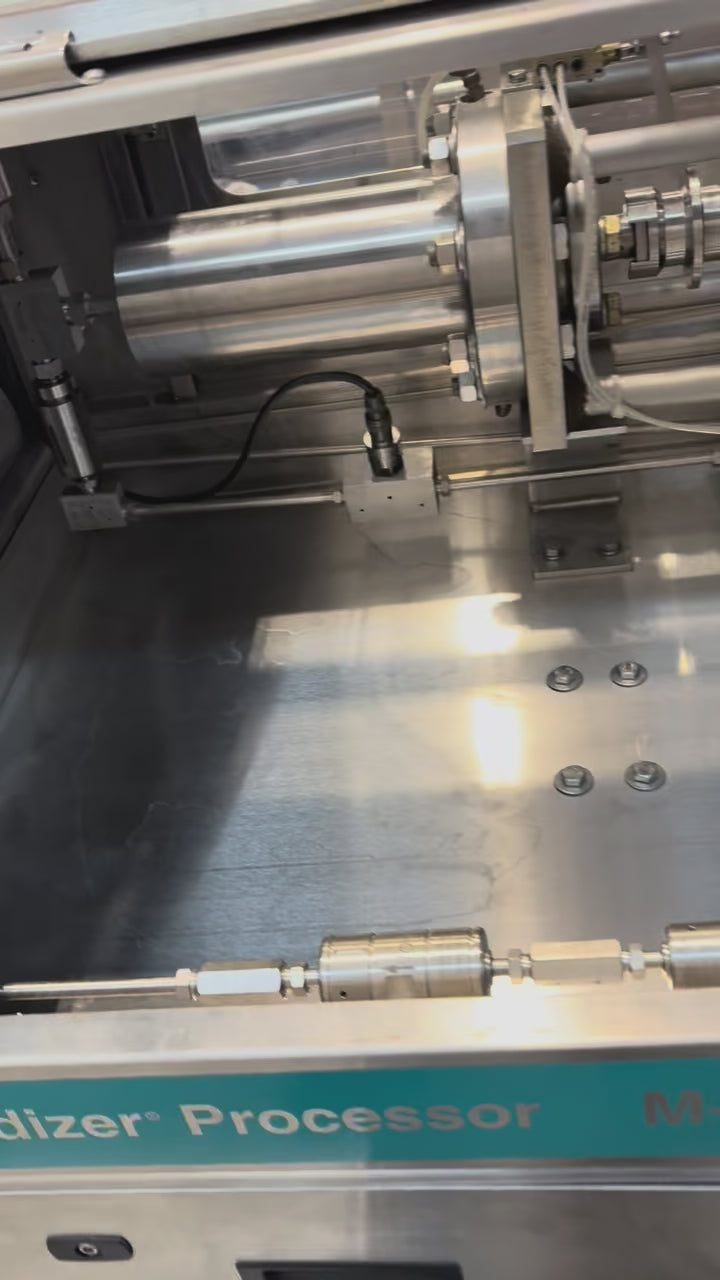

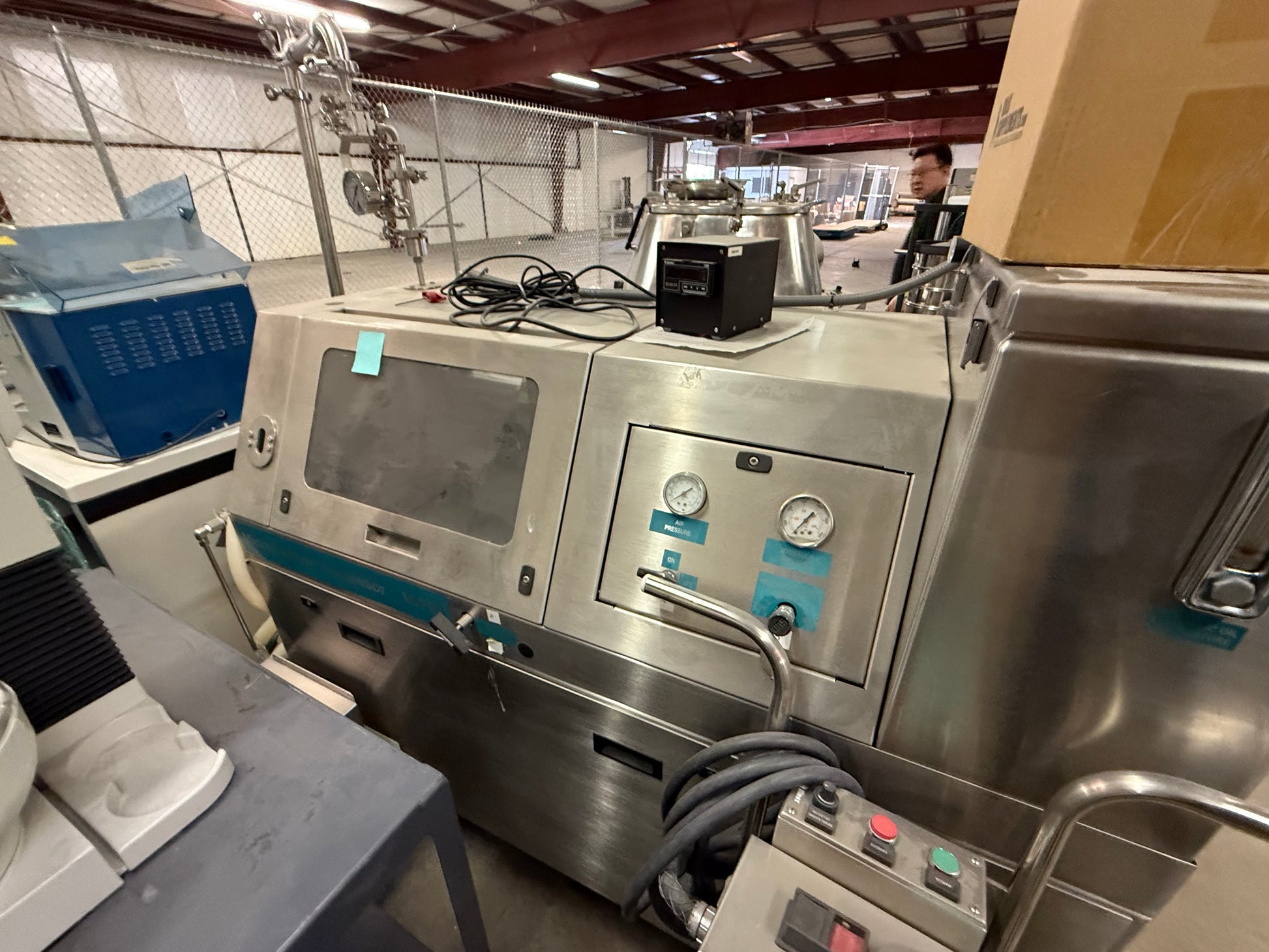

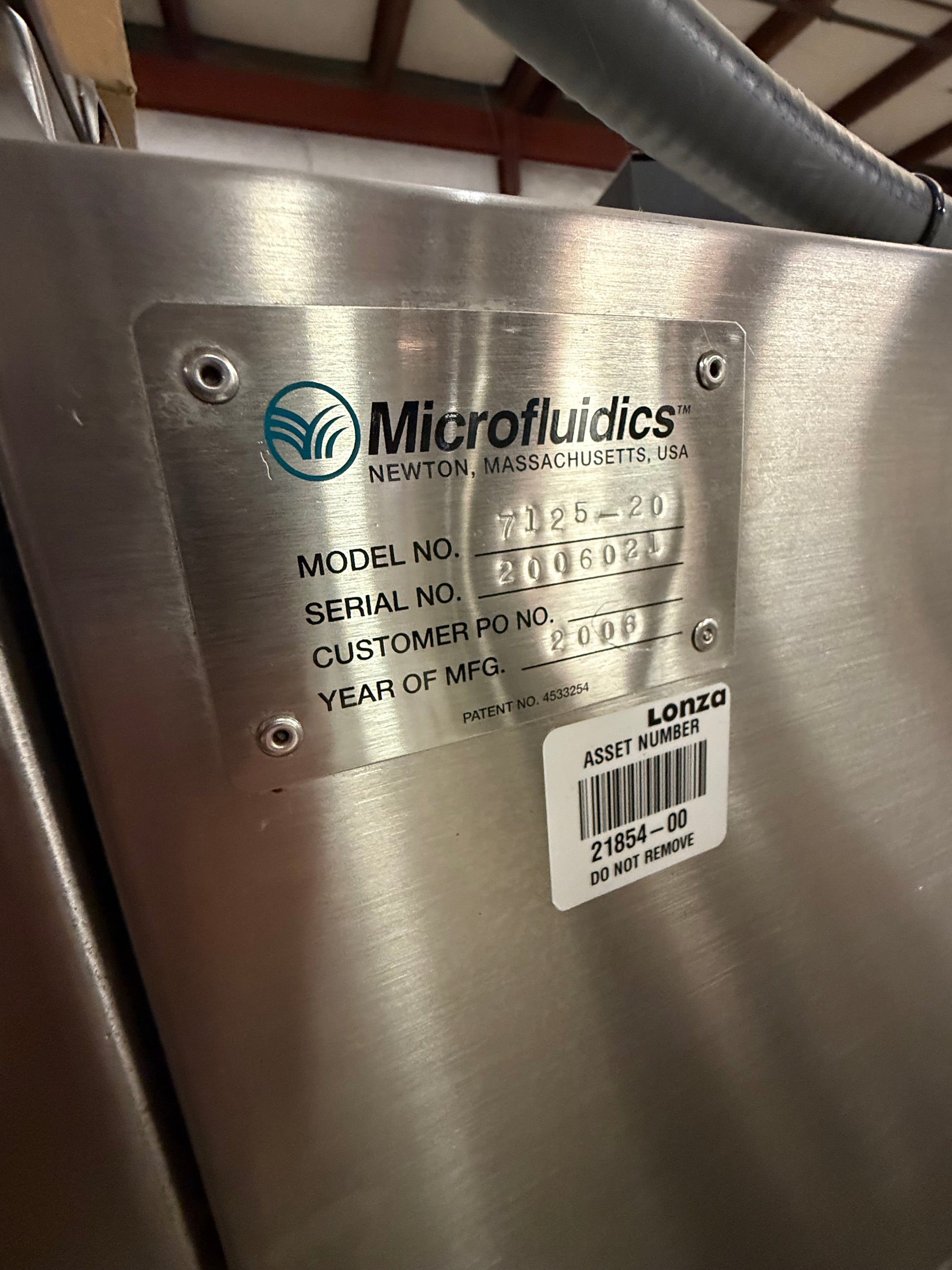

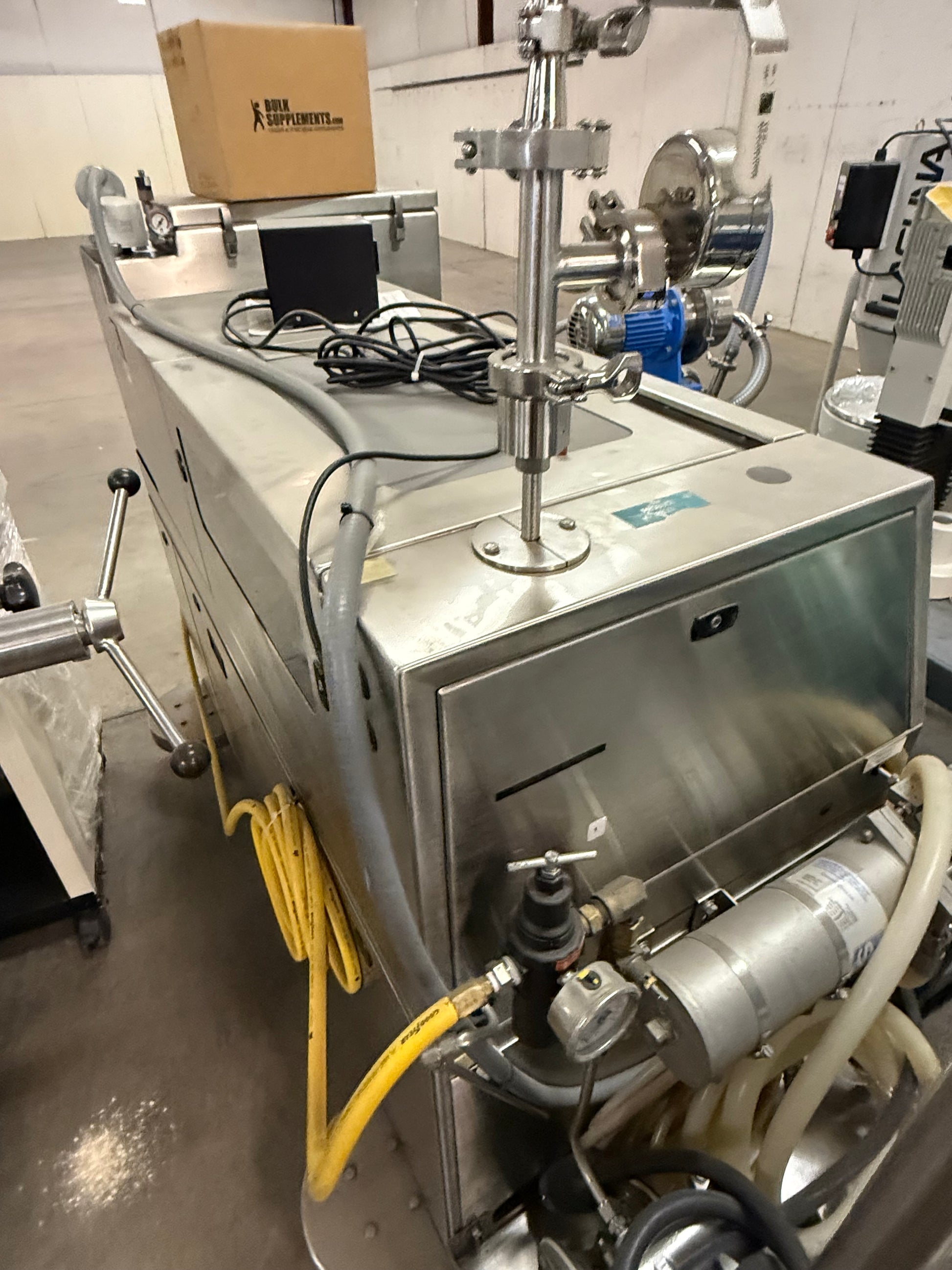

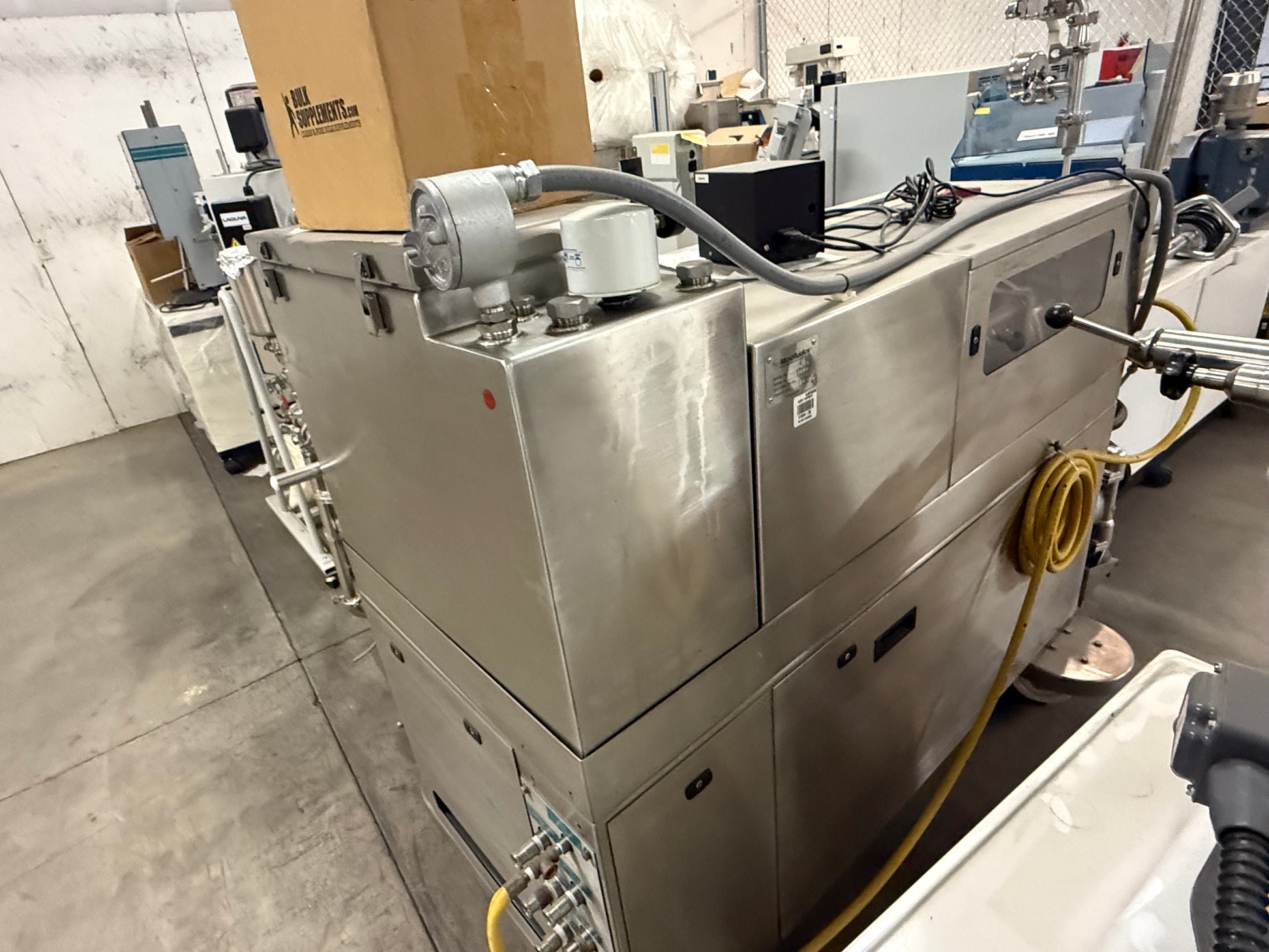

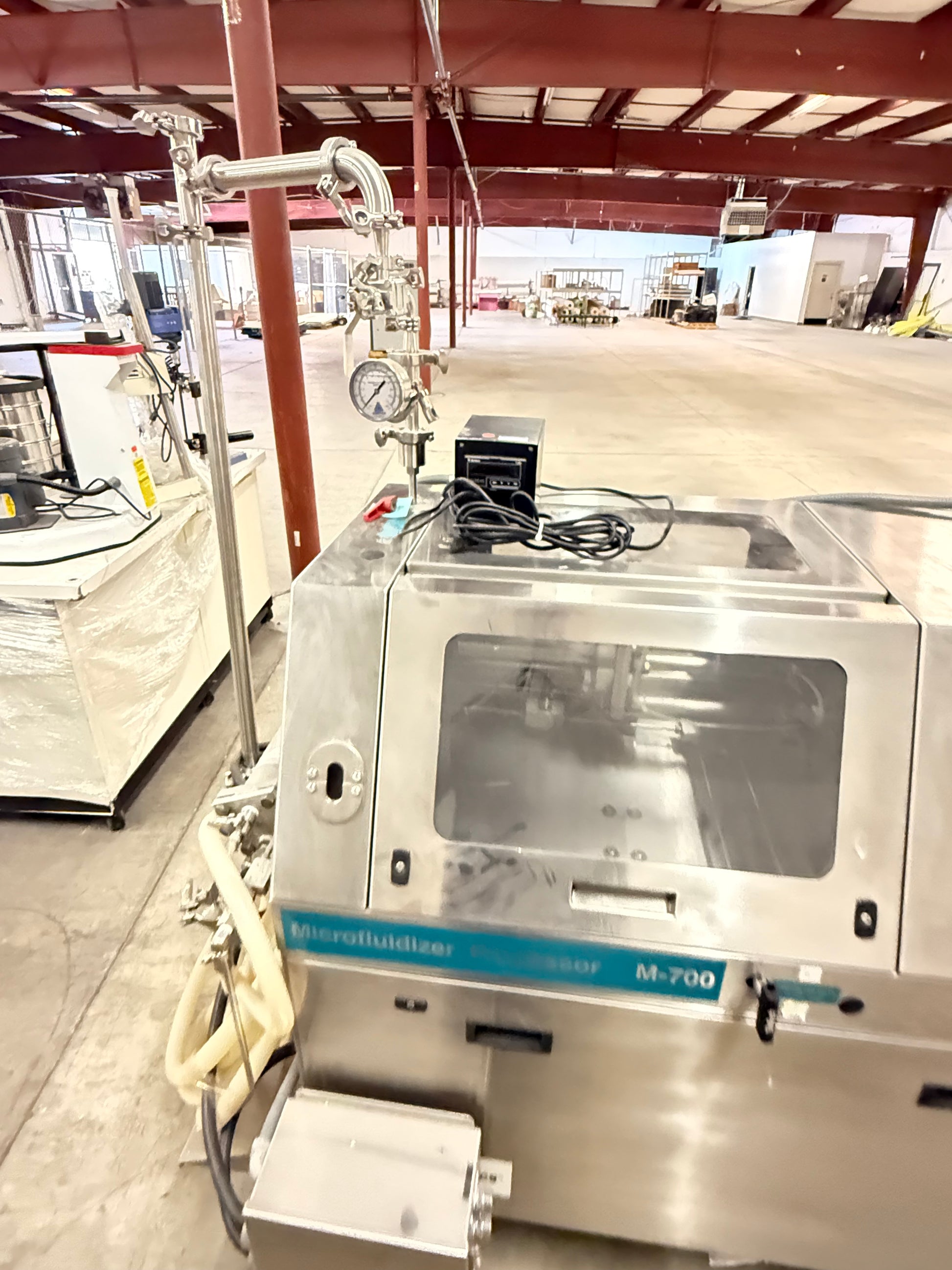

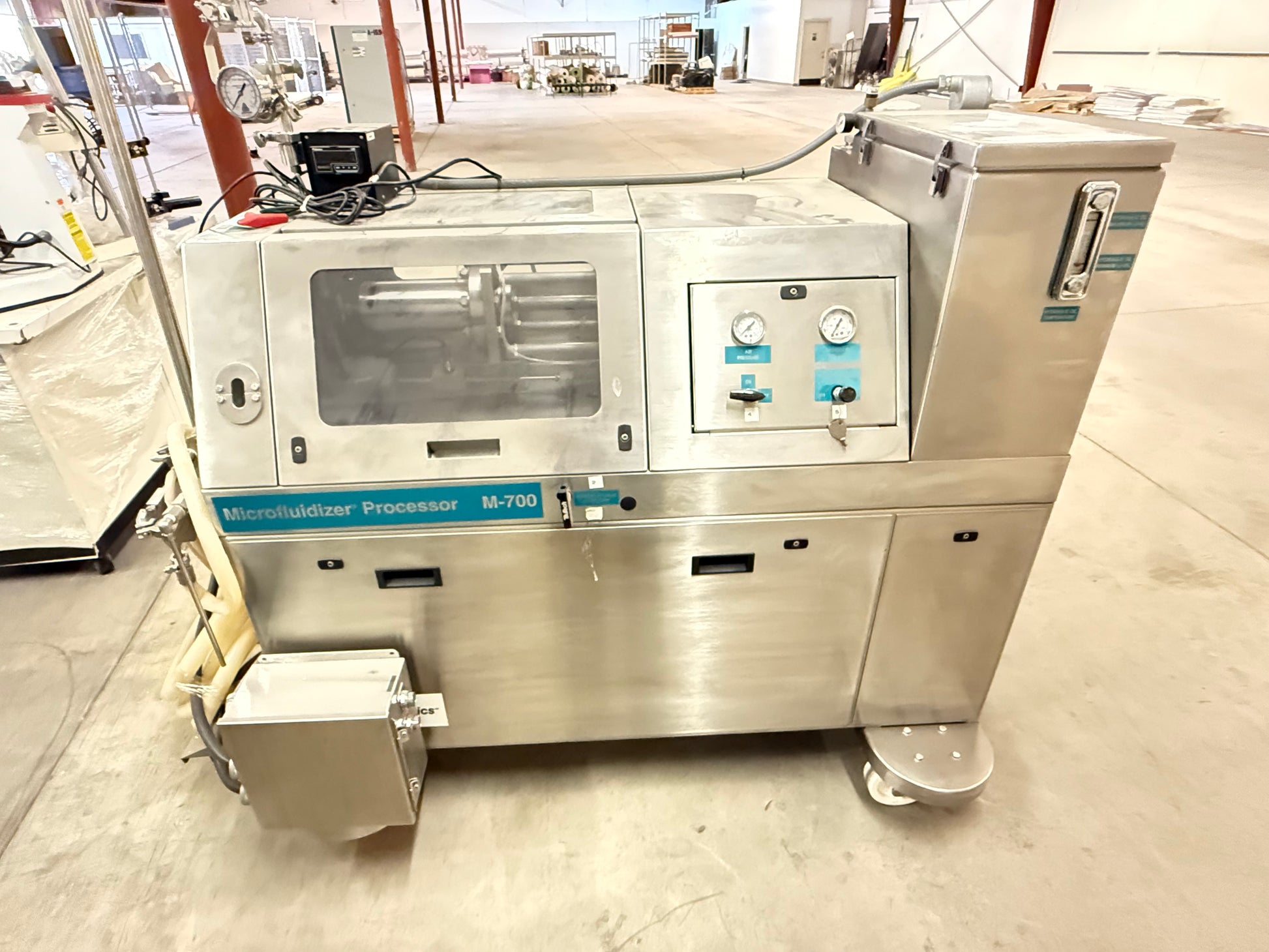

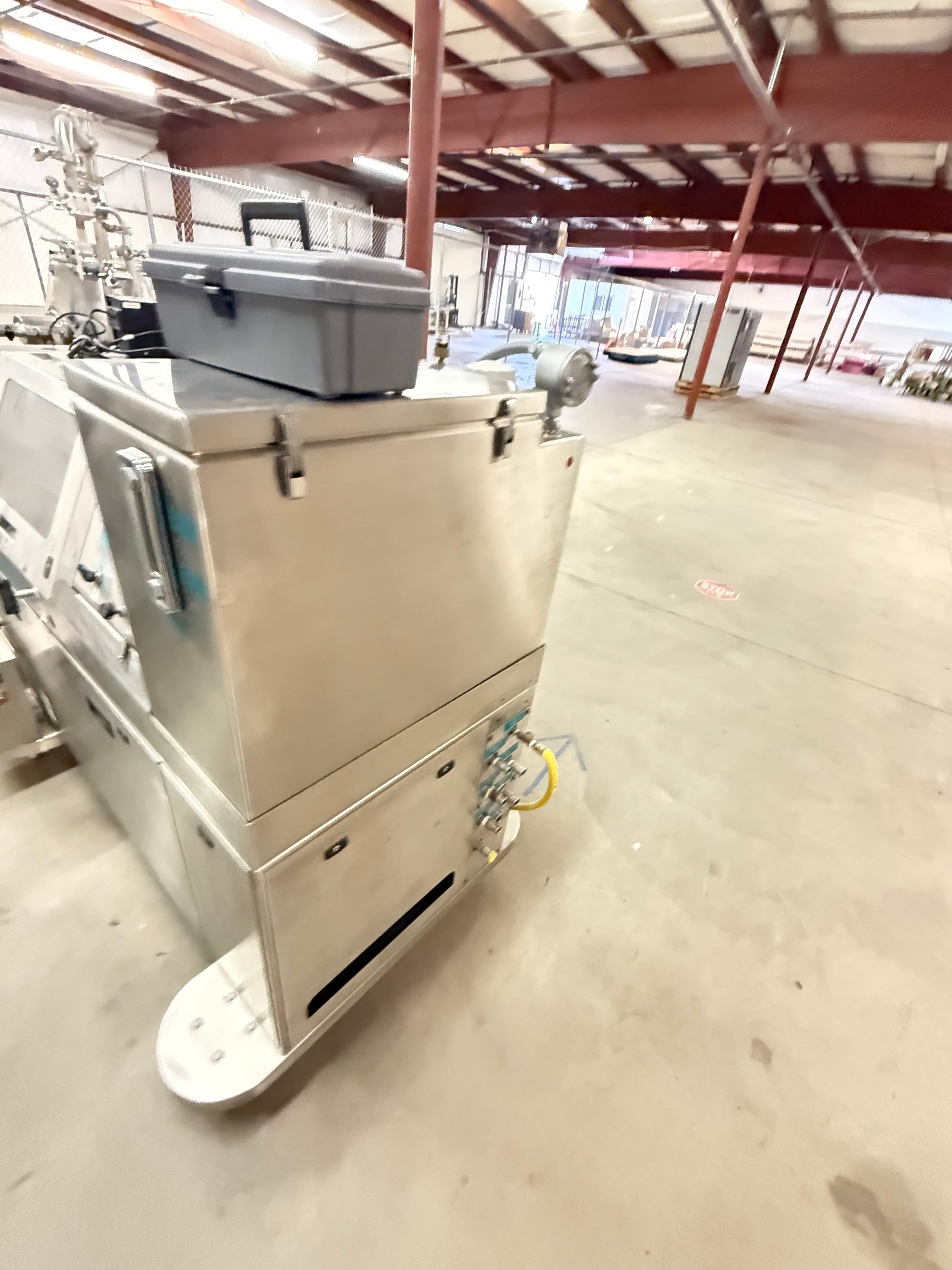

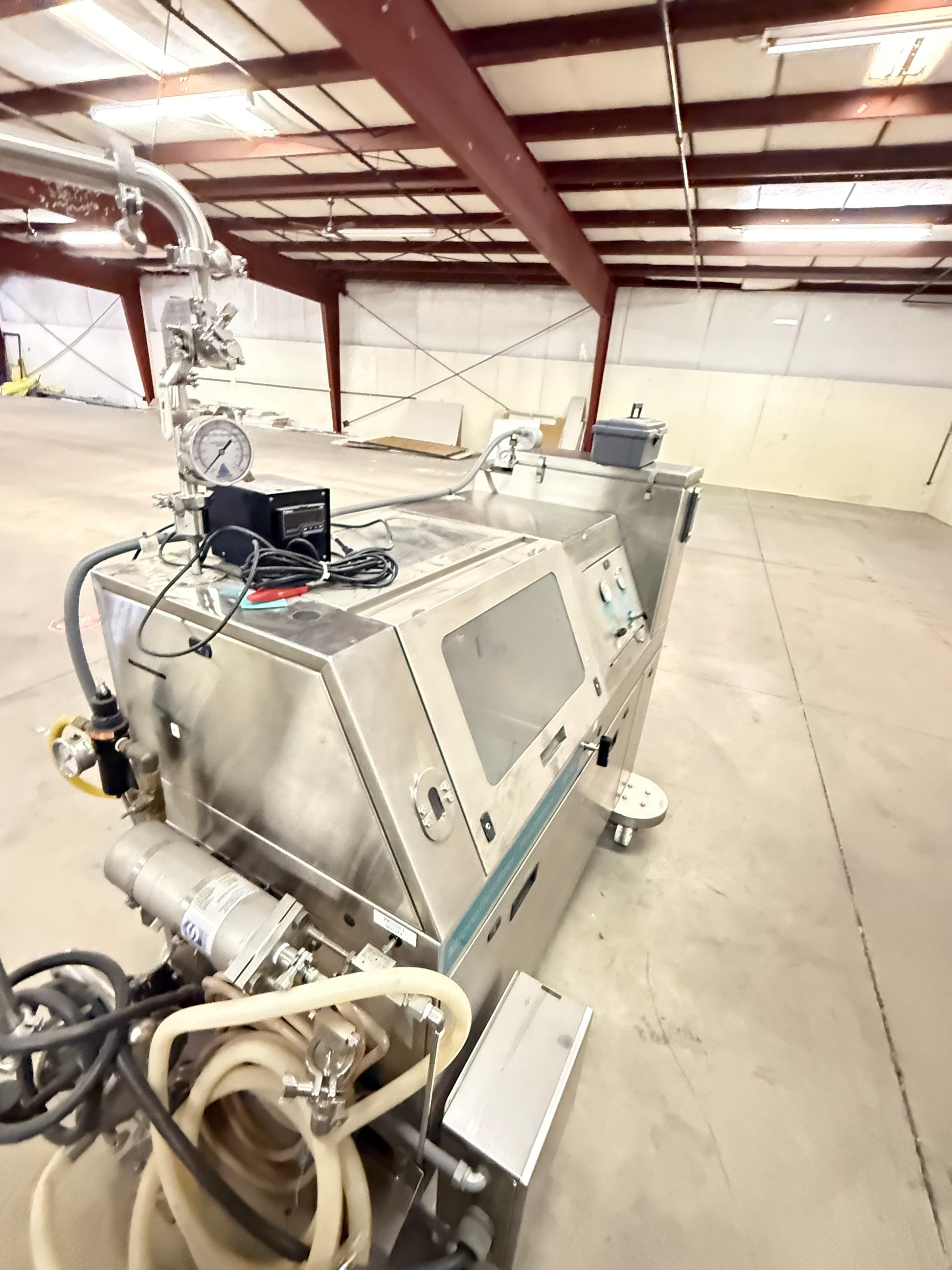

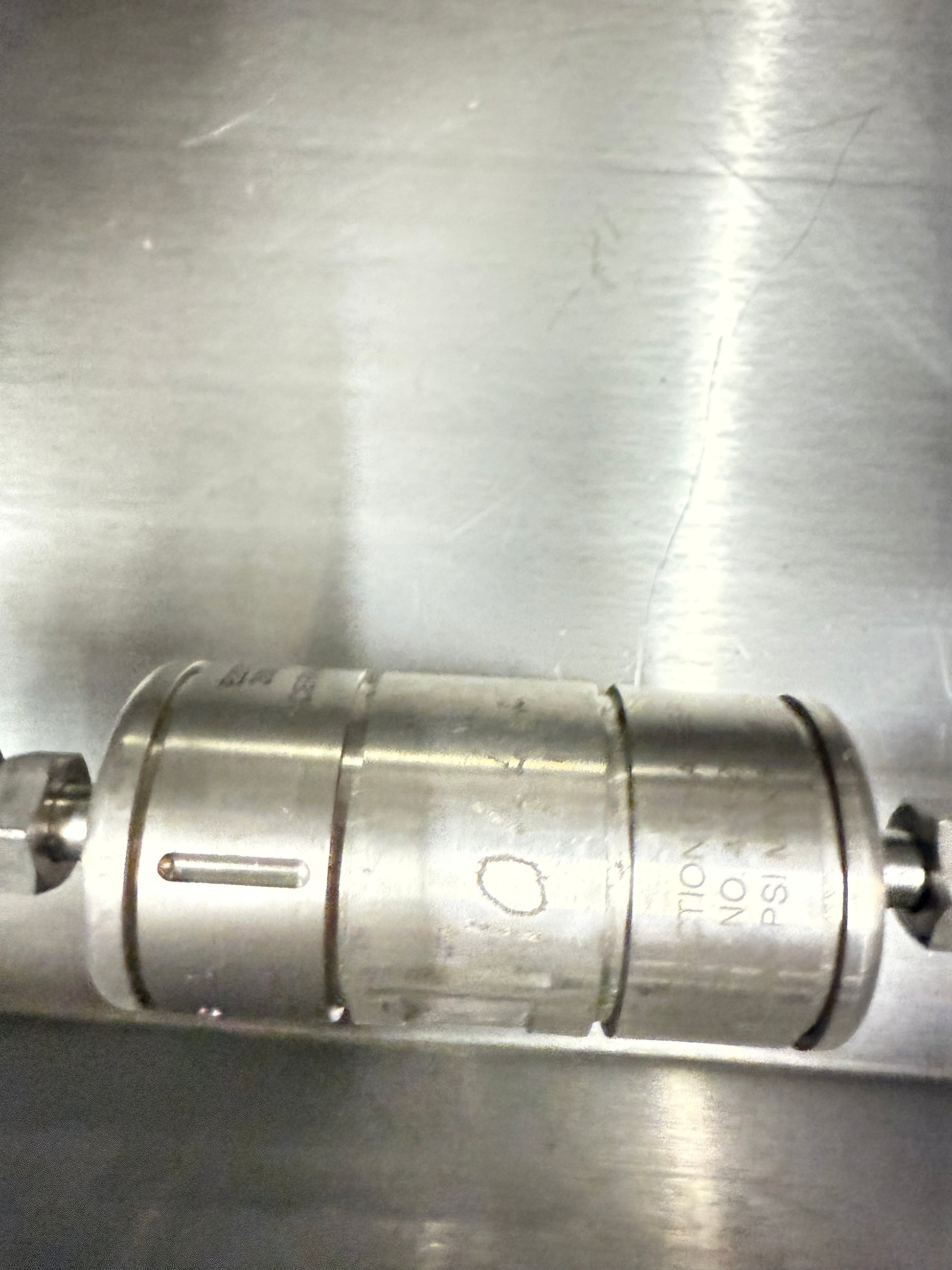

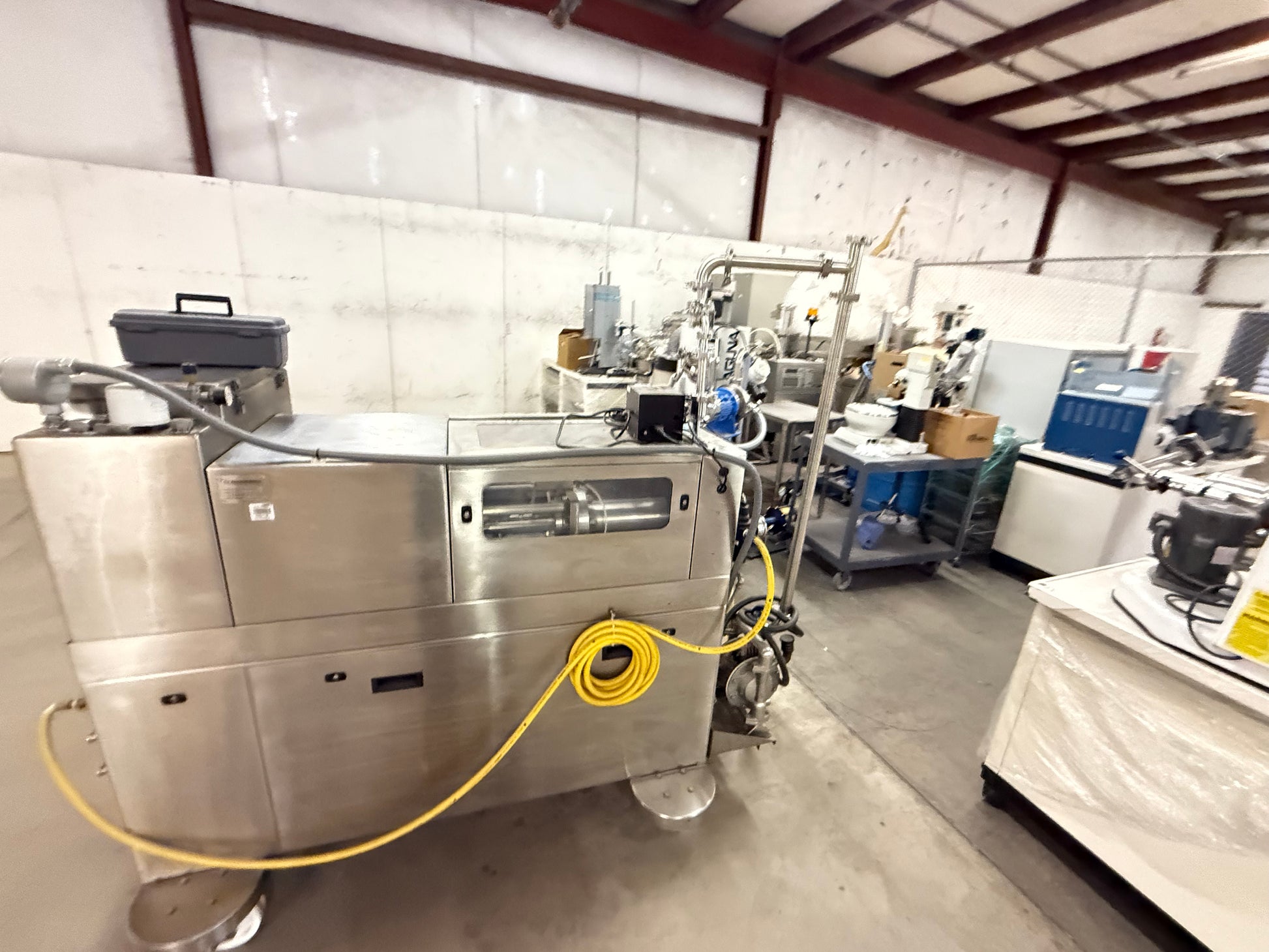

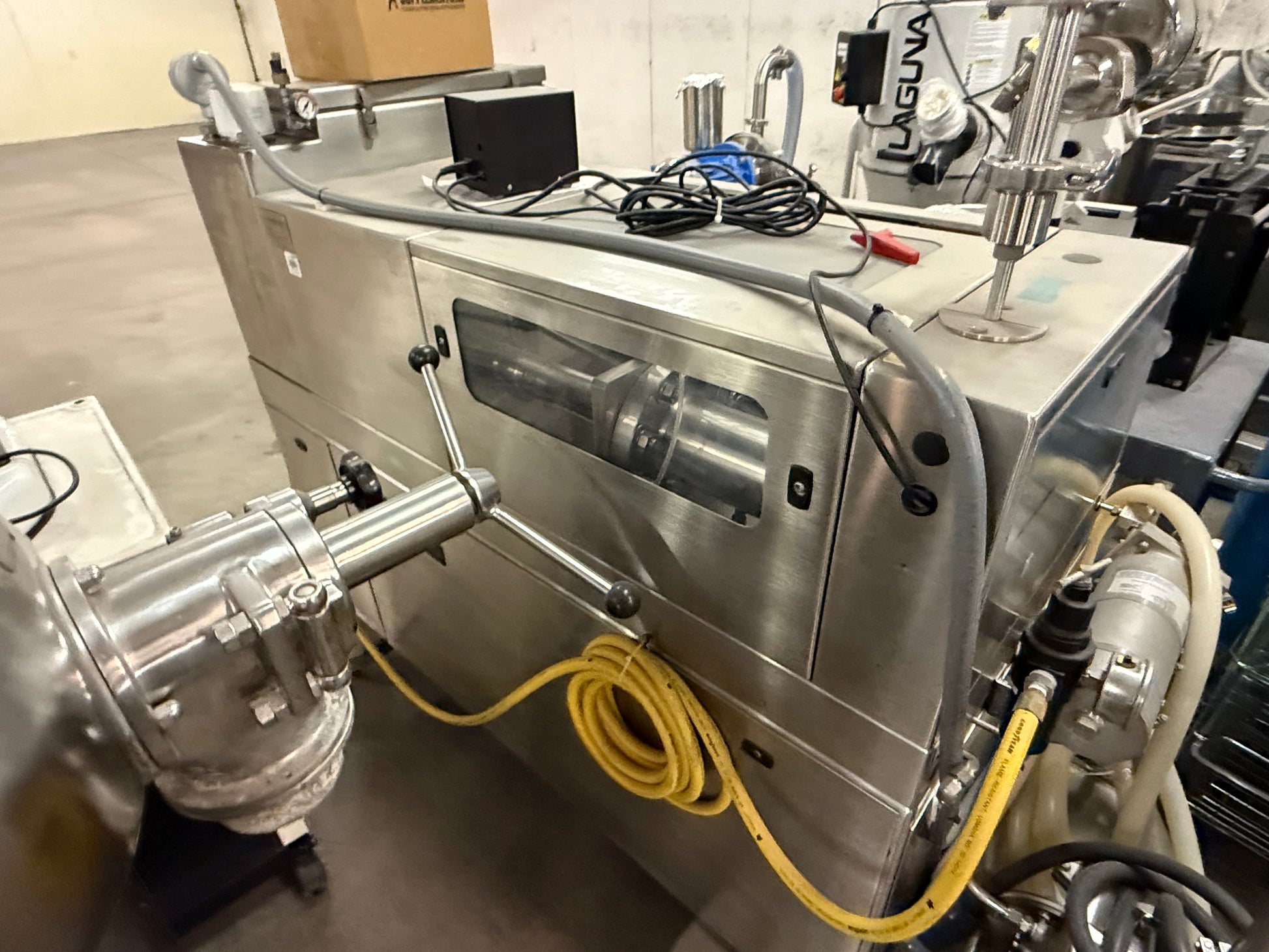

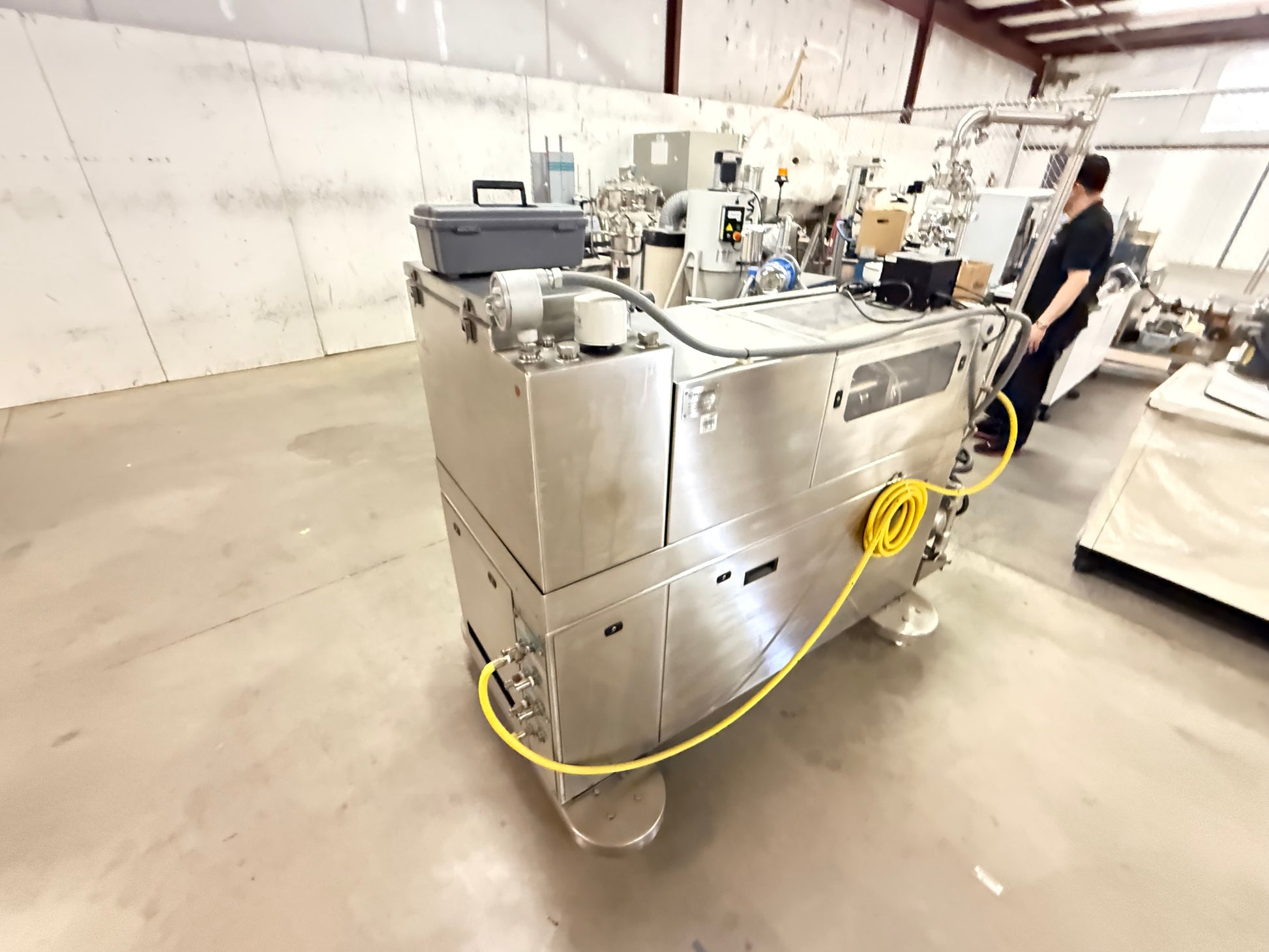

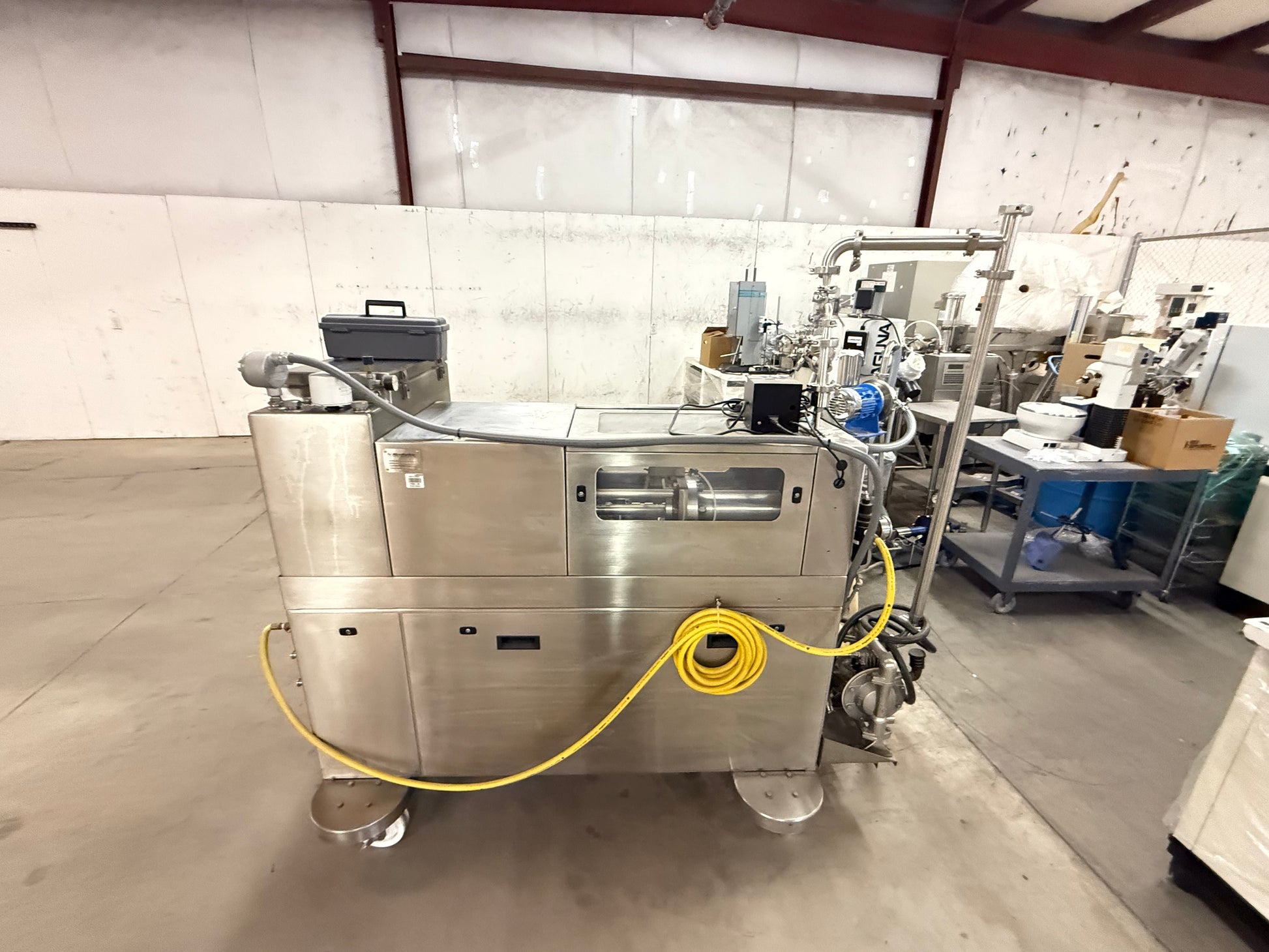

Microfluidizer Processor M7125 Model: 7125-20, Description: One minimal used, pre-owned Microfluidics 7125-20 Microfluidizer Processor. Unit was manufactured in 2006. Included E230Z Ceramic Chamber, 2nd Ceramic Chamber, Sample Cooler Model FLF 6225S, DD Pump for product inlet
The M7125 General Specifications:- Operating pressure range to 20,000 psi

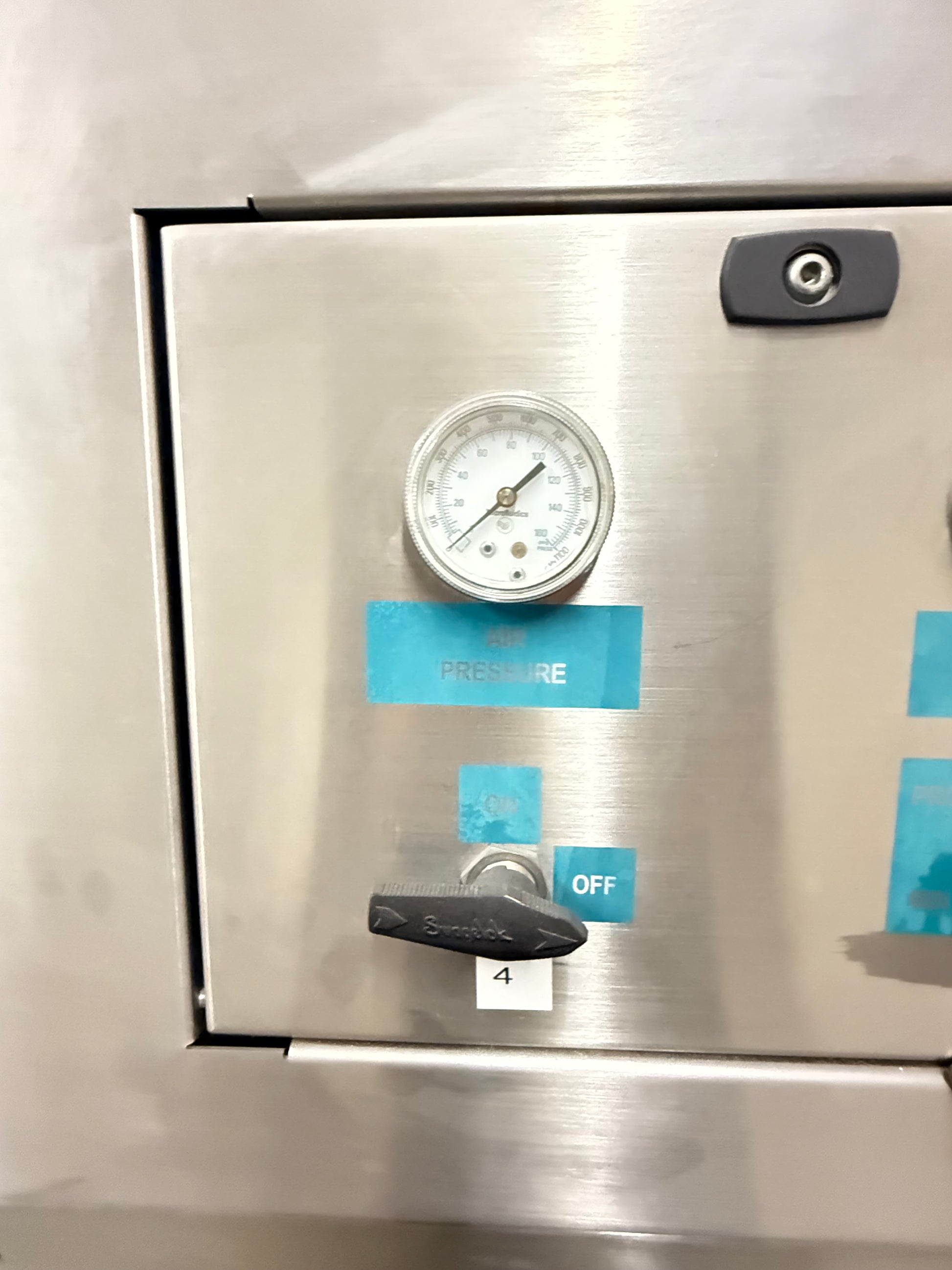

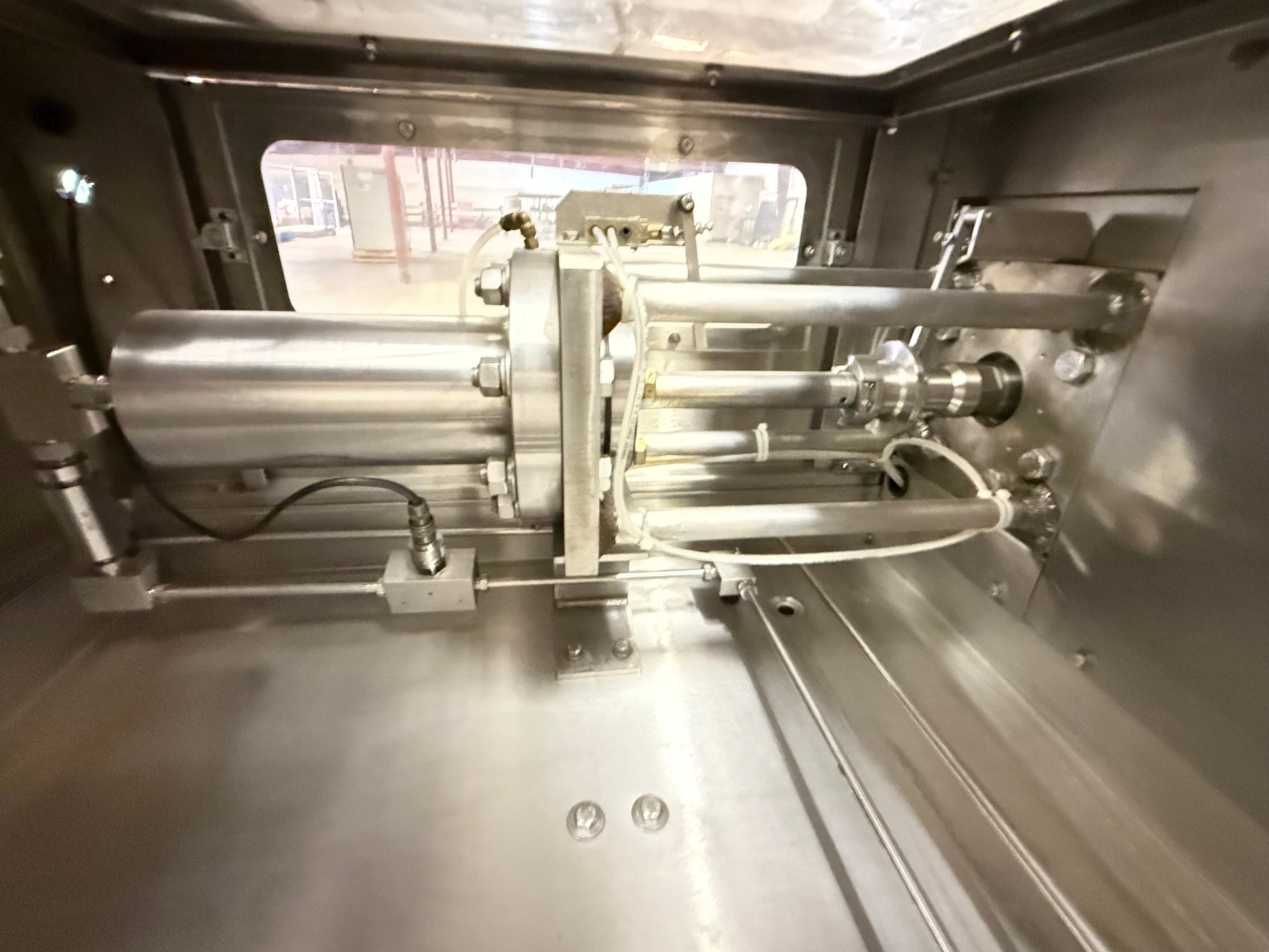

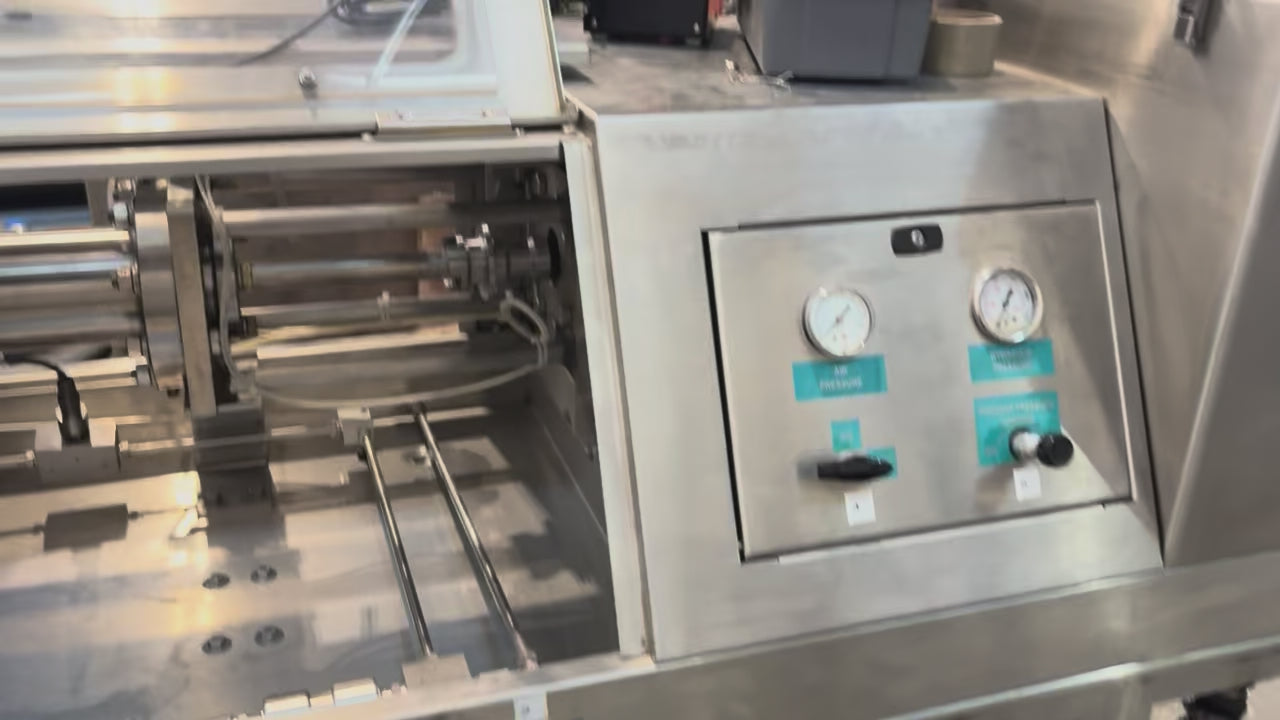

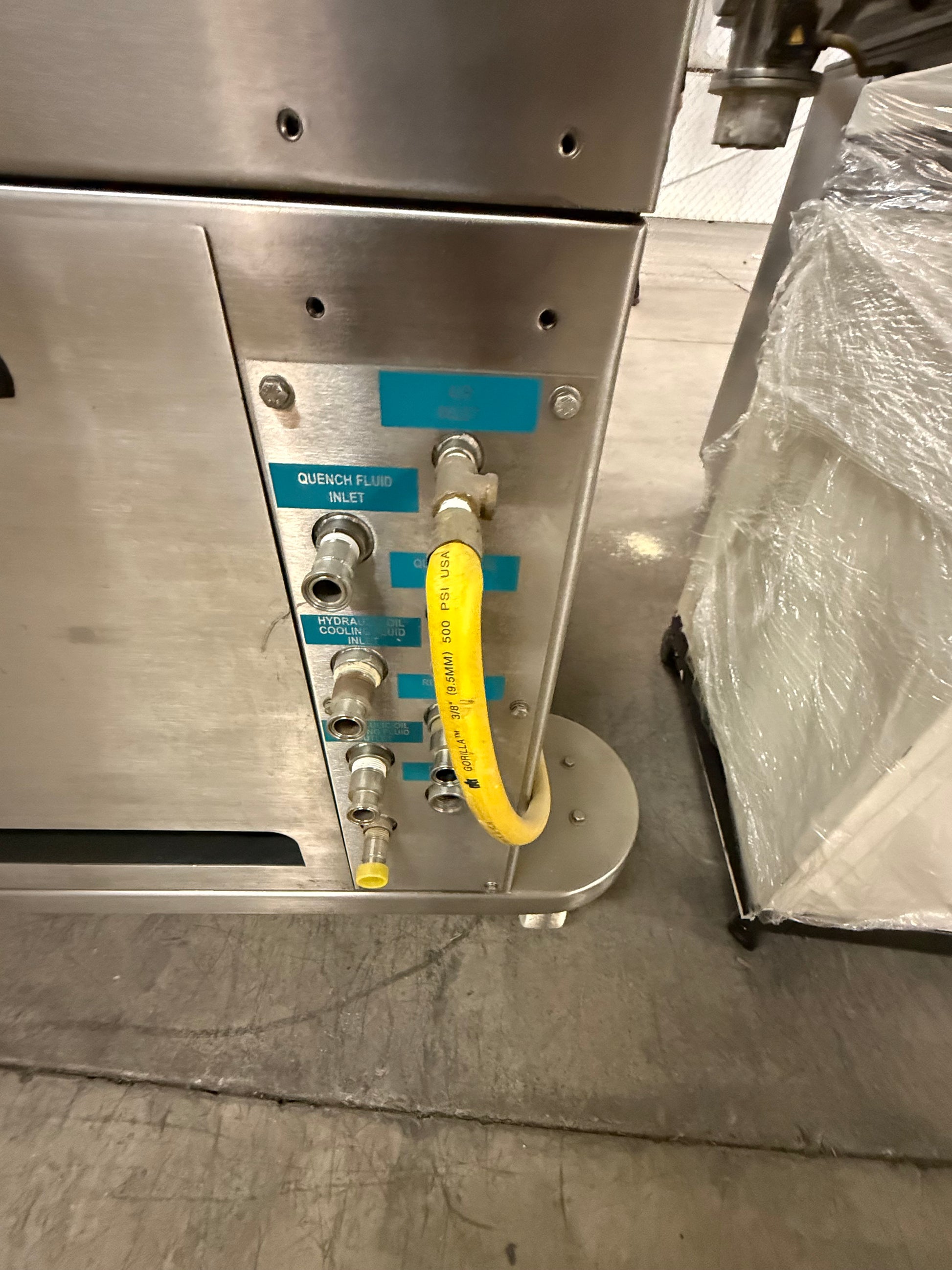

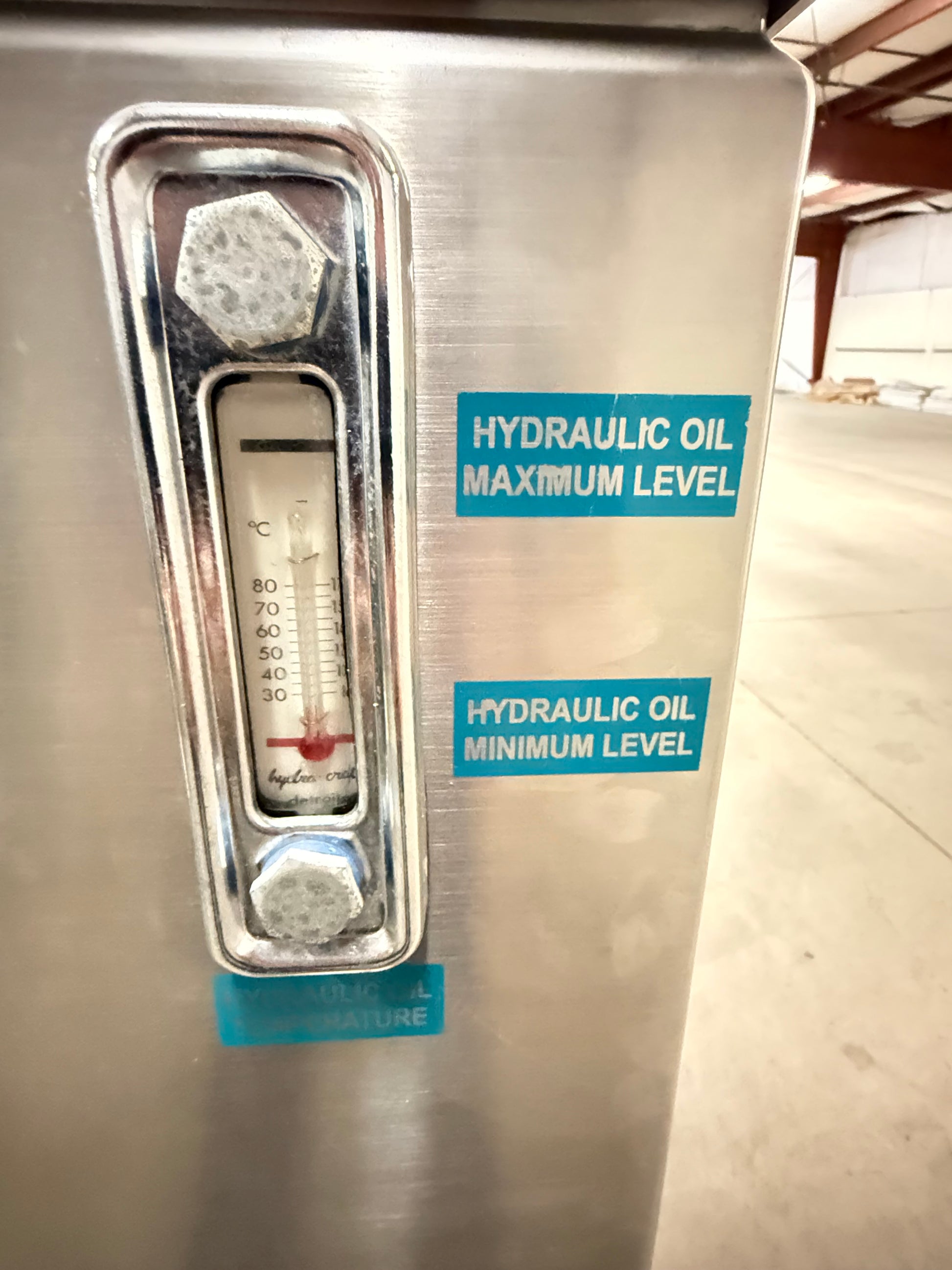

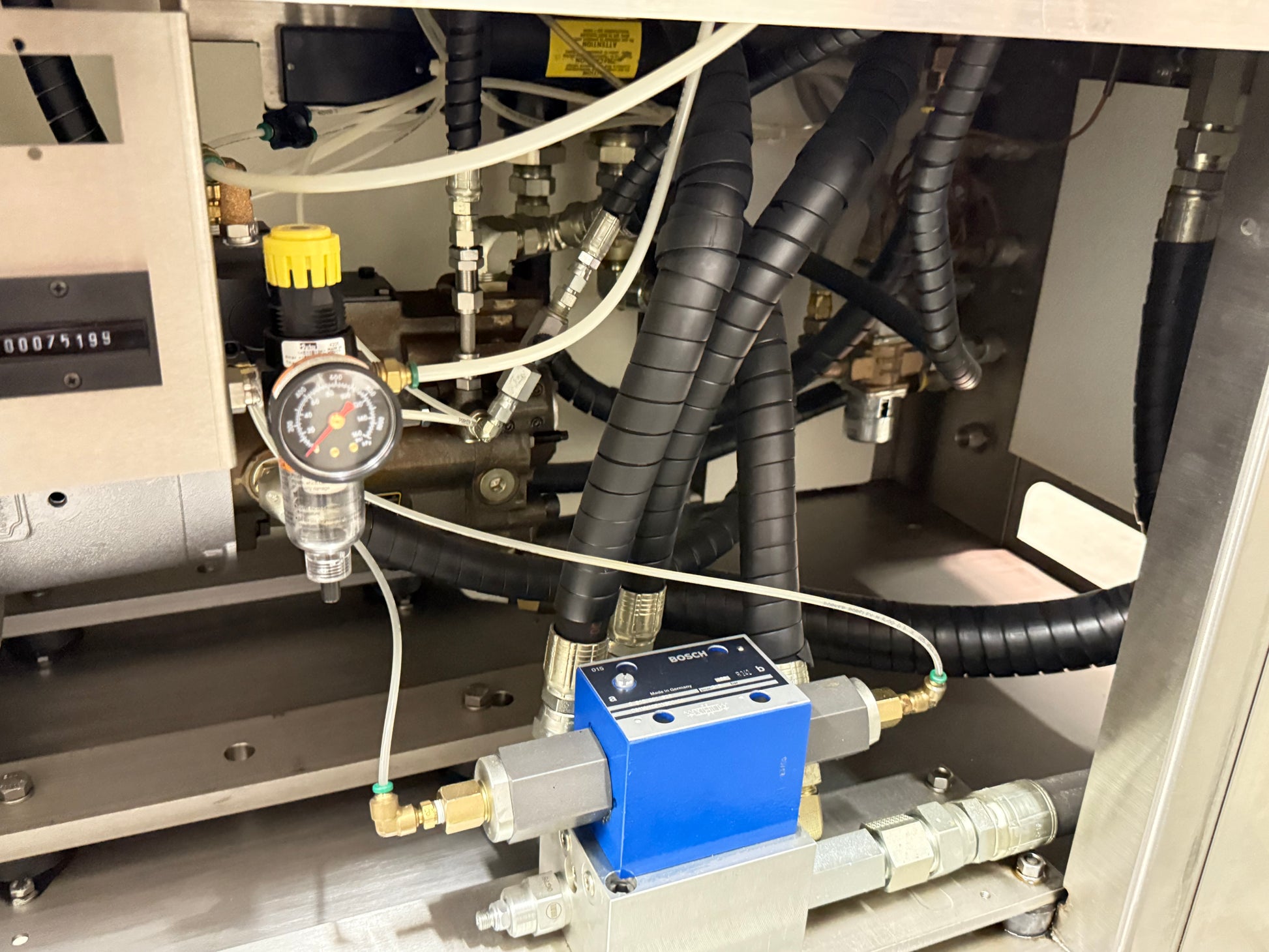

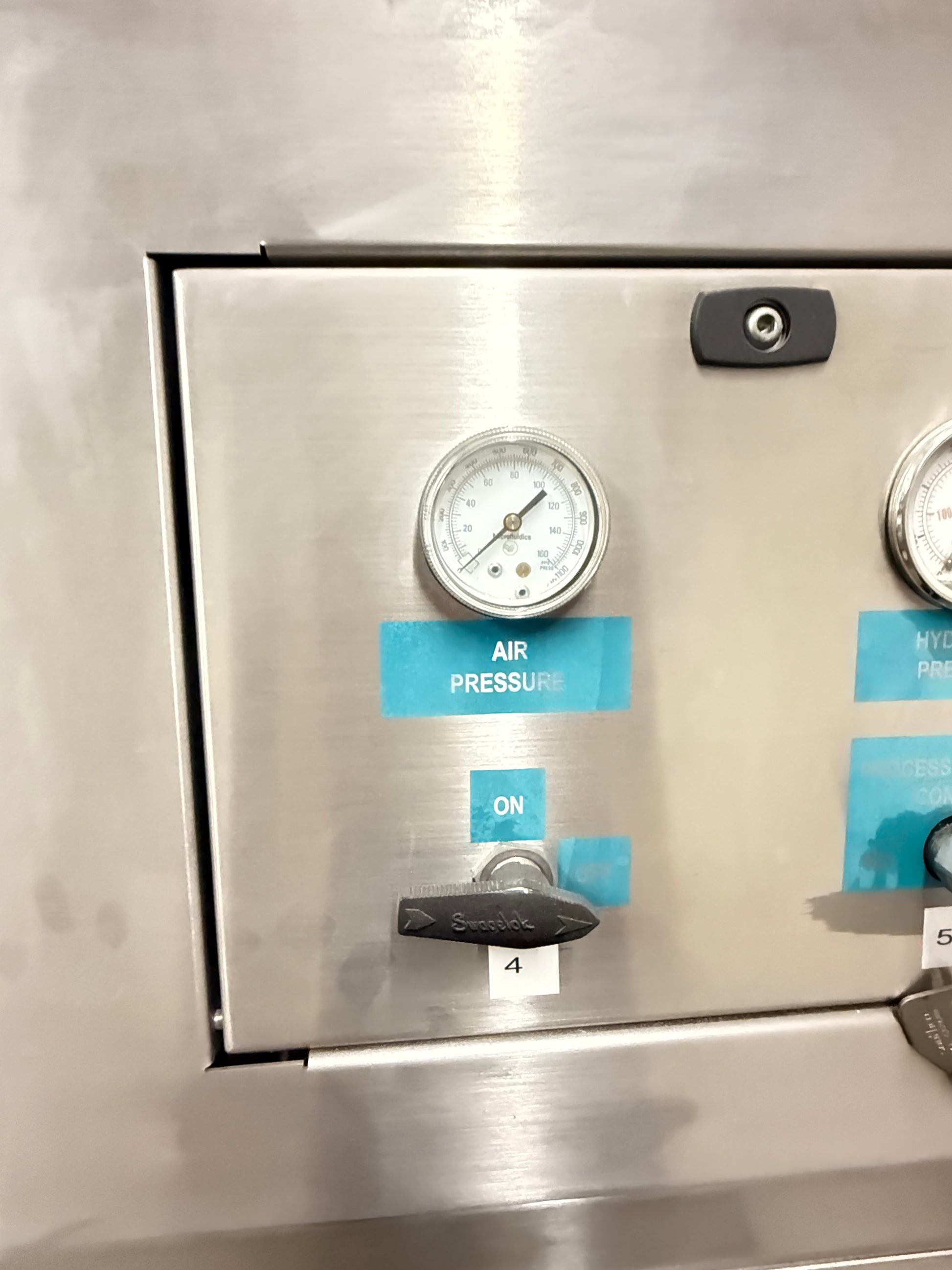

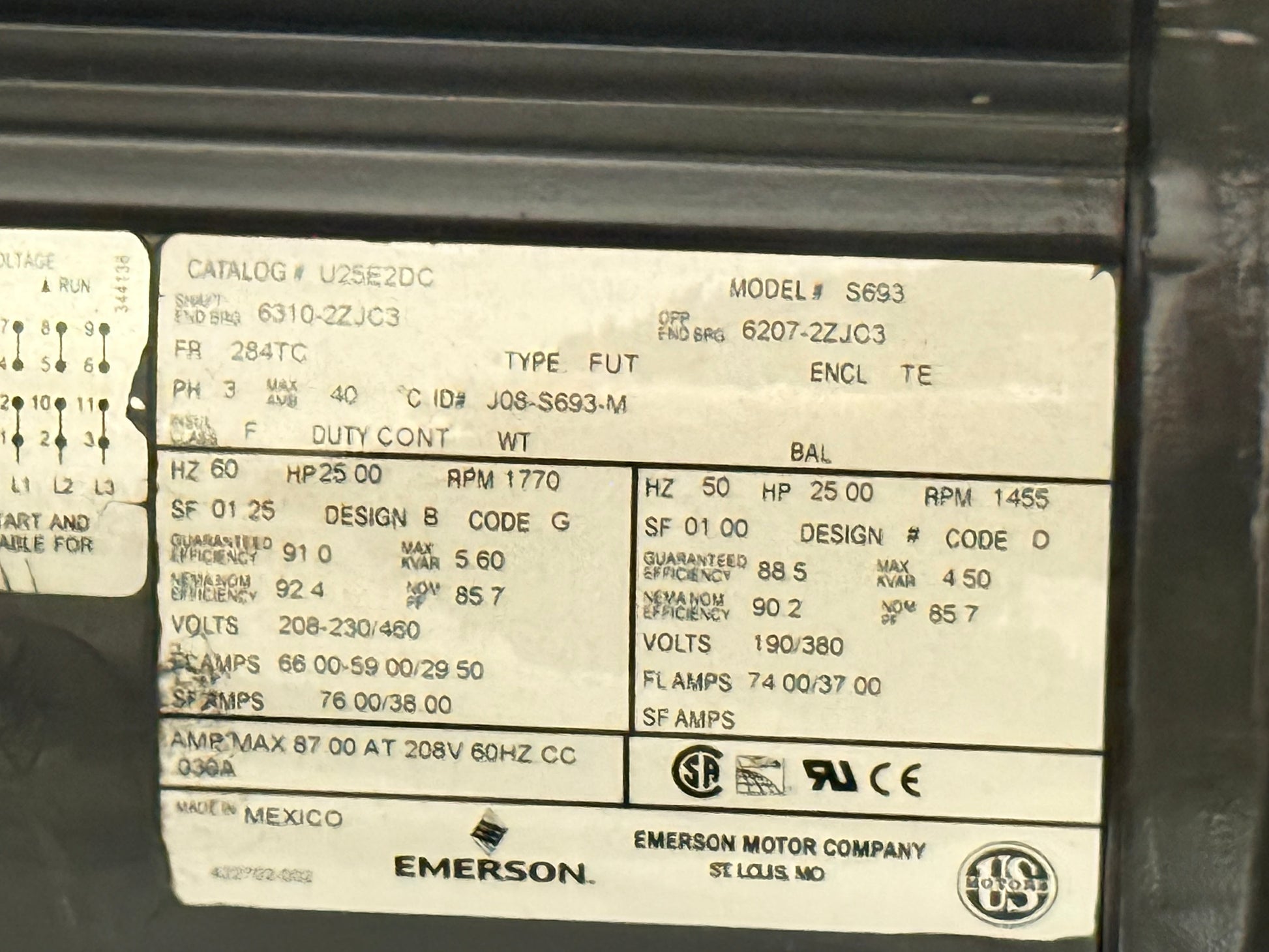

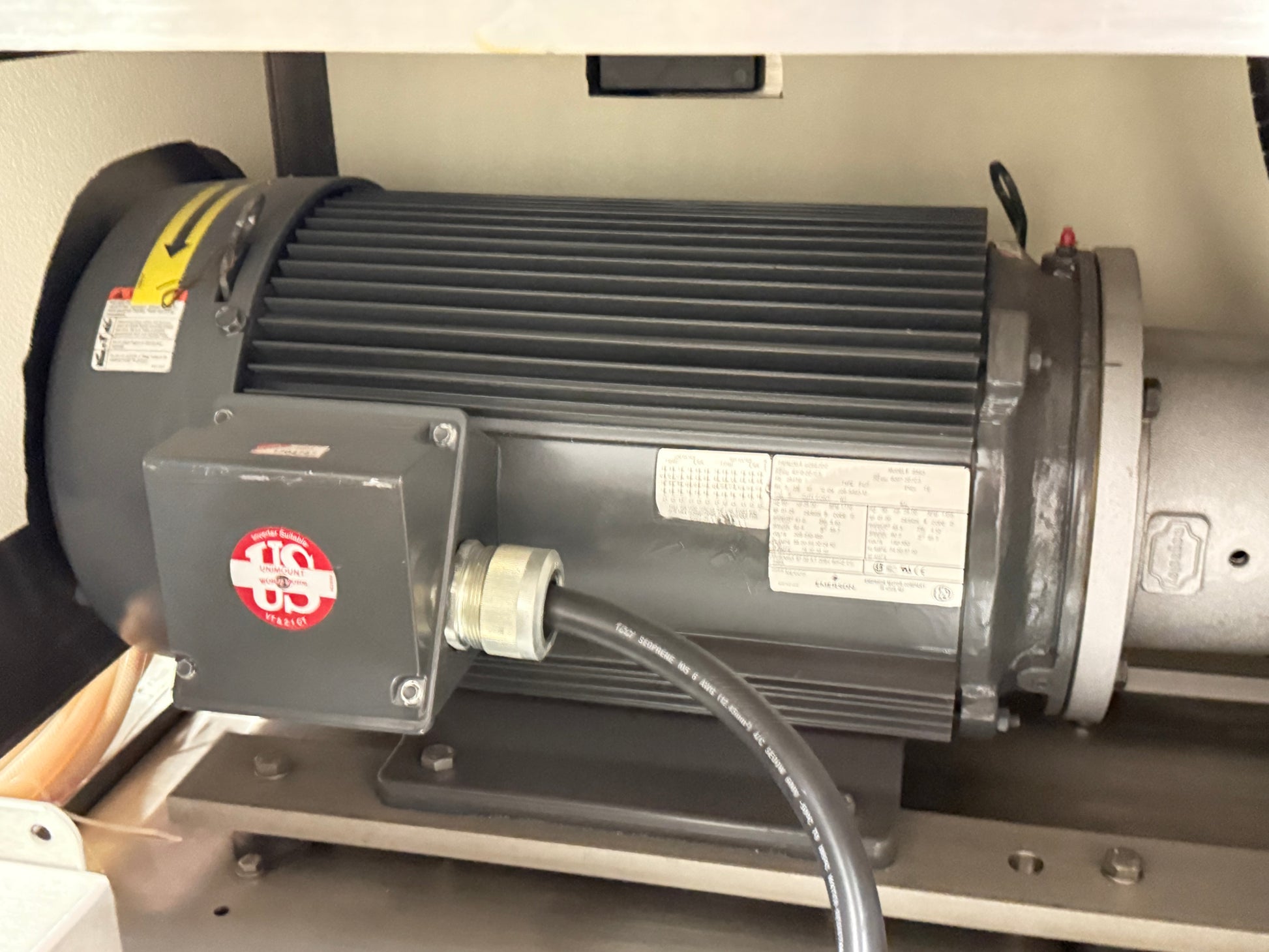

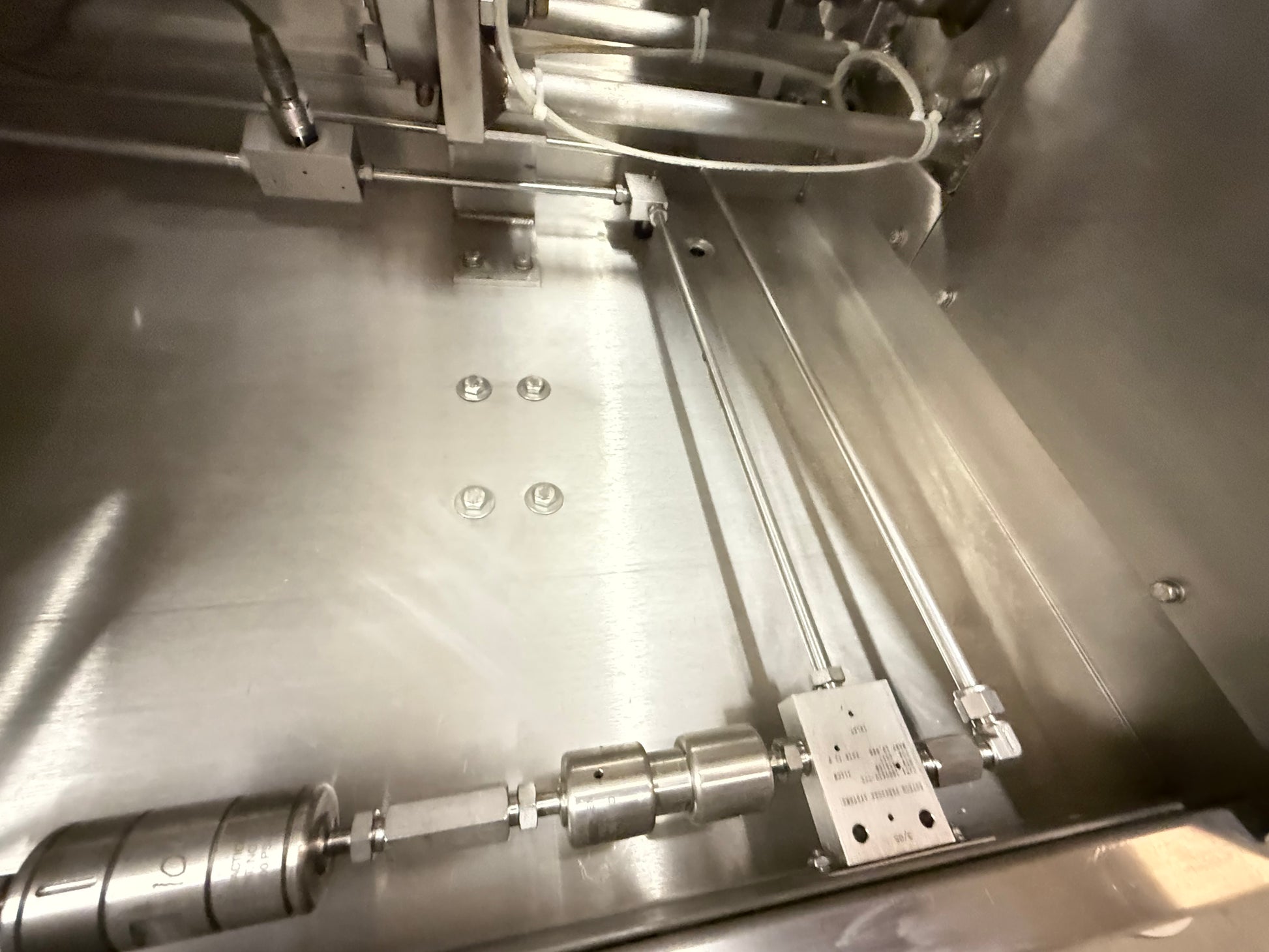

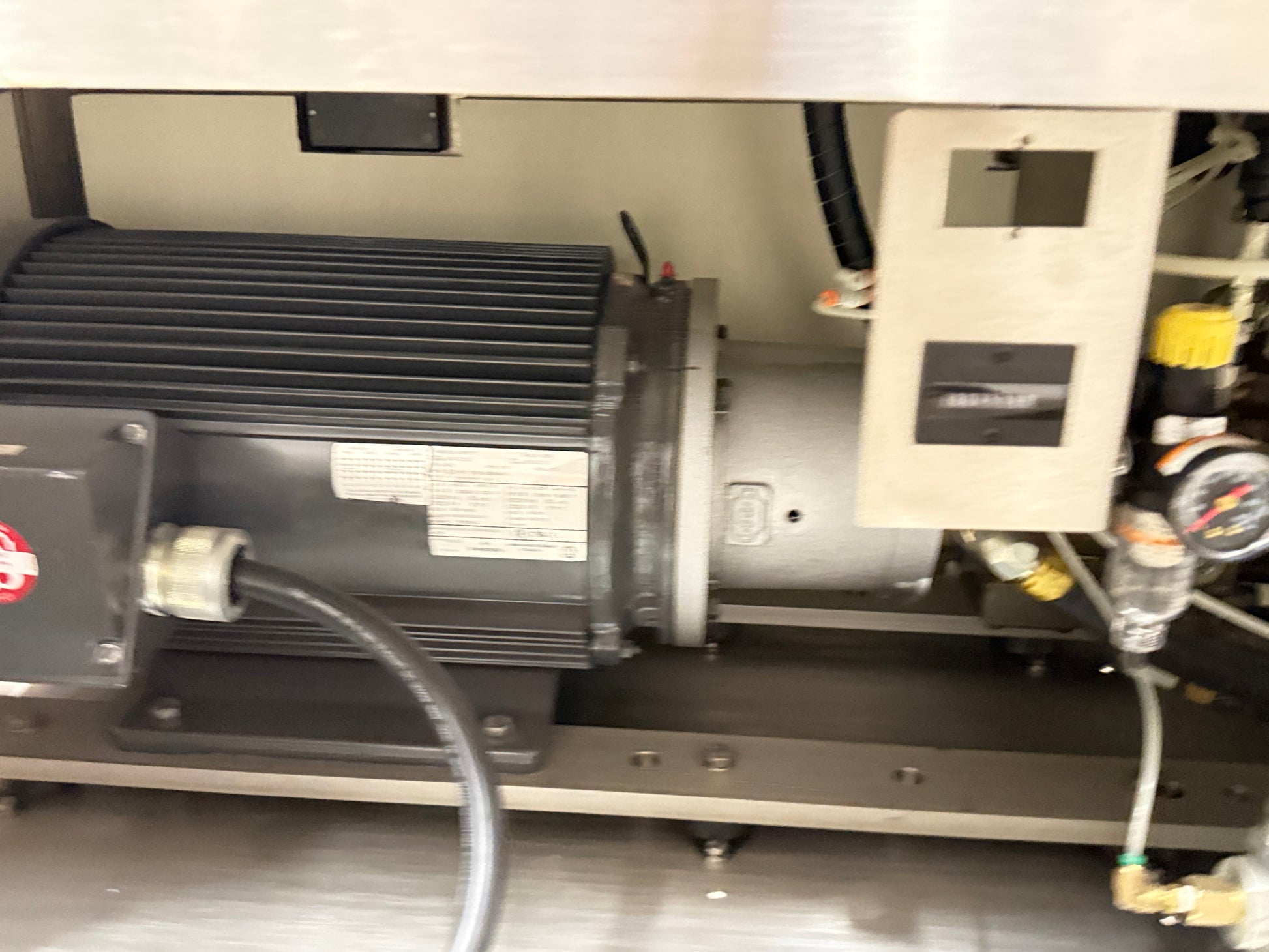

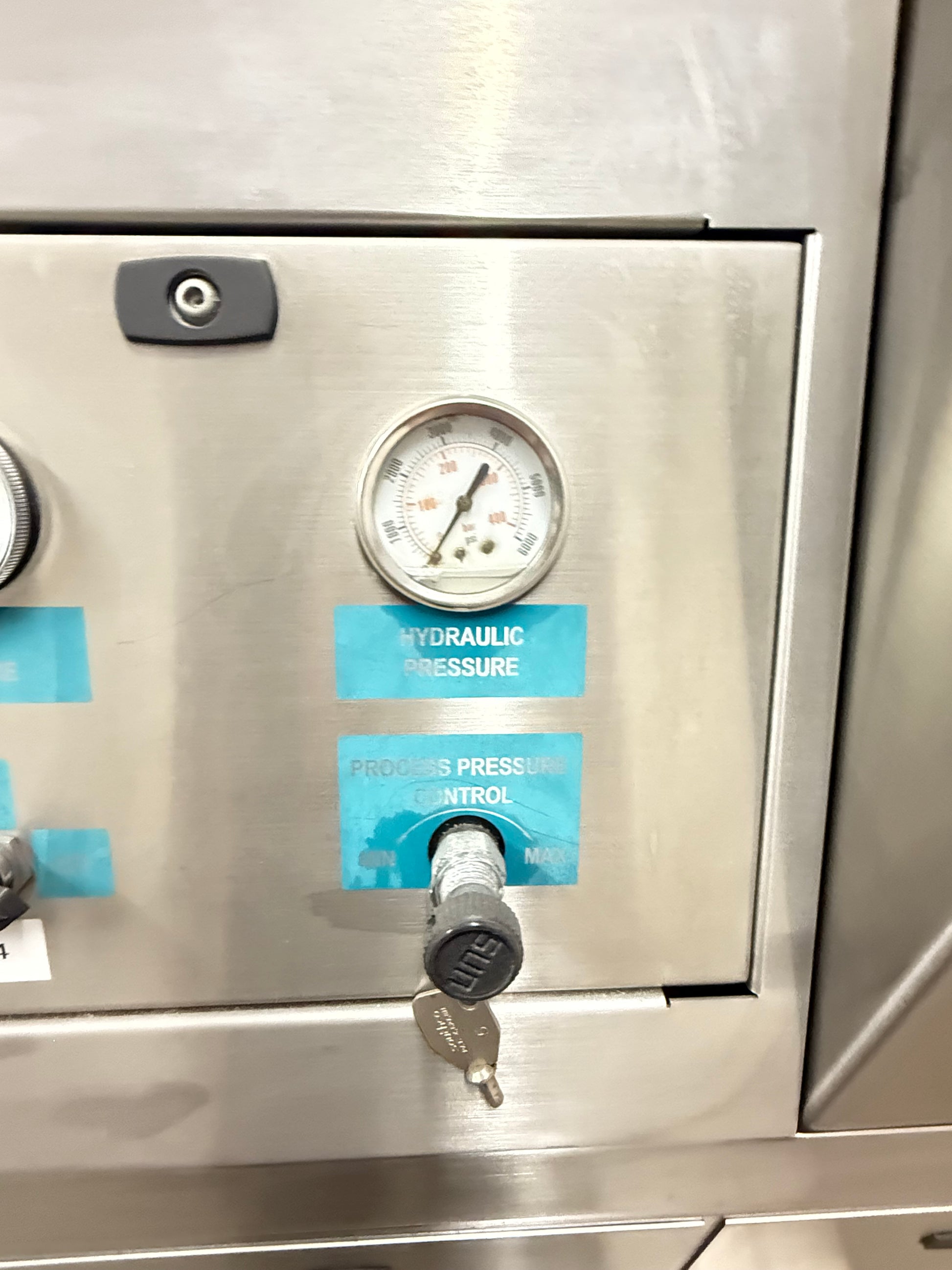

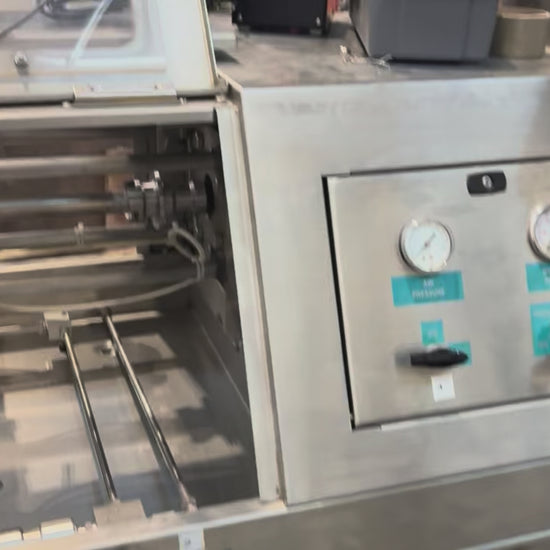

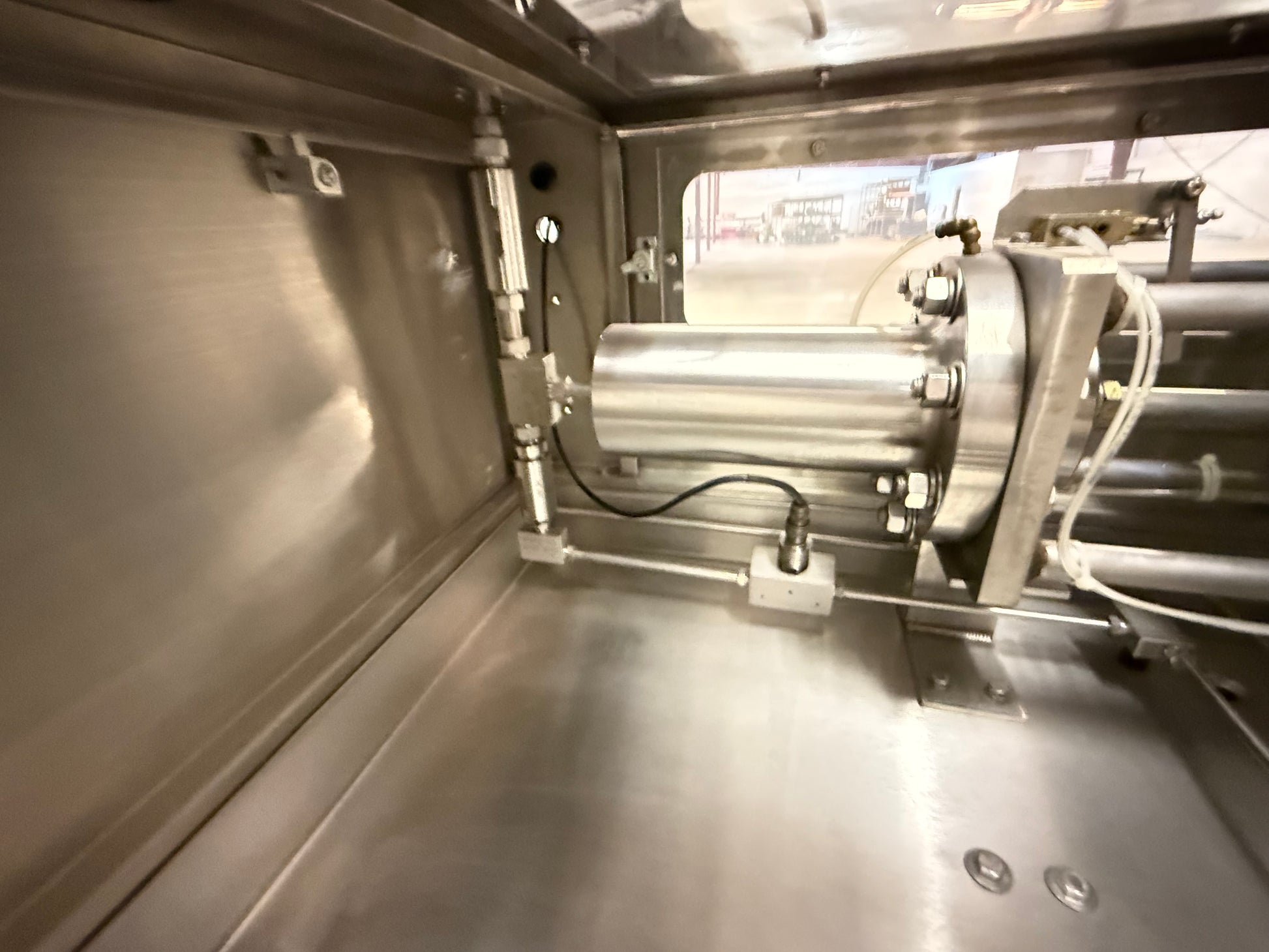

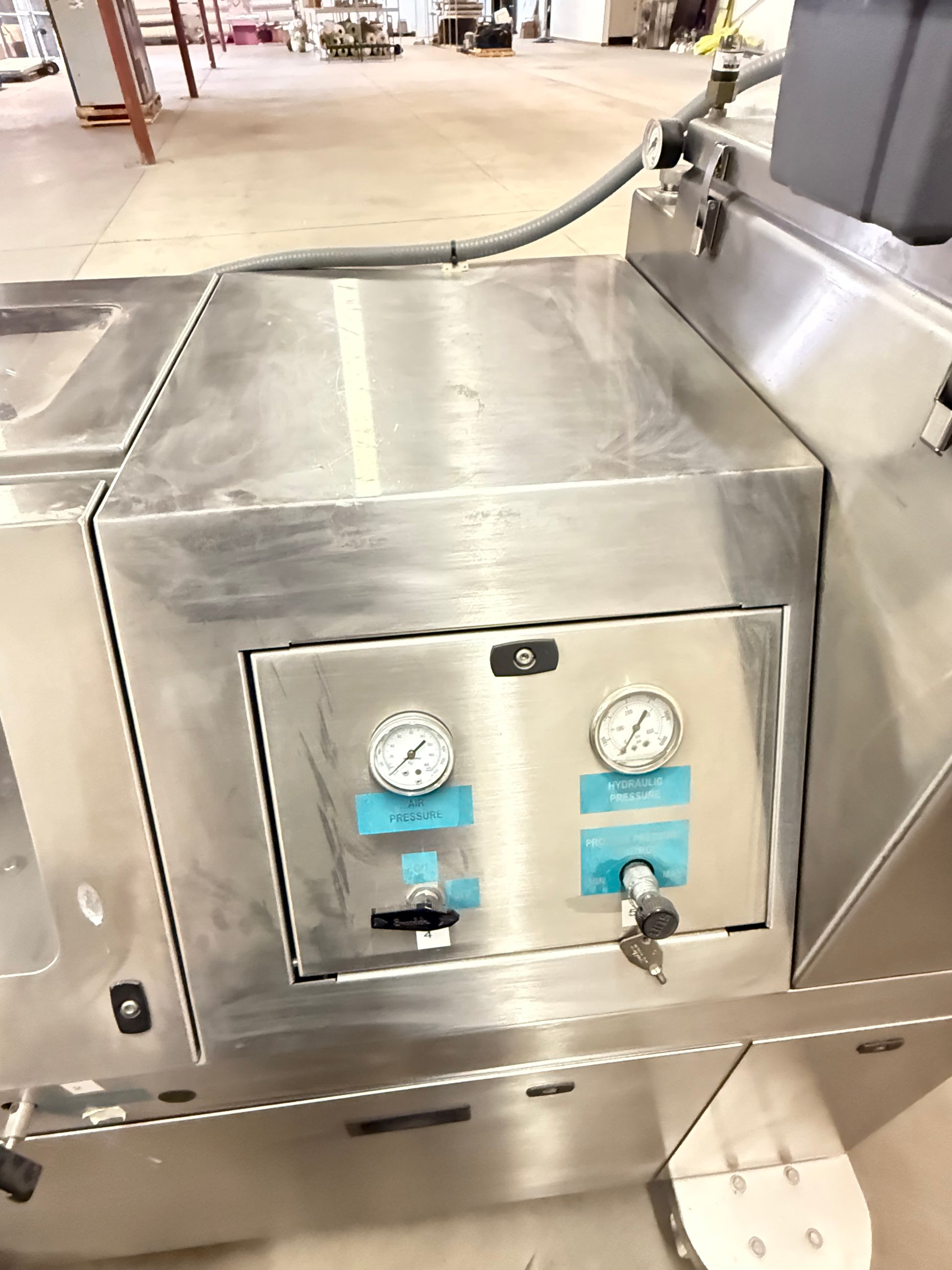

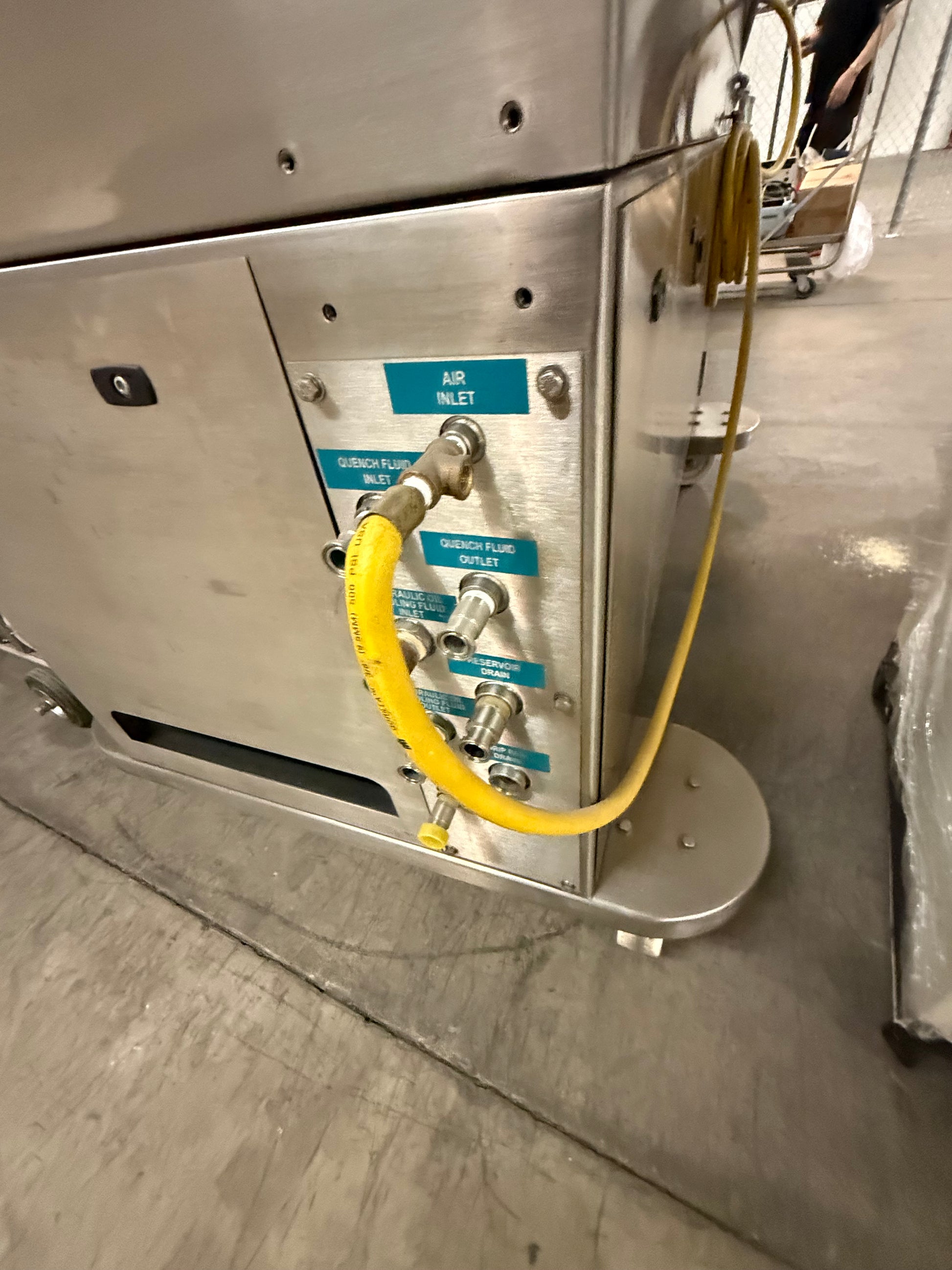

- Nominal flow rate: estimated at 3.0 to 3.7 lpm at 20,000 psi (flow rates are approximate, based upon water). **Actual flow rate will depend on operating pressure, product characteristics, motor frequency and chamber selection.) Standard Features: - Process piping, 316 stainless steel - Single acting hydraulic intensifier pump - 25 horsepower electric motor: 230/460V, 3Ph, 60 Hz, TEFC - Cycling controls are pneumatically actuated (requires 1 SCFM @ 50 psi, 0-35ºF dew point) - Manual controls for pressure setting and intensifier on/off - Mechanical gauges for product feed pressure, product process pressure and hydraulic drive pressure - Hydraulic oil level and temperature sight gauge - Hydraulic oil level and temperature sensing switch - Thermostat control valve for hydraulic oil cooling water (water drainage required) - Adjustable leveling legs on the frame - Stainless steel frame and enclosure - All required special tools - APM replacement coupling - Seal Quench (Solvent or Aqueous) Drainage required - Output manifolded to one output connection on multiple chambered units - Noise level less than or equal to 85
