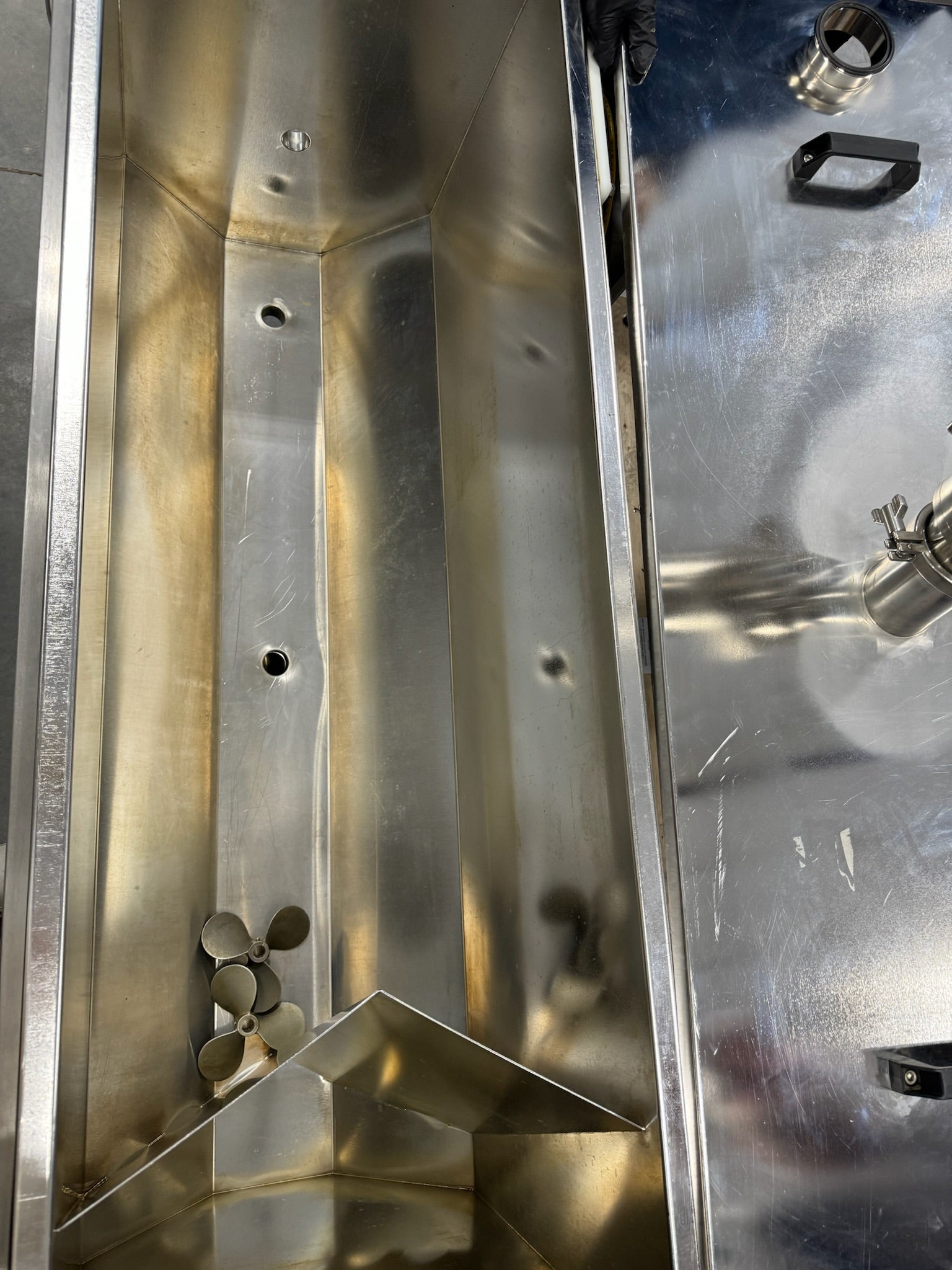

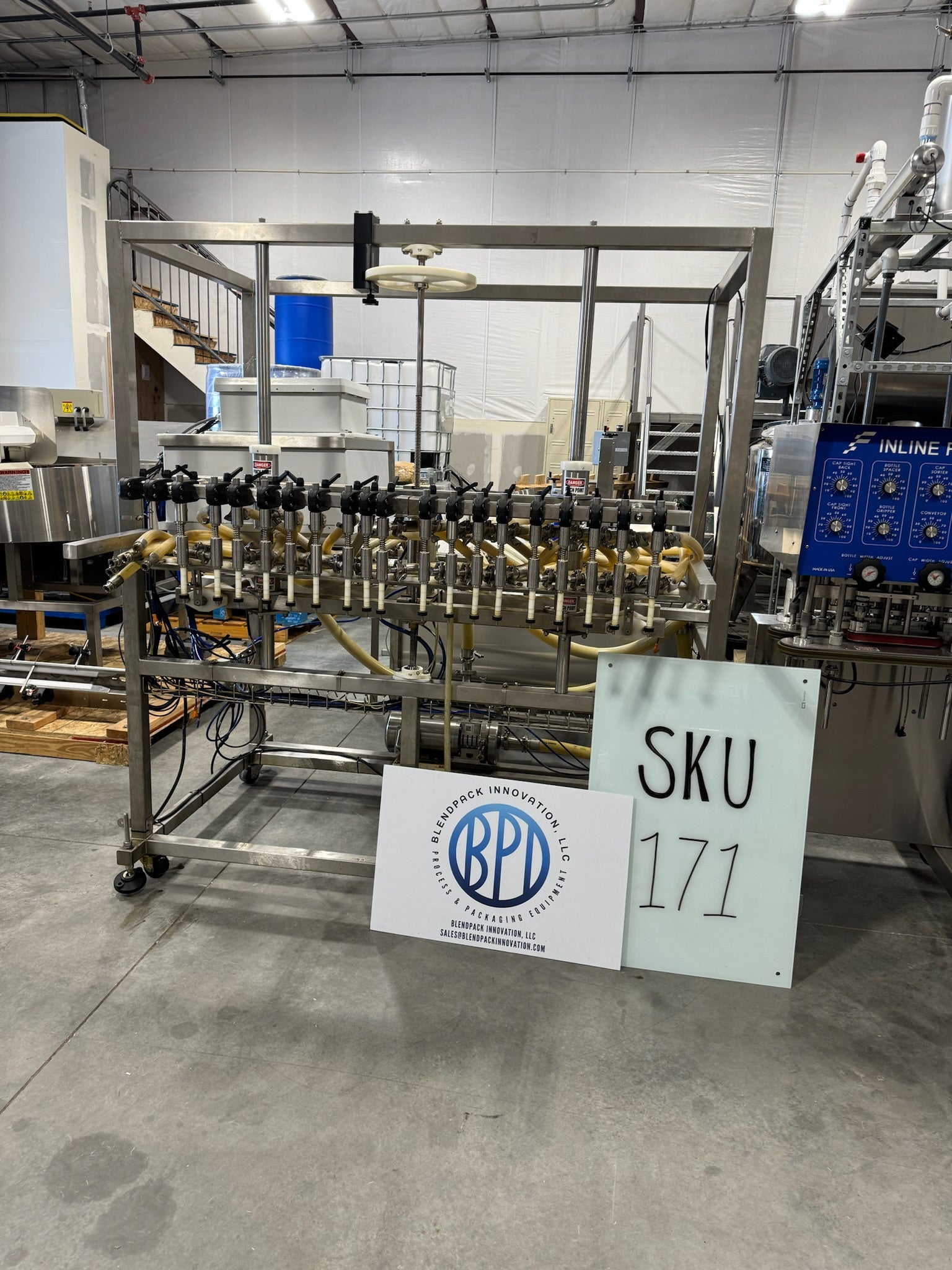

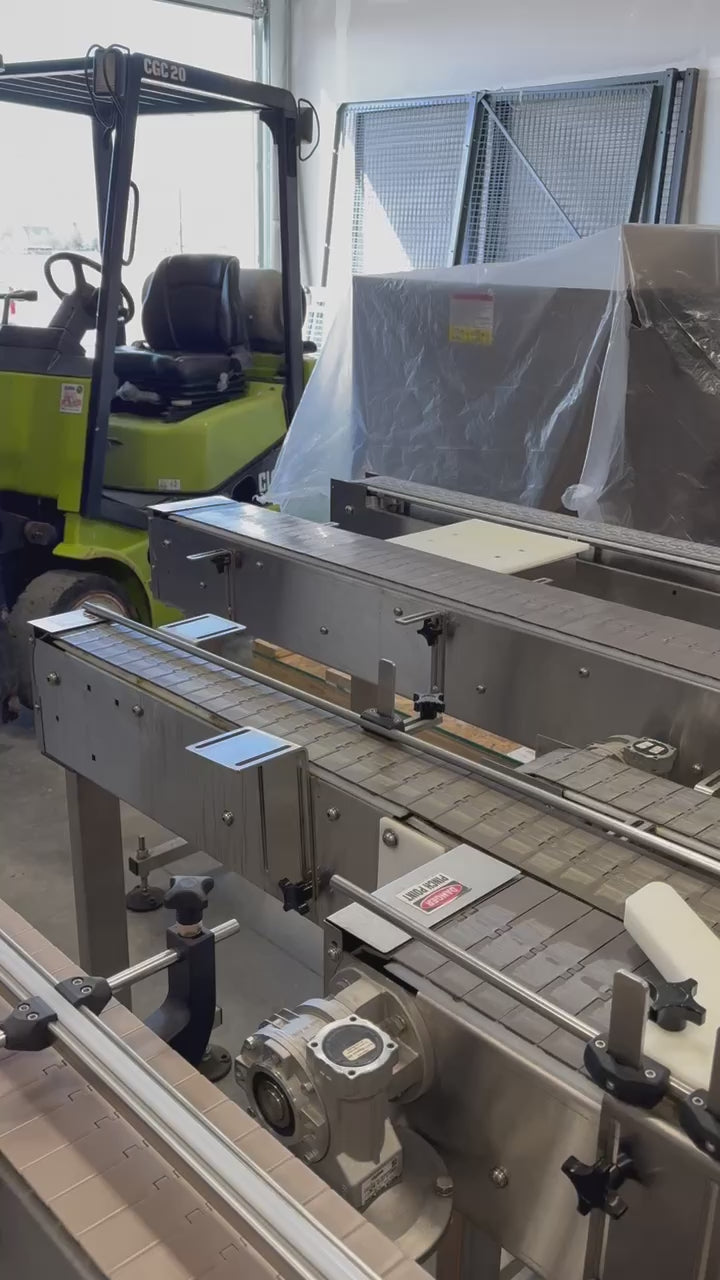

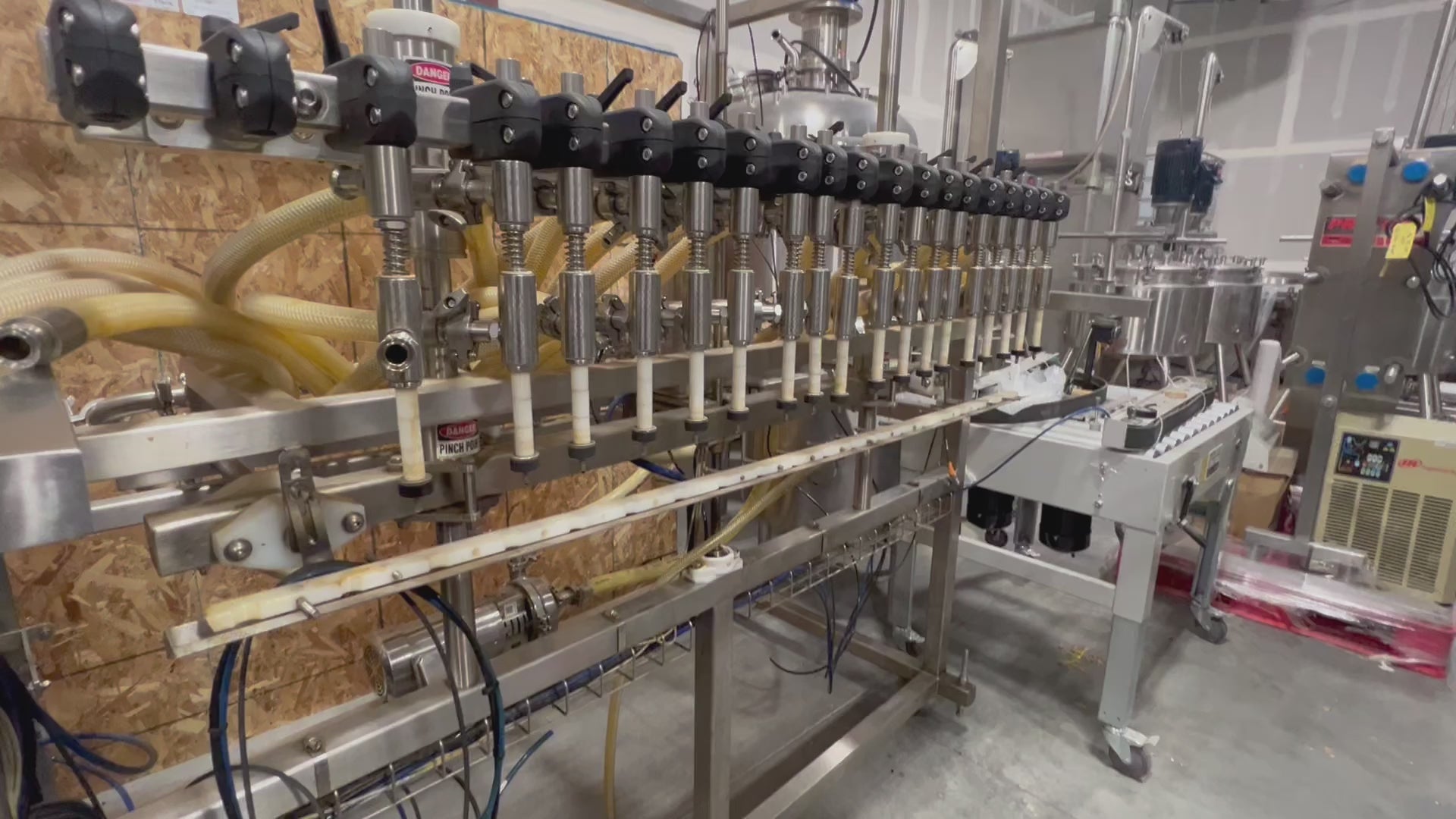

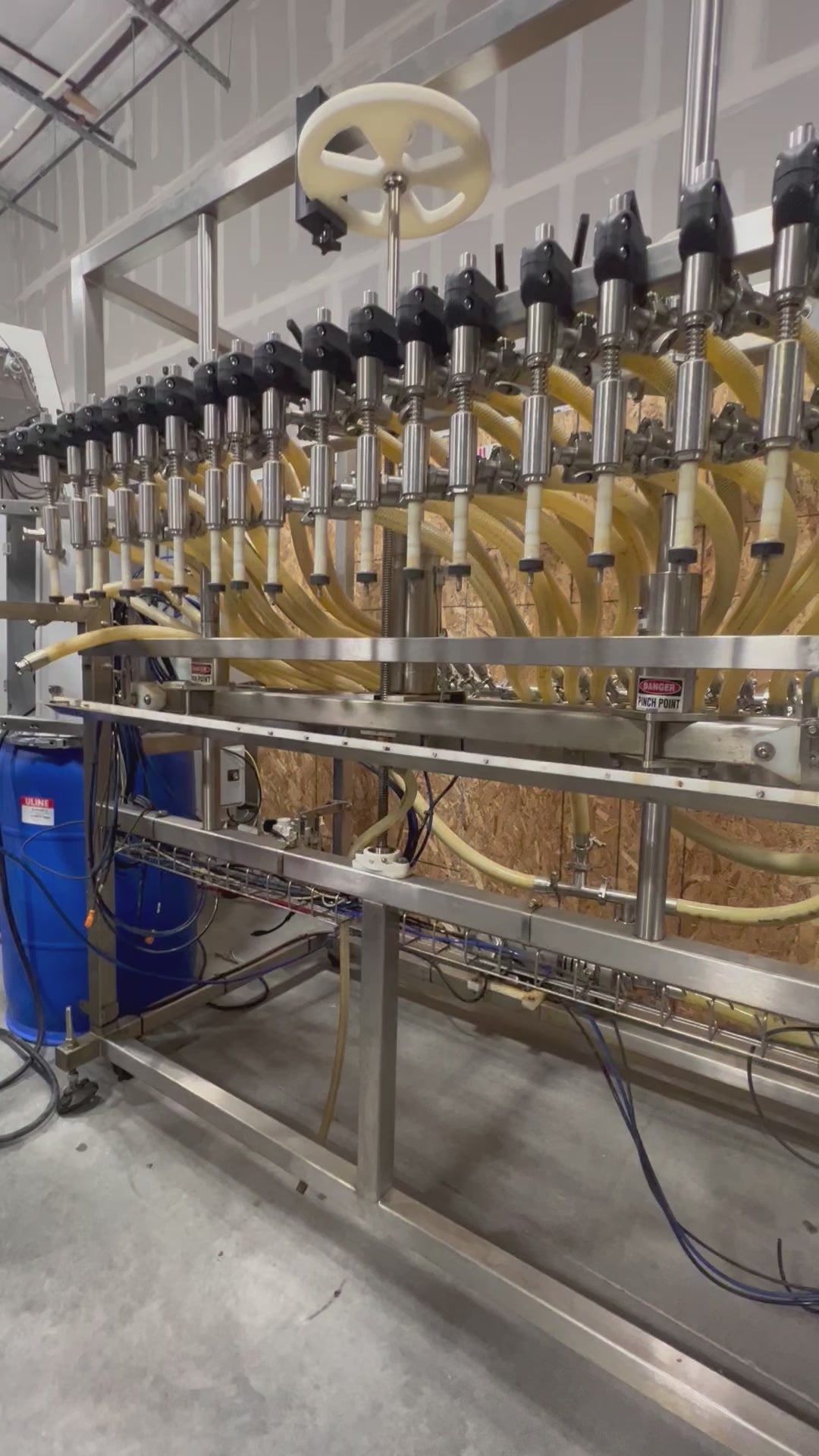

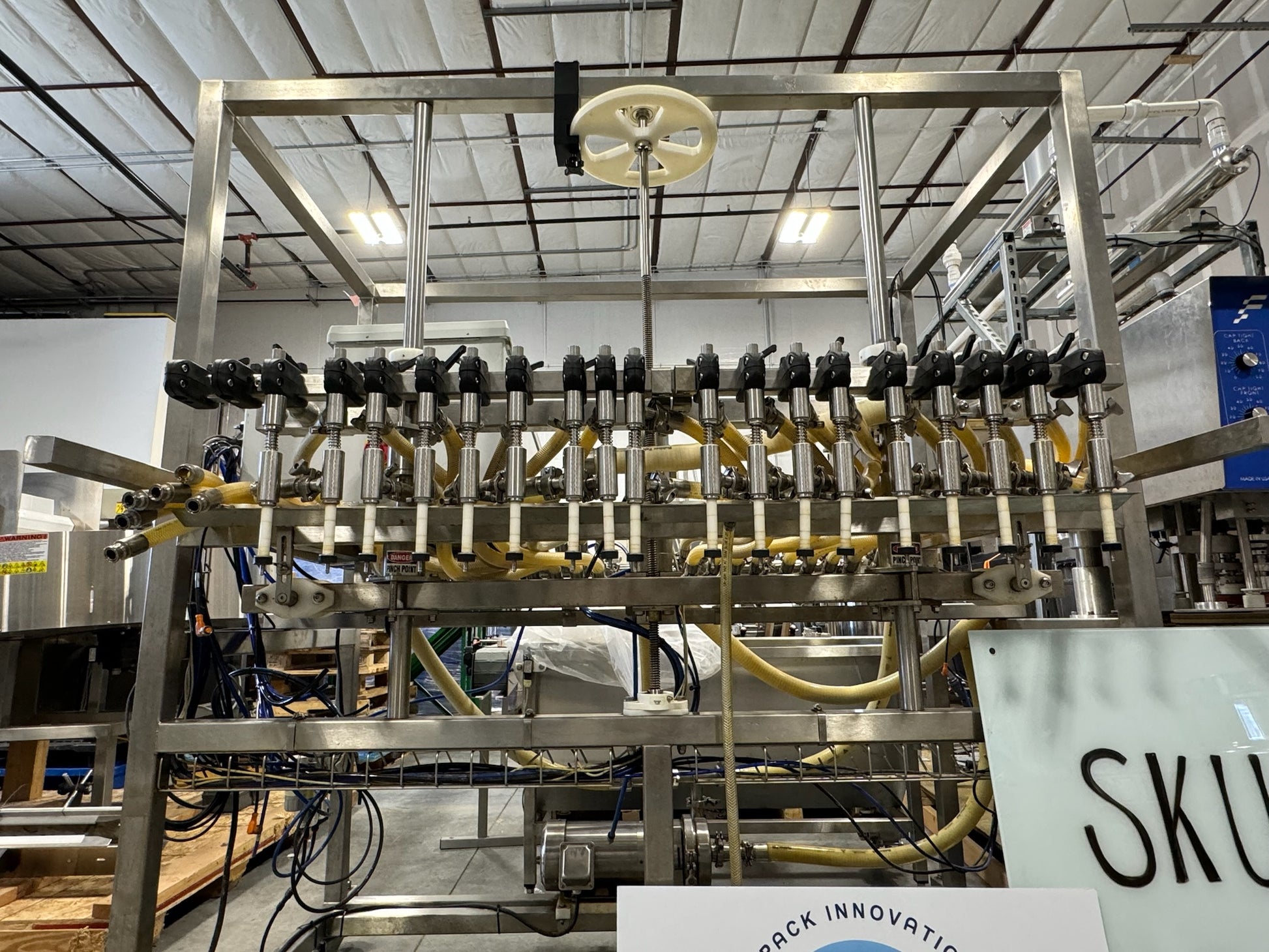

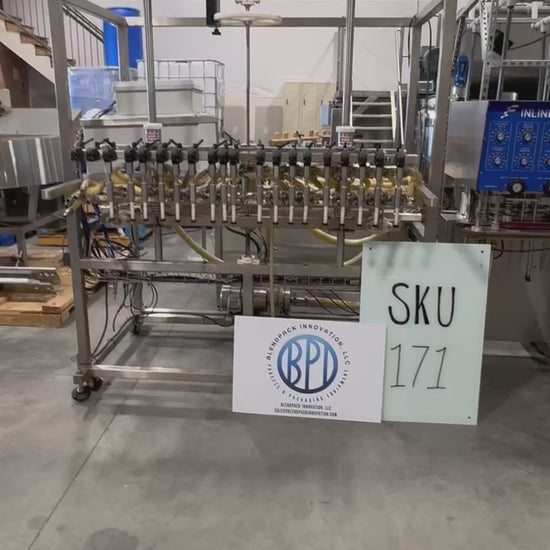

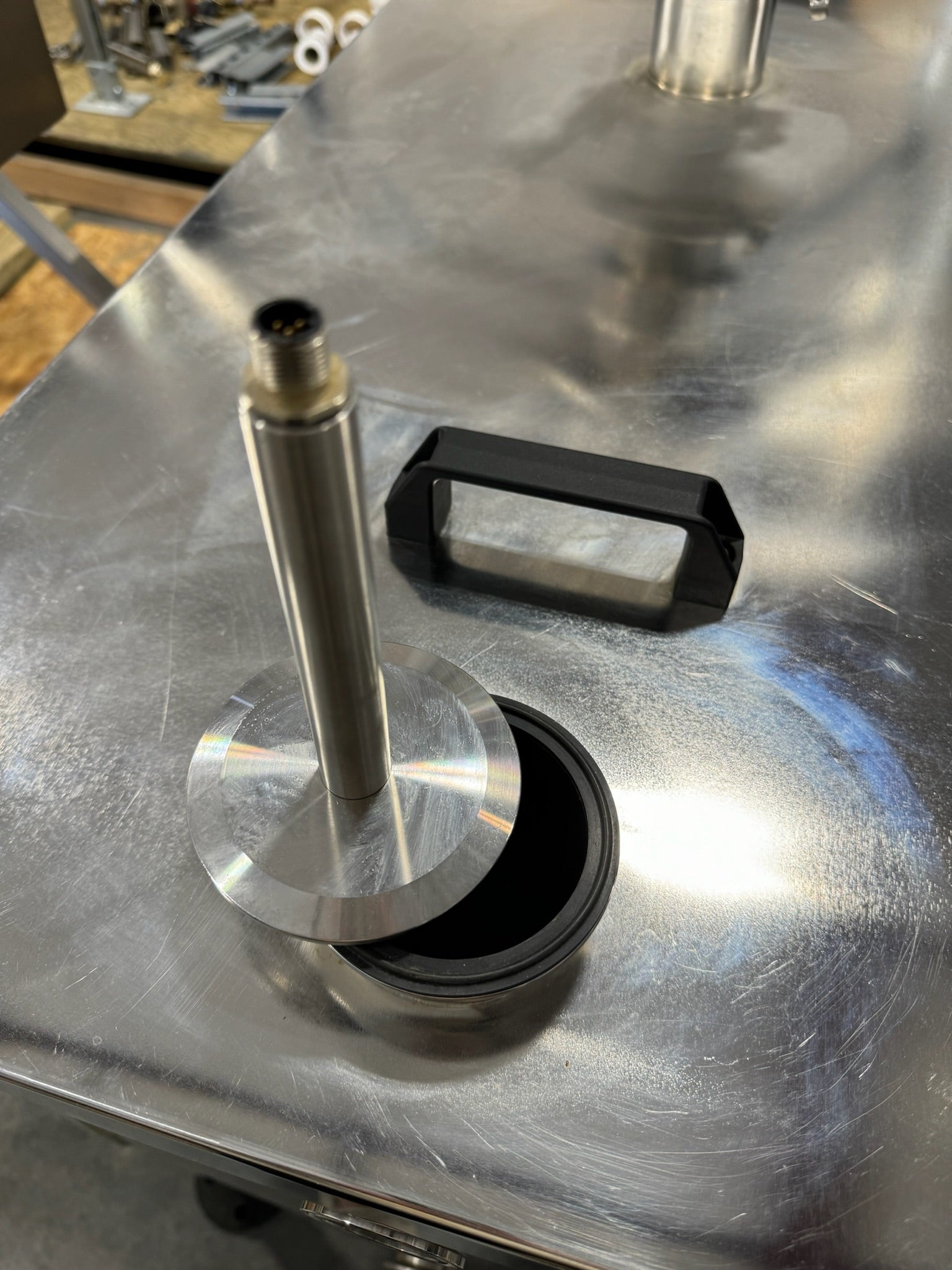

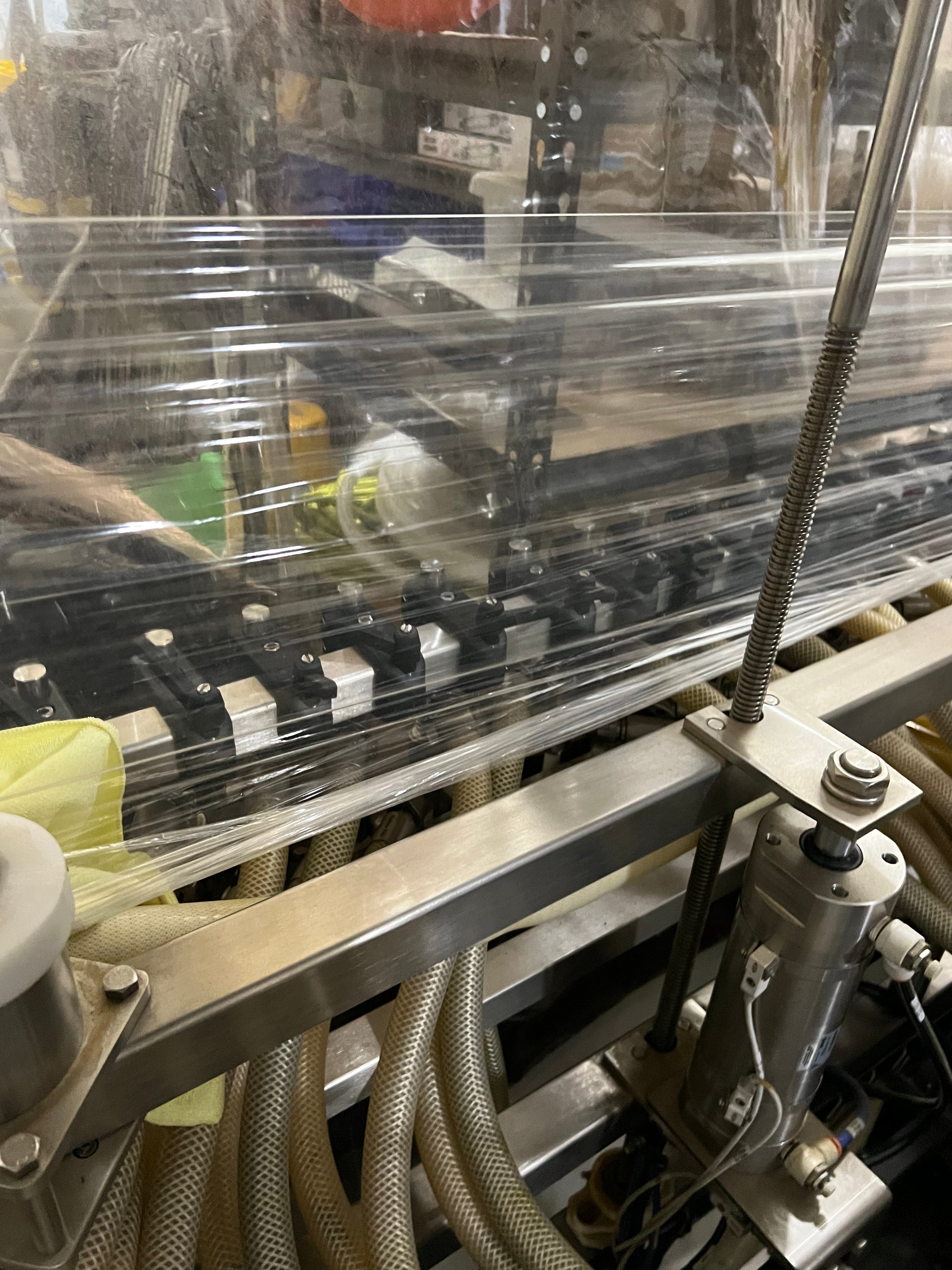

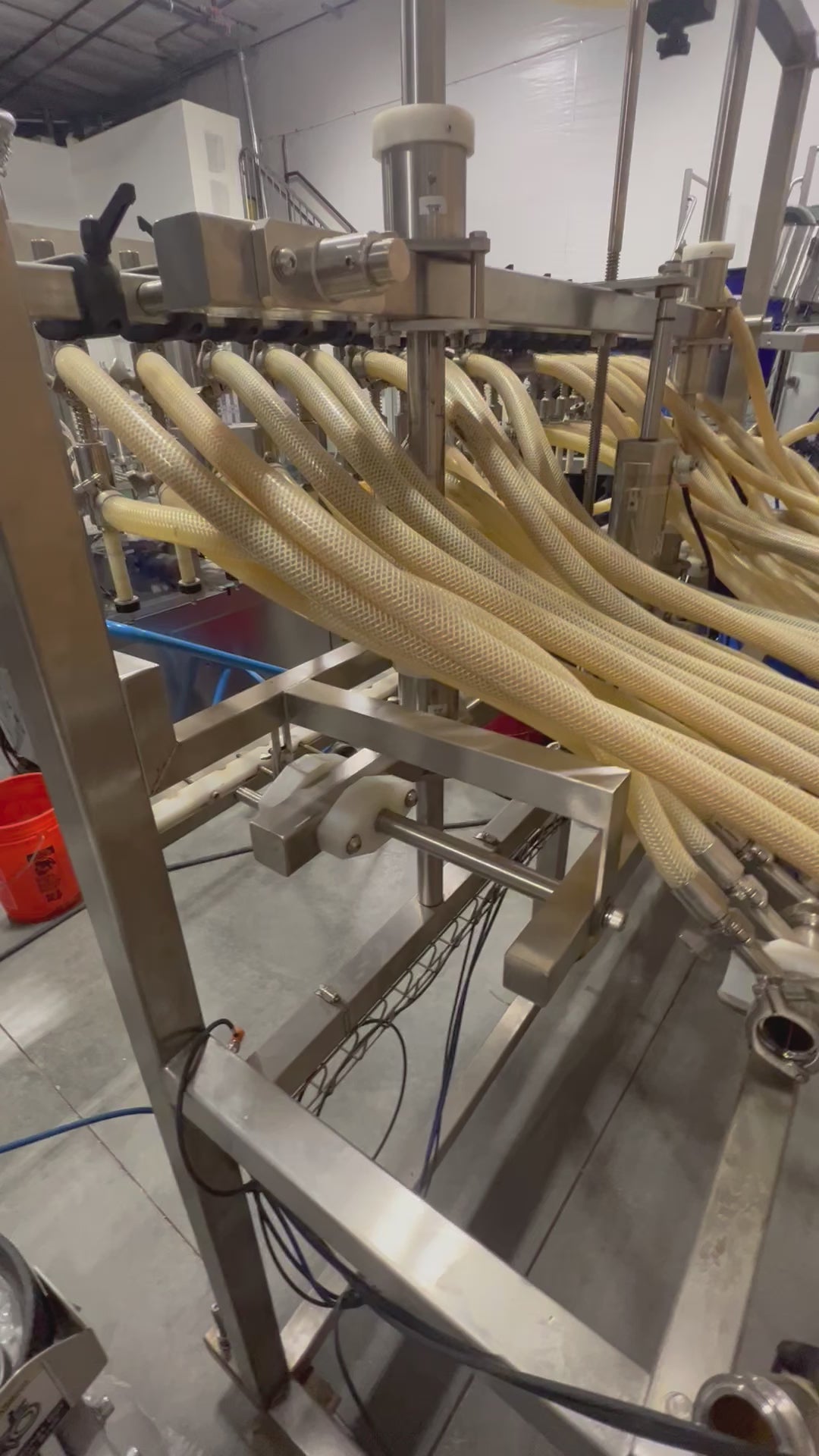

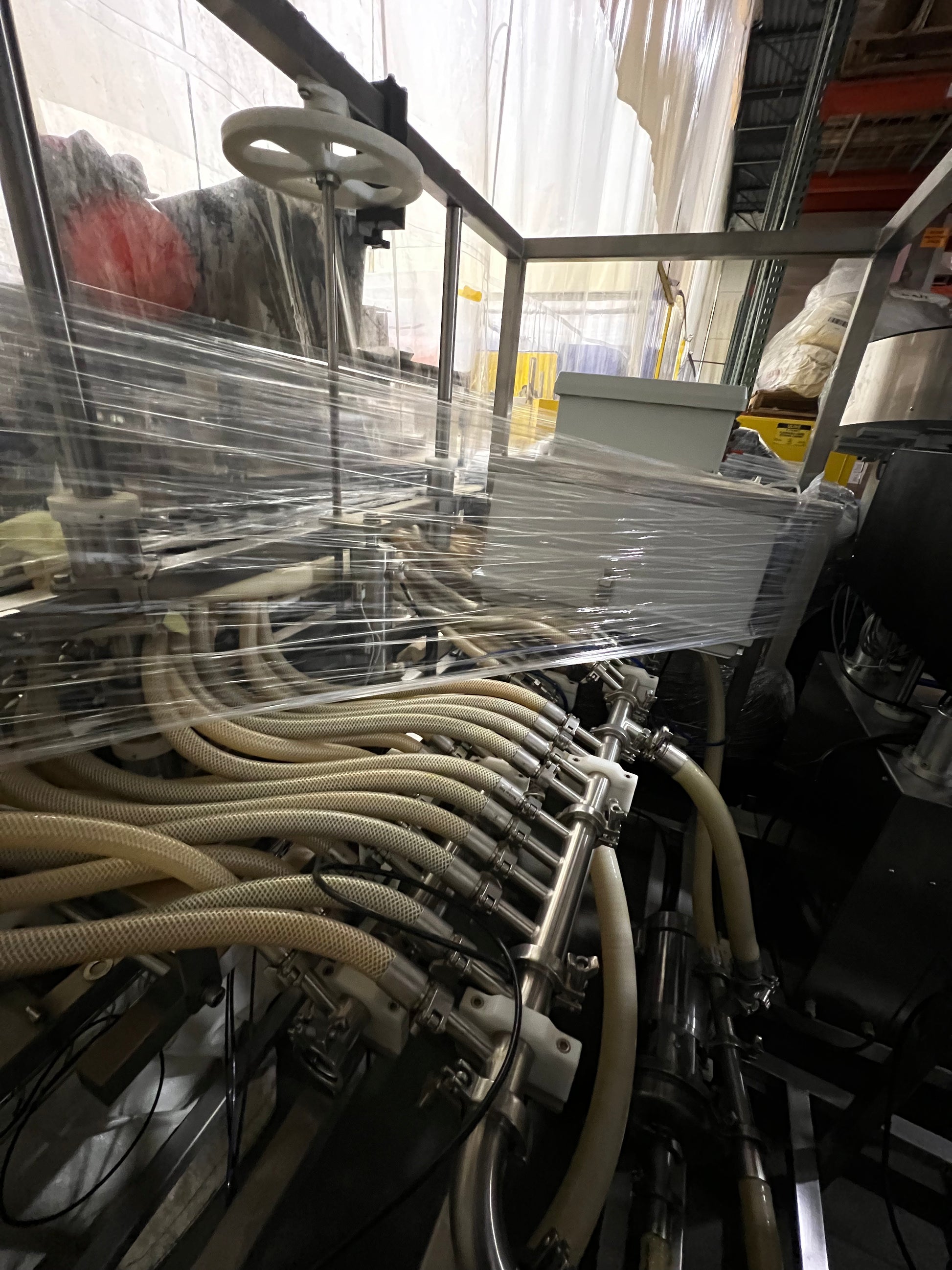

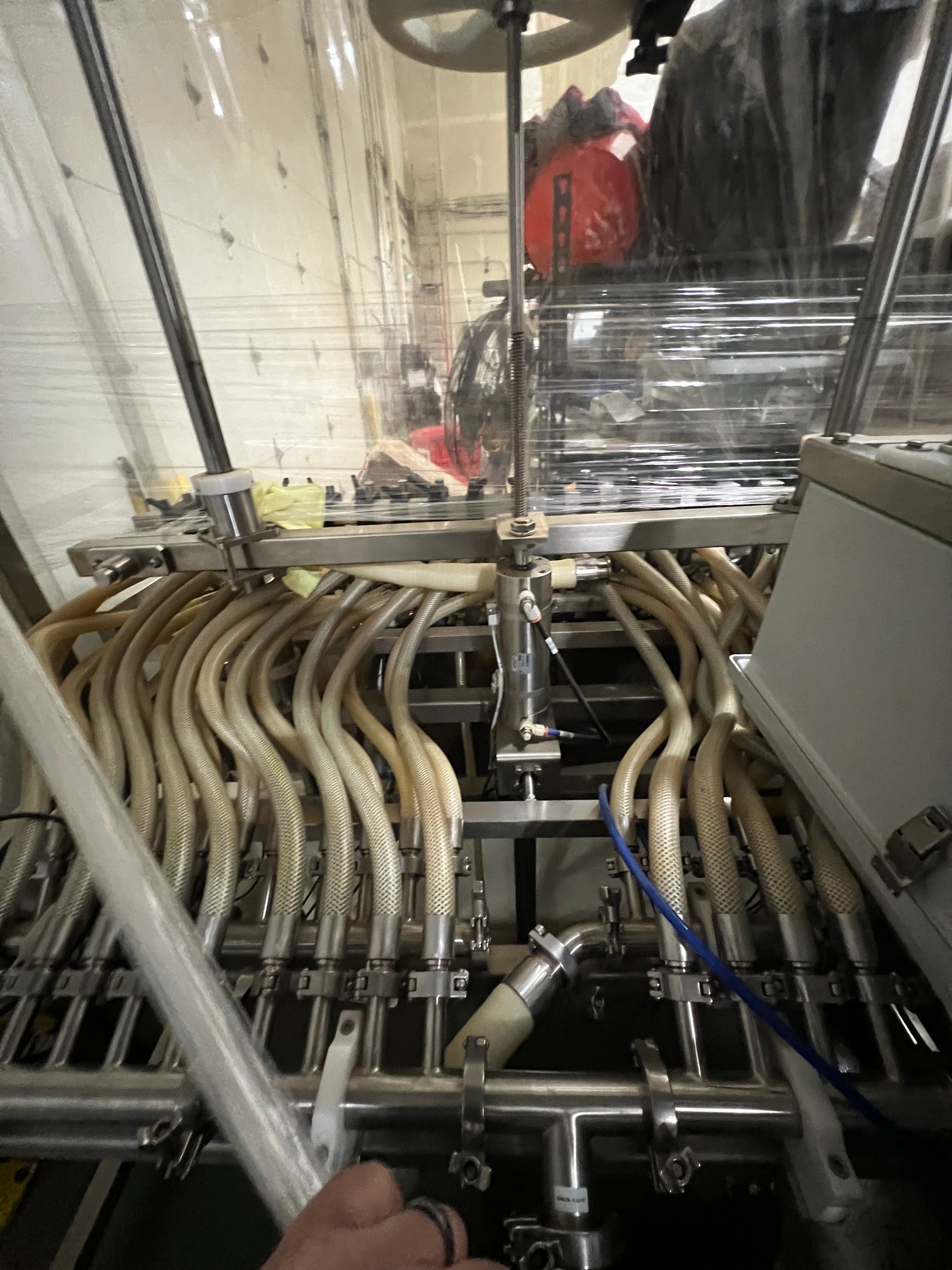

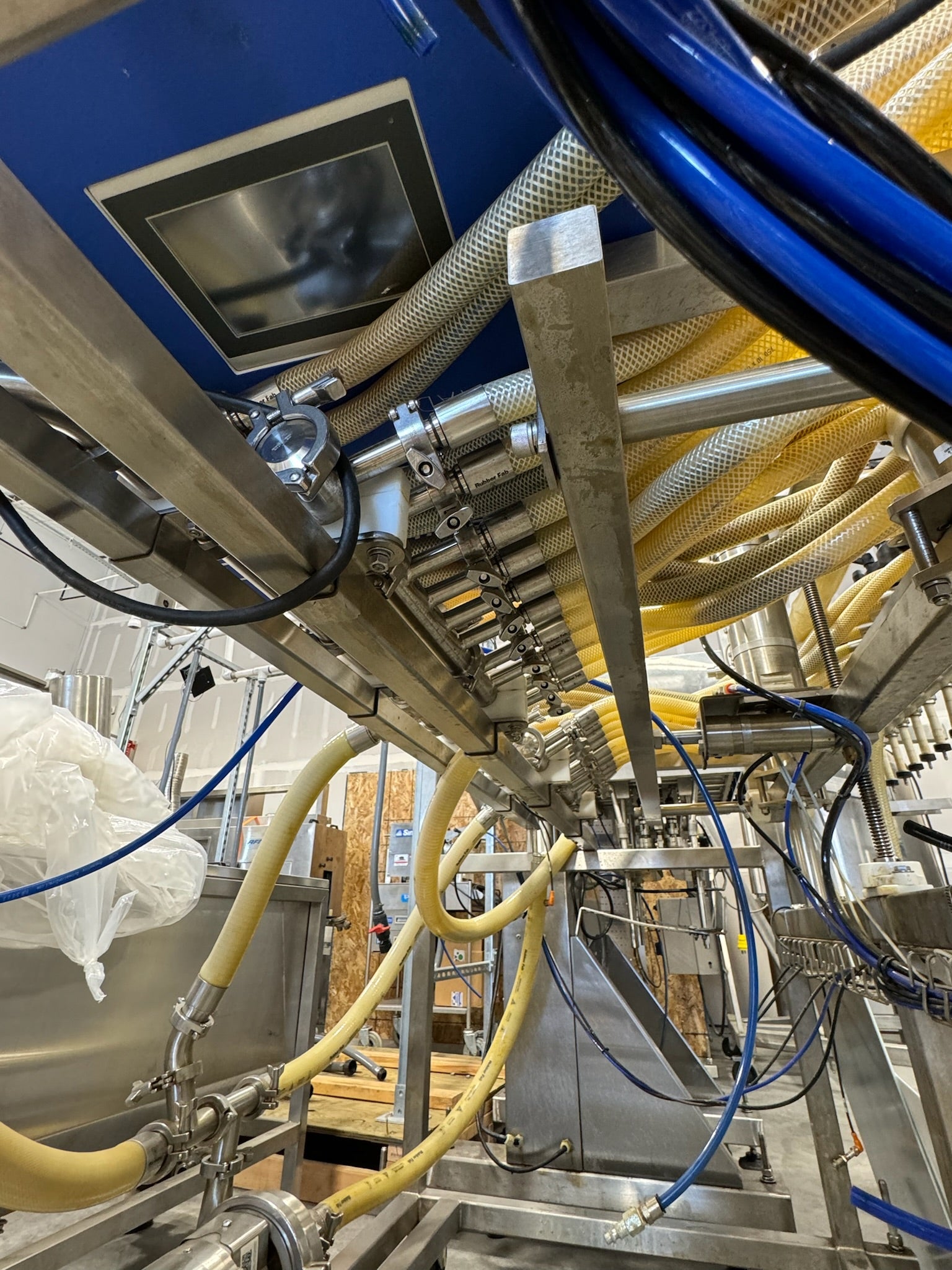

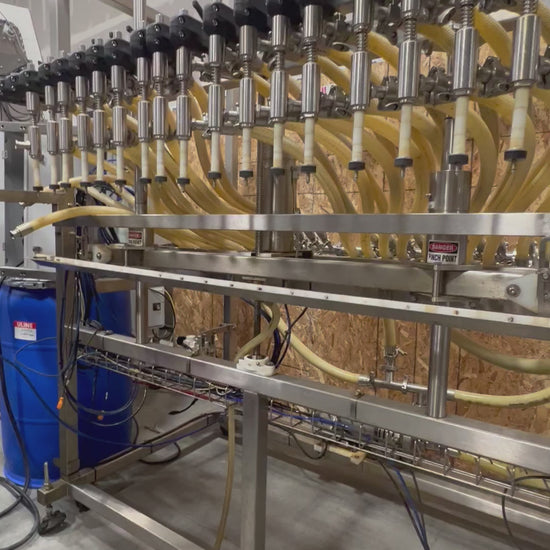

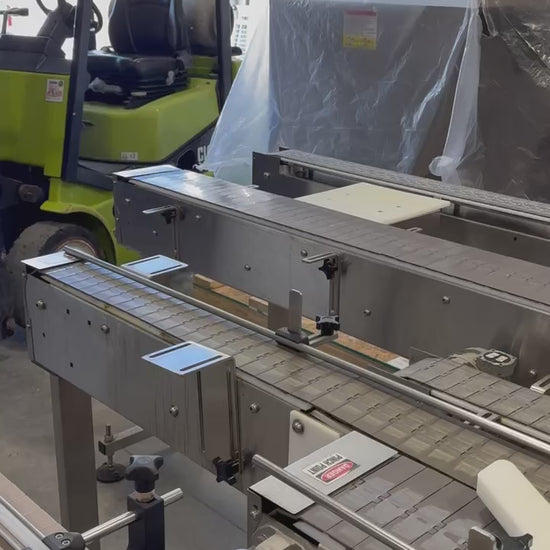

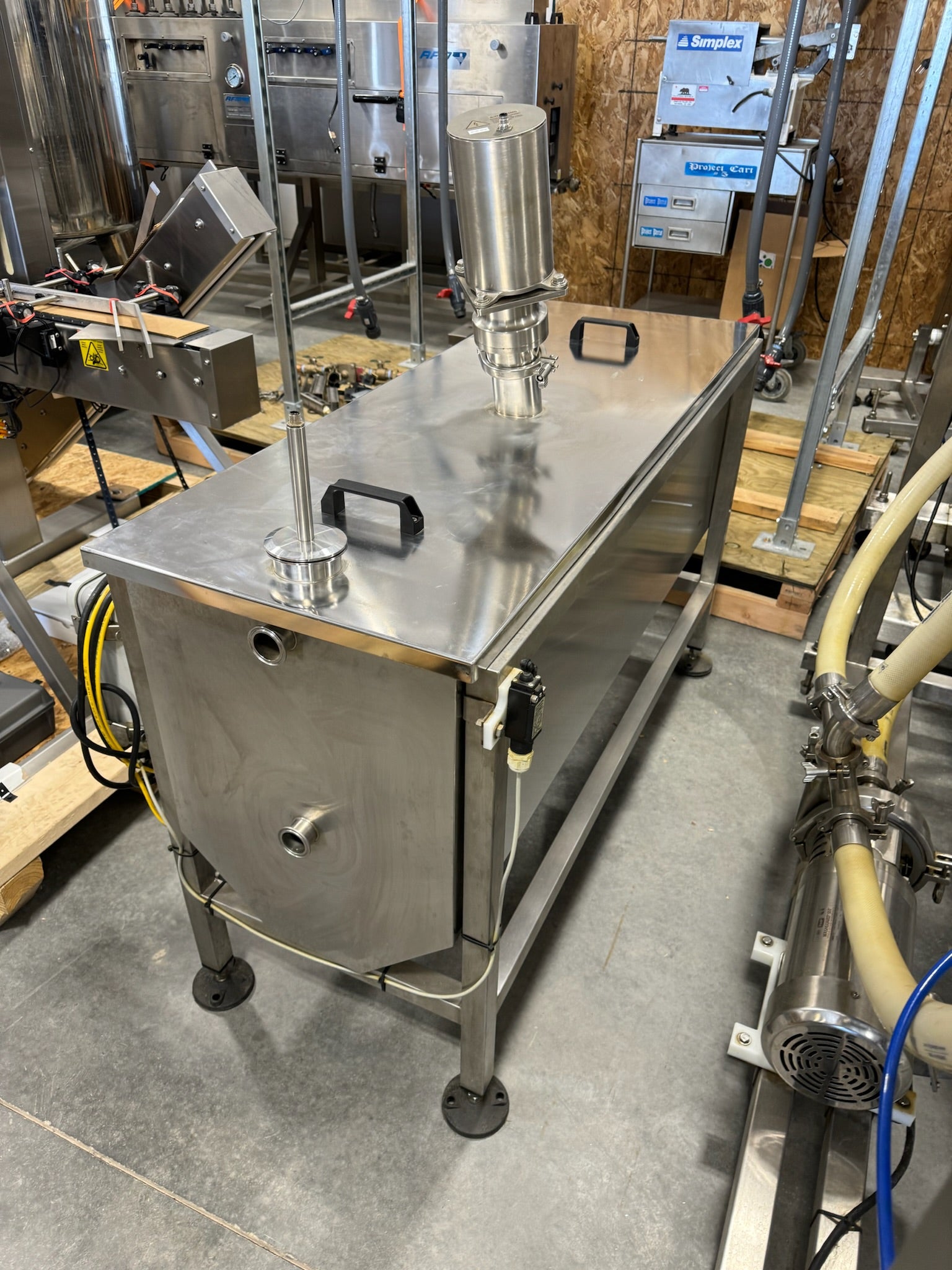

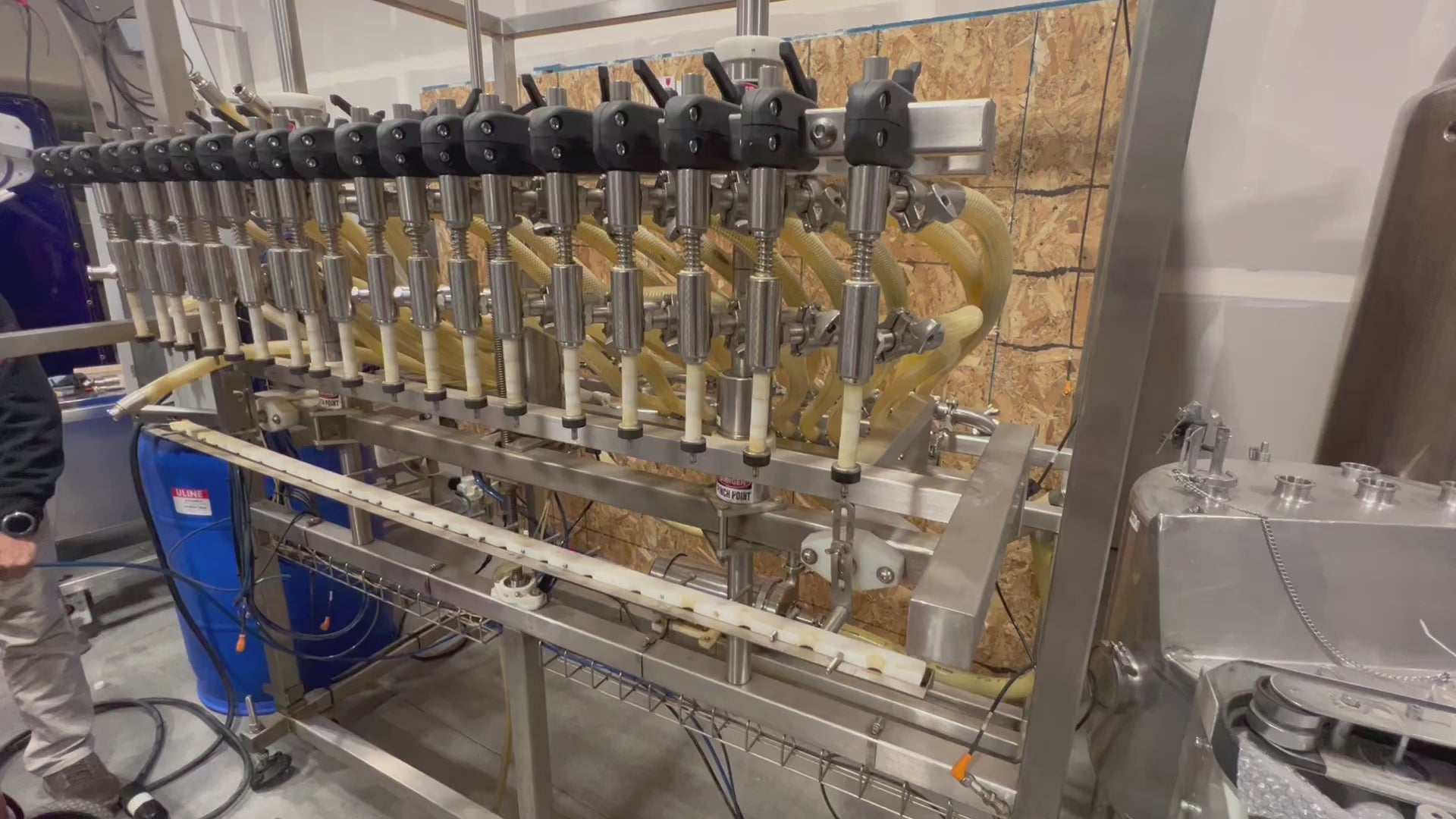

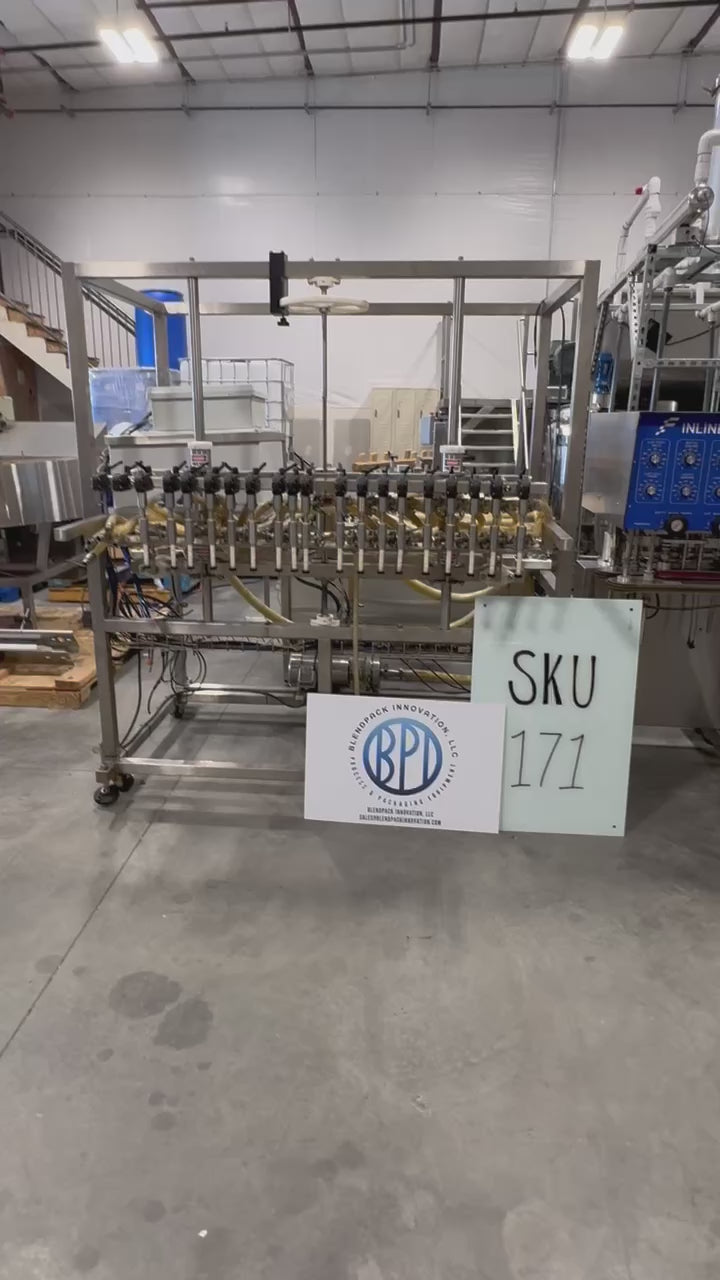

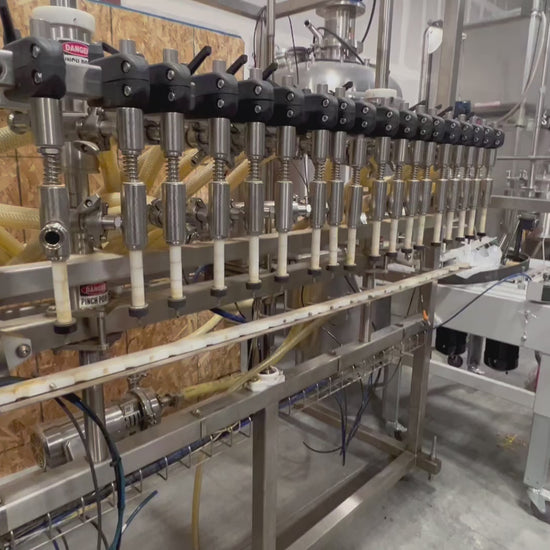

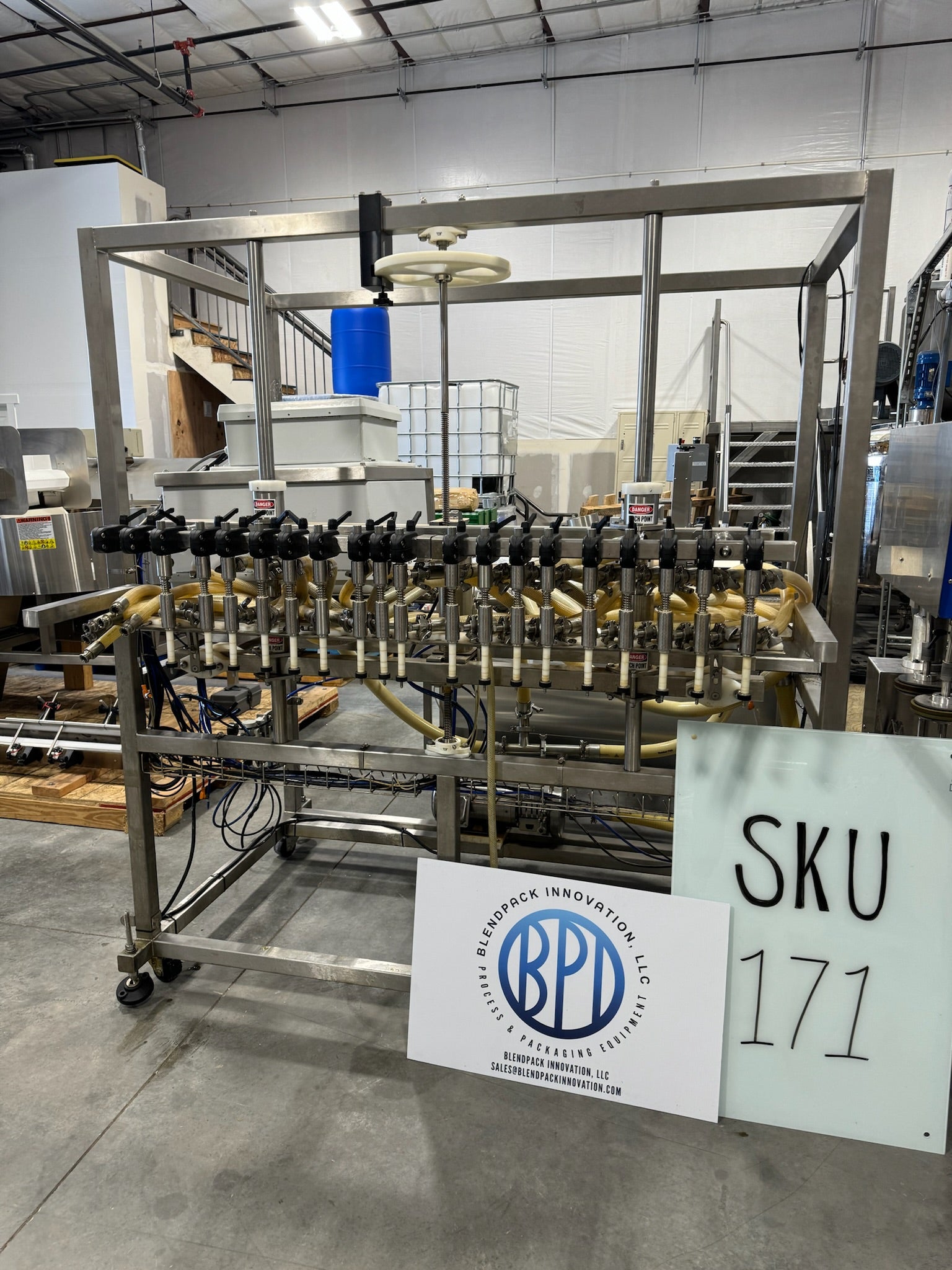

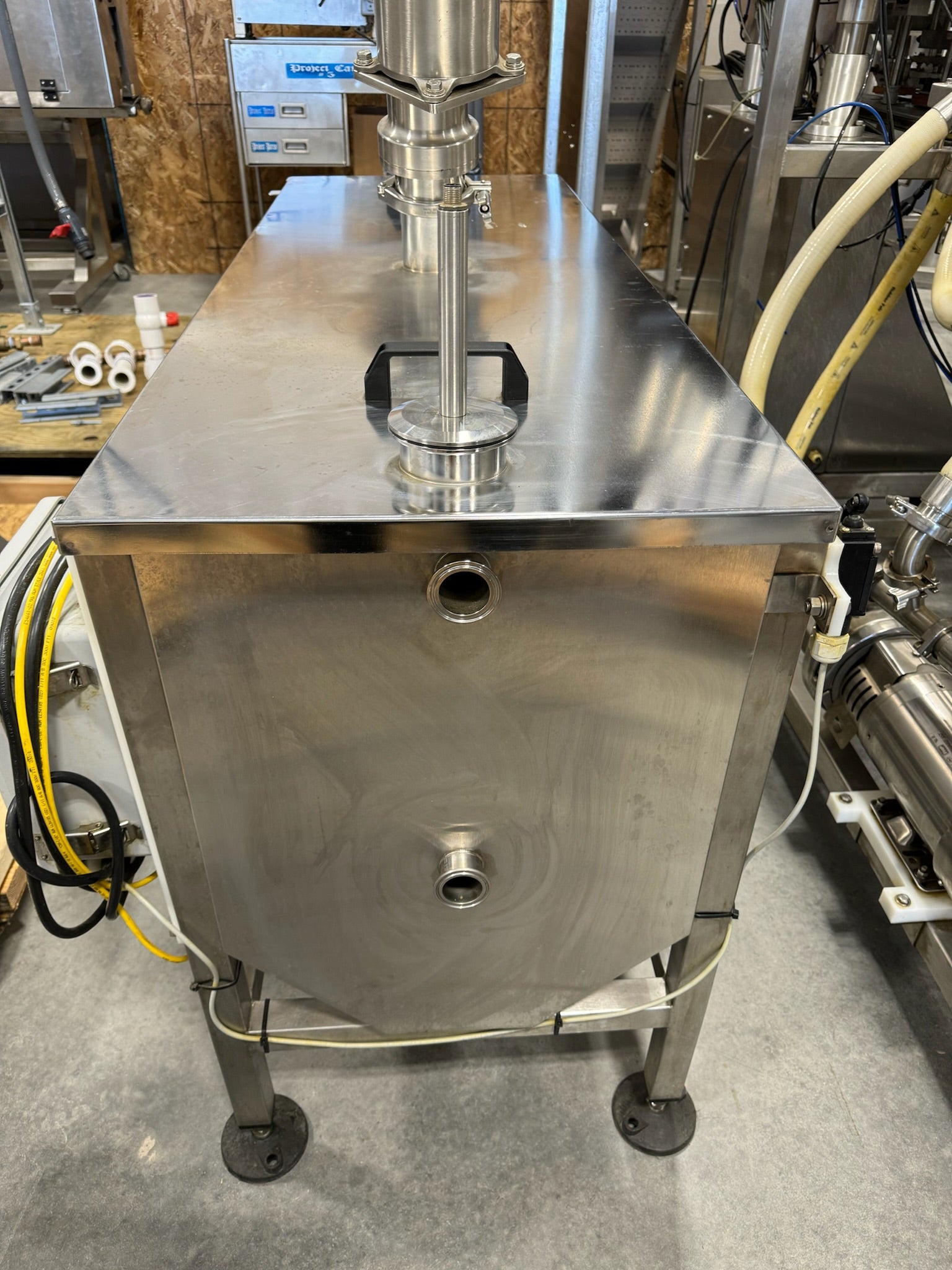

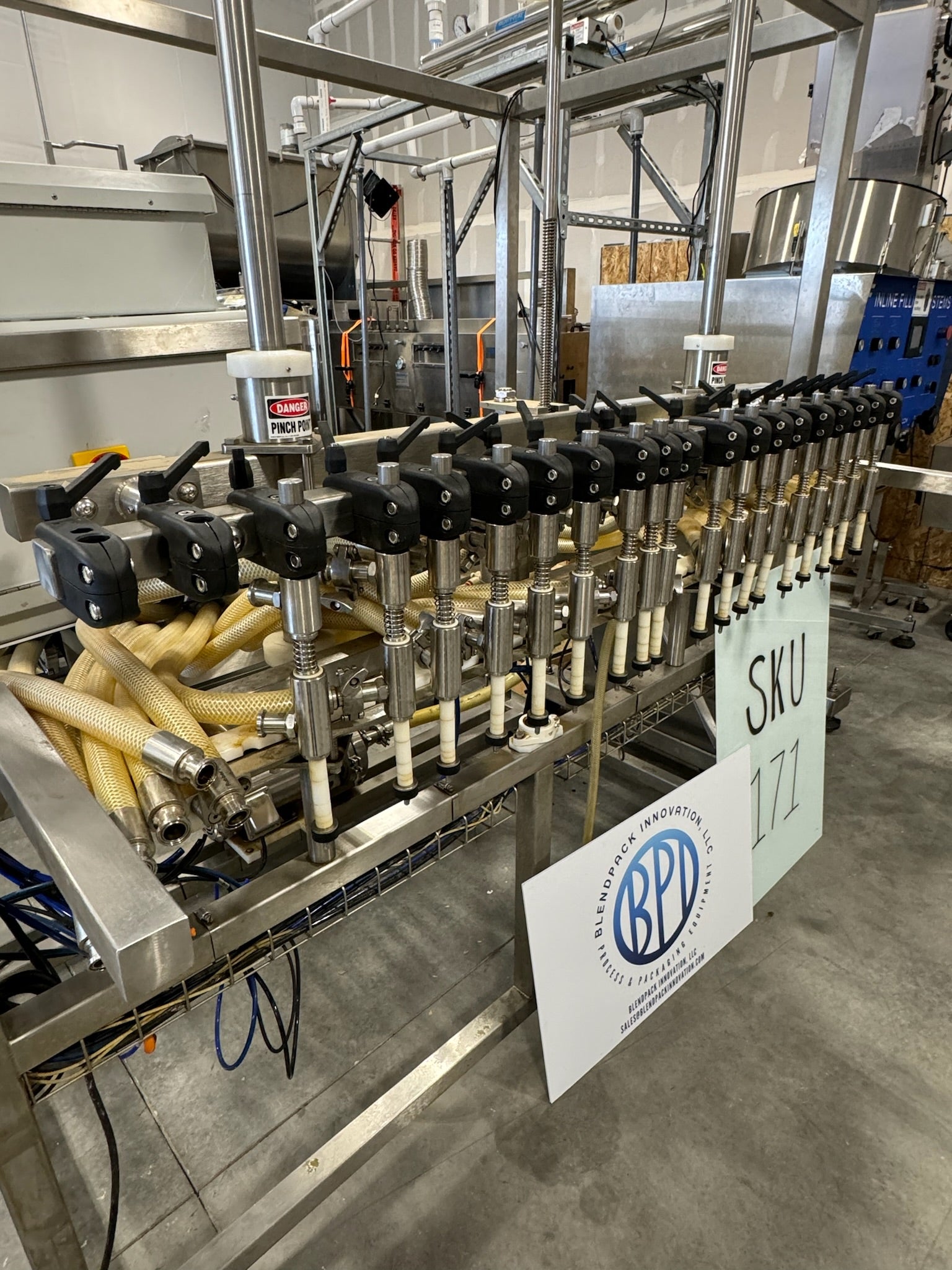

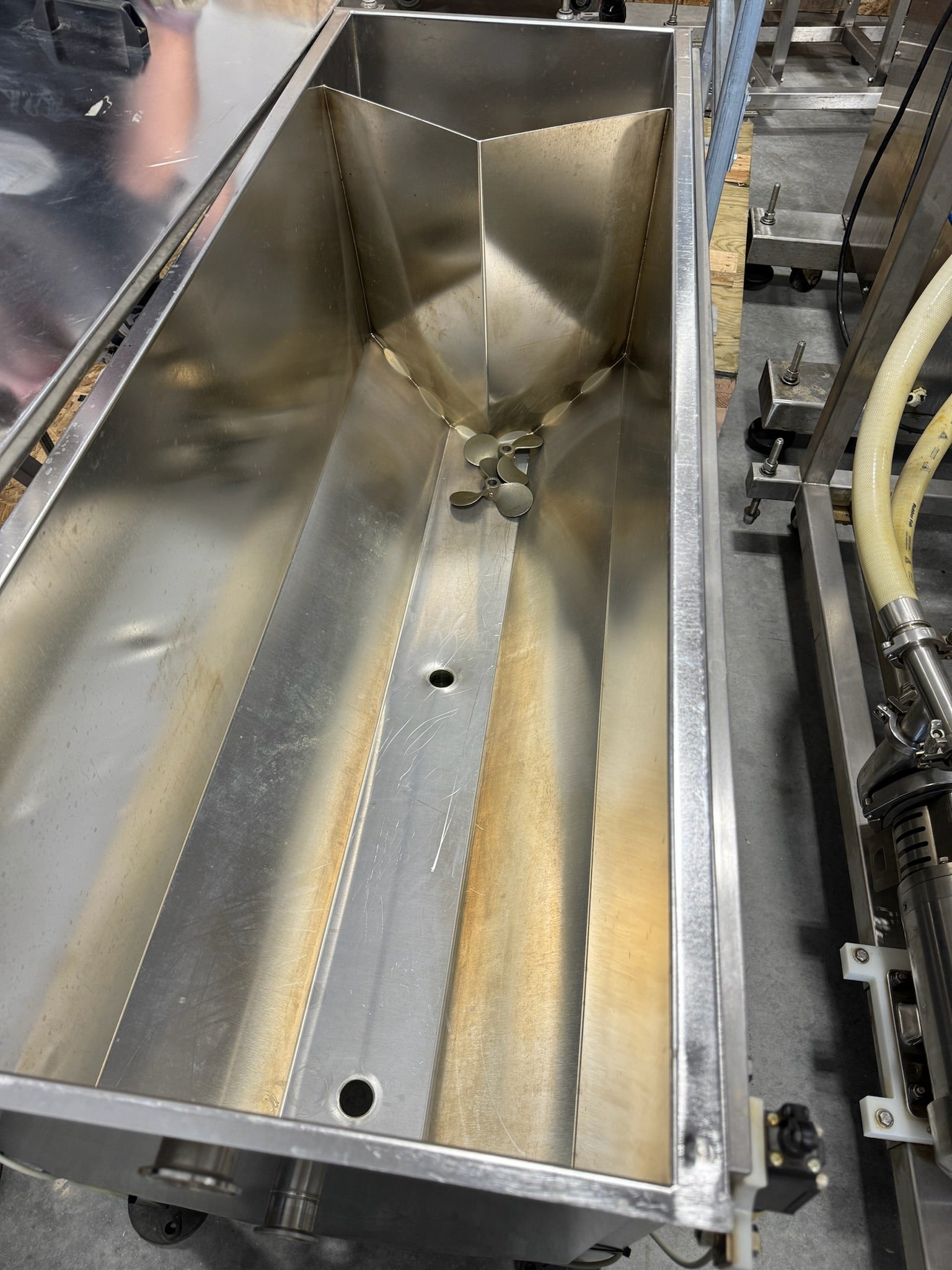

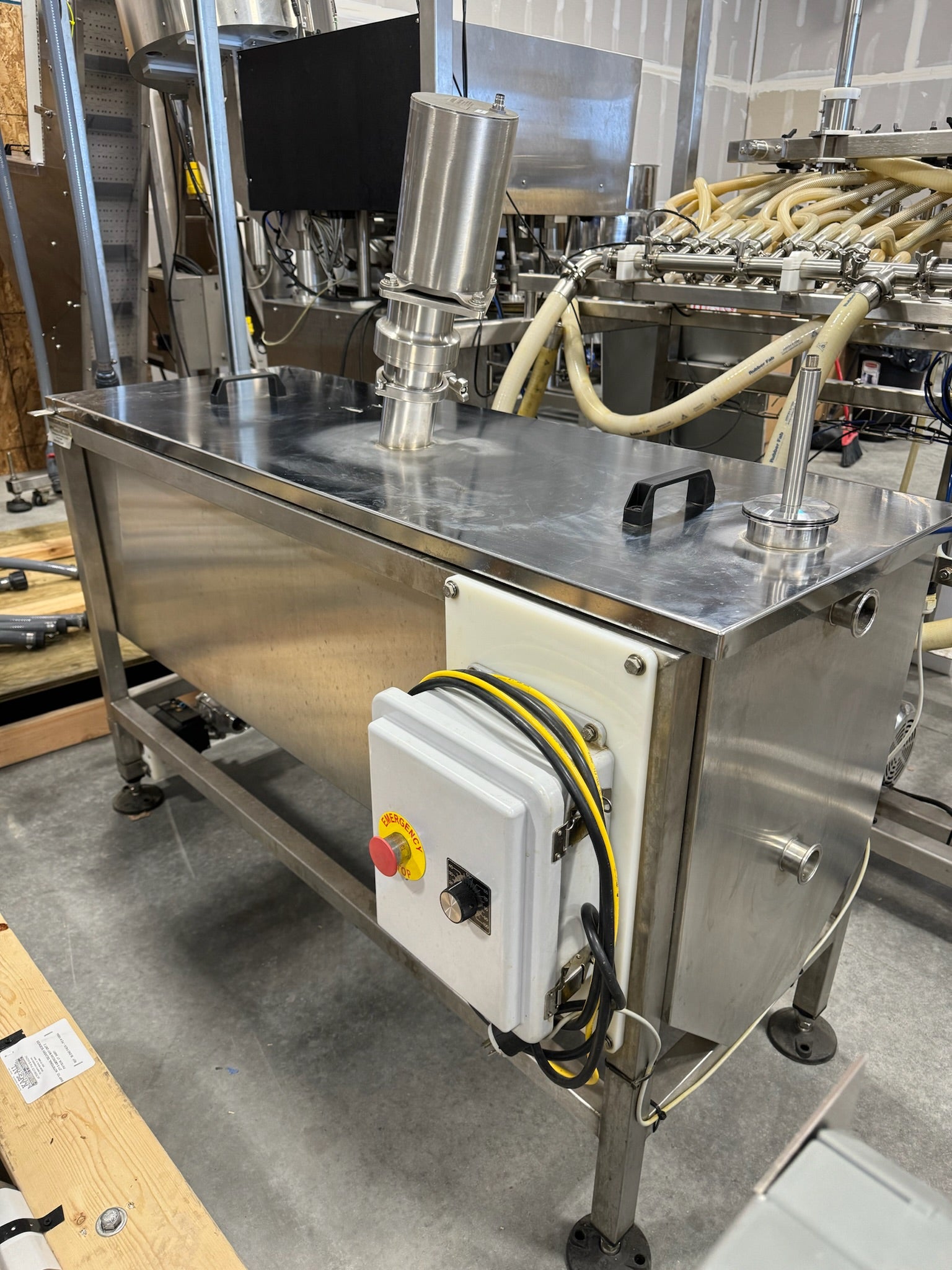

Inline Filling Systems - Overflow Filler - 16-20 Head Pressure overflow with feed tank (Also Available and sold separately Inline Conveyors)

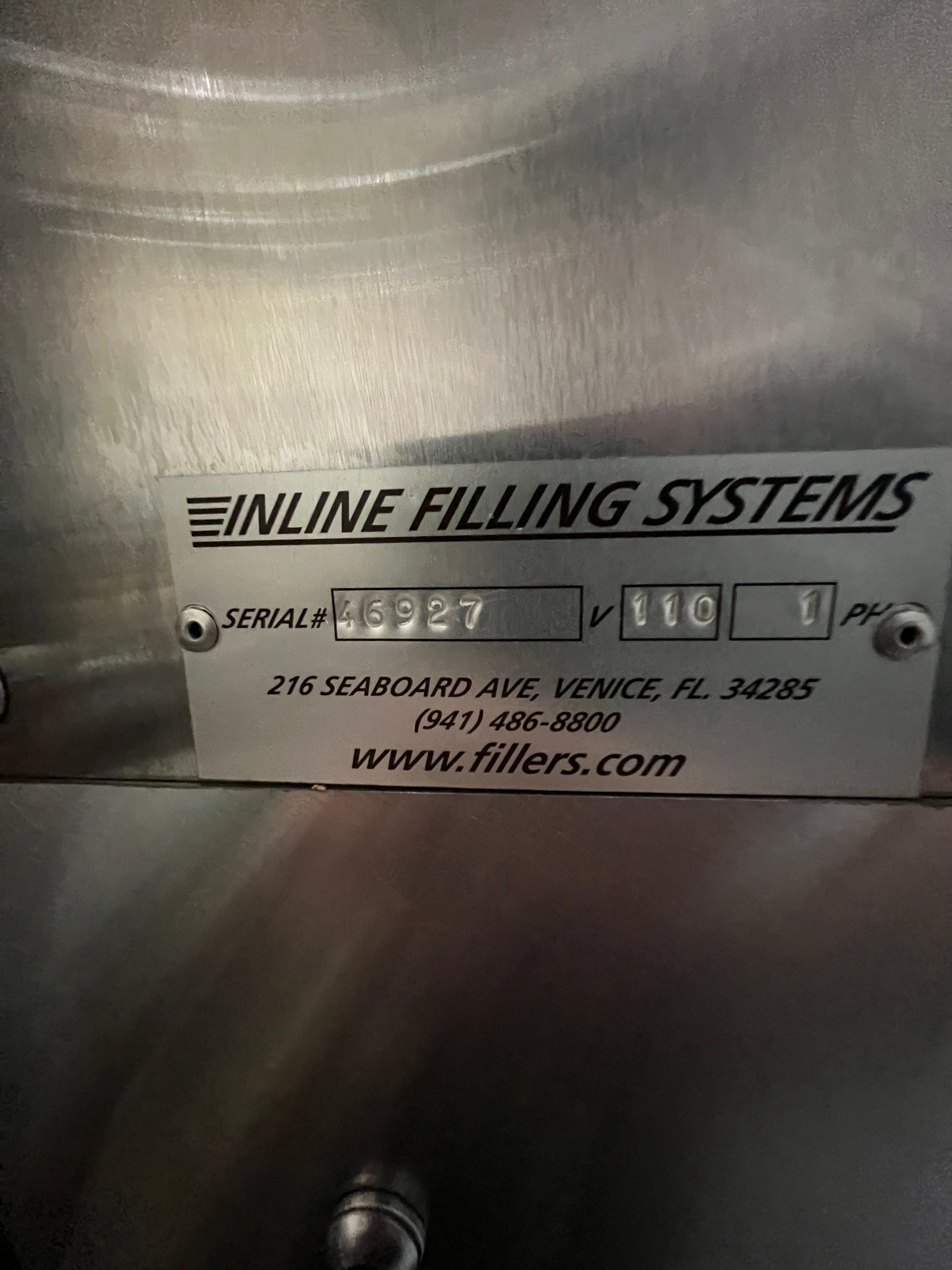

the serial number is 46927.
Up to 300 cP - low viscosity

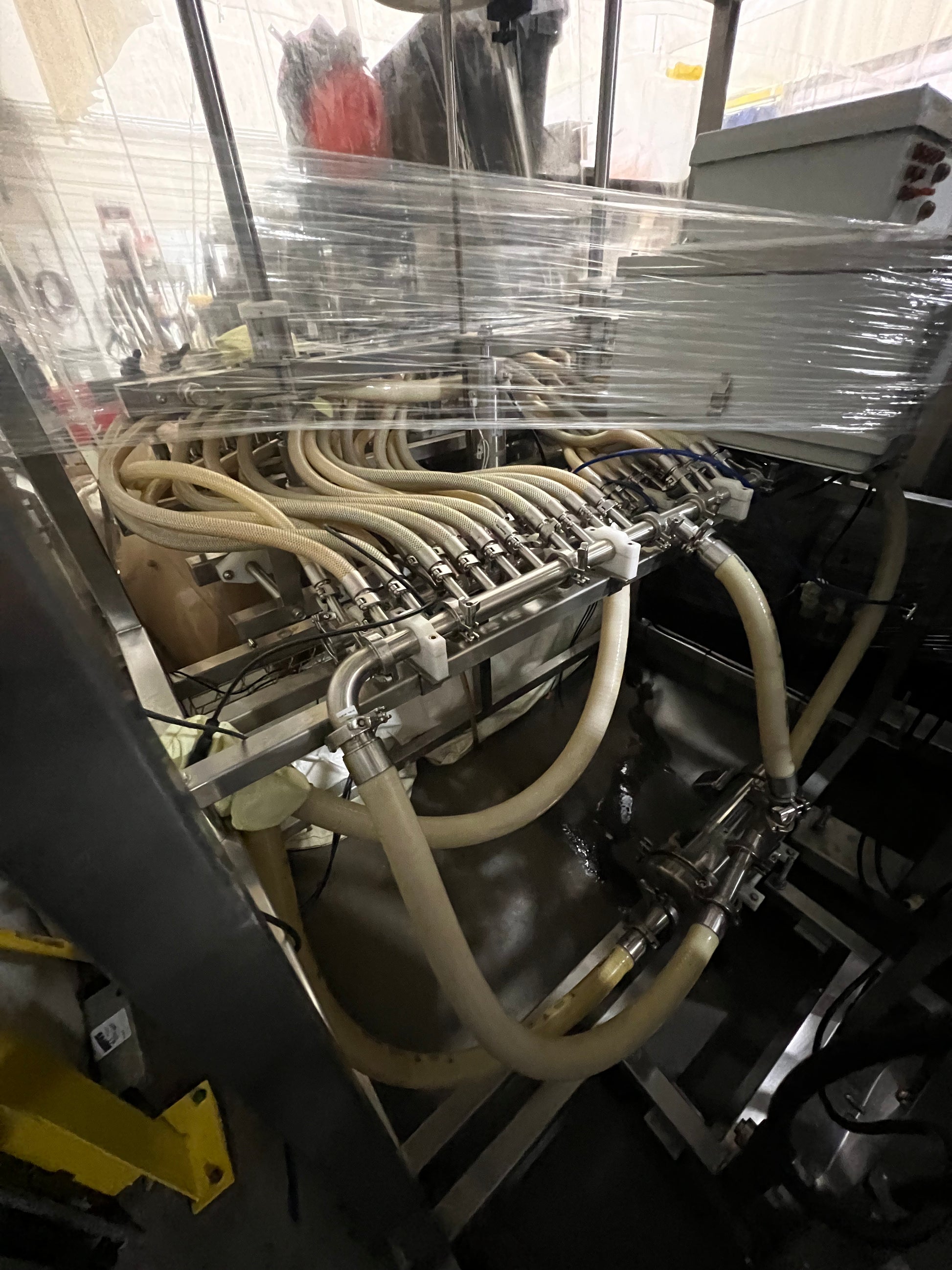

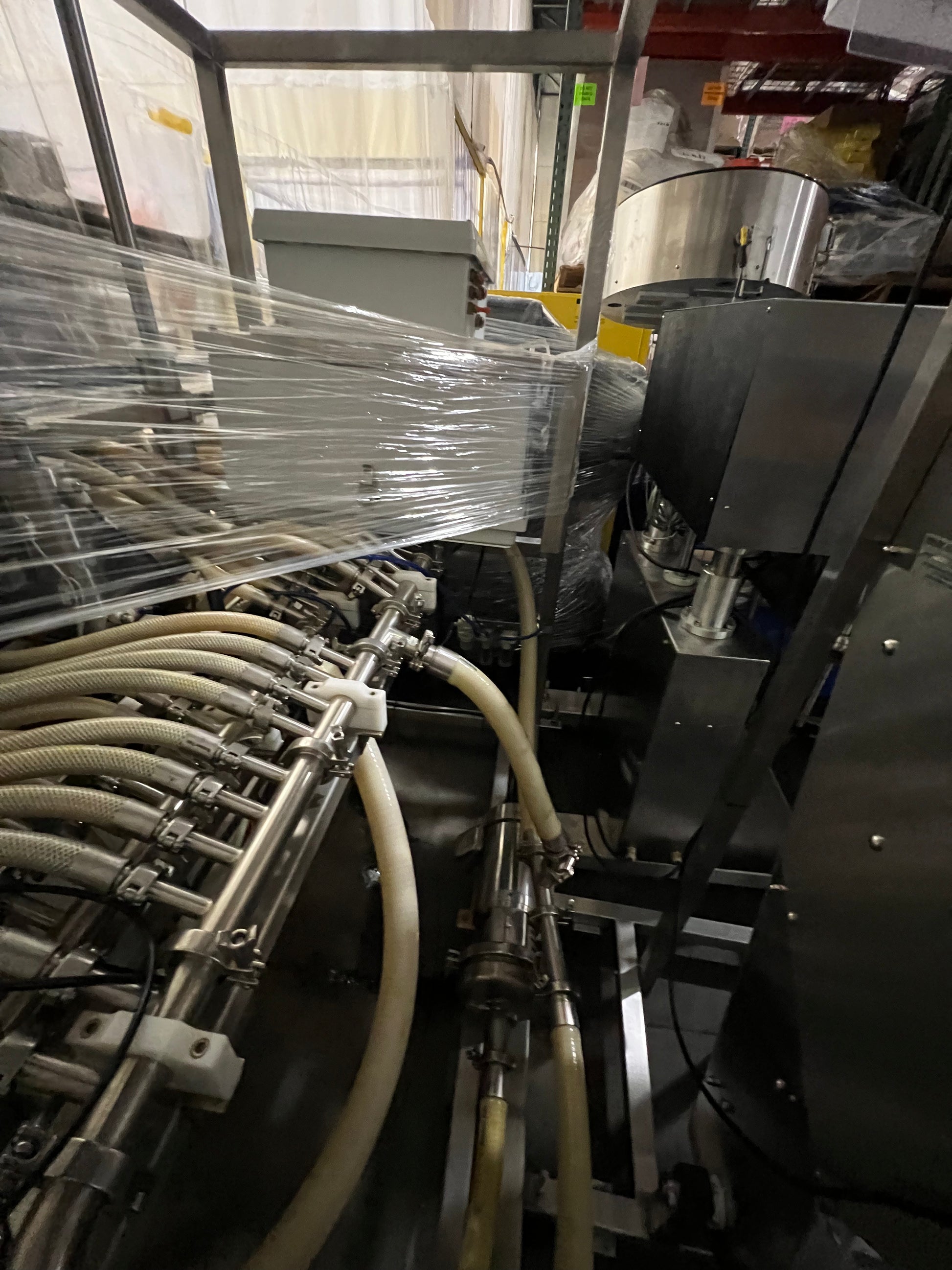

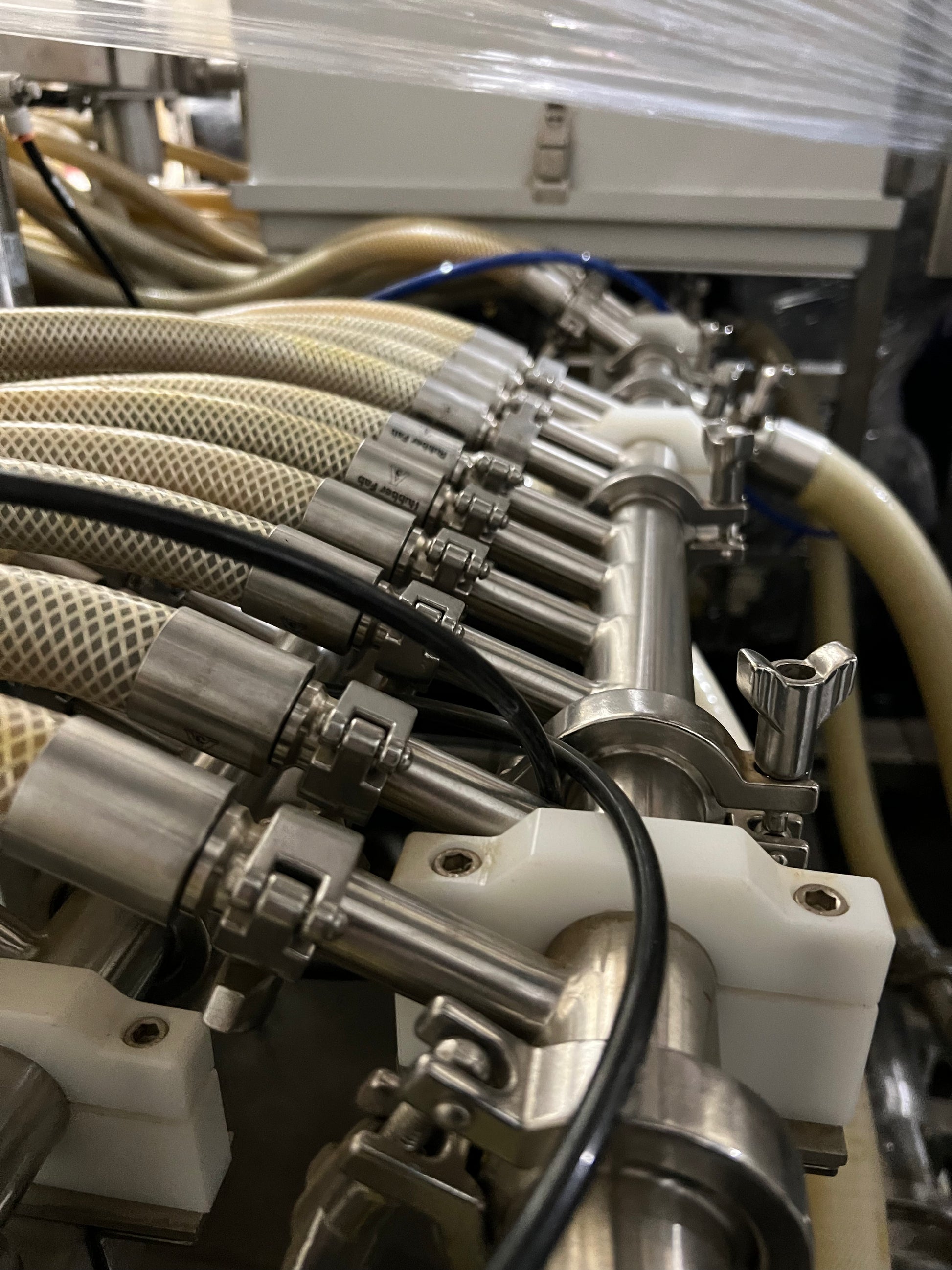

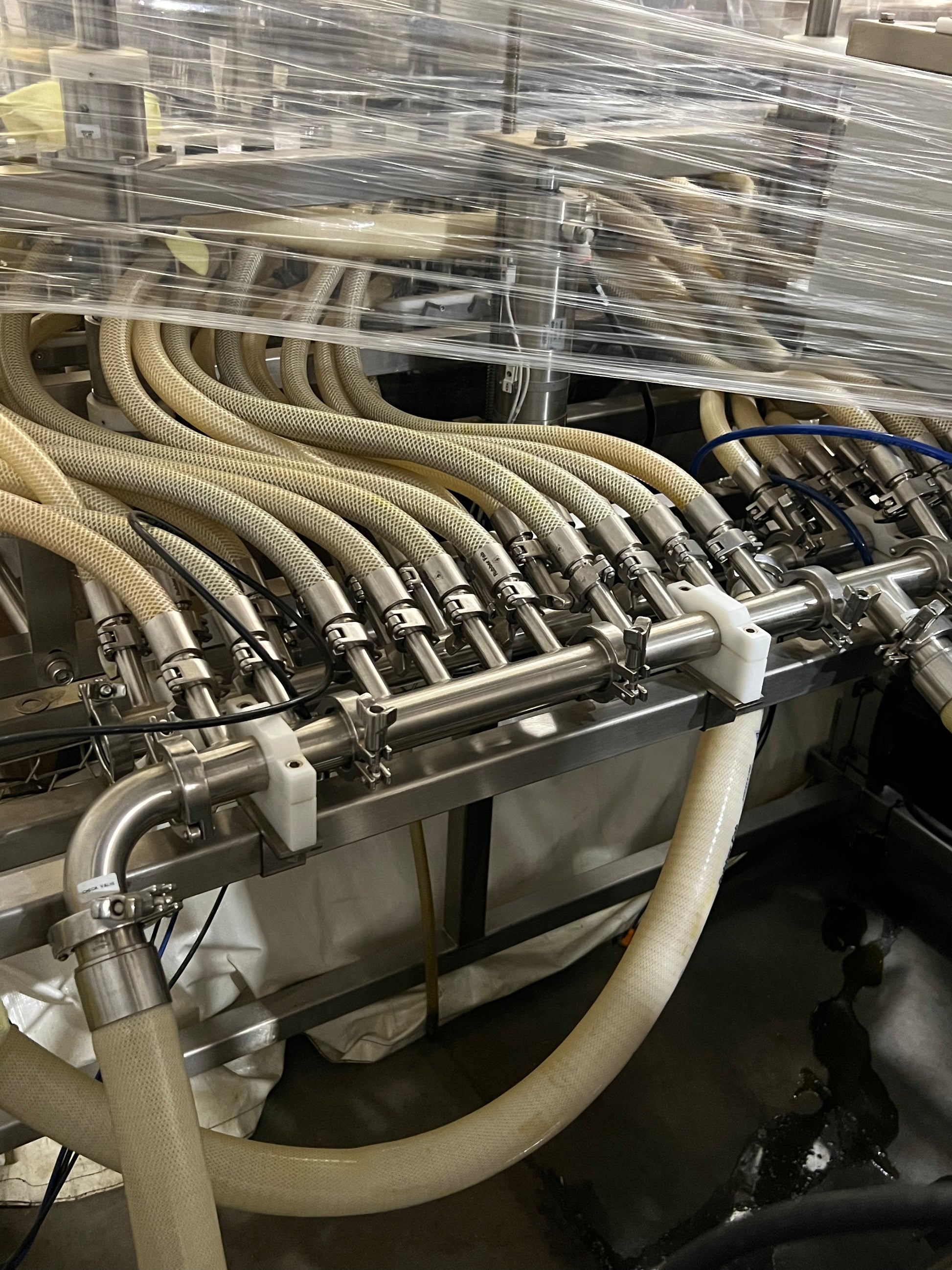

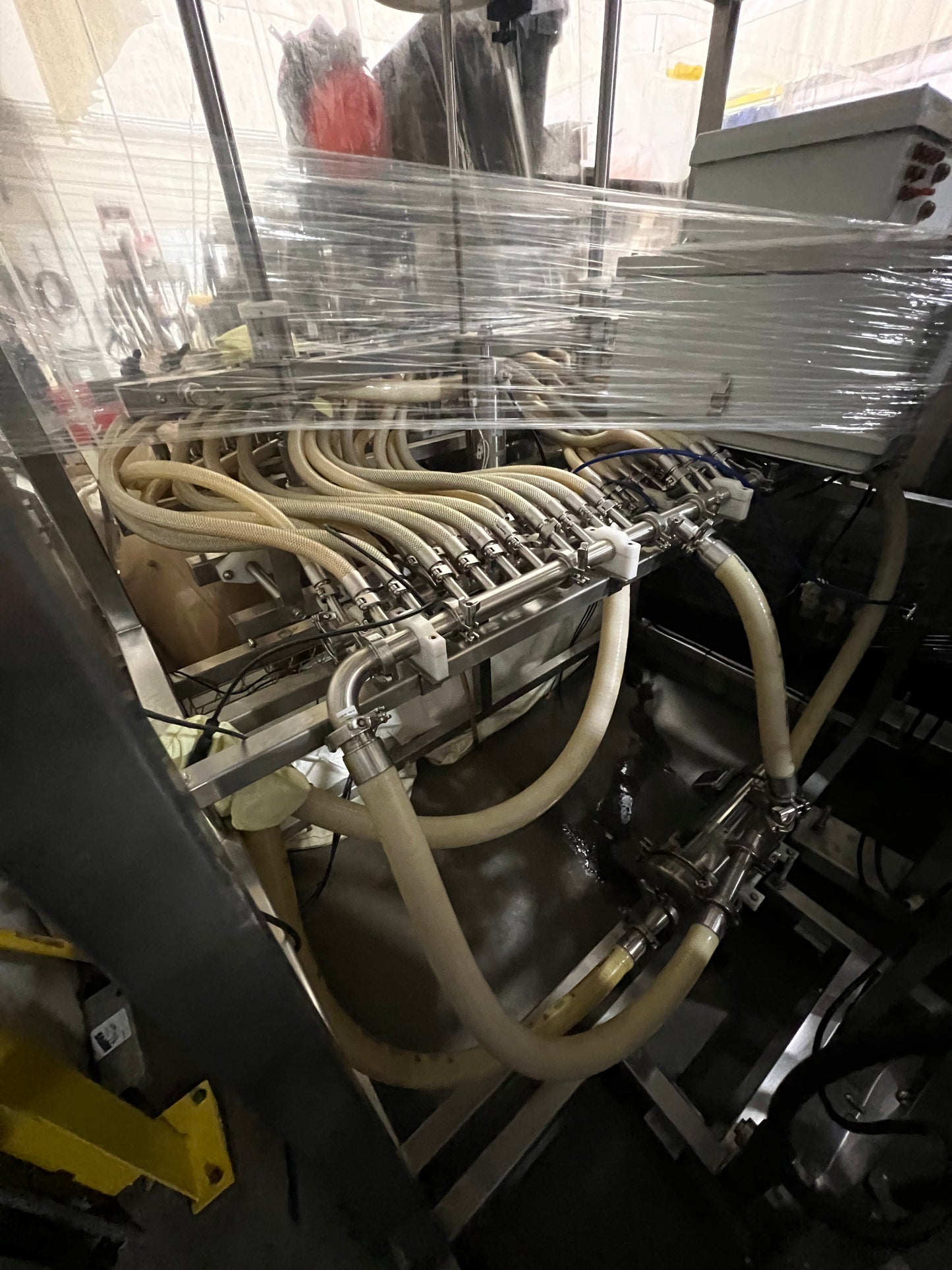

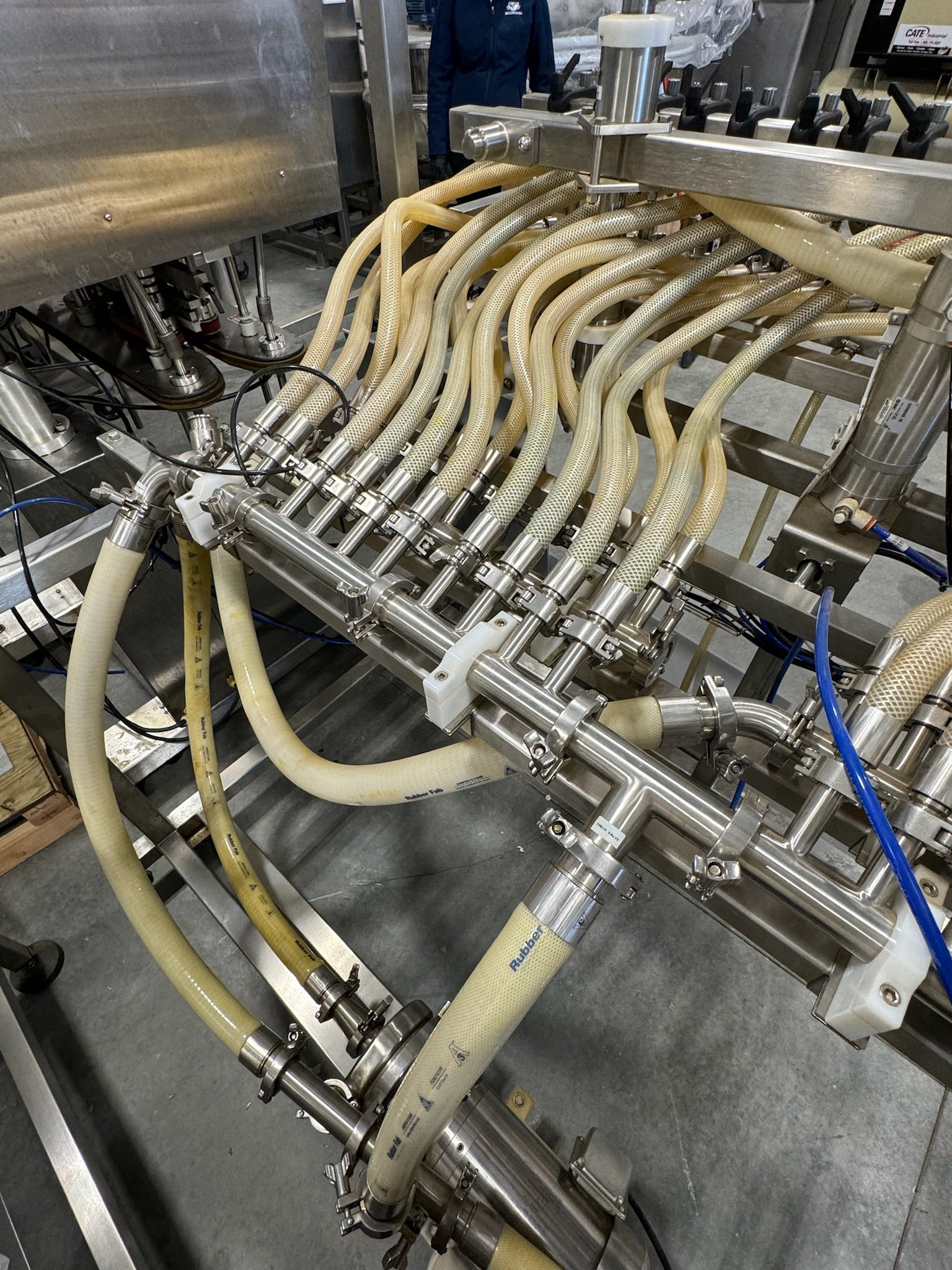

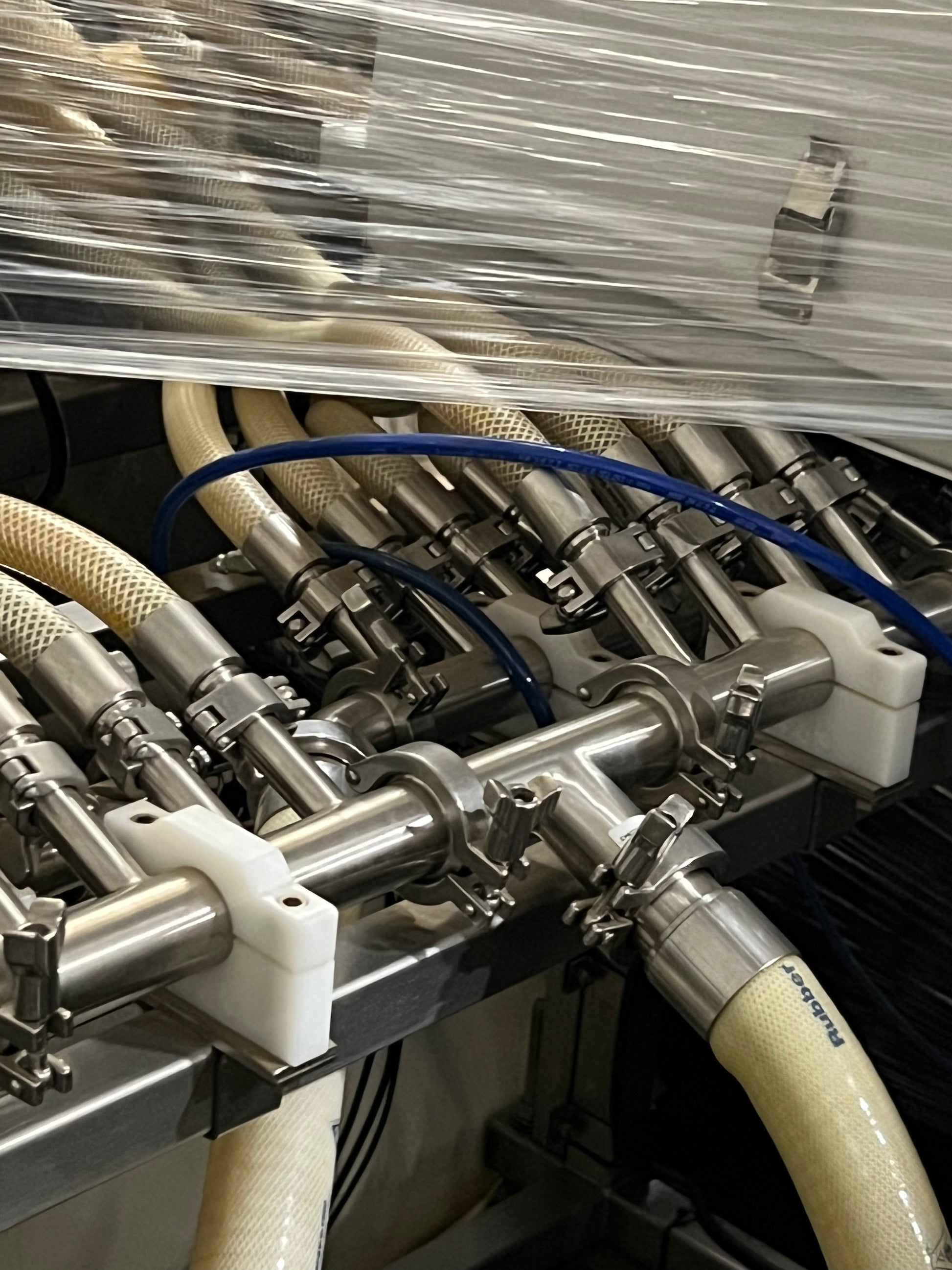

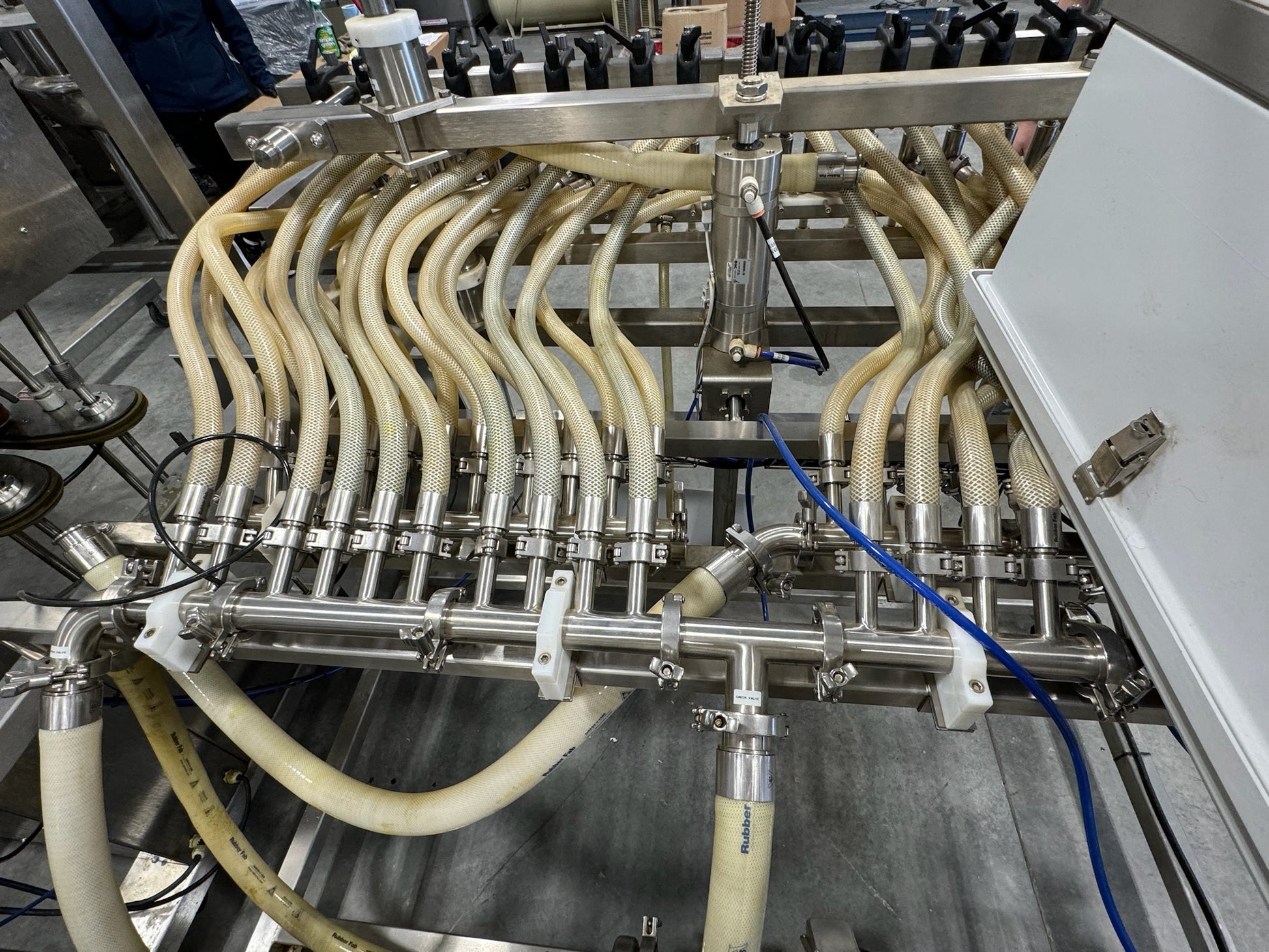

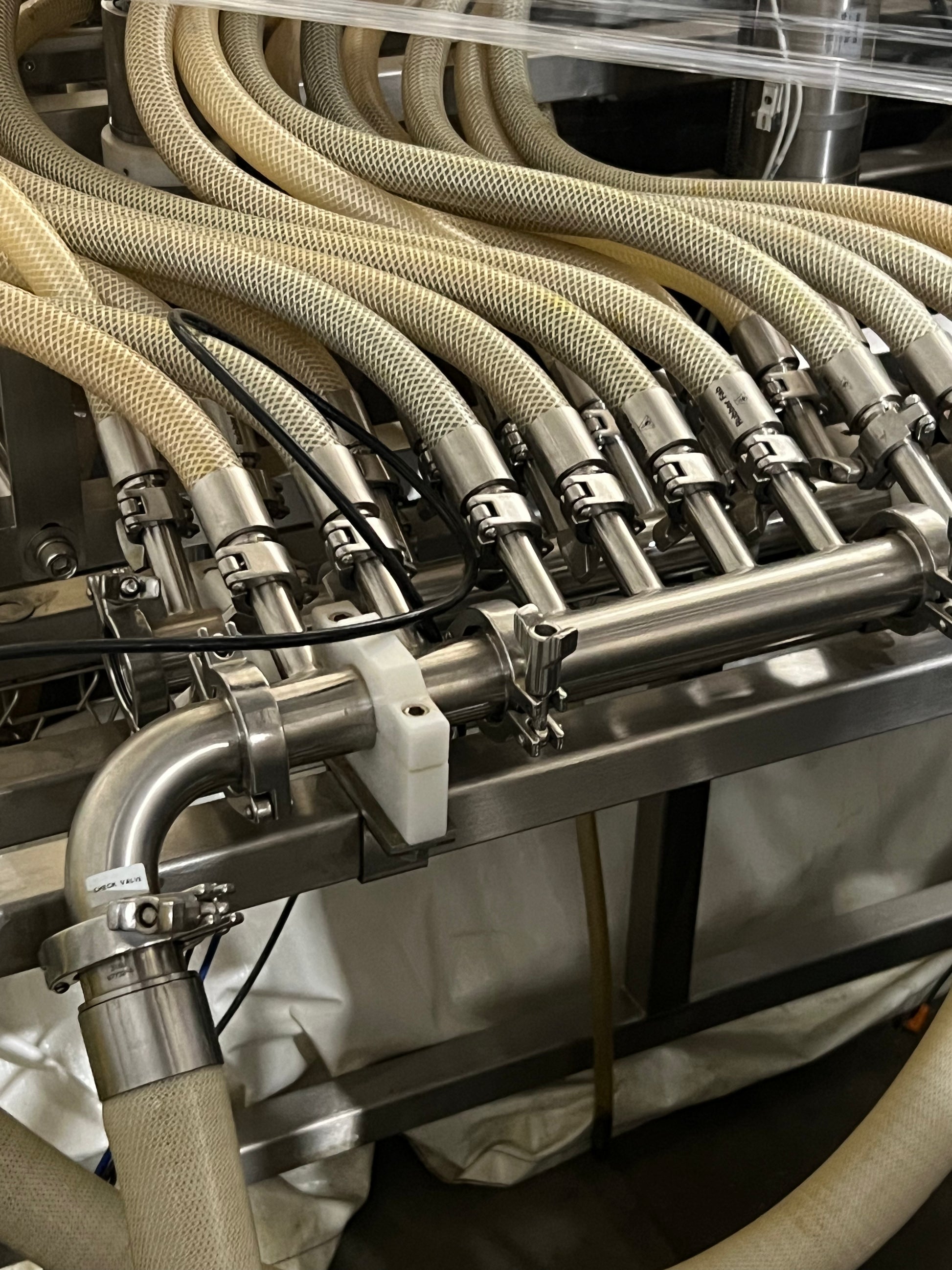

One pump that feeds all

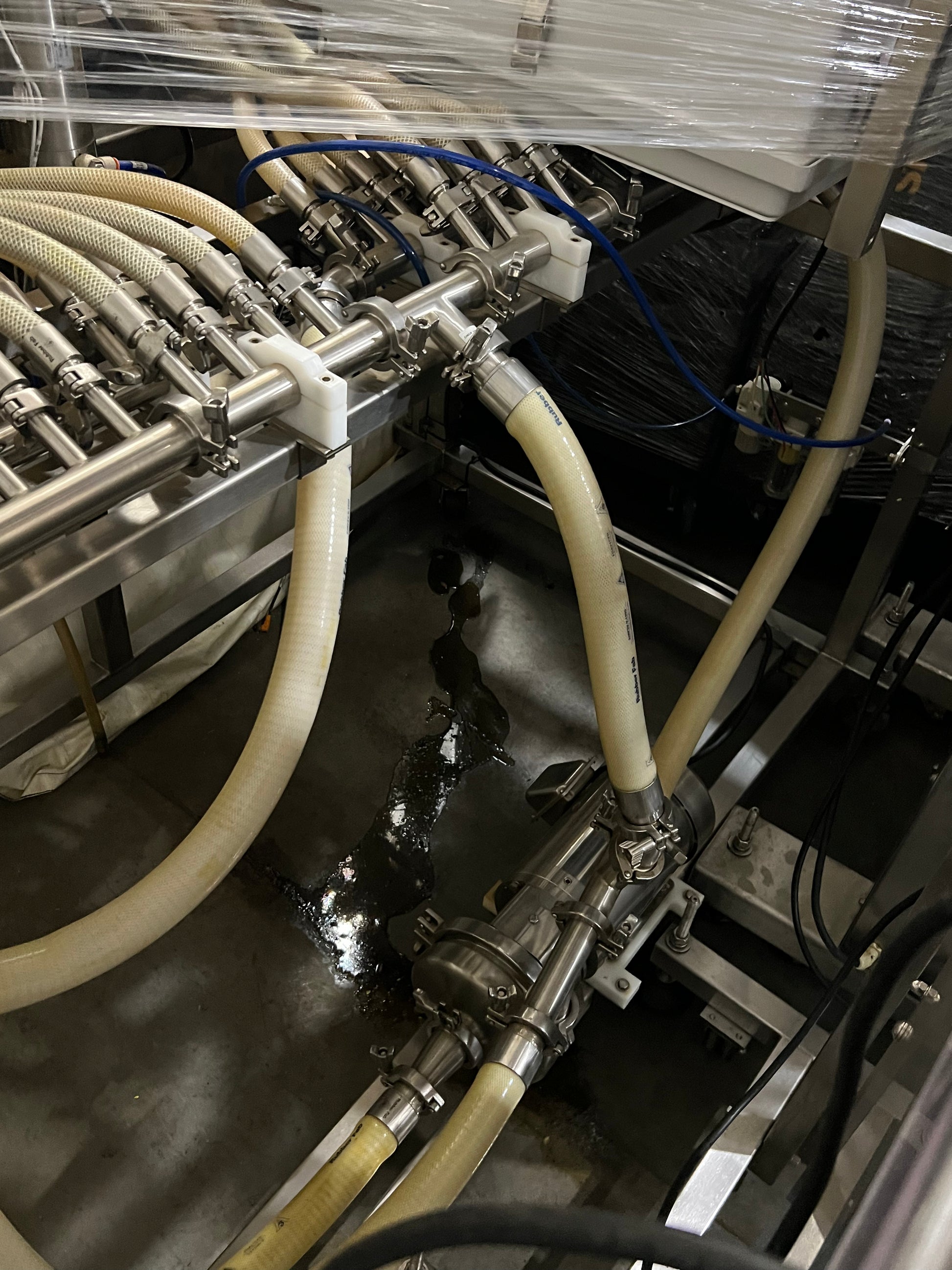

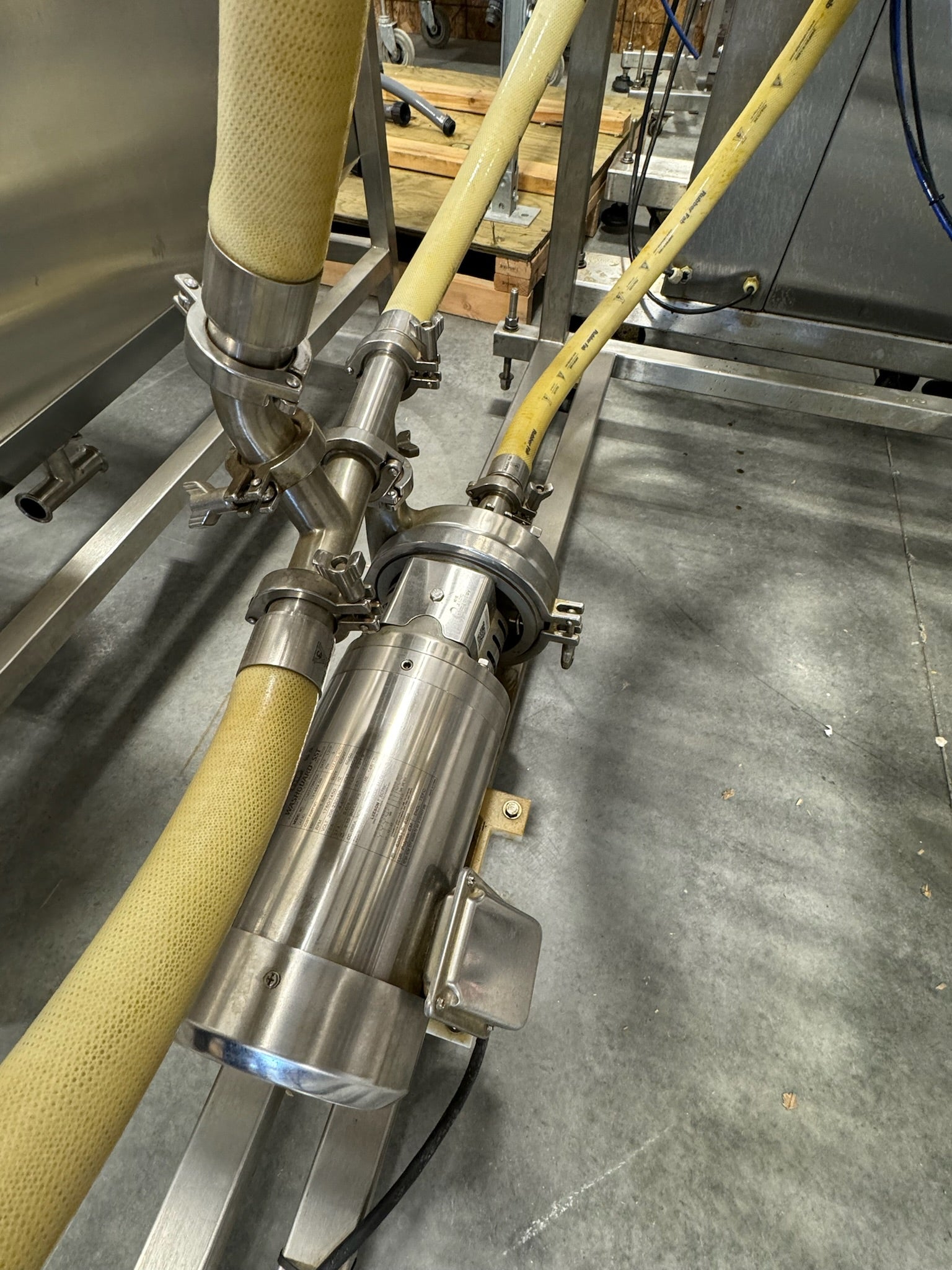

Centrifugal pump

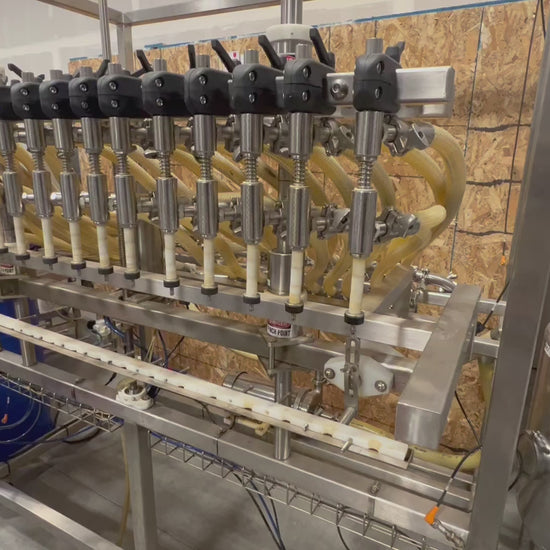

4 heads up to 20 heads
At 16 head - 80-100 bottles per minutes- 5-6 cycles per minute on an 8 ounce
Seals the container -
Has a perf trail

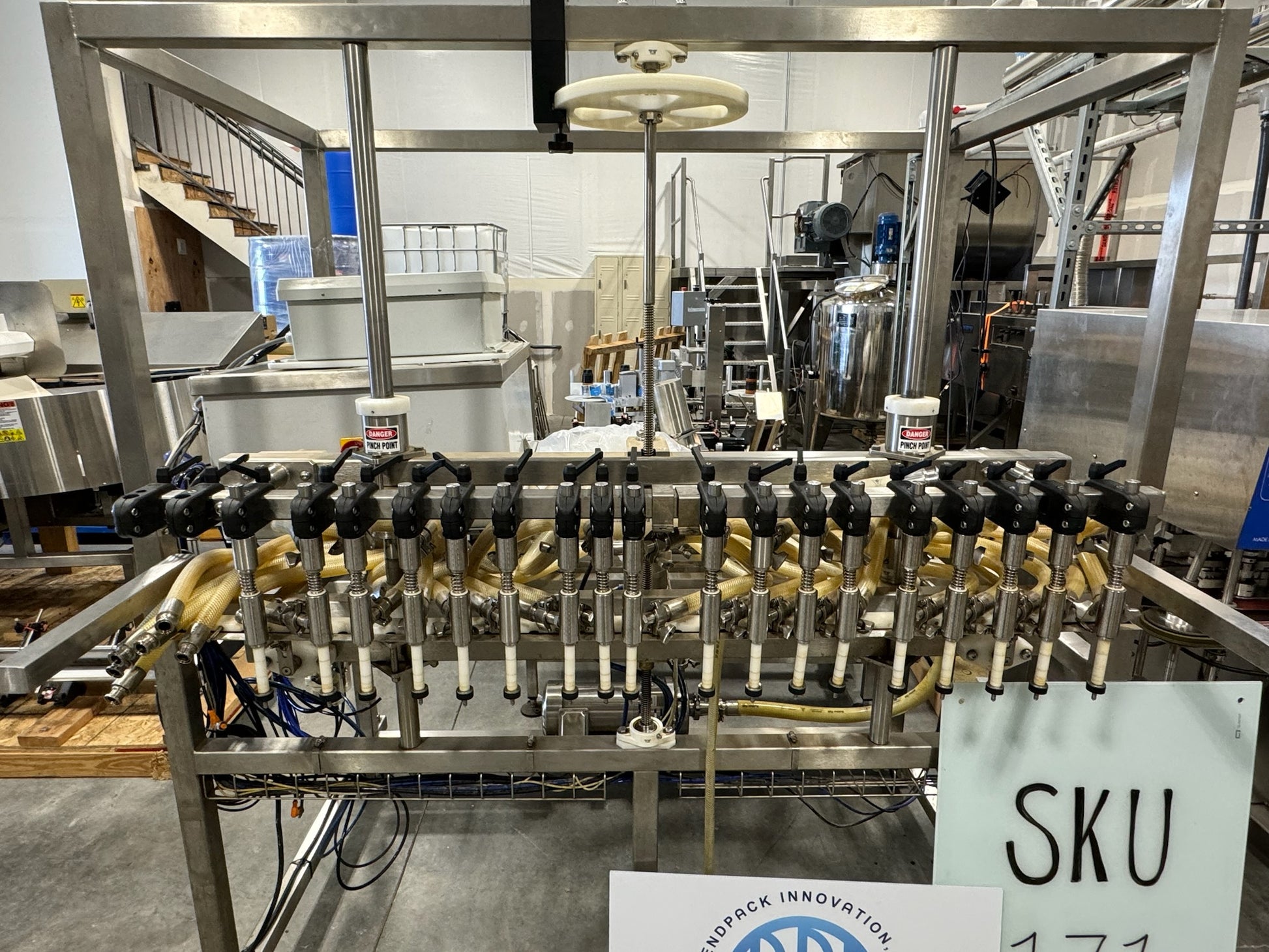

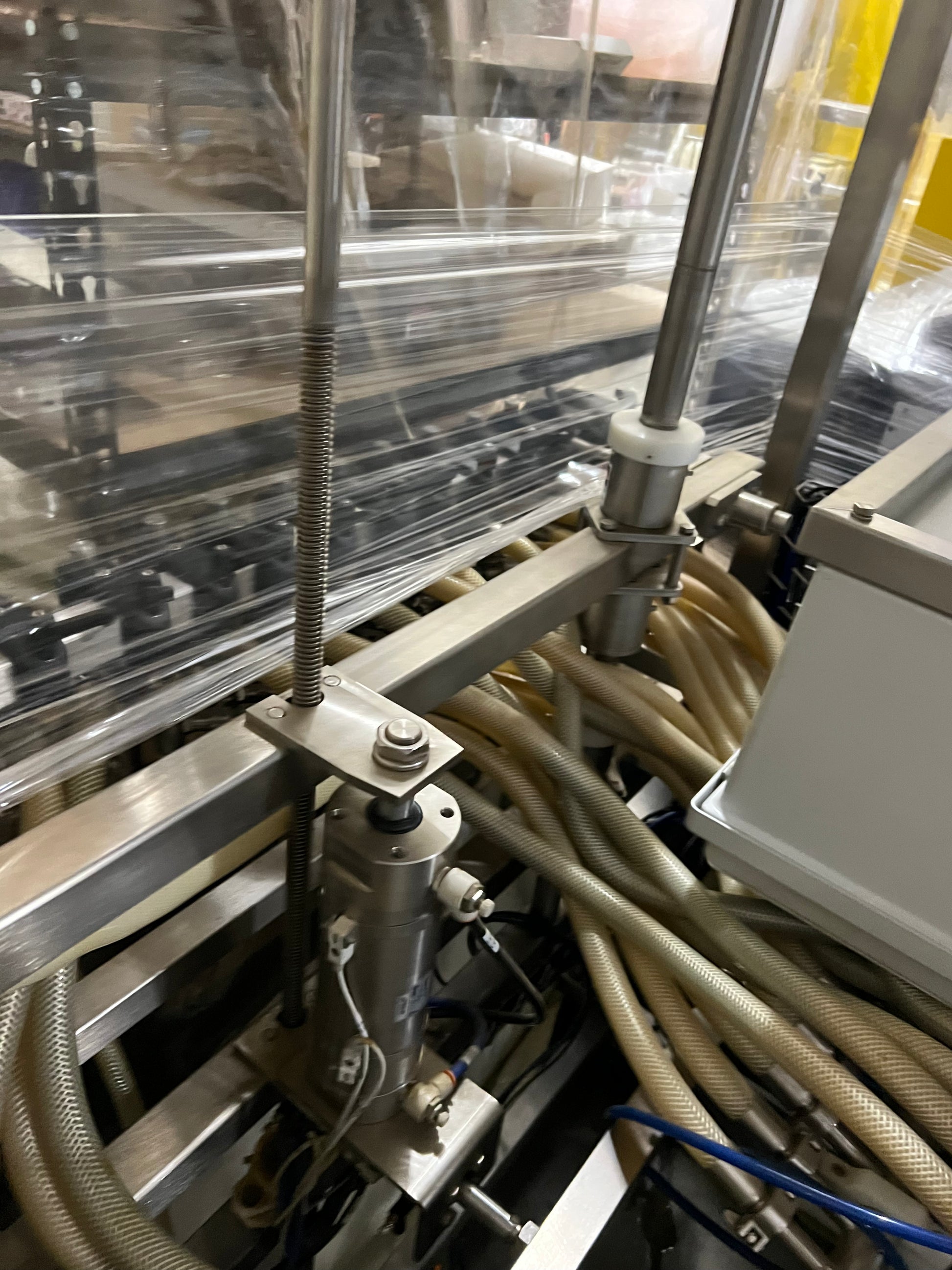

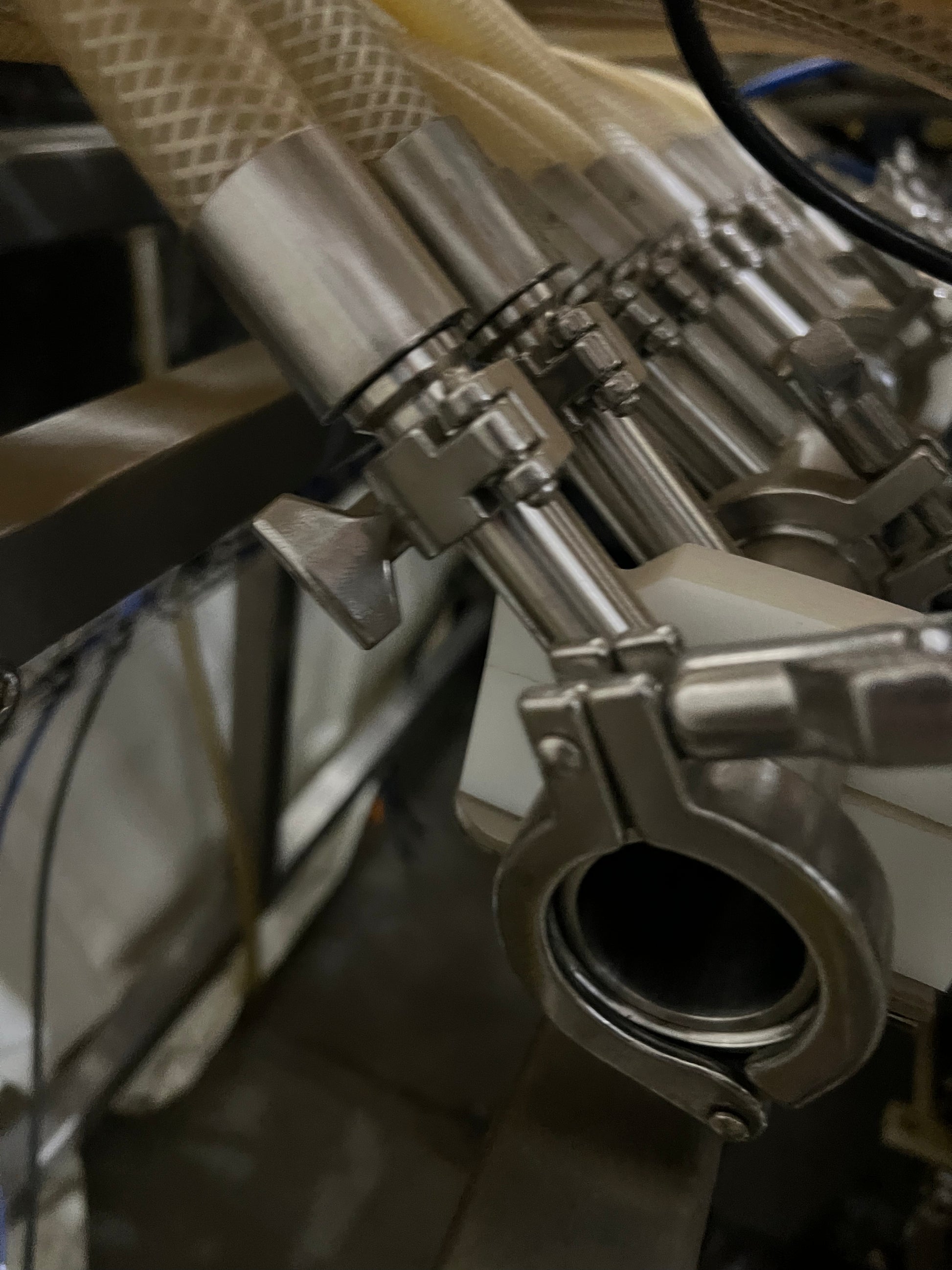

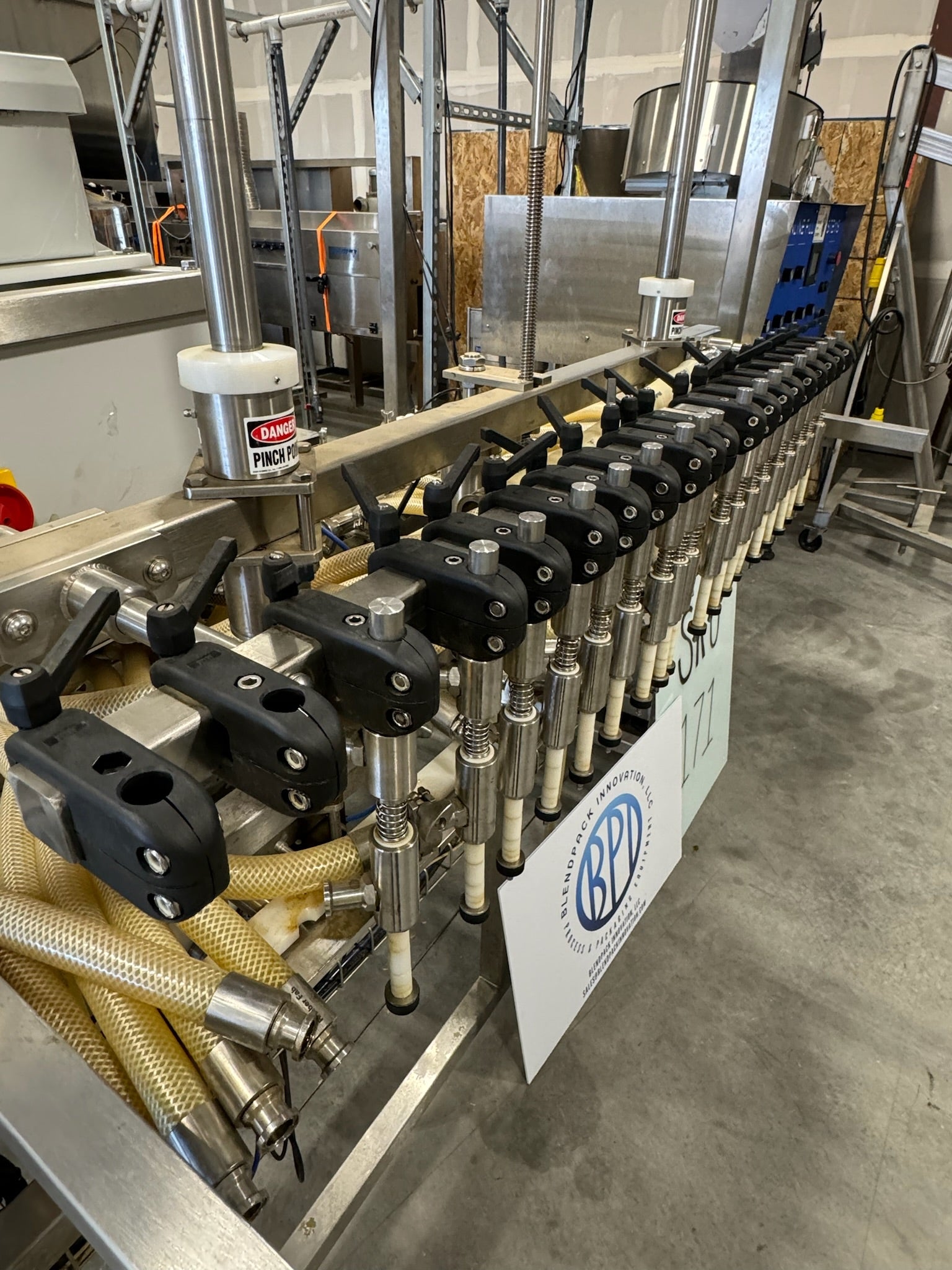

Nozzle withdrawals to keep away from dripping
Puts 14 Lbs on the bottle so on the conveyor
GENERAL INFORMATION
Inline Filling Systems General Video of their Overflow Fillers Running - Filler and Capper
https://www.youtube.com/watch?v=Fi3PZ0eK6xM&t=9s
Inline Filling Systems General Info on their Overflow Filler
An overflow filling machine is a popular type of liquid filling machine that is widely used in various industries. This machine is known for its accuracy and speed in filling containers with liquid products. The overflow filling machine works by filling containers to a level that exceeds the target fill level. The excess liquid then flows out of the container and back into the machine, creating a consistent fill level in each container. This process ensures that each container is filled to the same level, regardless of variations in the container’s size or shape. The overflow filling machine is commonly used for filling products such as beverages, chemicals, pharmaceuticals, and cosmetics. Its versatility and efficiency make it a popular choice for manufacturers worldwide.
2 Head to 24 Head Sanitary, Chemical Duty and Hazardous Location Rated Filling Machine
Low Viscosity Products with fine or no particulates
Fill to Level Filling Machine
Hazardous Location Chemicals
Allen-Bradley Micro 800 PLC with PanelView HMI
Application specific hoses, nozzles and contact parts for Chemical

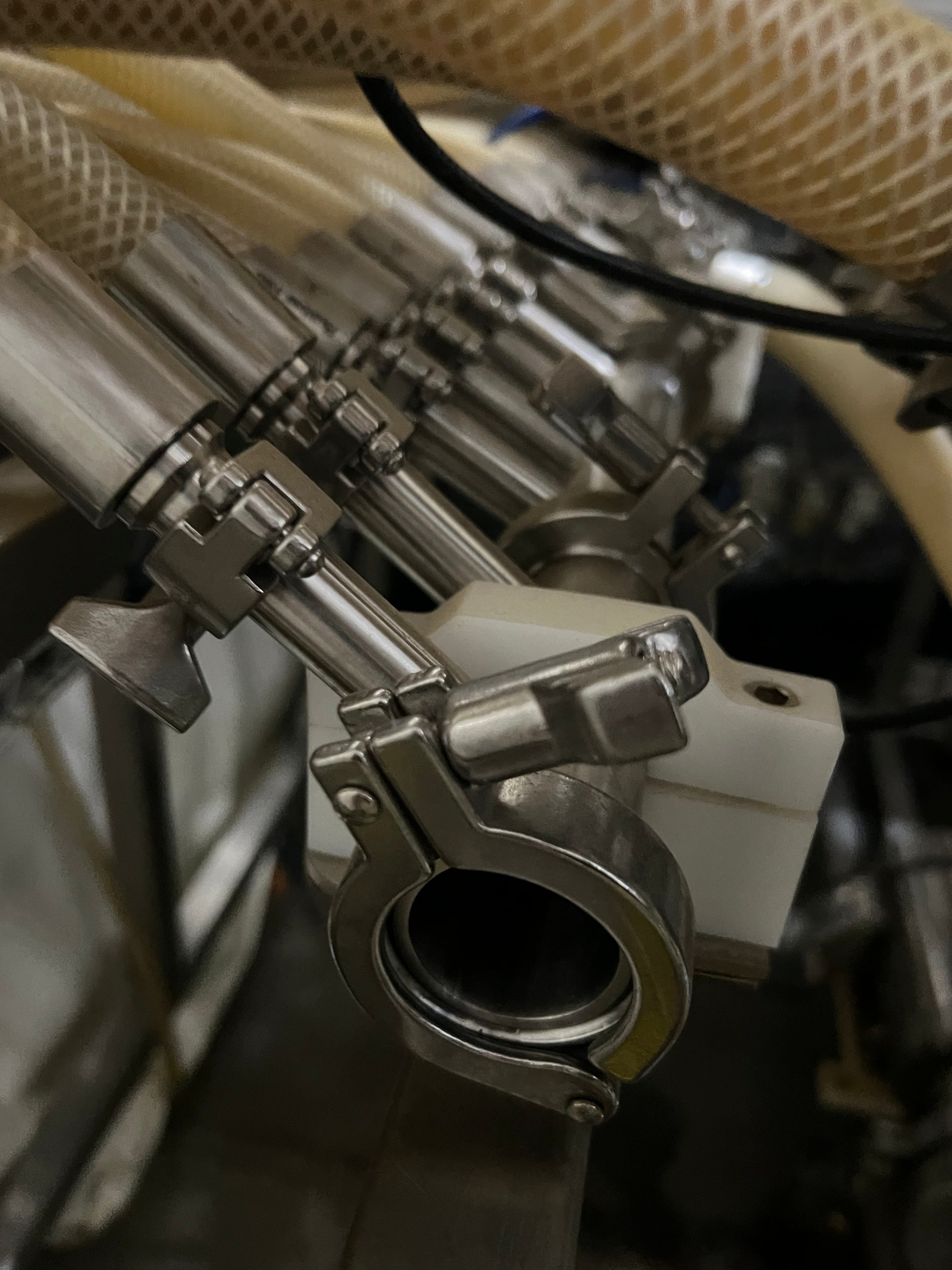

Removable Fluid path components available for quick change-over
