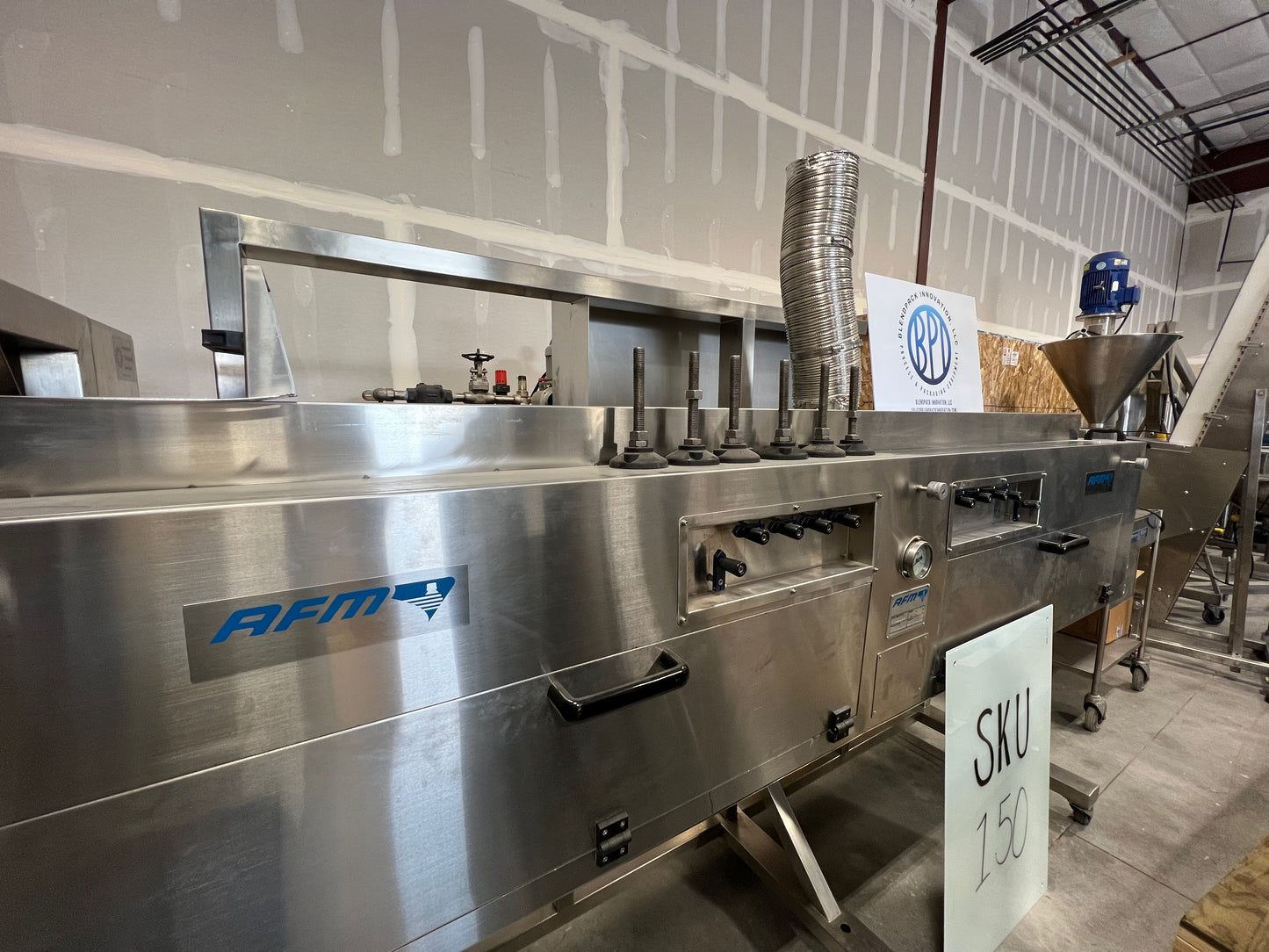

Steam Tunnel - AFM Inventory Equipment

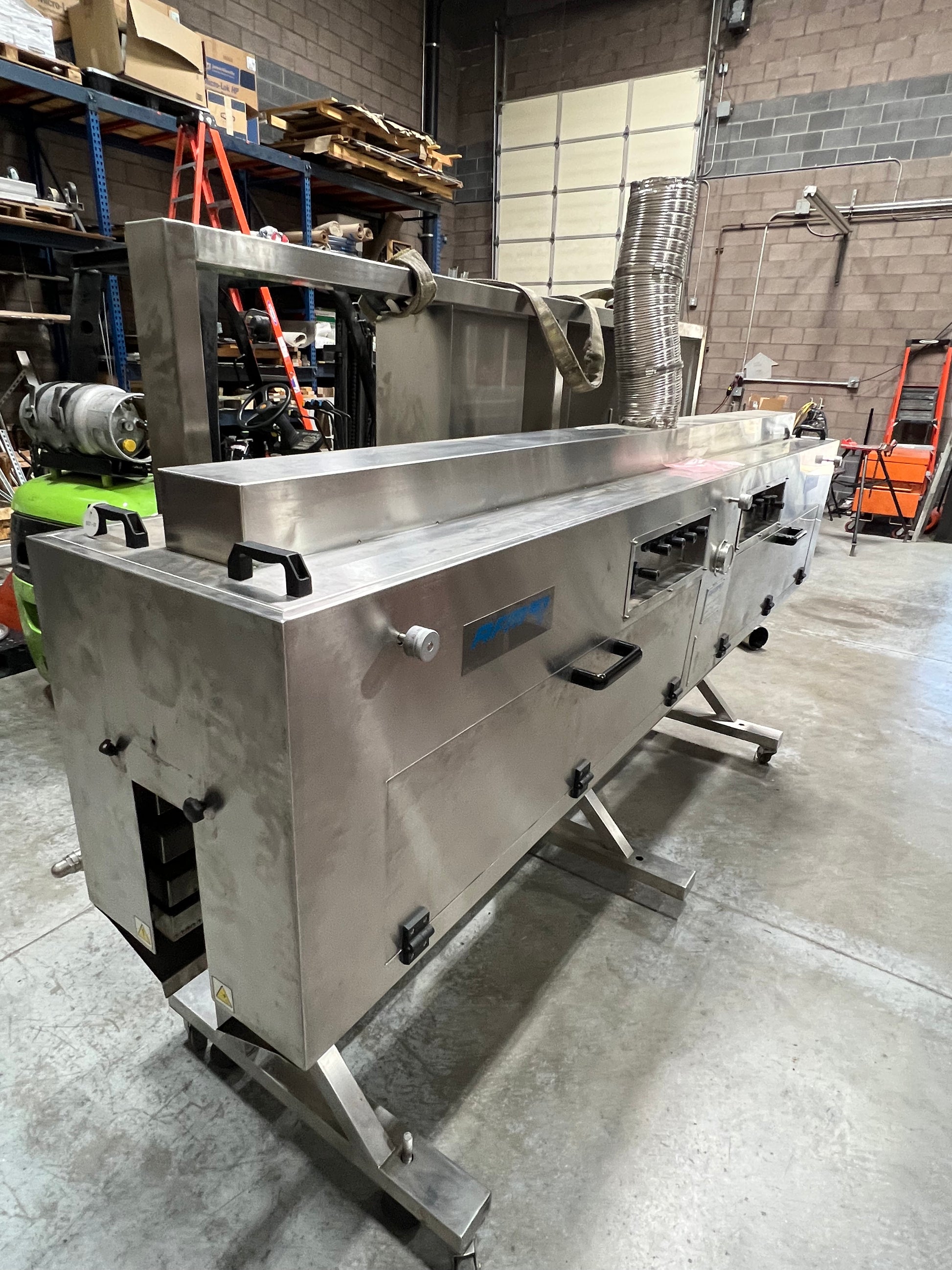

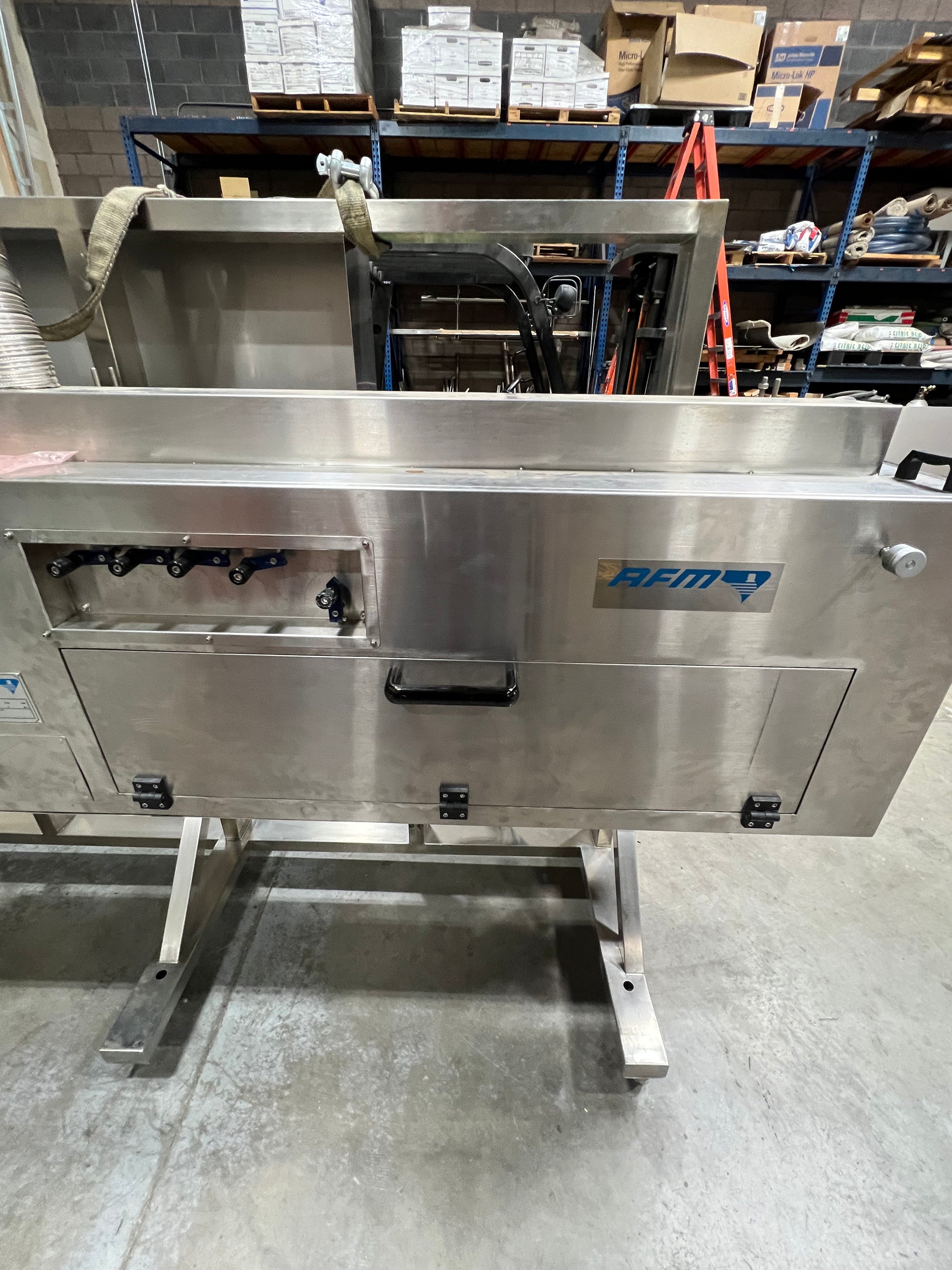

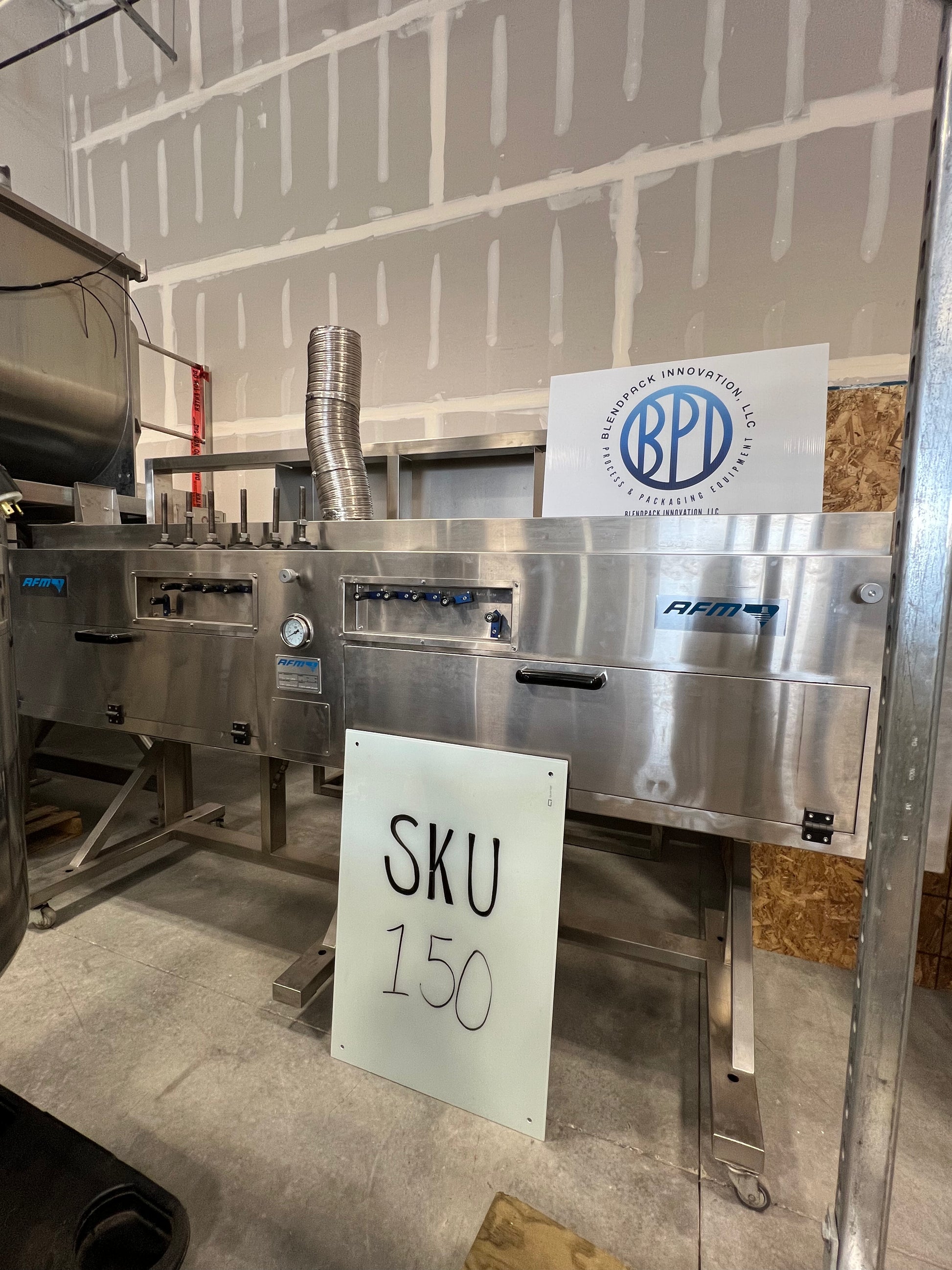

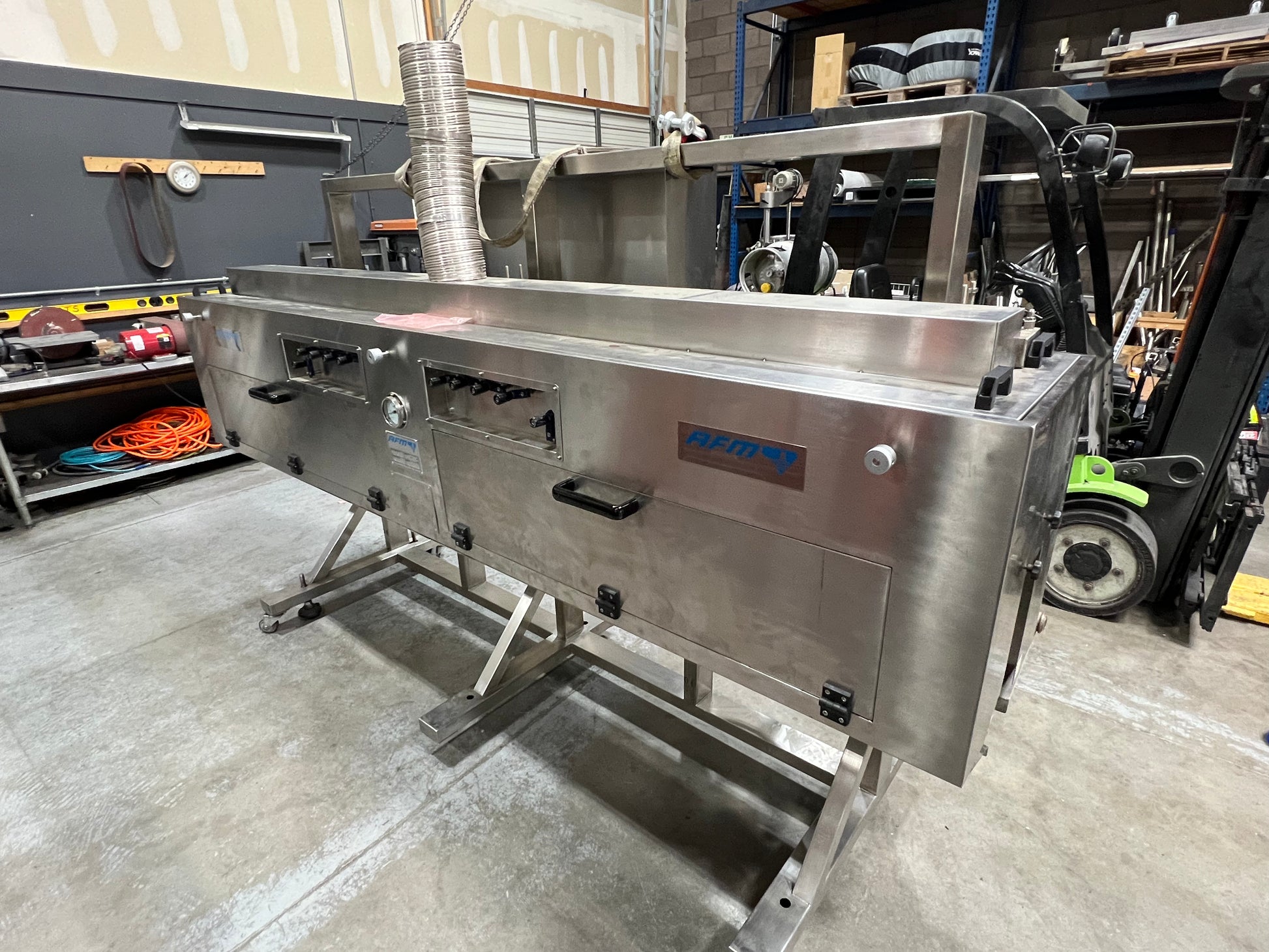

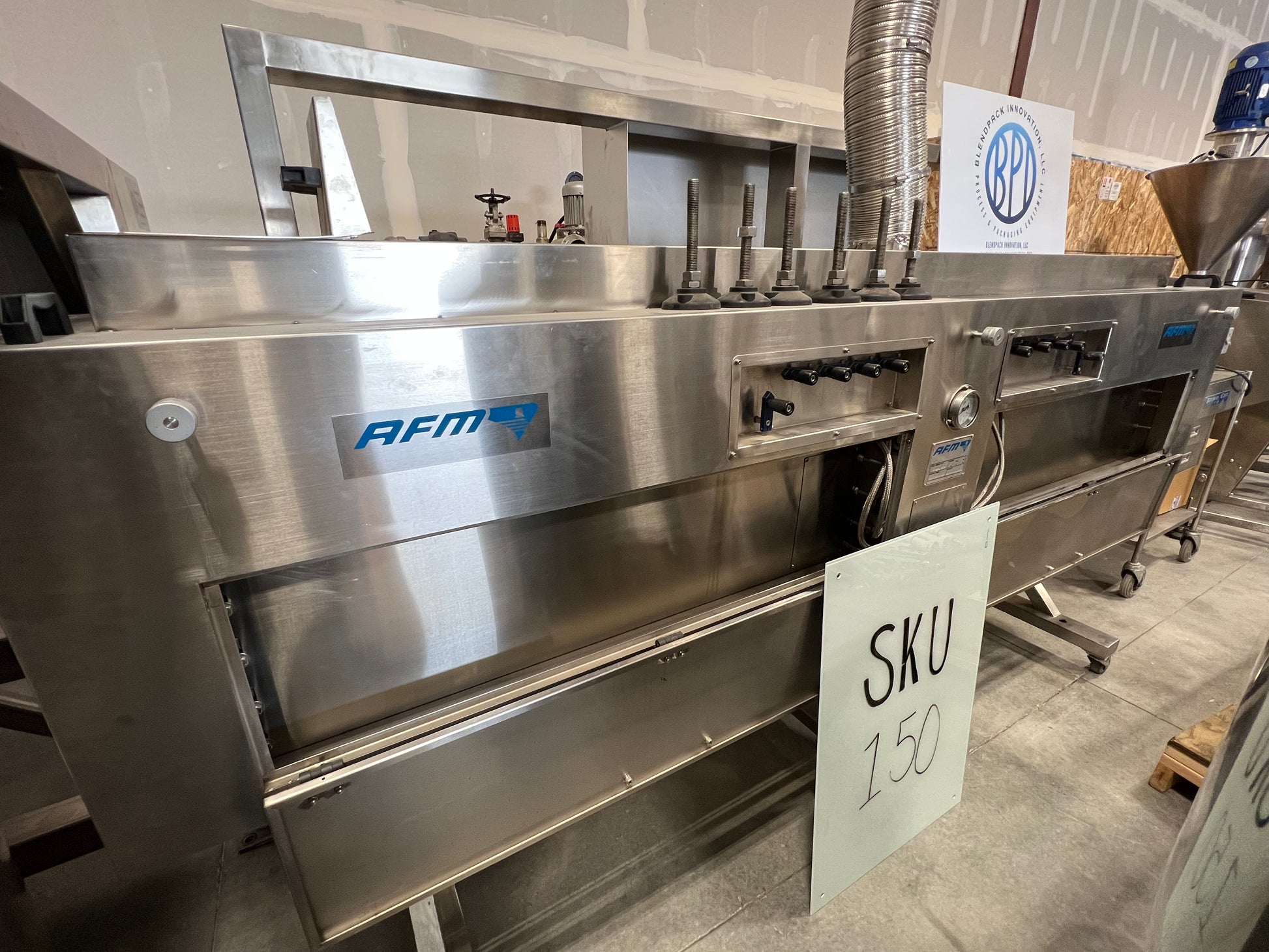

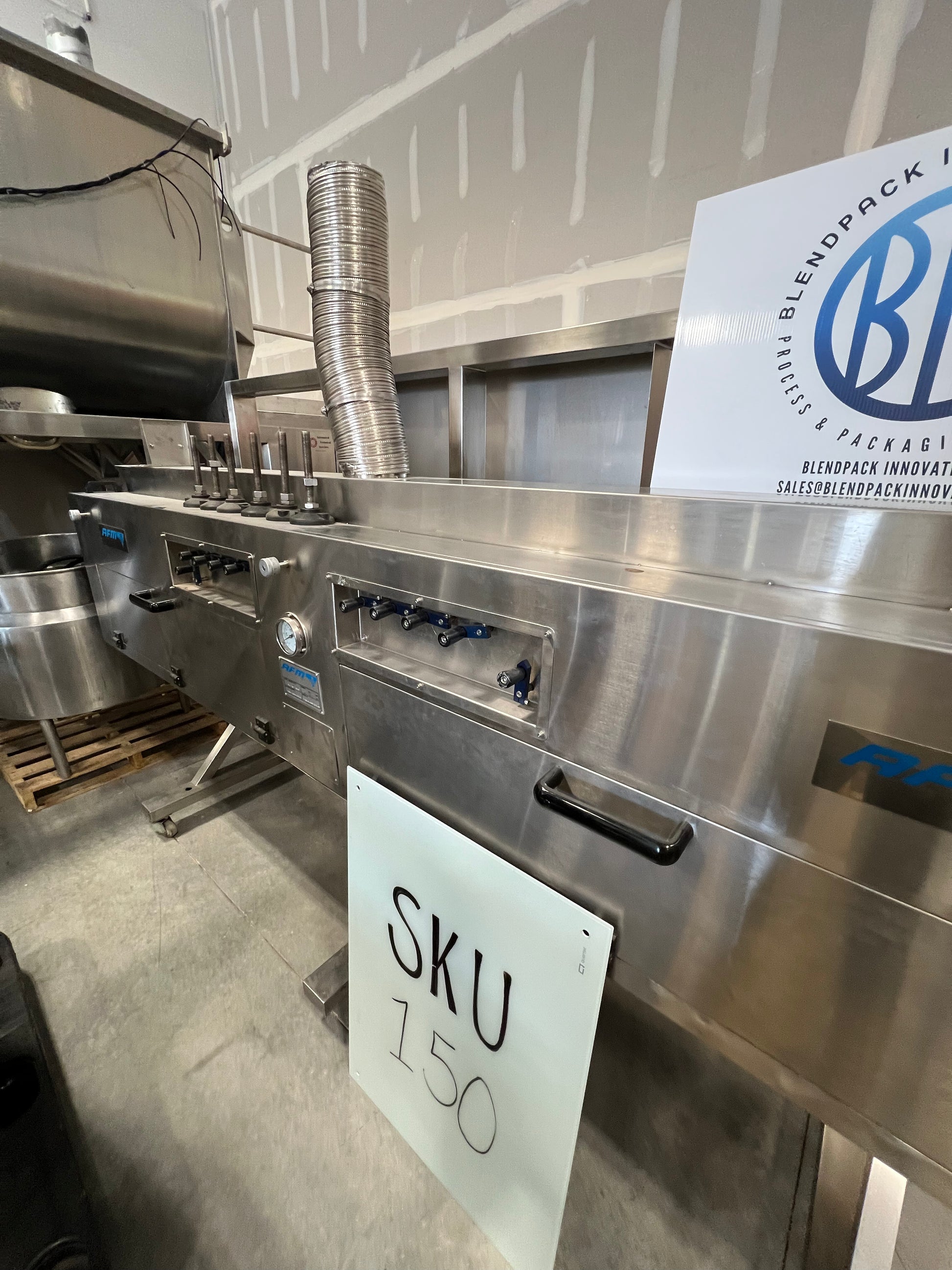

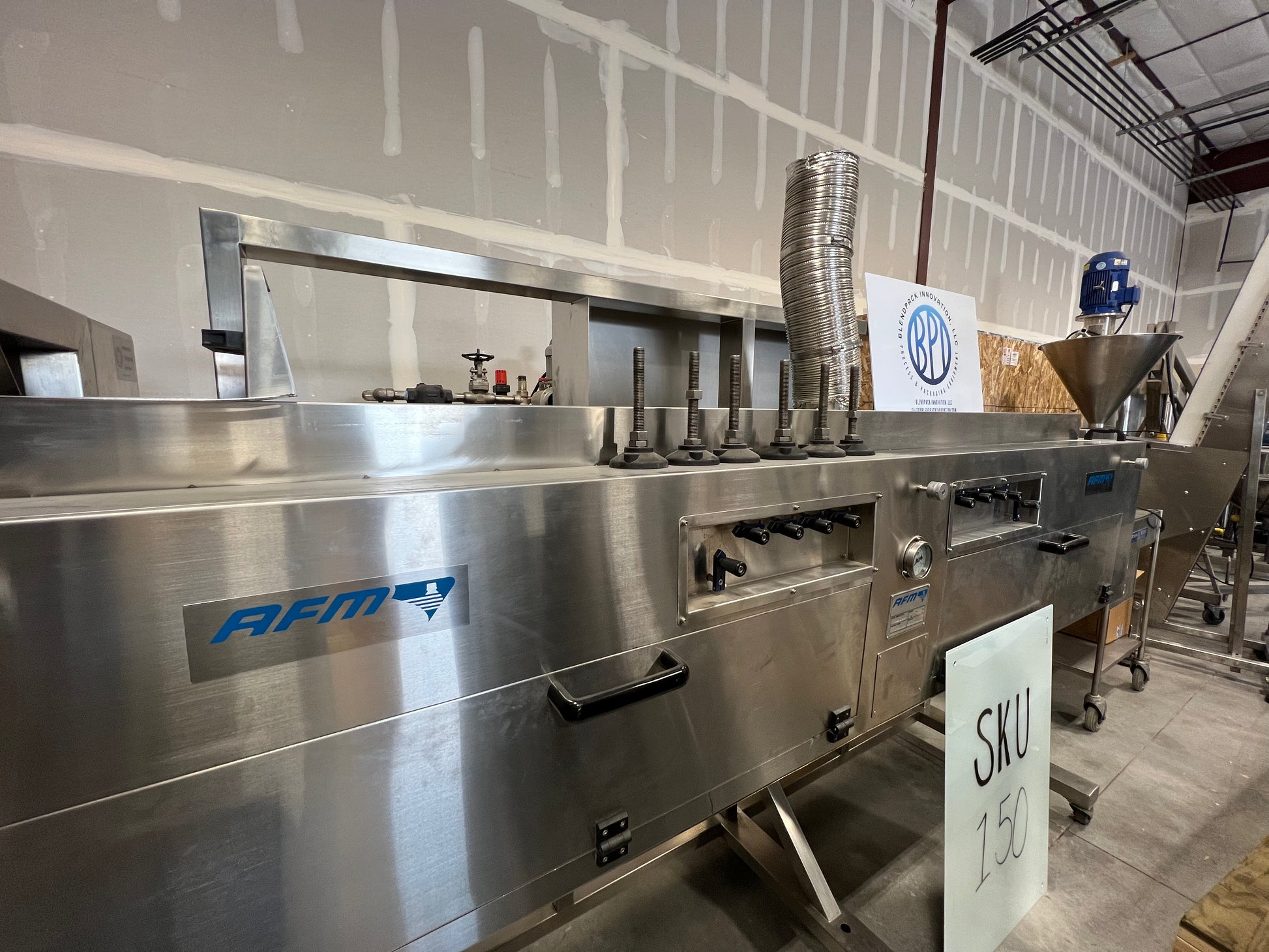

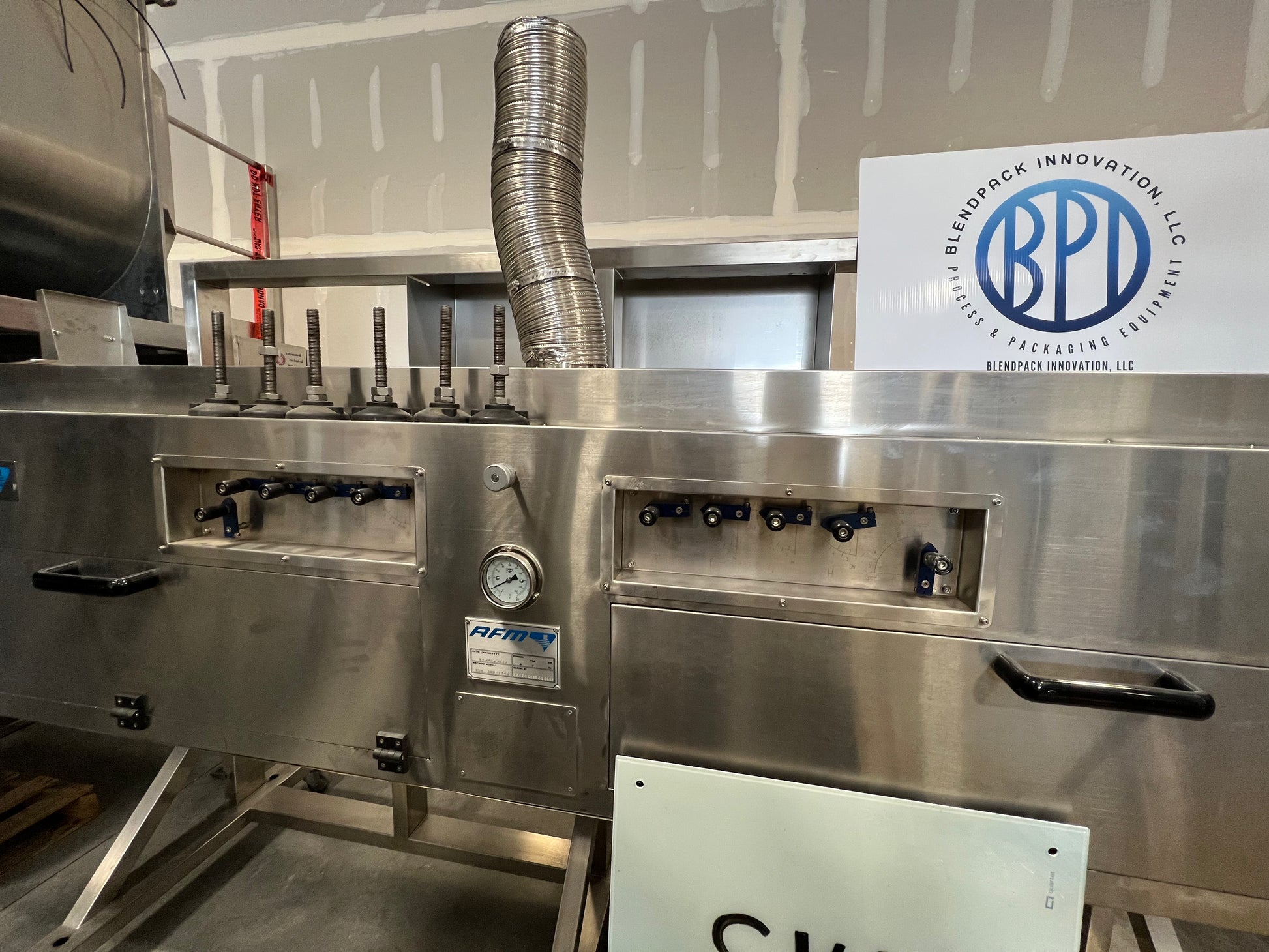

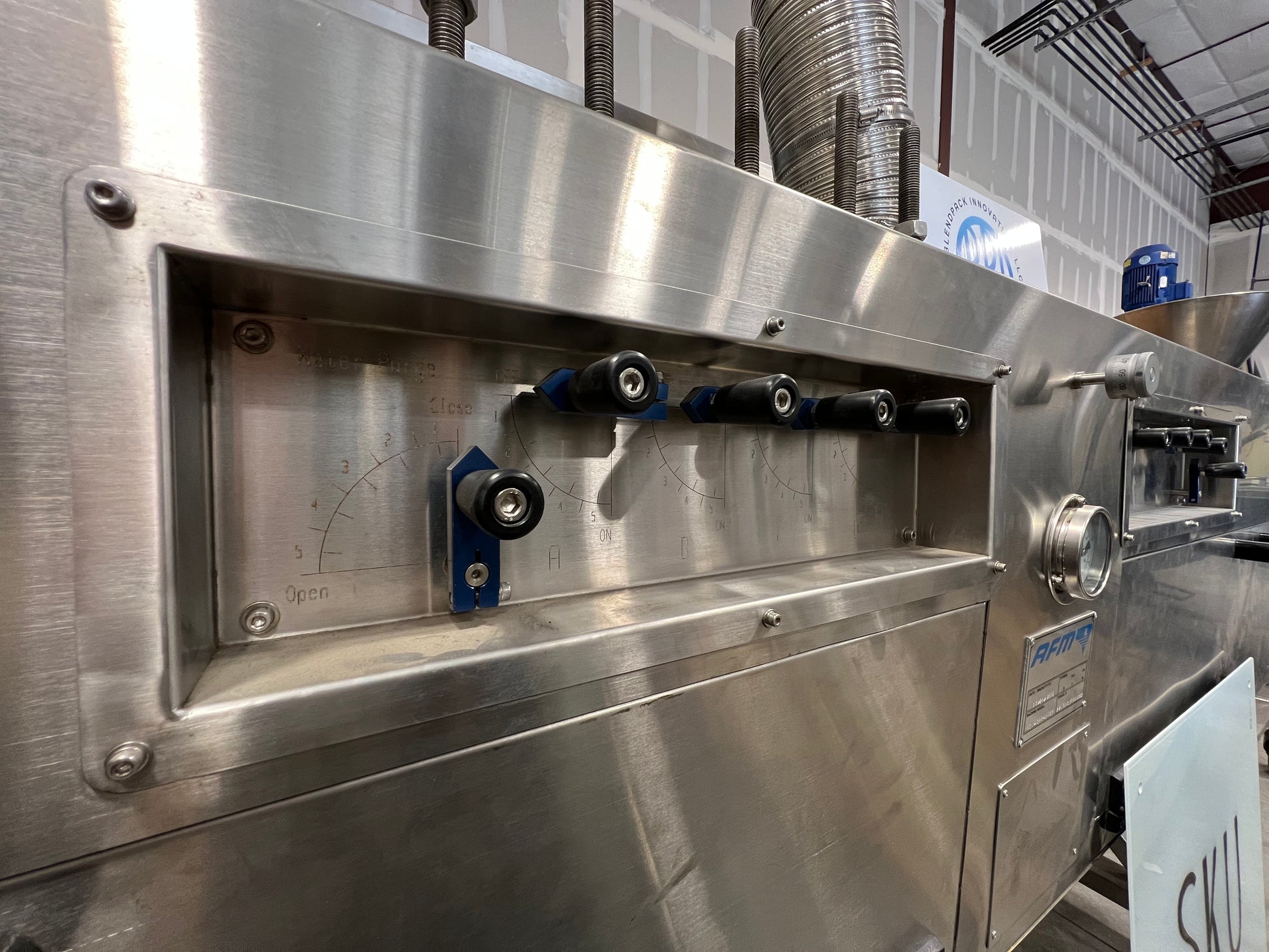

AFM Steam Tunnel

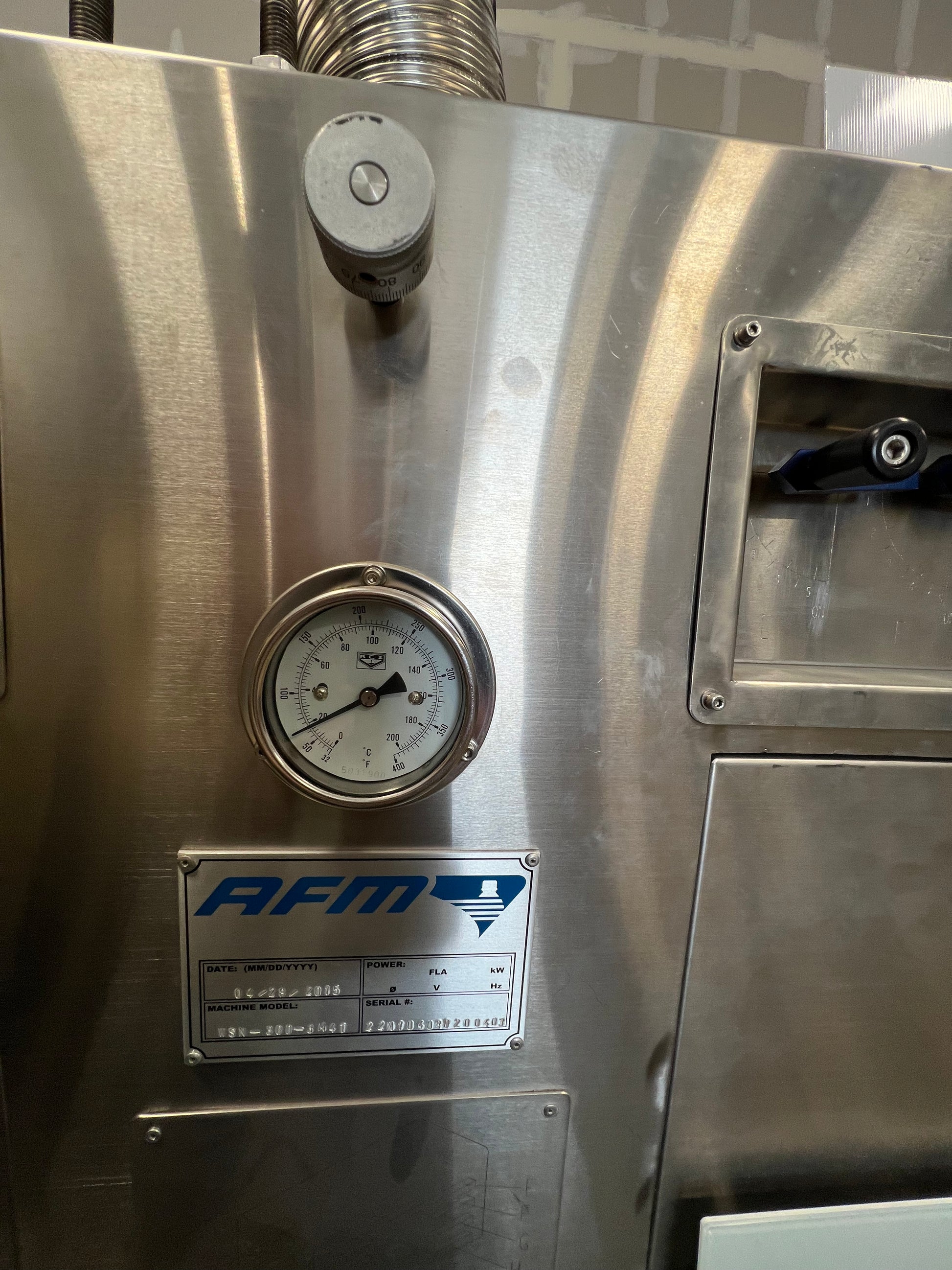

Model # AFM - WSN-300-3M41

Manufacturer Date 04-29-2015

INFO from website Recommended to consult factory on specific model number to confirm spec

WSN Series Steam Heat Tunnels for shrink sleeve label and tamper evident band application from American Film & Machinery are designed for middle, full body, and full body and cap shrink applications. The WSN Series includes two machine models, the WSN-300-2M and the larger WSN-300-3M steam heat tunnel. WSN Series tunnels are a perfect addition to shrink labeling lines in manufactured goods industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, and chemical products.

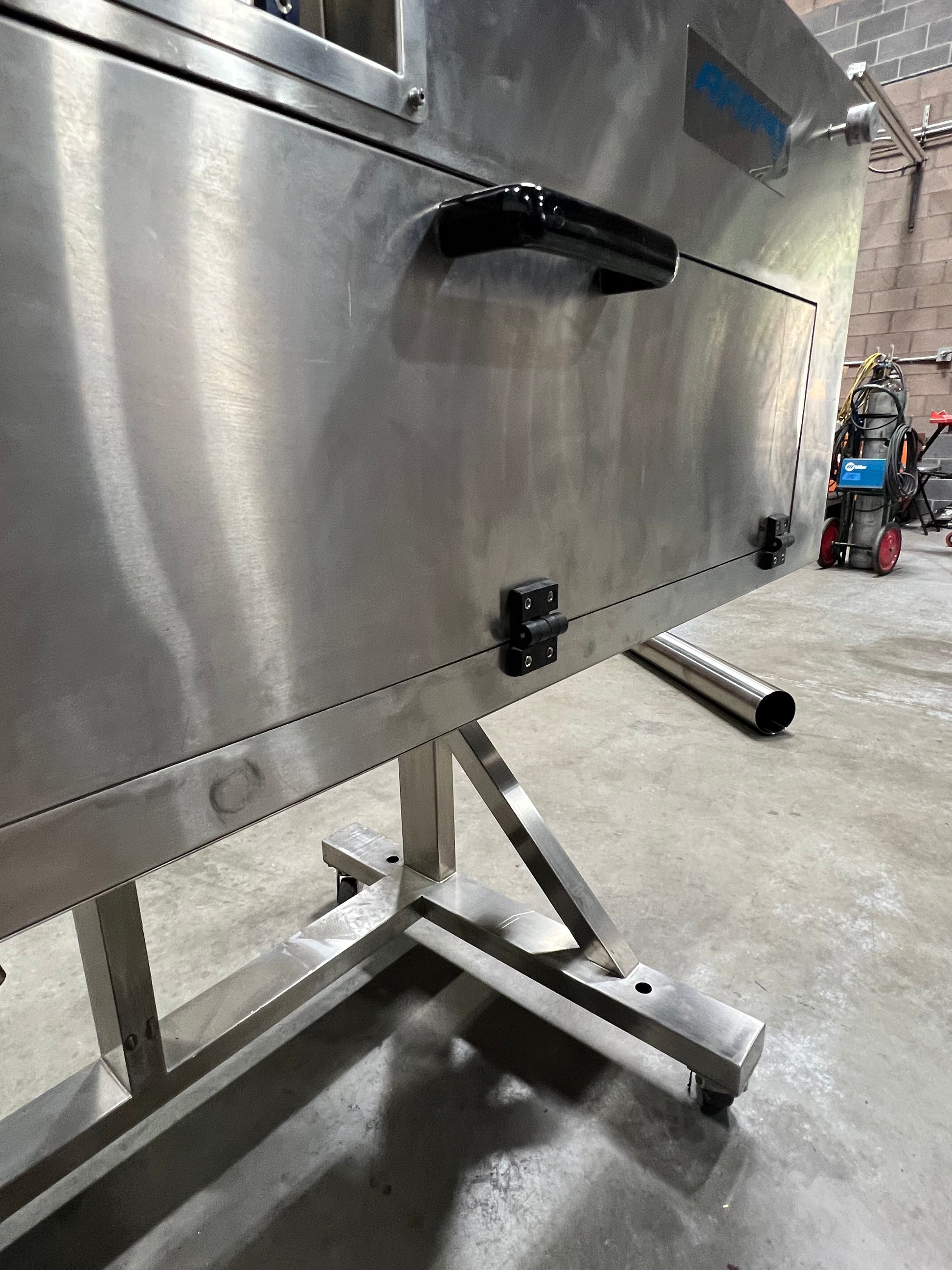

Easy-to-use hand crank allows for height adjustment to accommodate virtually any conveyor

GENERAL INFO ON WSN - 300 - 3M

TECHNICAL SPECIFICATIONS OF THE WSN-300-3M

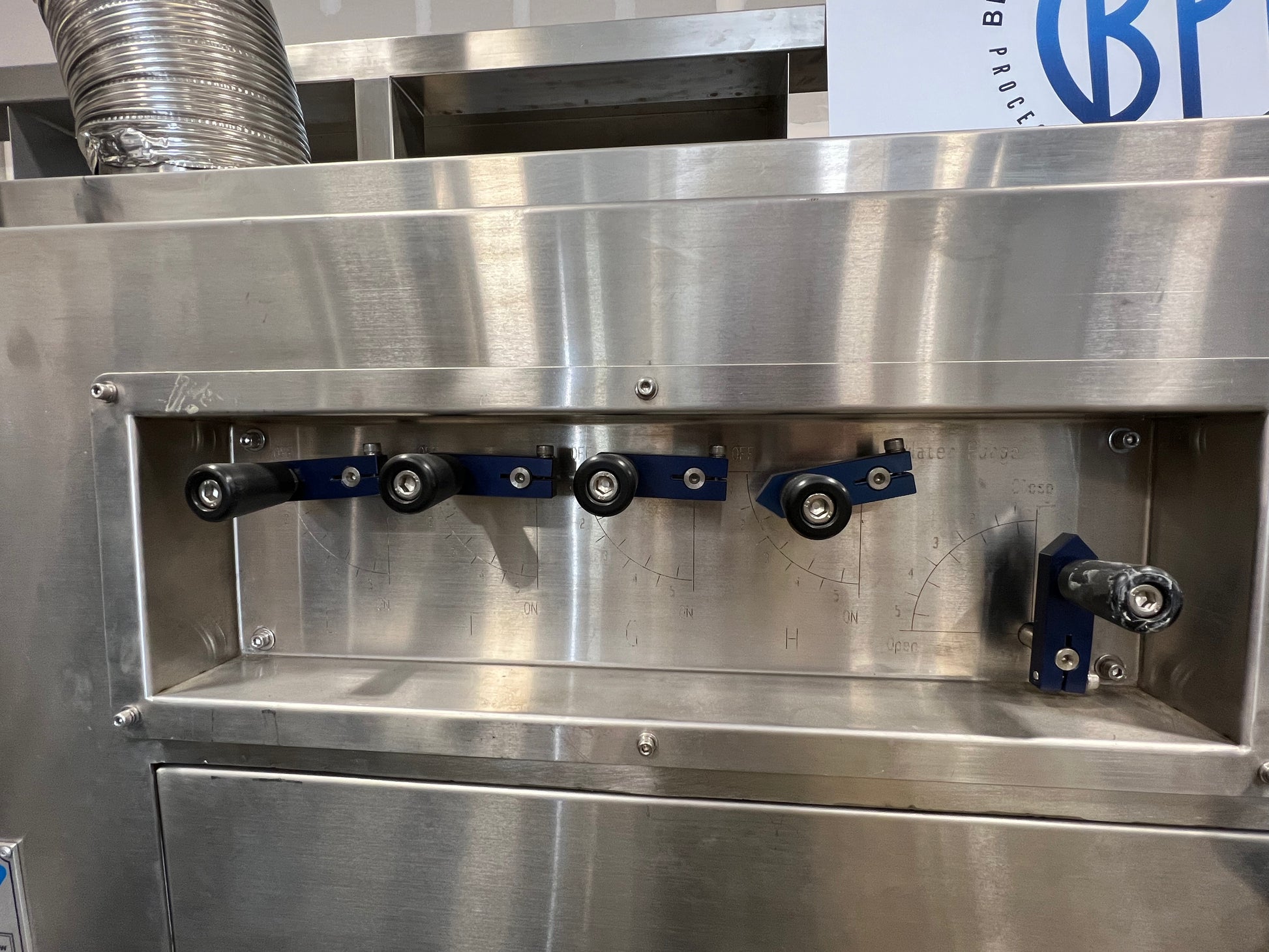

• Zones & Tiers: 2 zones with 4 tiers
• Machine Dimensions: 900mm (W) x 3000mm (L) x 2100mm (H) 35.5” (W) x 118” (L) x 83” (H)

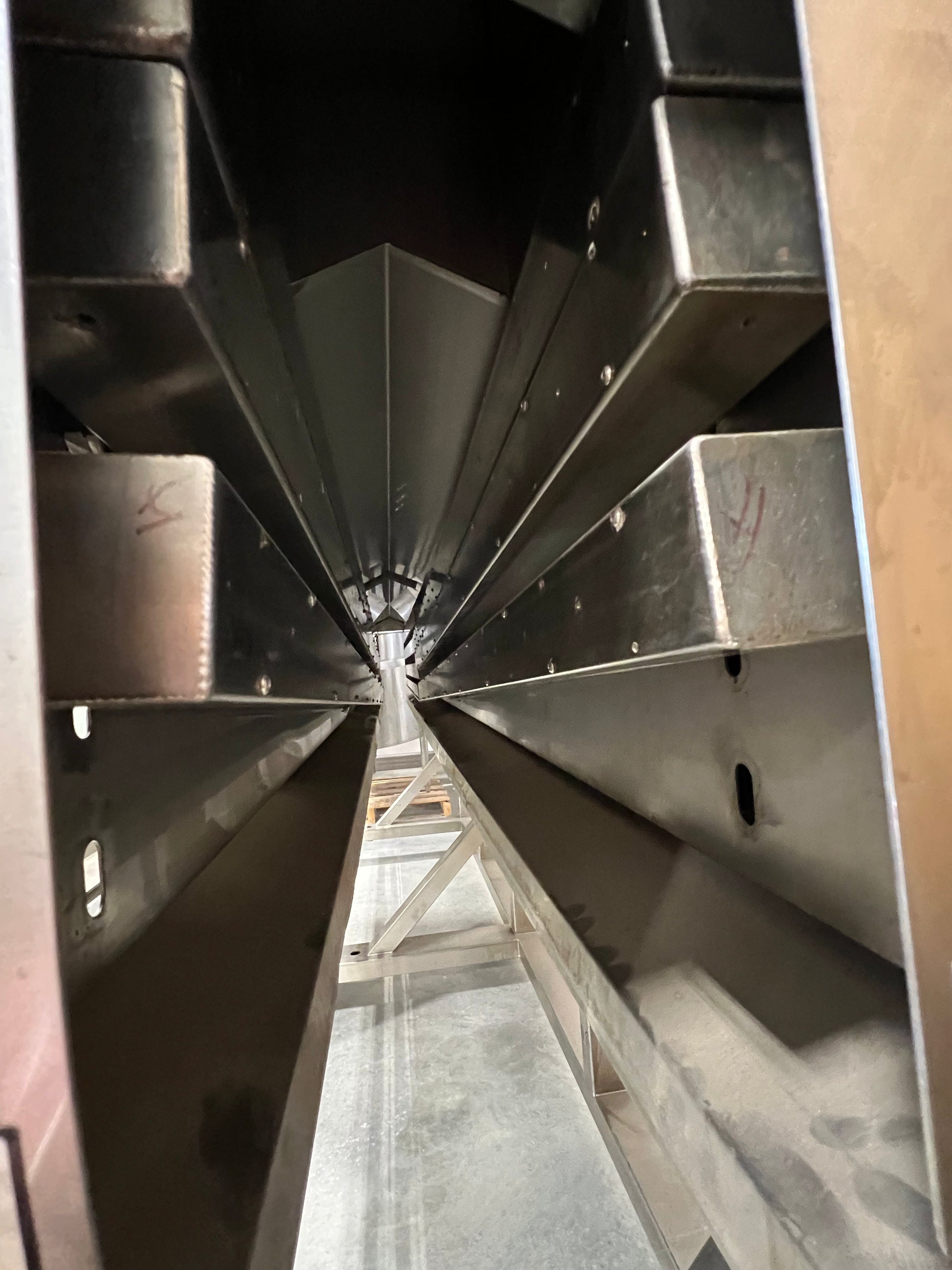

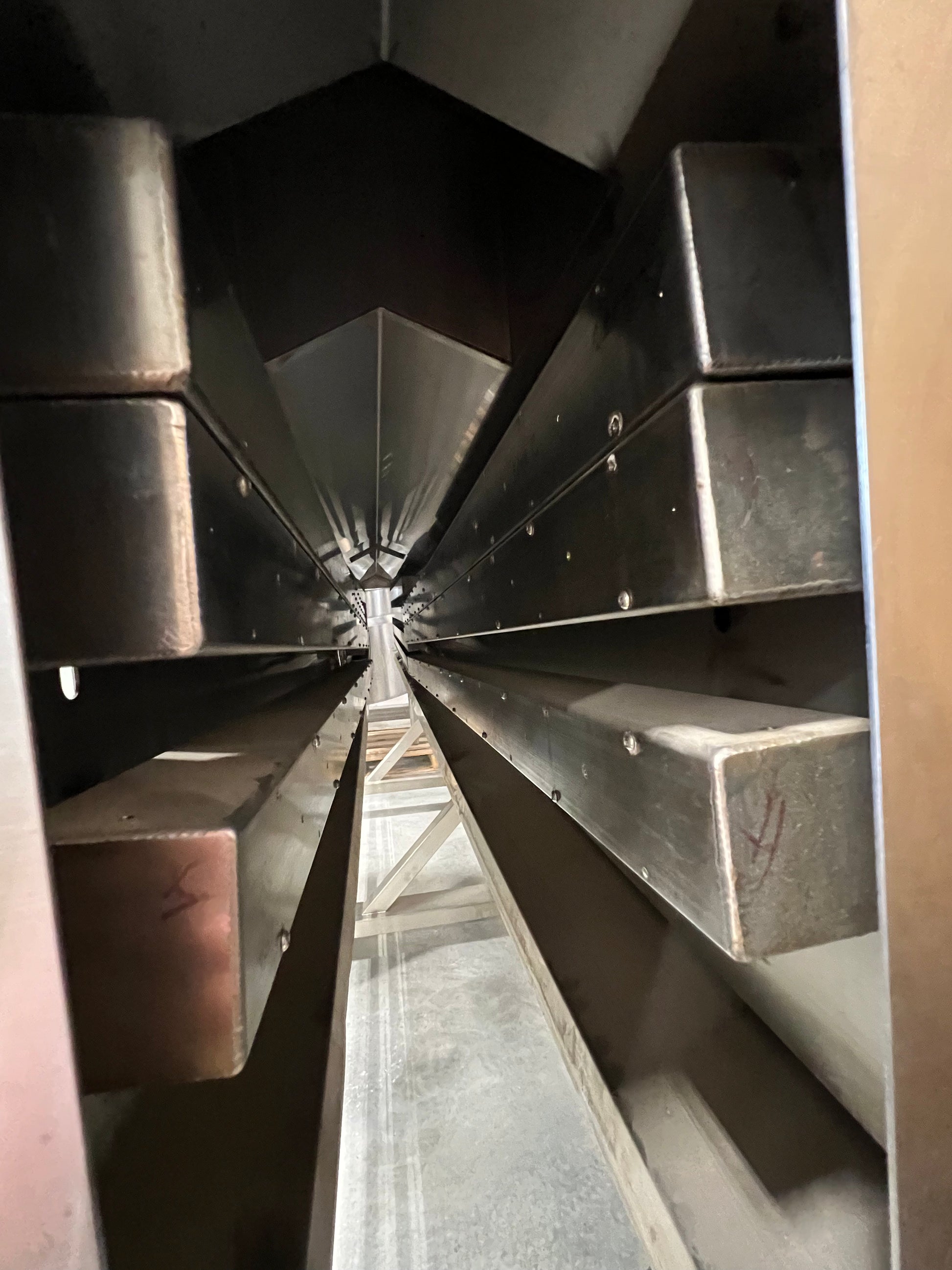

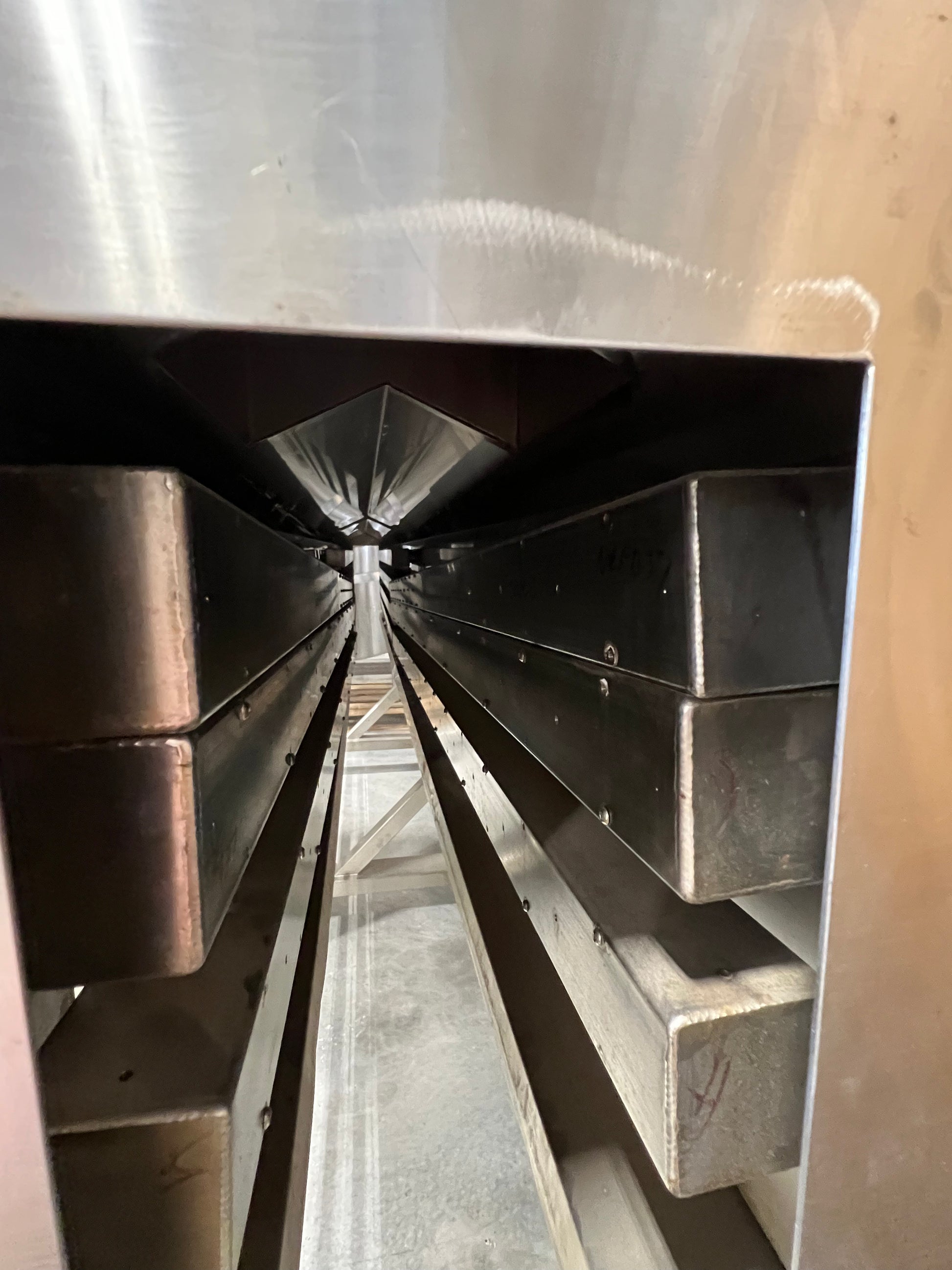

• Tunnel Dimensions: 130mm (W) x 3000mm (L) x 300mm (H) 5” (W) x 118” (L) x 12” (H)

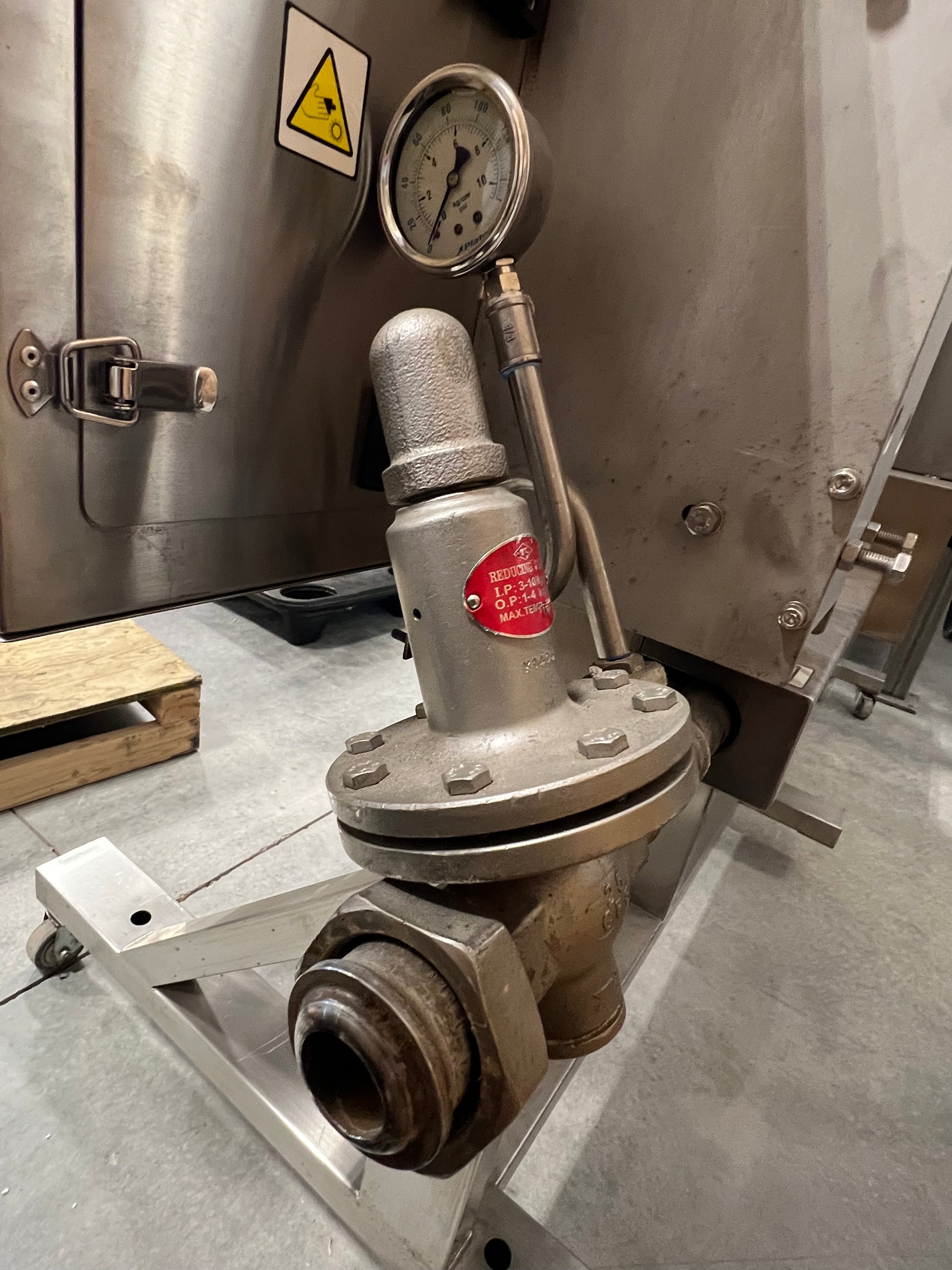

• Steam Pressure:3-4 kg/cm 43-57 psi
• Water Consumption: 300 L/Hr 80 Gal/Hr
