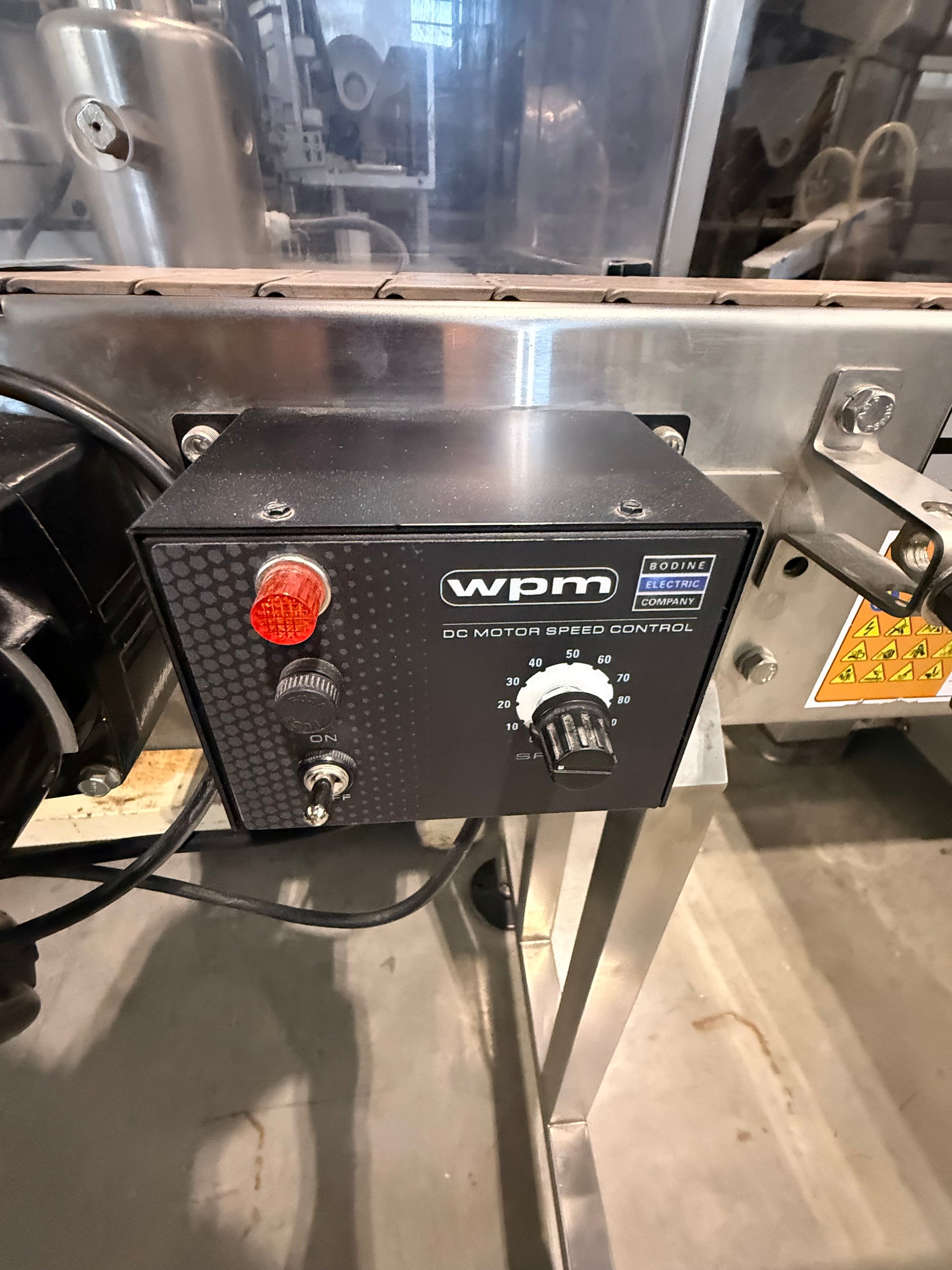

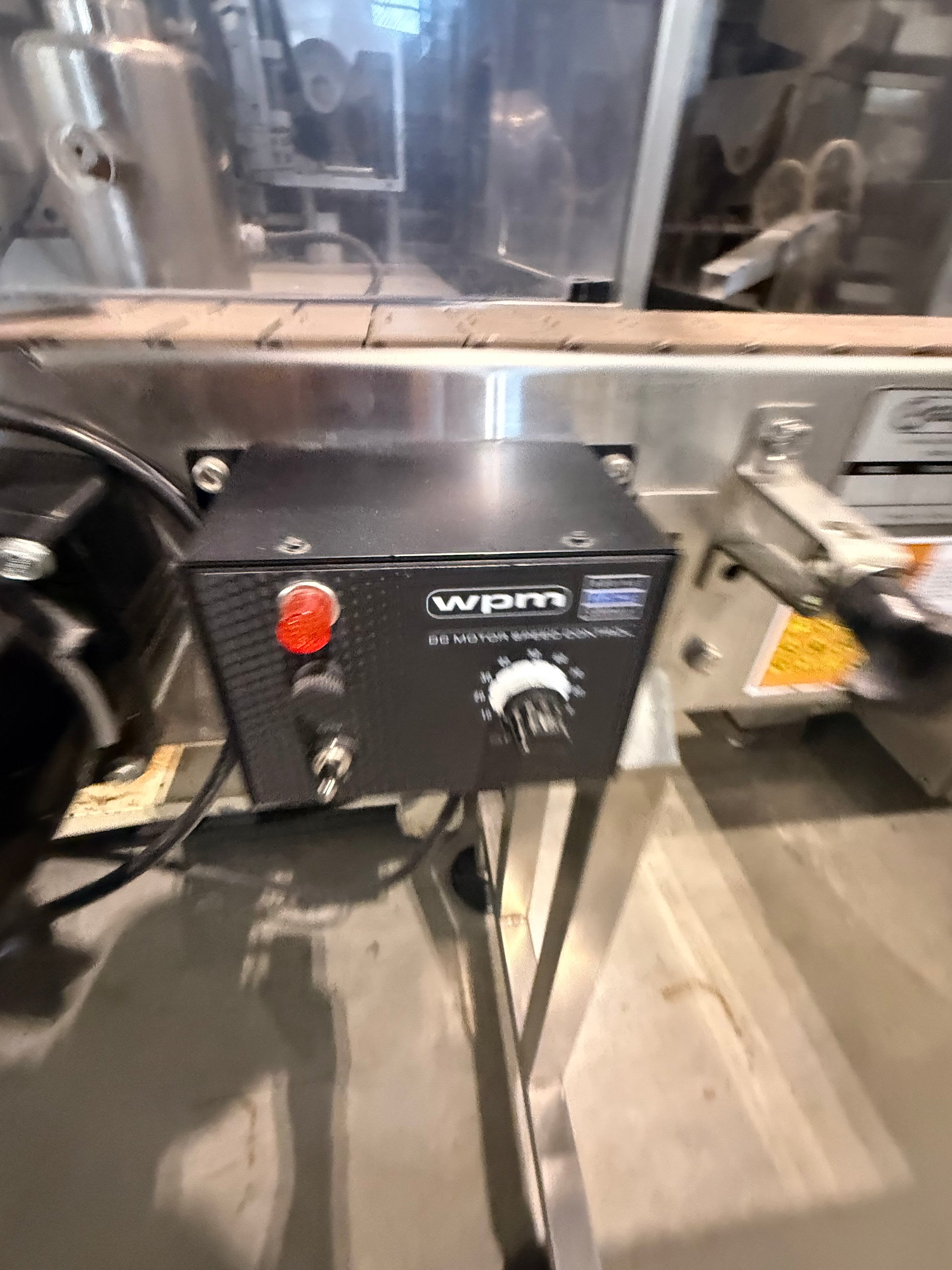

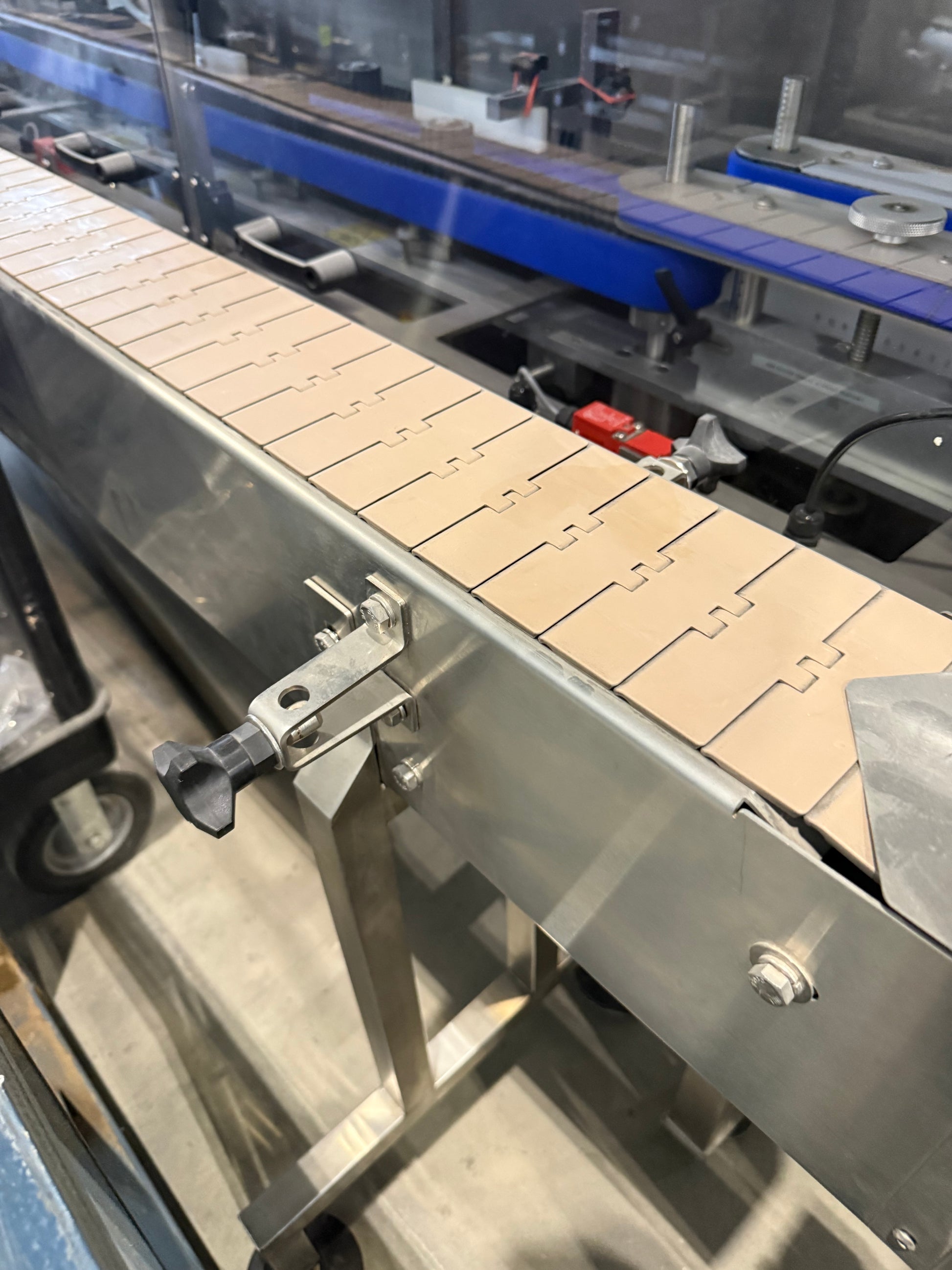

GlobalTek® offers a wide range of inline conveyor systems, customizable to fit your specific floor plan and production needs. Designed with a compact, space-saving profile, our conveyors efficiently transport containers over precise distances within your production line. Built to last, each system features durable 304 stainless steel construction, a reliable Bodine motor made in the USA, and variable speed control for seamless operation. Whether you're optimizing your workflow or scaling production, GlobalTek® conveyors provide a solution that enhances both efficiency and reliability.
Main Features
Made in the USA with 100% UL certified components
Toolless ez-bracket assembly (patent pending)
Stainless steel frame
10' length
4.5" width

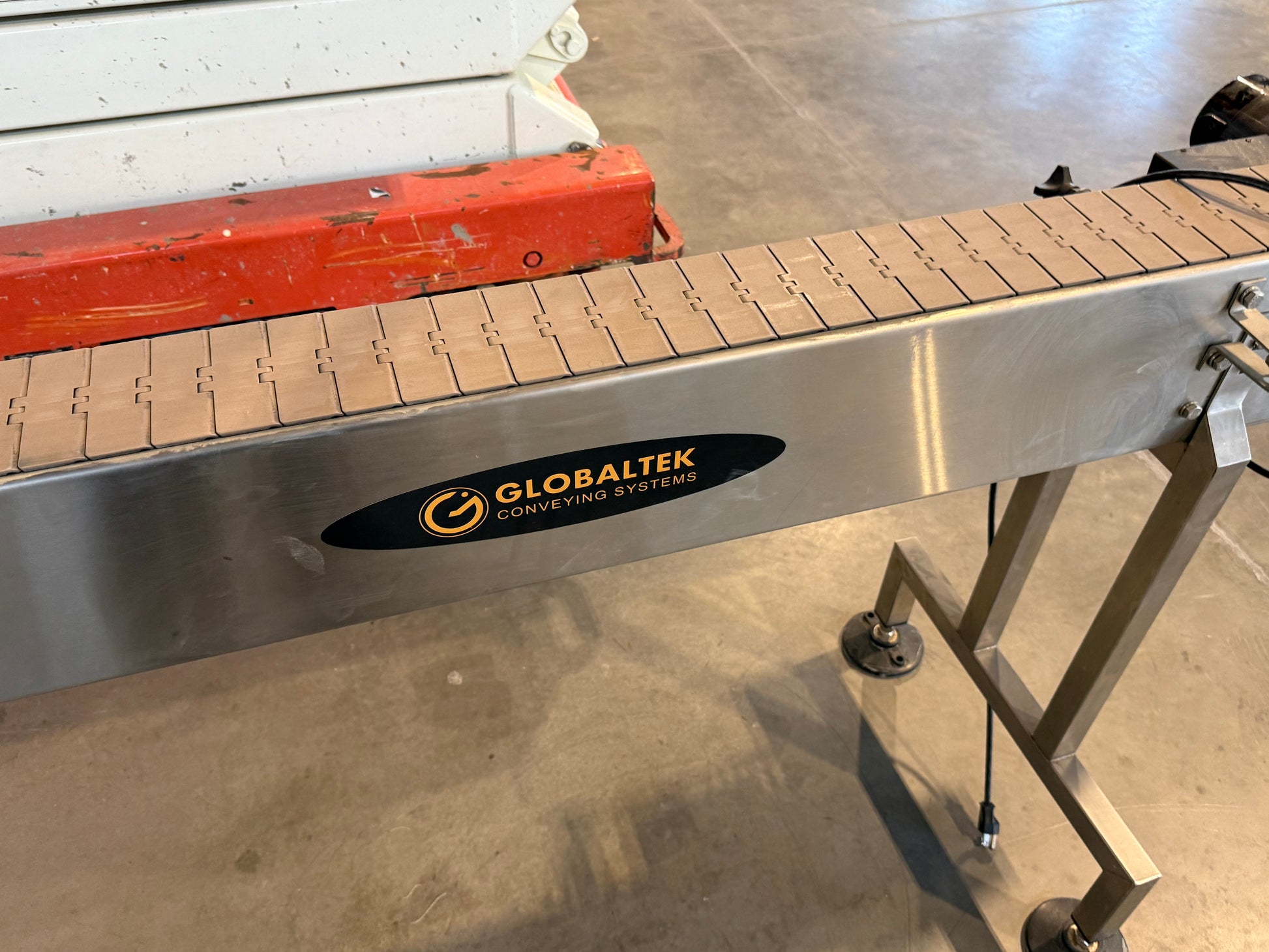

Dual post stainless steel welded base (ideal for lighter and heavier loads)
Adjustable leveling pads
Transfer end plates for pinch-point protection
Chain return guides

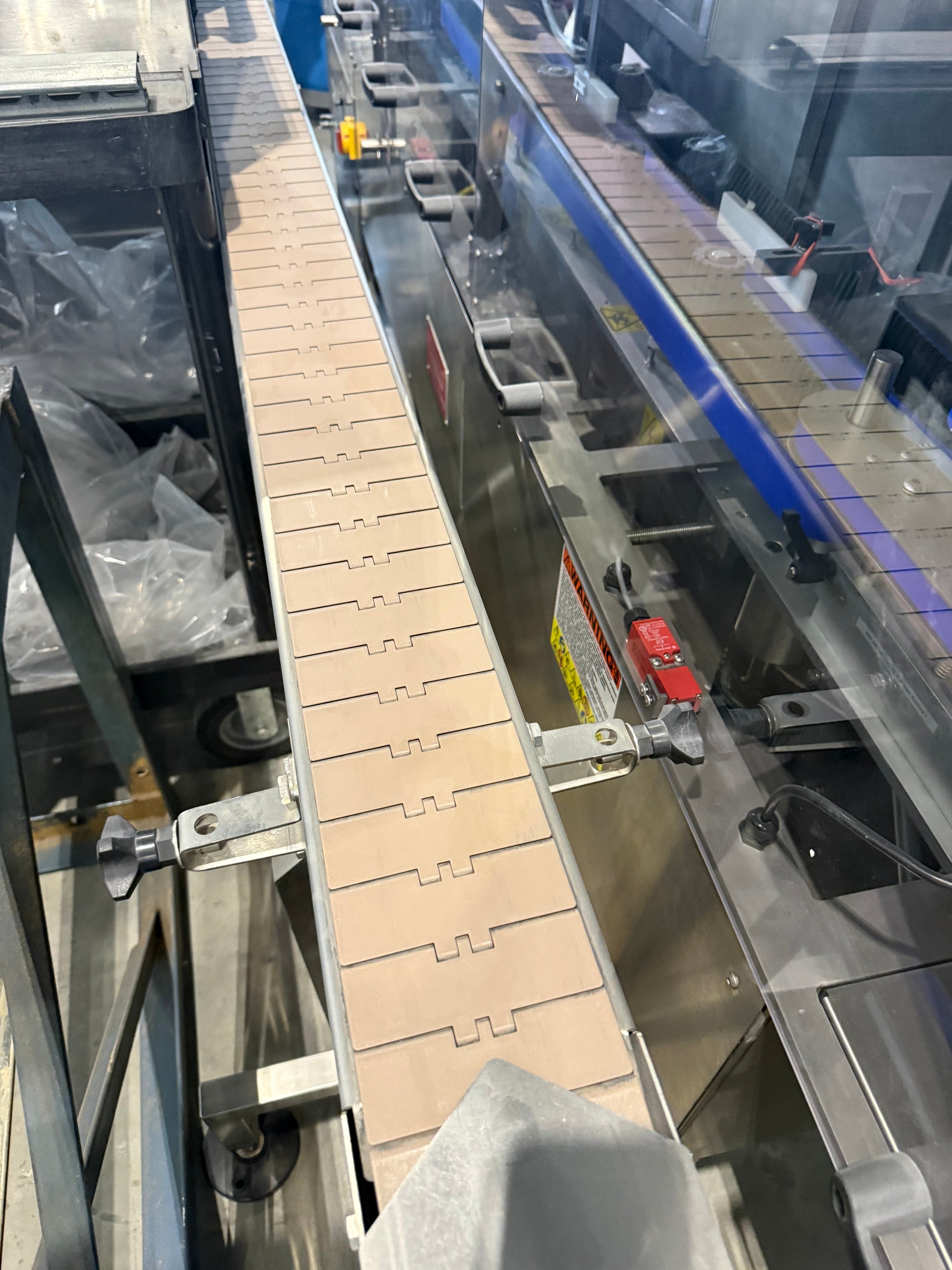

Low friction acetal (Delrin) table top plastic belt (withstands temperatures up to 176°F)

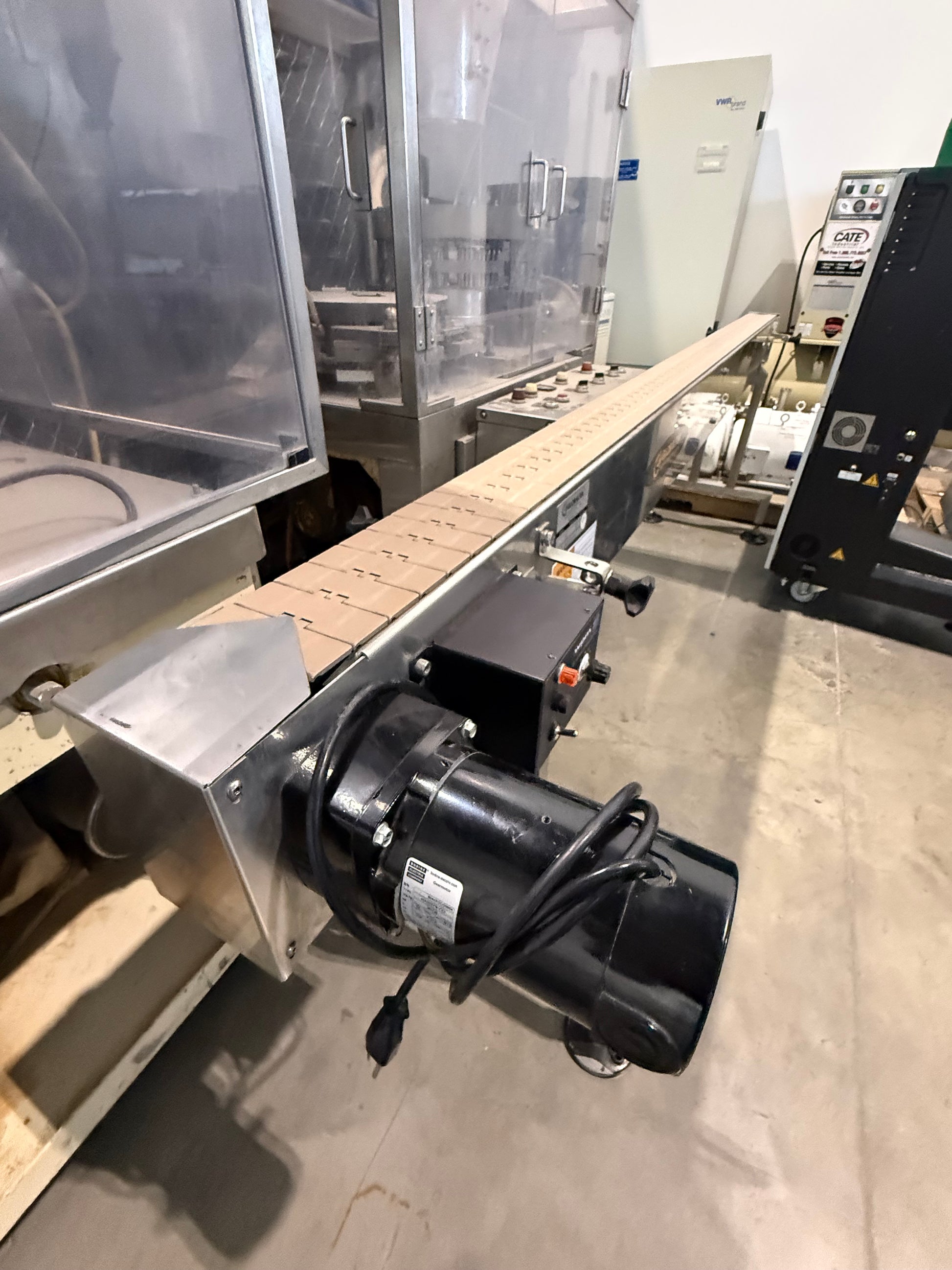

Bodine DC drive
*Several factors can affect this such as total weight on conveyor.
Technical Data
Bodine DC Motor, 3/8 HP, 83 RPM, 248 LB/IN
115 Volts / 1 PH / 60 HZ
Conveyor Standard Length: 10’,
Conveyor Standard Width: 4.5”
Conveyor Standard Belt: Low Friction Acetal (Delrin) Table Top Plastic Belt (Other options upon request)
Floor to Belt Height 35” to 40”
Adjustable Guide Rail Opening: 0” to 1” Wider than Belt
Adjustable Guide Rail Height: 1-3/8” to 4-3/8” (measured from belt to middle of guiderail)
